Crathco-UNIC CS-2D-16-290 Crathco Beverage Hot Water/Beverage Dispe...
Description

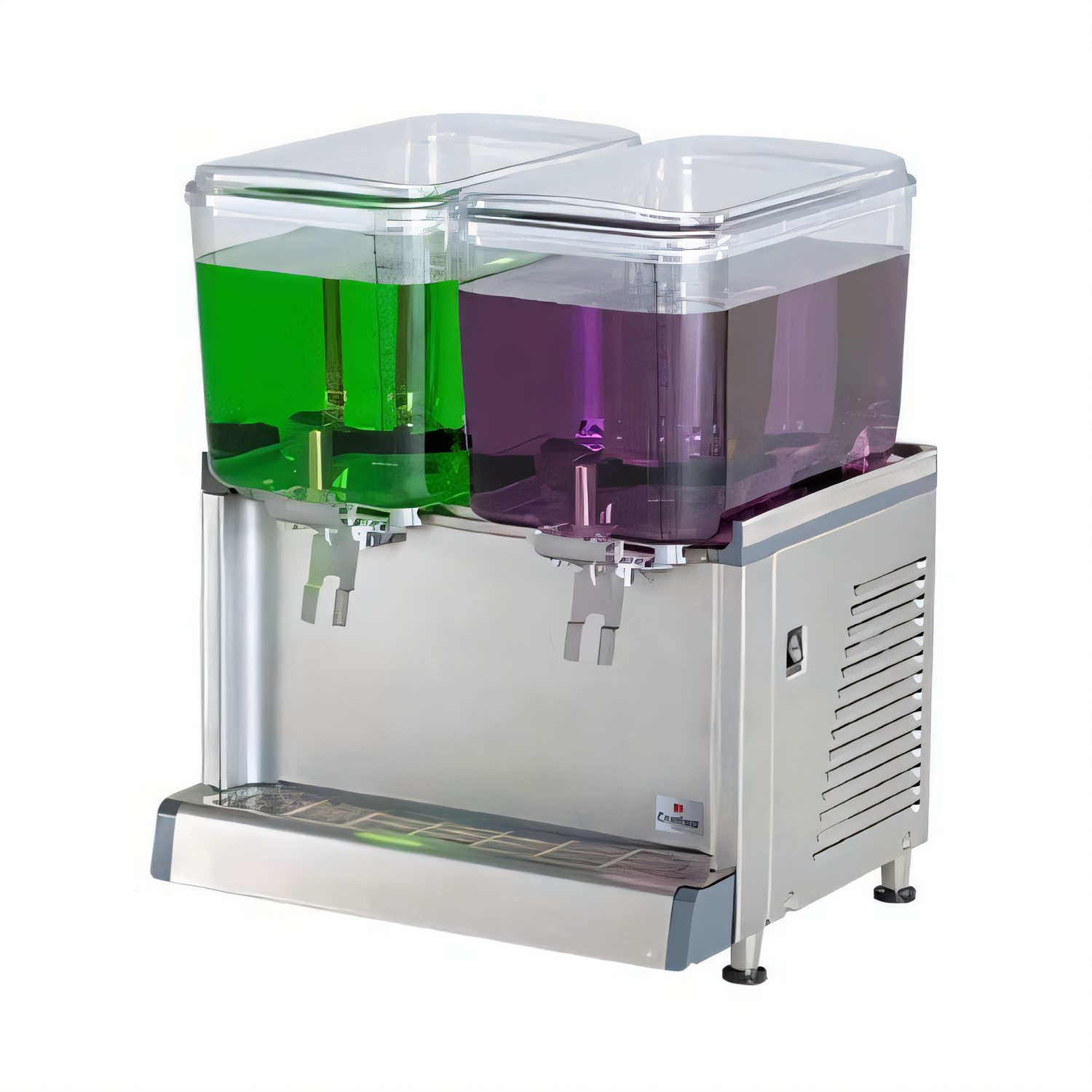

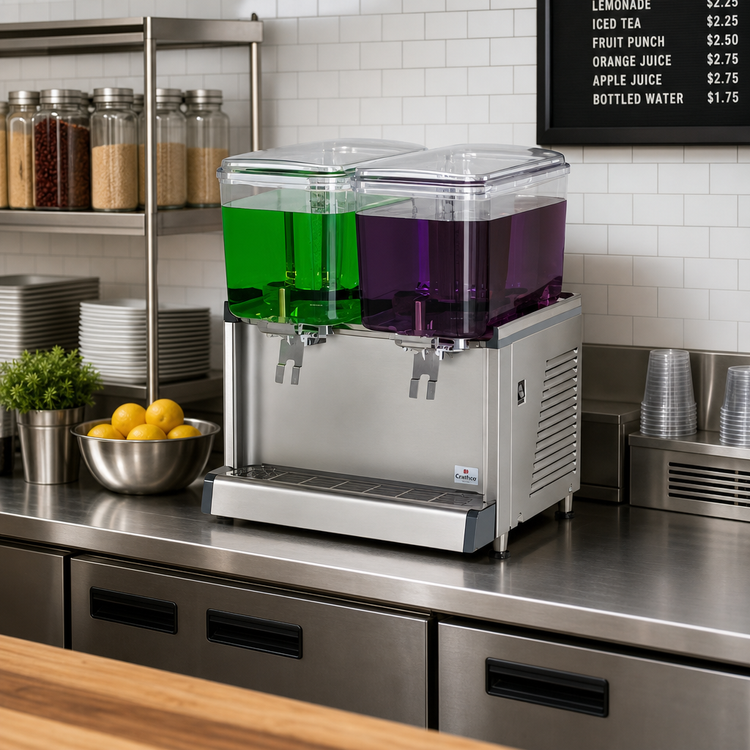

Crathco Simplicity® Bubbler® Twin Standard Cold Beverage Dispenser
Model CS-2D-16-290 • 2 × 4.75 gal (18 L) bowls • 120 VServe perfectly chilled juices, lemonades, horchatas and more with the Crathco Simplicity® Bubbler® Twin Standard. Two crystal-clear 4.75 gal bowls showcase your beverages while a gentle double-agitator keeps product uniformly blended with minimal foaming. Engineered for energy-efficient cooling, fast cleaning and rock-solid reliability, it’s the ideal counter-service solution for cafés, taquerías, convenience stores and caterers.
Why you’ll love it
- Stainless-steel base with 4" legs stands up to heavy commercial use.

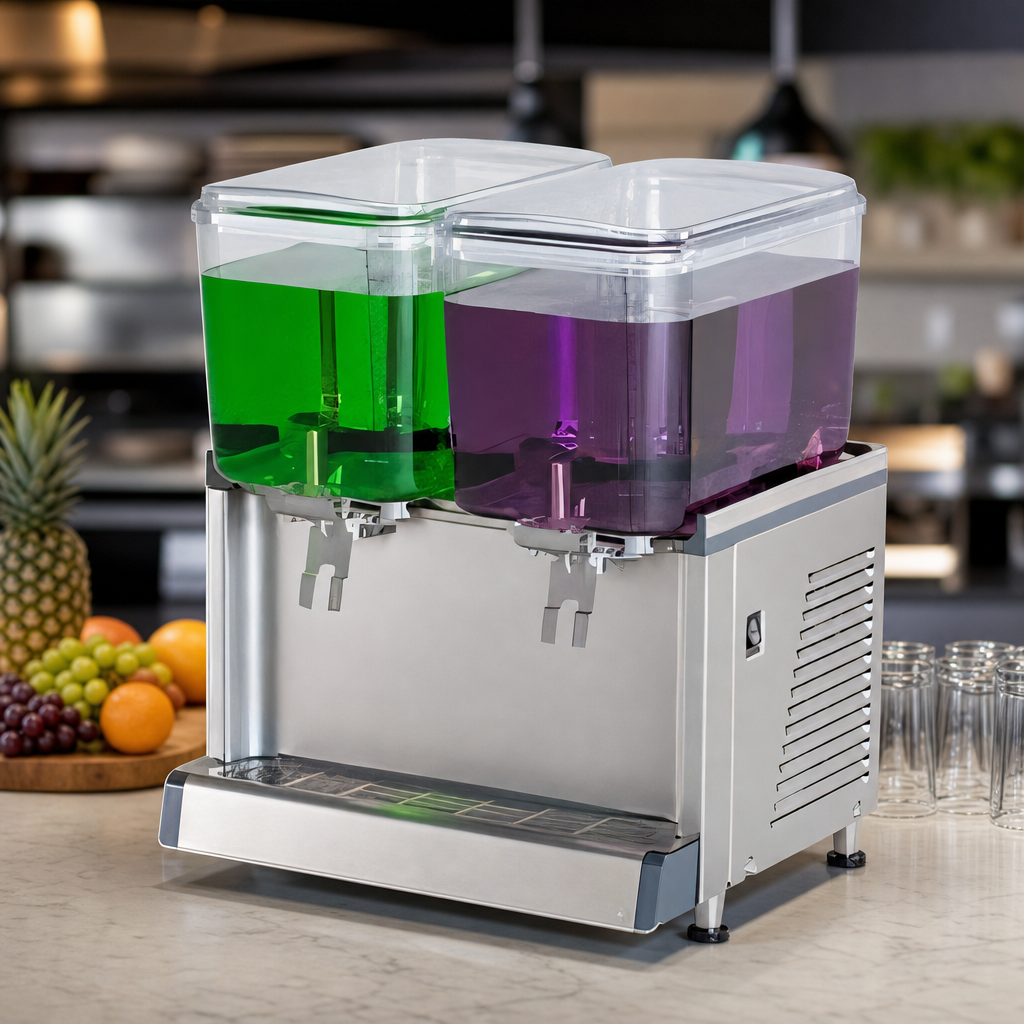

- Two interchangeable 4.75 gal BPA-free bowls (can also accept optional 2.4 gal bowls).
- Heavy-product dispense valves handle thick recipes without clogging.

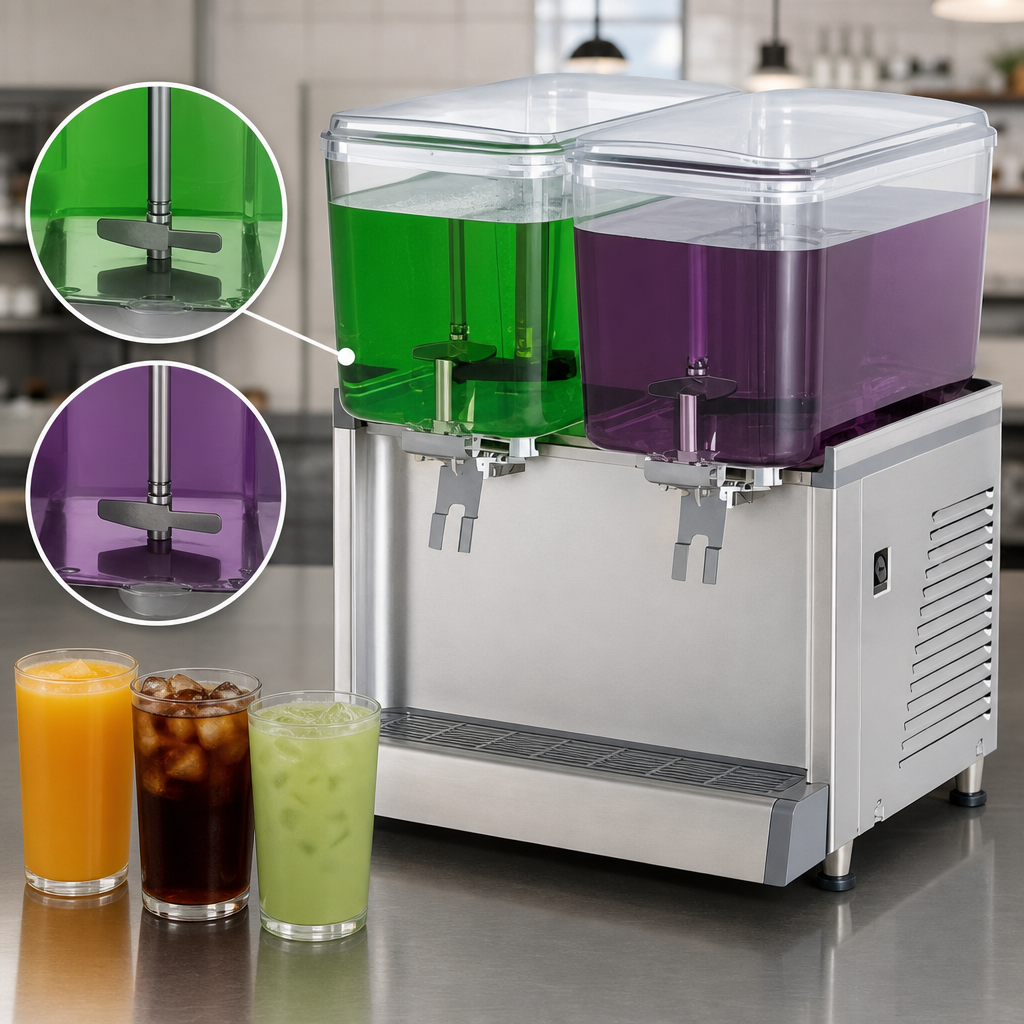

- Double agitators keep juices, coffees & teas evenly mixed and foam-free.
- Easy-off bowl release system and locking lids speed daily cleaning.
- 9" (22.9 cm) cup clearance fits most to-go cups and pitchers.
- Bottom air intake / rear exhaust design improves airflow and lowers energy costs.
- Fewer removable parts = faster cleanup and lower maintenance costs.
- Factory-charged with eco-friendly R290 refrigerant.
Technical Specs
| Capacity | 2 × 4.75 gal (18 L) – total 9.5 gal (36 L) |
|---|---|
| Temperature Range | 35 – 41 °F (1.7 – 5 °C) |
| Cup Clearance | 9" (22.9 cm) |
| Compressor | Approx. 1/8 hp, R290 refrigerant |
| Electrical | 120 V / 60 Hz / 1-ph, 3.5 A, NEMA 5-15P cord & plug |
| Construction | Stainless-steel base, clear polycarbonate bowls, locking lids |
| Overall Dimensions (H × W × D) | 27.5" × 20.5" × 18.5" (70 × 52 × 47 cm) (height includes 4" legs) |
| Net Weight | 95 lb (43 kg) – ships in two boxes |
| Agency Listings | cULus, NSF |
| Warranty | 2 yr parts / 1 yr labor • 5 yr compressor (commercial use) |
Smart maintenance
- Recommended Preventive Maintenance Kit: Crathco #390-00094 (bowls gaskets, seals, impellers & filter).
- Replace air filter located under the base every 9 months for optimum airflow.
- All gaskets and seals are tool-free for quick swap-outs.
Need help or parts? Crathco Technical Services 800-695-4500 • register your unit online for full warranty coverage at grindmaster.com.
