Crathco-UNIC CS-1D-16-290 Crathco Beverage Hot Water/Beverage Dispensers
Crathco-UNIC CS-1D-16-290 Crathco Beverage Hot Water/Beverage Dispensers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crathco-UNIC CS-1D-16-290 Crathco Beverage Hot Water/Beverage Dispe...
Description

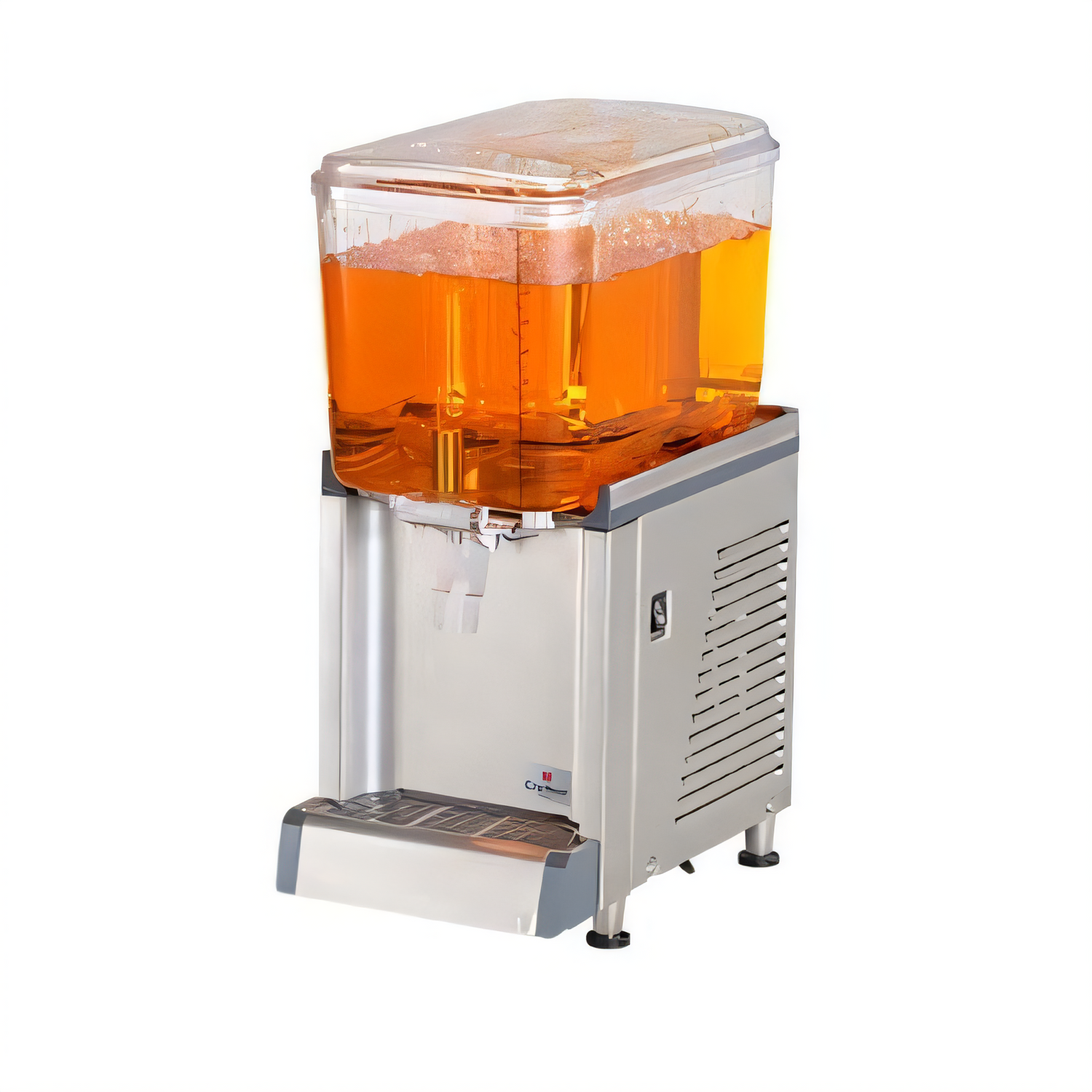

Crathco Simplicity™ Bubbler® Single Pre-Mix Cold Beverage Dispenser – 4.75 gal
Model CS-1D-16-290 | 120 V / 1-PhaseGive guests an ice-cold pour of lemonade, agua fresca, cold-brew coffee or iced tea from a footprint that’s barely wider than a sheet of paper. Crathco’s Simplicity™ Bubbler® pairs a durable stainless-steel base with an easy-clean, crystal-clear bowl that keeps every ounce of product moving, chilled and ready to serve.
Why you’ll love it
- 4.75 gal (18 L) single bowl merchandises up to (76) 8 oz servings.

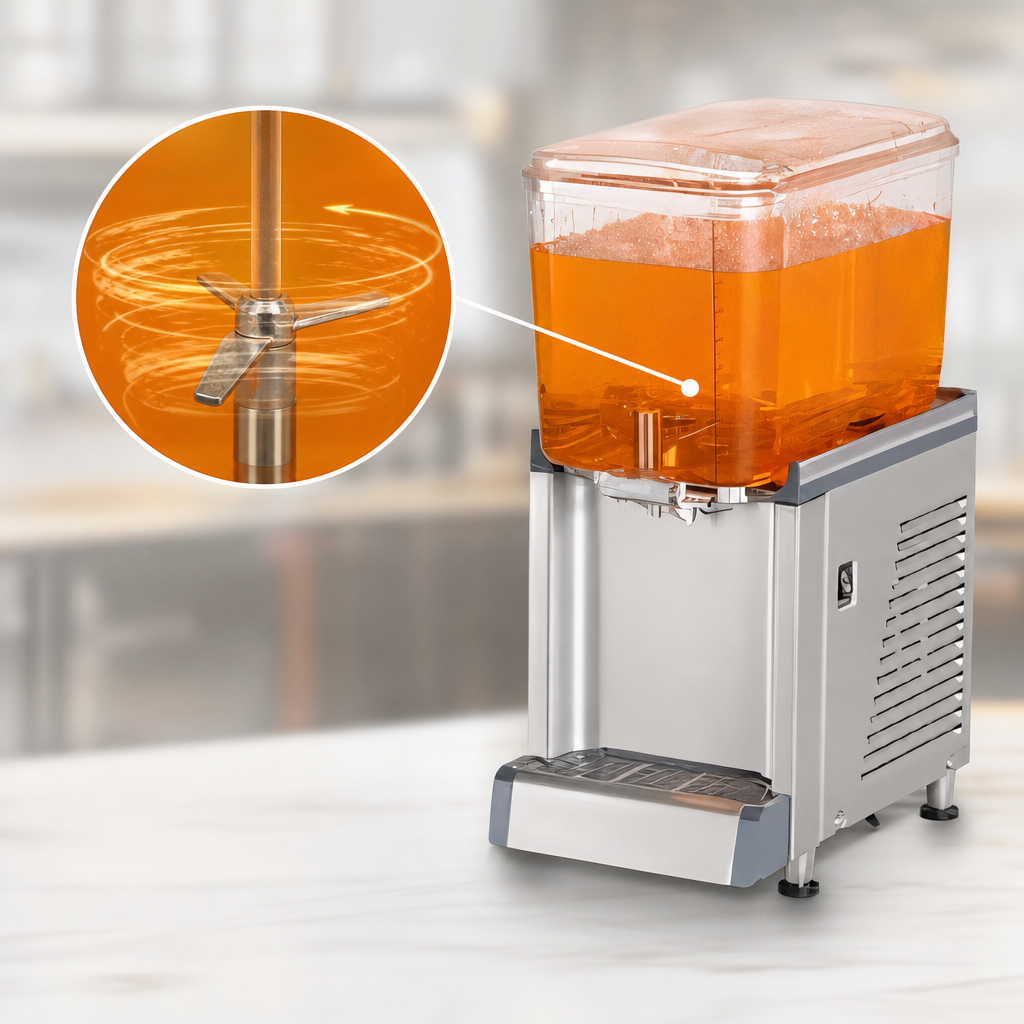

- Standard agitator minimizes foam—perfect for fresh juices, coffees & teas.
- Heavy-product dispense valve handles thicker recipes like horchata or lemonade slush.
- Energy-smart cooling draws air from the bottom & exhausts to the back, powered by an eco-friendly R290 refrigerant and 1/10 HP compressor.
- 9" (22.9 cm) cup clearance fits most takeaway cups and pitchers.
- Easy-off bowl release and locking lid speed up cleaning while protecting staff.

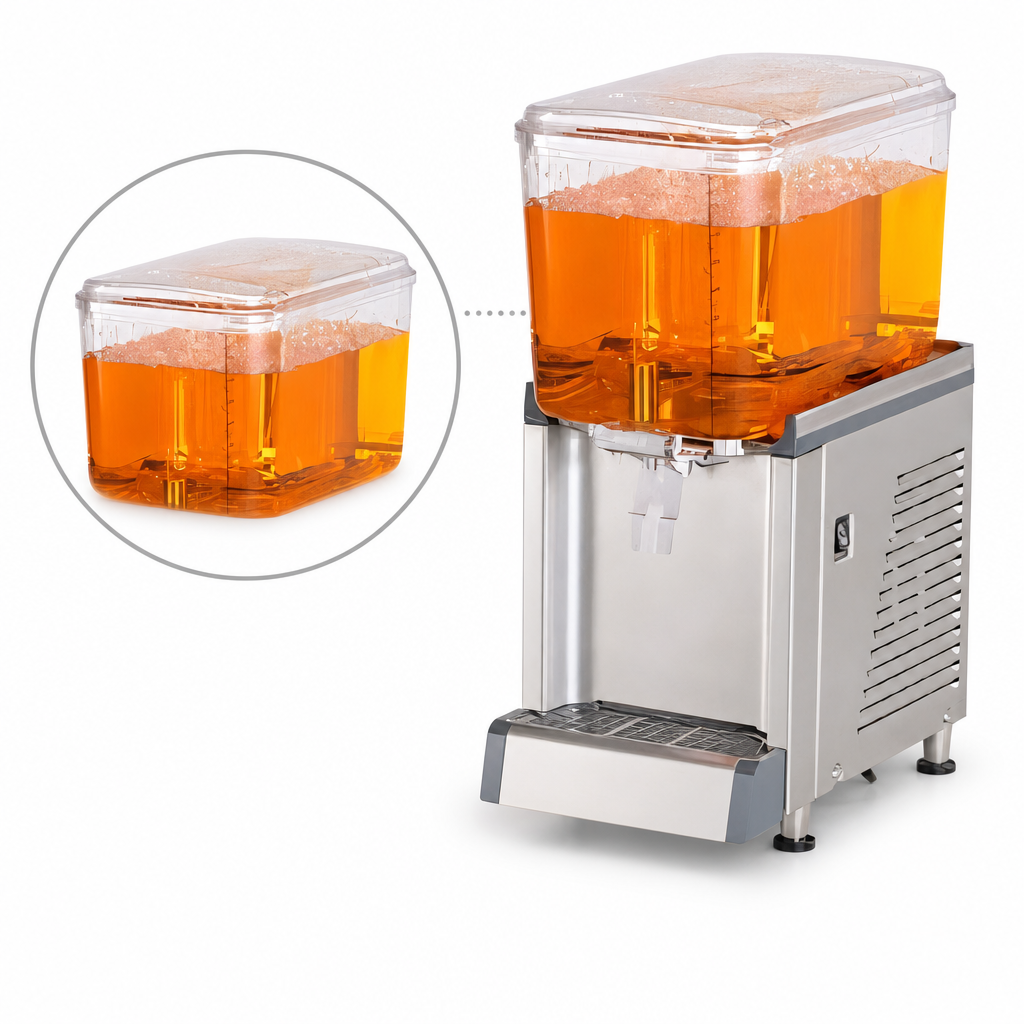

- Interchangeable design lets you swap the 4.75 gal bowl for two 2.4 gal bowls (sold separately) without tools.
- Fewer removable parts mean 30 % less cleaning time than older bubblers.
- Compact 10.5" (27 cm) width frees up valuable counter space.
Technical specifications
| Capacity | (1) 4.75 gal / 18 L clear polycarbonate or BPA-free bowl |
|---|---|
| Temperature range | 35 – 41 °F (1.7 – 5 °C) |
| Cup clearance | 9" (22.9 cm) |
| Overall dimensions | 27.5" H × 10.5" W × 18.5" D (70 × 27 × 47 cm) Includes 4" legs |
| Electrical | 120 V / 60 Hz / 1-ph, 1/10 HP, up to 3.6 A, NEMA 5-15P cord & plug |
| Refrigerant | Natural R290 (low-GWP) |
| Construction | Stainless-steel base, clear bowl, locking lid, 4" adjustable legs |
| Certifications | NSF, cULus Listed |
| Shipping | Ships in two boxes – base 53 lb (24 kg), bowl 13 lb (6 kg) | Total 66 lb (30 kg) |
| Preventive maintenance | PM kit #390-00094 | Replace bowl gasket, impeller, plunger seal & filter every 9 months |
Crathco warranty coverage
- 1 year on-site labor (pre-authorized).
- 2 years parts.
- 5 years compressor.
Warranty begins at shipment or customer registration date (whichever is earlier) and requires online activation at grindmaster.com.
