Crathco-UNIC CLASSIC 2 HPSA UNIC Espresso Equipment Espresso Machines
Description
Classic Plus 2 SteamAir — High-Profile Espresso Machine
Model 602944 | 2-Group Automatic | 10 L Steam BoilerEngineered by UNIC for cafés that refuse to compromise during the rush, the Classic Plus 2 SteamAir delivers uncompromising temperature stability, an over-abundant supply of dry steam, and the tall-cup clearance baristas need for modern to-go service. Produce up to 200 drinks a day, pull four perfect espressos at once, and finish milk hands-free with patented SteamAir auto-foaming technology—all in a rugged stainless-steel chassis built for years of commercial duty.
Key Advantages

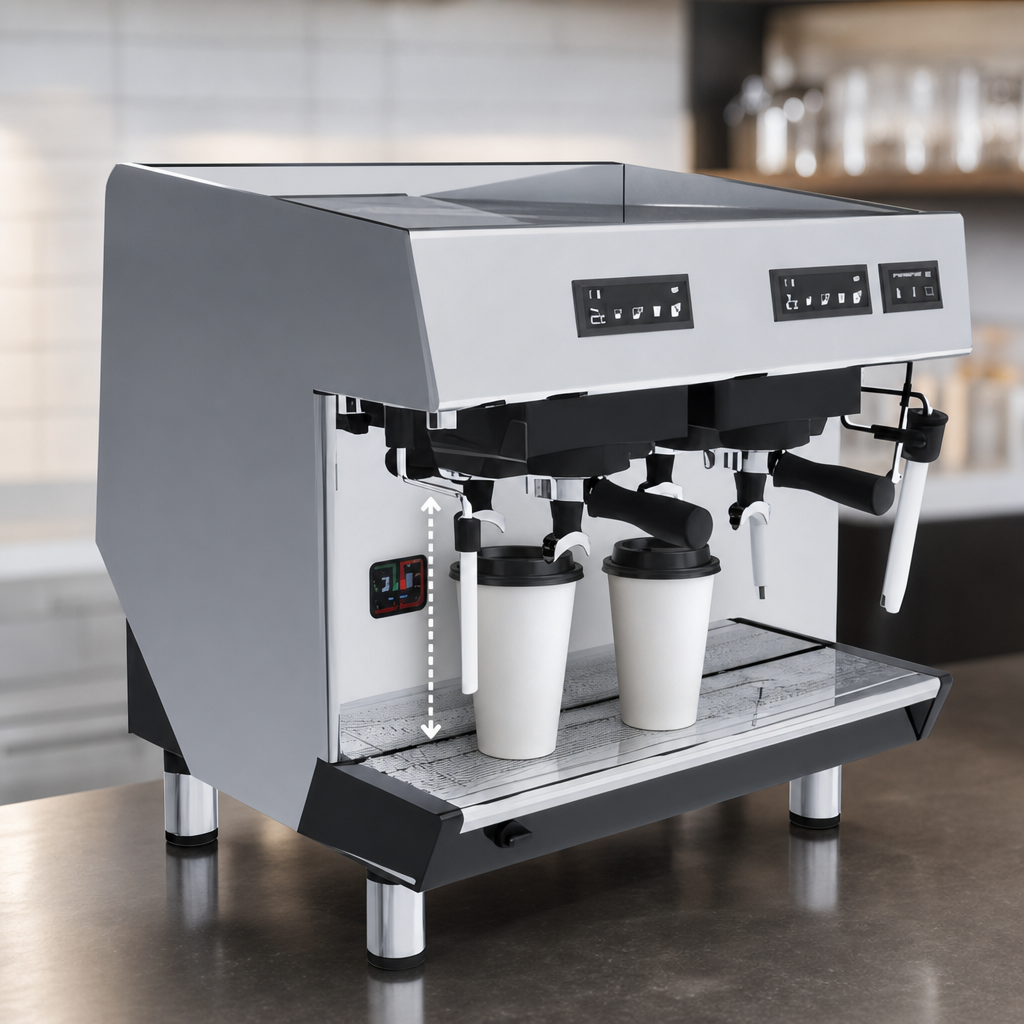

- High-profile design fits cups up to 7 in (178 mm) tall—ideal for large to-go beverages.
- 10 L, 4.6 kW insulated steam boiler eliminates recovery time during peak demand.

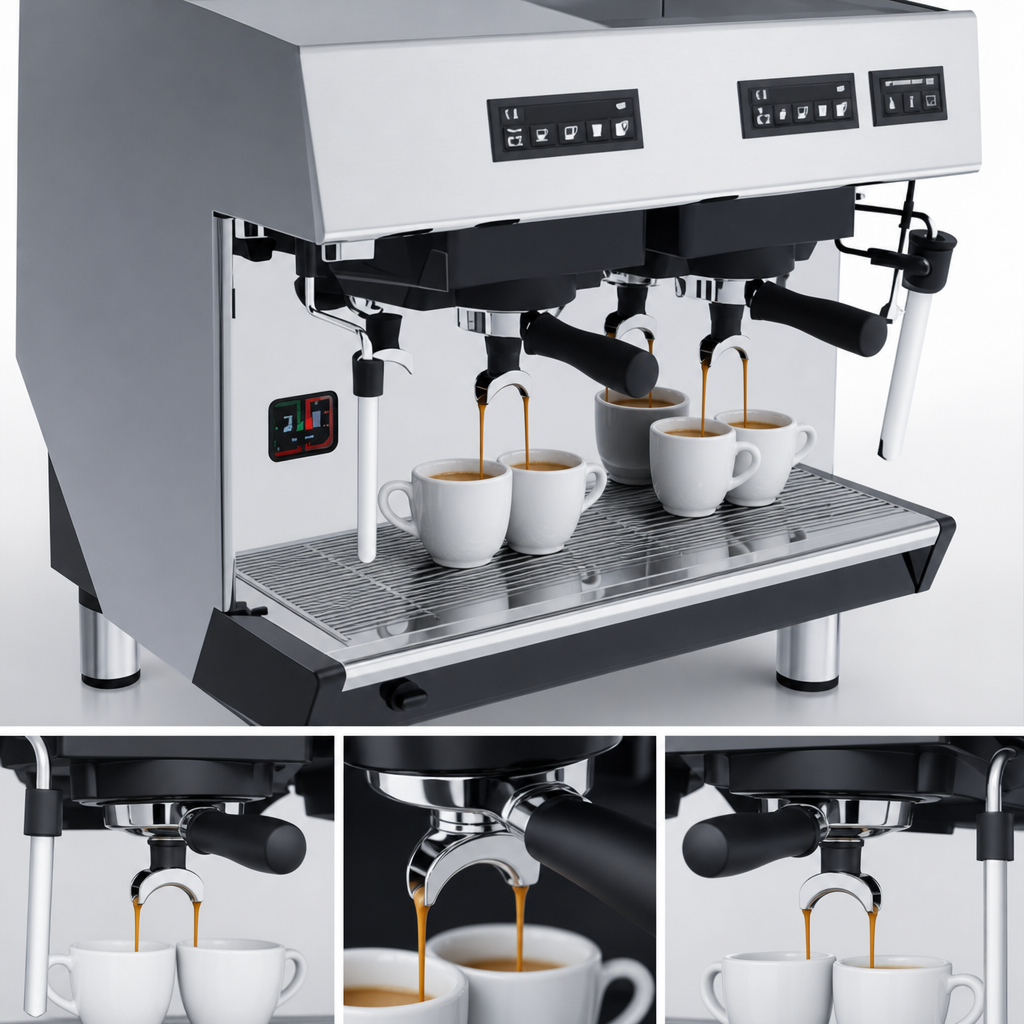

- Brews 4 espressos simultaneously from dual, direct-to-boiler group heads for rock-solid temperature stability.
- 4 programmable volume keys plus 2 semi-automatic keys per group give baristas total control.
- SteamAir wand automatically textures milk to a set temperature & density—perfect micro-foam at the press of a key.
- Manual “glide-lever” steam wand on the left side offers fine control for latte art.
- Twin pressure gauges monitor pump & steam in real time; integrated shot timers keep every extraction on spec.
- Built-in cup warmer and large drip tray with direct drain connection keep workflow smooth and sanitary.
- Full-size rotary vane pump handles heavy volume and reduces service noise.
- NSF, cETLus & ETL-Sanitation listed for worry-free code compliance.
What’s in the Box
- (1) Single portafilter with 7 g basket
- (2) Double portafilters with 14–16 g baskets
- (1) Blank portafilter for back-flushing
- Stainless-steel braided water hose, ½ in NPT
- Drain line kit & user documentation
Technical Specifications
| Groups / Spouts | 2 groups, double spouts |
|---|---|
| Daily Capacity | 150 – 200 drinks |
| Simultaneous Shots | 4 espressos |
| Steam Boiler | 10 L – 4.6 kW (4300 W heating element) |
| Power Requirement | 230 V / 60 Hz / 1-phase, 30 A dedicated circuit |
| Dimensions (W × D × H) | 25 in × 23 in × 26 in (635 × 584 × 660 mm) |
| Net Weight | 139 lb (63 kg) |
| Shipping Weight | 166 lb (75 kg) |
| Water Connection | ½ in NPT cold-water inlet, min 30 psi (2 bar) |
| Drain Connection | Open gravity drain, 1.25 in ID within 4 ft |
| Certifications | NSF, cETLus, ETL-Sanitation |
Utility & Installation Notes
- Machine must be installed by a UNIC Authorized Service Agent to maintain warranty.
- Water hardness should not exceed 3 GPG; a water softener is required above this level.
- Provide a dedicated 30 A, 230 V single-phase outlet within 4 ft (1.2 m) of the installation site.
- Counter cut-outs for power, water, and drain lines should be prepared in advance.
- Allow space to access the rear and sides for service; the unit ships with 3-in leg extensions for easy cleaning under the machine.
Looking for automatic milk cycling or E.S.E. pod compatibility? Optional L/C foamer and pod baskets are available—ask your UNIC representative.
