Crathco-UNIC  |  UNIC Espresso Equipment  |  SKU: CLASSIC 1

Crathco-UNIC CLASSIC 1 UNIC Espresso Equipment Espresso Machines

$5,012.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation terms Warranty Installation checklist
Related Searches
Beverage Equipment Beverage Equipment Commercial Coffee Makers Commercial Espresso Machines Ice Machines & Beverage Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

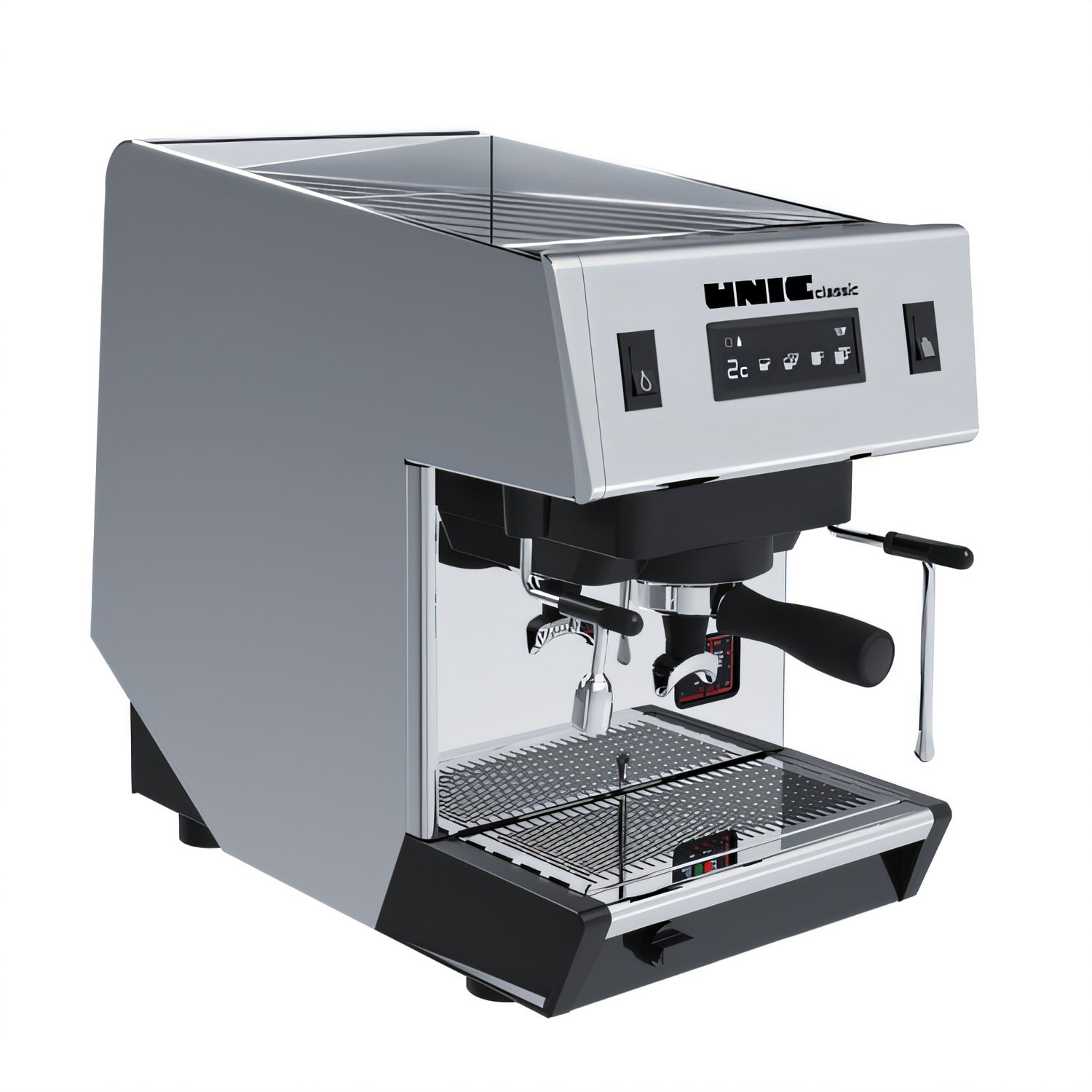

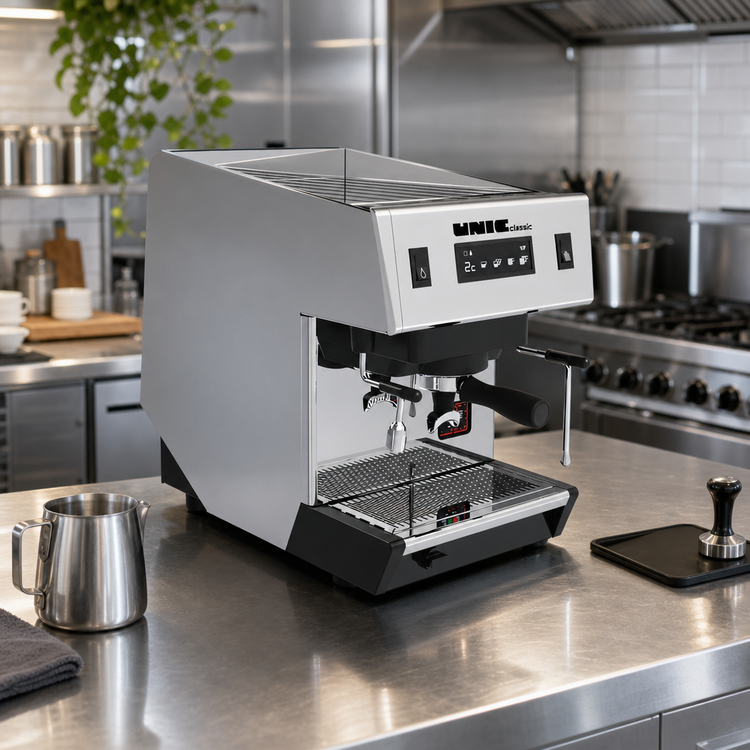

UNIC Classic 1 Traditional Espresso Machine

Model LV602645 • 1-Group • 50-100 drinks/day

Built for rugged commercial use yet sized for the smallest counters, the UNIC Classic 1 delivers rock-solid temperature stability, instant steam recovery and barista-friendly controls—perfect for cafés, bakeries, caterers and office coffee programs producing up to 100 drinks per day.

Key features
  • 6.3 L steam boiler ensures over-abundant steam with zero recovery time.
  • Direct-to-boiler mounted group head maintains brew temperature stability.
  • Four programmable volumetric keys plus a semi-automatic button for manual control.
  • Stainless steel steam arm & separate hot-water outlet, each with on/off/pulse switch.
  • Twin pressure gauges for quick pump & steam diagnostics.
  • Integrated shot timer and built-in cup warmer streamline service flow.
  • Full-size rotary vane pump with automatic boiler refill for uninterrupted operation.
  • Durable stainless panels and welded steel frame built to handle rush periods.
Included accessories
  • (1) single portafilter – 7 g basket
  • (1) double portafilter – 14-16 g basket
  • (1) blind (cleaning) portafilter
  • Stainless braided ½" NPT water hose & drain line
  • 115 V / 20 A cord cap
Technical specifications
Model / SKU Classic 1 – LV602645
Groups 1
Daily capacity 50 – 100 drinks
Boiler capacity 6.3 L steam boiler – 1.7 kW

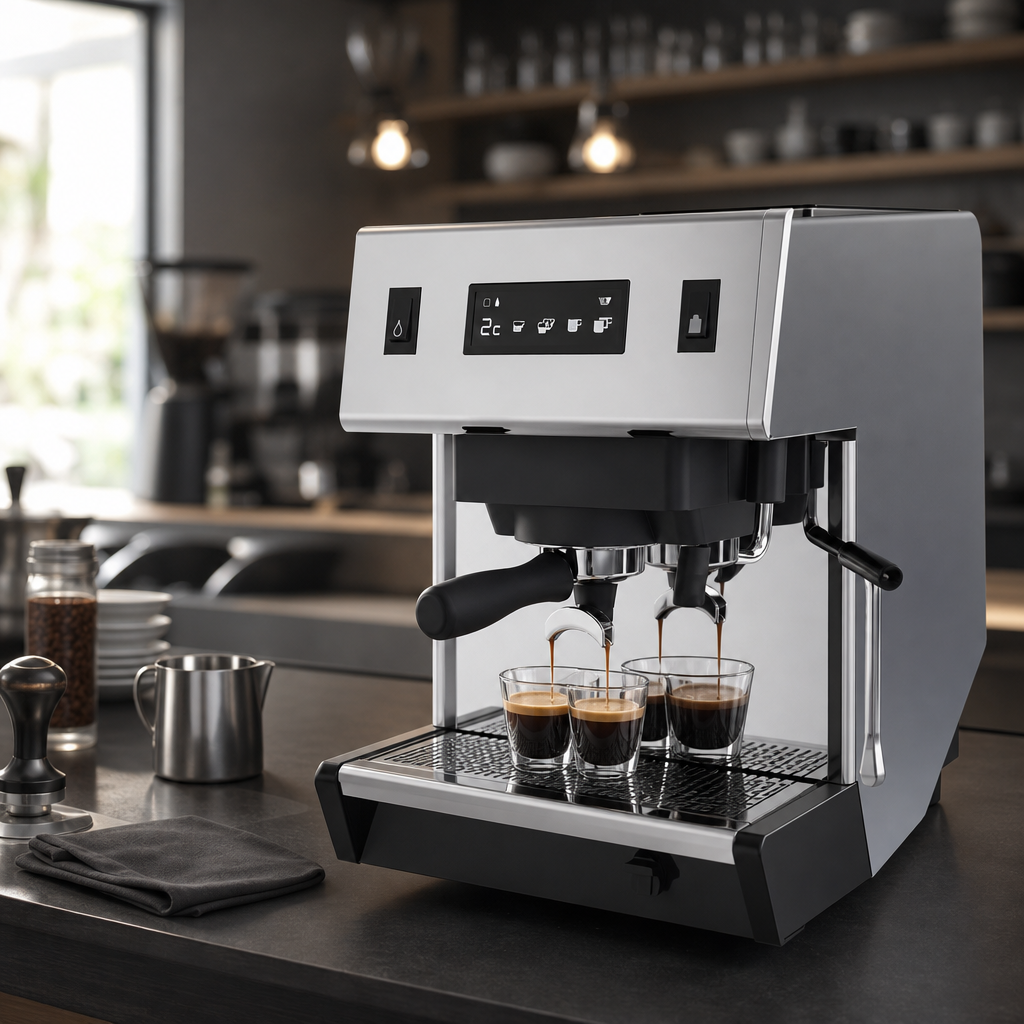

Brew capacity Brews two espressos simultaneously
Power 110 V / 60 Hz / 1-phase, 20 A
Dimensions (W × D × H) 14" × 23" × 23" (356 × 584 × 584 mm)
Weight 81.5 lb (37 kg)
Pump Internal rotary vane
Certifications cETLus, ETL-Sanitation
Utility requirements
  • Dedicated 115 V, 20 A outlet (NEMA 5-20R) within 4 ft of unit.
  • Cold water supply: ≥ 30 GPH @ 20 – 60 psi via ½" NPT shut-off valve.
  • Water hardness ≤ 3 GPG; a softener is required above this level.
  • Open gravity drain ≥ 1.25" ID within 4 ft.

Site must meet the above utilities before scheduling service. Installation by a UNIC-authorized technician is required to activate the warranty.

Need automatic milk foaming? Add the optional L/C Foamer for hands-free hot milk or micro-foam (external fridge required, sold separately).
Warranty

1-year parts & labor warranty when installed by an authorized UNIC service agent. Full terms available on request.

Features & Specs

Manufacturer

Crathco-UNIC

Brand_name

UNIC Espresso Equipment

Certifications

cETLus, ETL-Sanitation

Height

23.0in

Width

14.0in

Depth

22.0in

Shipping Weight

93.0lbs

Operation

automatic

Group Head(s)

1 Group

Specifications

UNIC Espresso Equipment - (LV602645) Classic Series Espresso Machine, 1 group, automatic, 6.3 liter steam boiler capacity, 50-100 drinks daily, brews (2) espressos simultaneously, direct-to-boiler mounted group head, (1) single, (1) double & (1) blank portafilters, pump & steam pressure gauges, (4) programmable volume keys, (1) semi-automatic key for manual control, (1) stainless steel steam arm, (1) hot water dispenser, integrated shot timer, built-in cup warmer, full-sized rotary vane pump, 1.7 kW, 110v/60/1-ph, 20 amps, cETLus, ETL-Sanitation
