Crathco-UNIC CLASSIC 1 HPSA UNIC Espresso Equipment Espresso Machines
Description

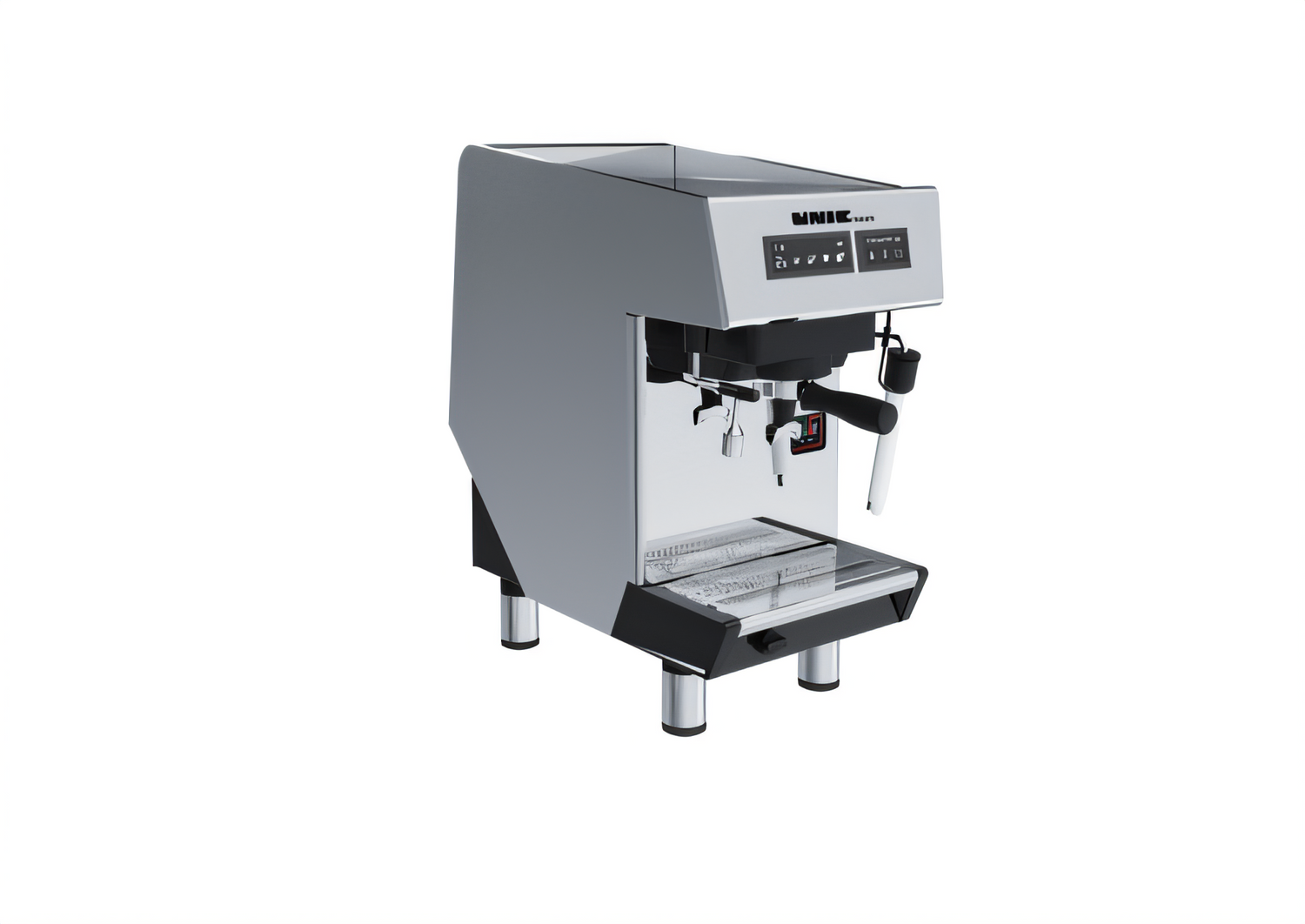

UNIC Classic Plus 1 SteamAir – High-Profile Espresso Machine
Model LV602943 | 1-Group | 110 VBuilt for cafés, bakeries, restaurants and mobile set-ups pulling up to 100 drinks a day, the Classic Plus 1 delivers full-sized commercial horsepower in a footprint that fits virtually anywhere. Tall-cup clearance, one-touch volumetrics and UNIC’s SteamAir automatic milk system empower baristas of every skill level to serve consistent, high-quality drinks—rush after rush.
Key Benefits
- 7 in (178 mm) cup clearance – brew directly into large to-go cups.
- Four programmable volume keys plus a semi-automatic button for manual control.
- SteamAir wand with automatic temperature & micro-foam control—perfect latte art at the press of a key.
- 6.3 L steam boiler (1.7 kW) supplies instant, over-abundant steam with zero recovery time.
- Direct-to-boiler mounted group head guarantees extraction temperature stability.
- Integrated shot timer, steam & pump pressure gauges keep quality dialed-in.
- Full-sized rotary vane pump and automatic boiler refill for uninterrupted service.
- Stainless-steel panels & welded steel frame stand up to demanding commercial environments.
- Built-in cup warmer maximizes workflow efficiency.
- NSF, cETLus & ETL-Sanitation certified.
What’s Included
- (1) single portafilter — 7 g basket
- (1) double portafilter — 14-16 g basket
- (1) blind/cleaning portafilter
- Stainless-steel braided water inlet hose (½" NPT) & drain hose
- 115 V / 20 A cord & plug
Specifications
| Daily capacity | 50 – 100 drinks |
|---|---|
| Groups | 1 (brews two espressos simultaneously) |
| Boiler | 6.3 L steam boiler – automatic refill |
| Power | 1.7 kW | 110 V | 20 A | 60 Hz | 1-phase |
| Pump | Built-in rotary vane |
| Steam wands | 1 × SteamAir auto-foam/auto-temp |
| Hot water | 1 programmable outlet |
| Programmability | 4 volumetric keys + 1 manual key |
| Shot tools | Timer, dual pressure gauges |
| Dimensions (W × D × H) | 14" × 22" × 26" (356 × 559 × 660 mm) |
| Weight | 99 lb (45 kg) | Shipping: 121 lb (55 kg) |
| Certifications | NSF, cETLus, ETL-Sanitation |
Utility Requirements
- Dedicated 110-115 V, 20 A receptacle within 4 ft (1.2 m) of machine.
- Cold-water line ½" NPT with shut-off, 30-100 psi (2-7 bar), ≤ 3 GPG hardness (softener required above).
- Gravity drain ≥ 1.25" ID within 4 ft (1.2 m).
Installation must be performed by an authorized UNIC service agent to activate warranty.
Perfect For
- Specialty coffee shops needing a compact, high-cup-clearance workhorse
- Bakeries, bars & restaurants adding an espresso program
- Mobile carts, kiosks & food trucks with 20 A, 110 V power availability
Put UNIC’s legendary consistency and durability on your counter and let every shot tell your brand’s story.
