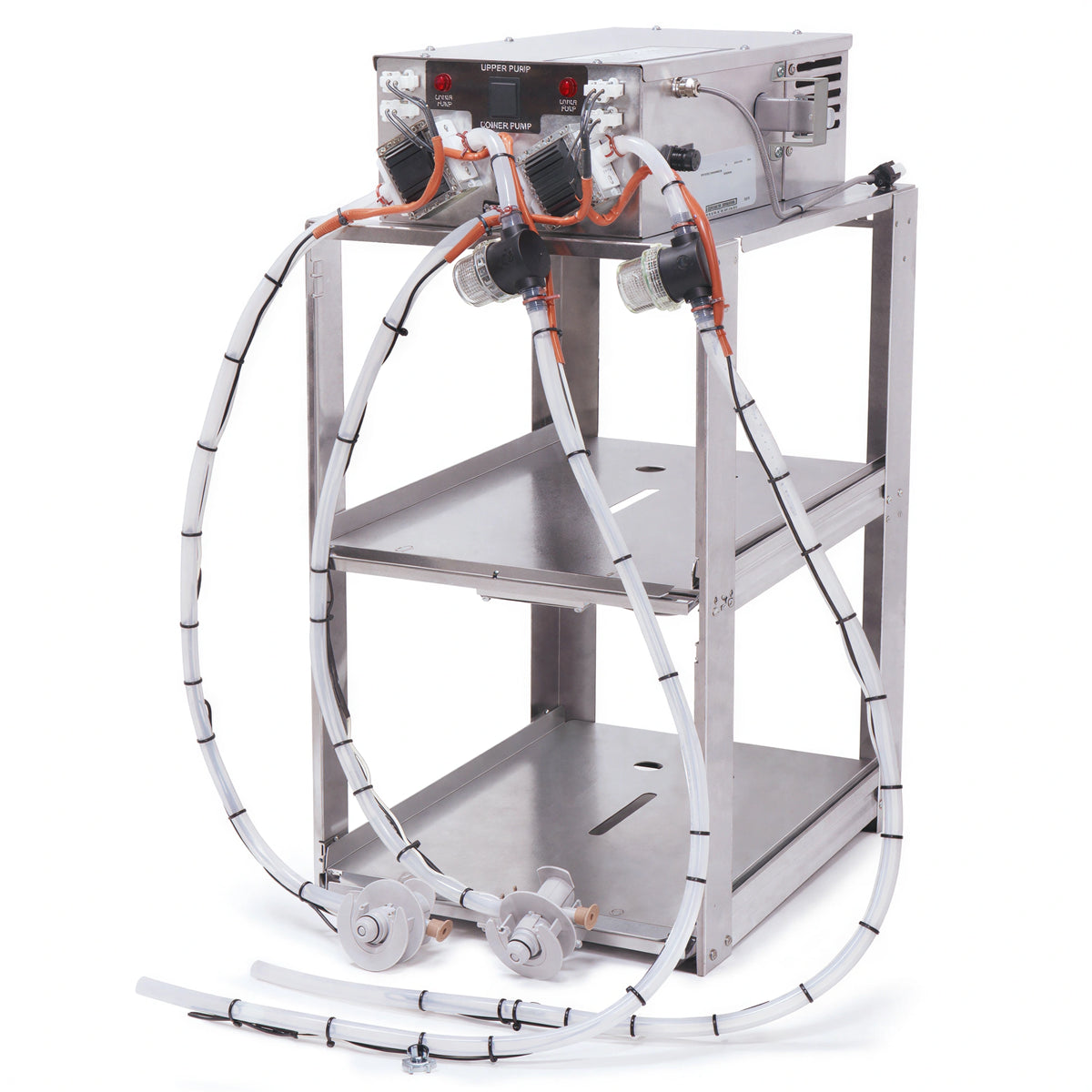

Gold Medal 2257-00-224 Dual-Select Bag-in-Box Oil Dispense Unit with 2 Pumps, Heated Lines & Load Cell Sensors
- Dispensing configuration
- Dual-select bag-in-box, no timer
- Oil pumps
- 2 dedicated pumps
- Oil box capacity
- 2 boxes, 35 lb each
- Oil level sensing
- Load cell sensor for each box
- Oil line heating
- Heated oil lines on both pumps
- Compatibility
- -800 Series Elite Popper® with two oil lines to the kettle
Specifications
Description
The Gold Medal 2257-00-224 is a dual-select, no-timer bag-in-box oil dispense unit for use with -800 Series Elite Popper® equipment with two oil lines to the kettle.
It includes two dedicated oil pumps, load cell sensors for monitoring each oil box, and heated oil lines on both pumps. The popper controls dispense timing and allows selection of the upper or lower oil box from its touch screen.
- Holds two 35-pound boxes of oil.
- Operates on 120 V, 340 watts, and 60 Hz power.
- Uses a 6-pin plug assembly and is powered by the popper.
Overall Dimensions:
13.26"W x 17.94"D x 26.48"HProduct Weight:
48.9 lbDual-select dispensing
The user can select the upper or lower box of oil from the popper touch screen.
No-timer operation
The popper controls dispense timing.
Dedicated oil pumps
Two oil pumps are included, with one dedicated pump for each box of oil.
Load cell oil sensing
A load cell sensor for each box detects oil level, which is shown on the popper control.
Heated oil lines
Heater/blower and heated oil lines are provided on both pumps.
Two-box capacity
The unit holds two 35-pound boxes of oil.
Popper-powered connection
The unit uses a 6-pin plug assembly and is powered by the popper.
