Globe (Middleby) GSM175 Globe Spiral Dough Mixers
Description

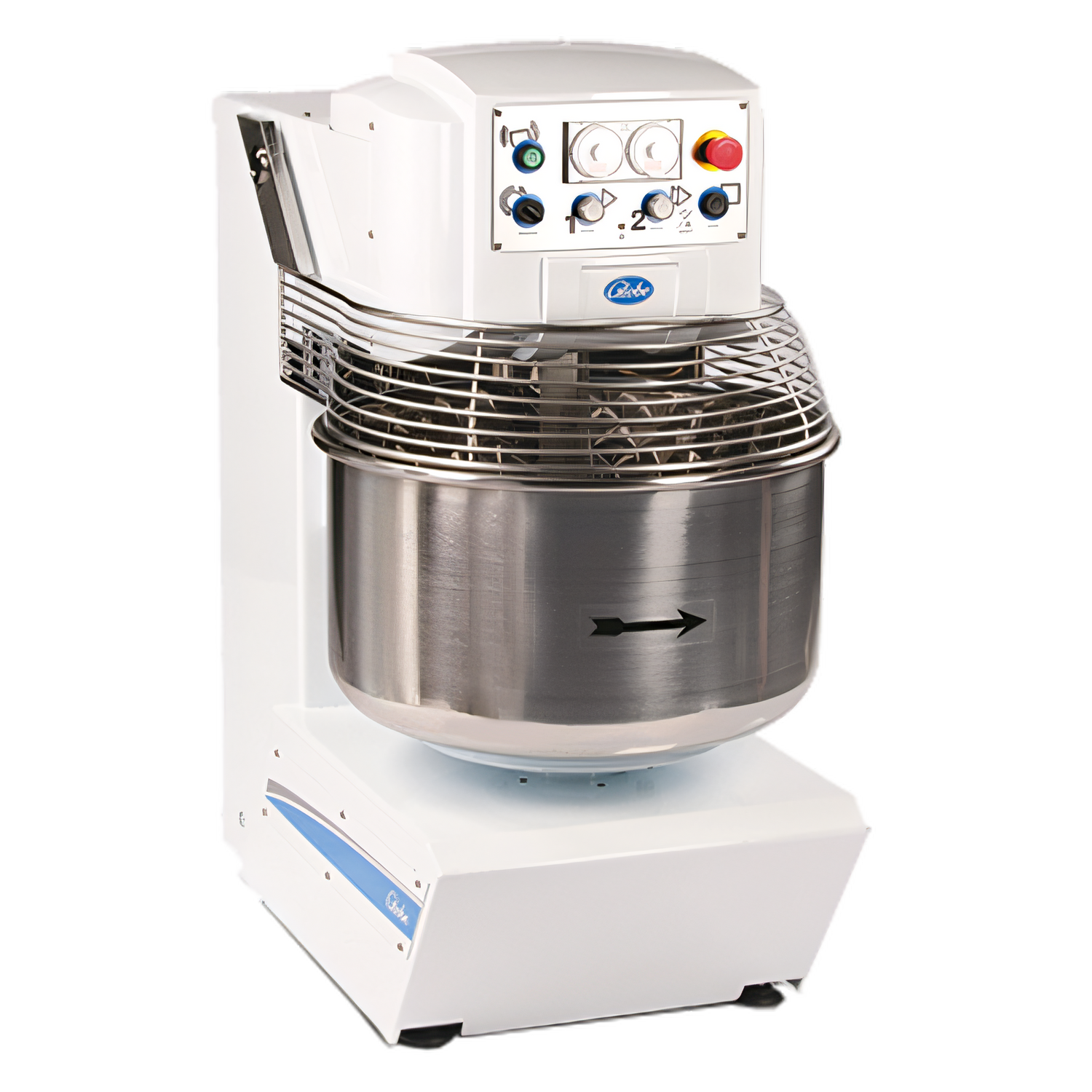

Globe GSM175 Quick-Ship Spiral Dough Mixer – 175 lb Capacity
Heavy-duty, dual-speed mixer for high-volume dough productionKnock out bigger batches of consistent, high-quality dough in record time. Built for ambitious bakeries, pizzerias, commissaries and central kitchens, the Globe GSM175 delivers low-oxygen spiral mixing, rugged all-metal construction and front-mounted digital timers—shipped from the factory in just 1–2 days.
Why You’ll Love It
- Generous 175 lb. dough capacity with polished stainless steel bowl

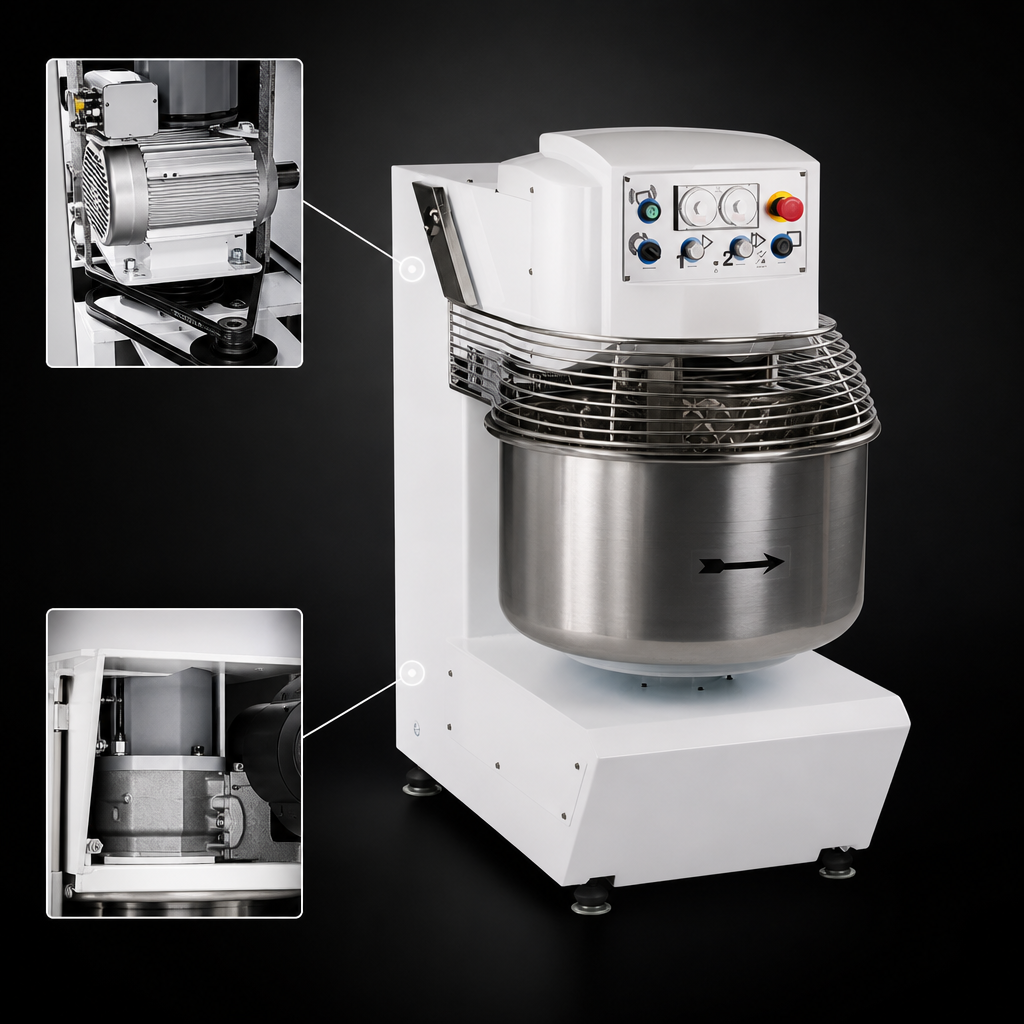

- Powerful dual motors: 3 ¼ HP (1st speed) / 6 HP (2nd speed) spiral hook | ¾ HP bowl drive
- Two fixed speeds with automatic shift—set via dual 20-minute digital timers
- Spiral mixing action minimizes heat & air for stronger gluten development
- Stainless steel wire-form bowl guard allows safe ingredient loading & visibility
- Heavy-duty breaker bar plus “bowl jog” mode for fast dough removal & cleanup
- FDA-approved white powder-coat body over all-metal frame
- Stainless steel ball-bearing bowl drive built for years of commercial use
- Front & rear casters and a 10.5-ft power cord for easy positioning
- cETLus & ETL Sanitation listed
Capacity by Dough Type
| Dough Type | Hydration (AR) | Max Batch |
|---|---|---|
| Raised donut | 65 % | 175 lb / 79.4 kg |
| Bread & rolls | 60 % | 175 lb / 79.4 kg |
| Heavy bread | 55 % | 165 lb / 75 kg |
| Pizza – thin | 40 % | 80 lb / 36 kg |
| Pizza – medium | 50 % | 155 lb / 70 kg |
| Pizza – thick | 60 % | 175 lb / 79.4 kg |
Technical Specifications
| Bowl capacity | 175 lb. finished dough |
|---|---|
| Hook motor | 3 ¼ HP / 104 RPM (1st) • 6 HP / 208 RPM (2nd) |
| Bowl motor | ¾ HP / 35 RPM |

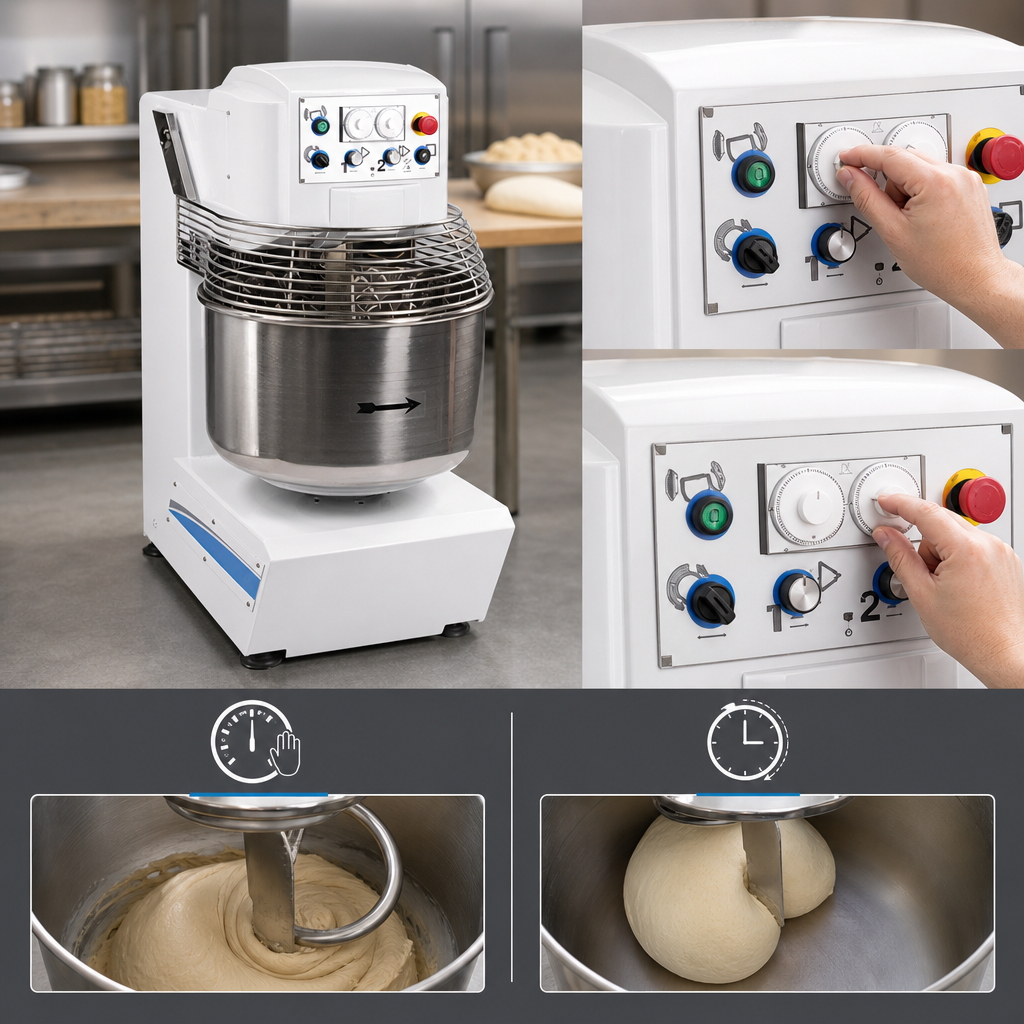

| Controls | Front-mounted dual 20-minute digital timers (manual or automatic) |
| Electrical | 208 V • 60 Hz • 3-phase • 23 A |
| Overall dimensions | 28″ W × 46″ D × 48.6″ H (76.6″ H with guard open) |
| Net / ship weight | 772 lb / 838 lb (palletized, freight class 85) |
| Construction | All-metal frame, FDA-approved white powder coat, stainless steel bowl & guard |
| Included accessories | Stainless steel bowl • Heavy-duty spiral dough hook |
| Mobility | Front & rear casters; bowl jog for easy removal |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (hook: 1-year parts-only) |
In-stock Quick-Ship item – typically leaves our warehouse within 1-2 business days.
