Glastender, Inc.

Three-Compartment Underbar Sink Unit with Right Drainboard, 48 Inch W x 24 Inch D

SKU: TSB-48L-S
$2,585.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

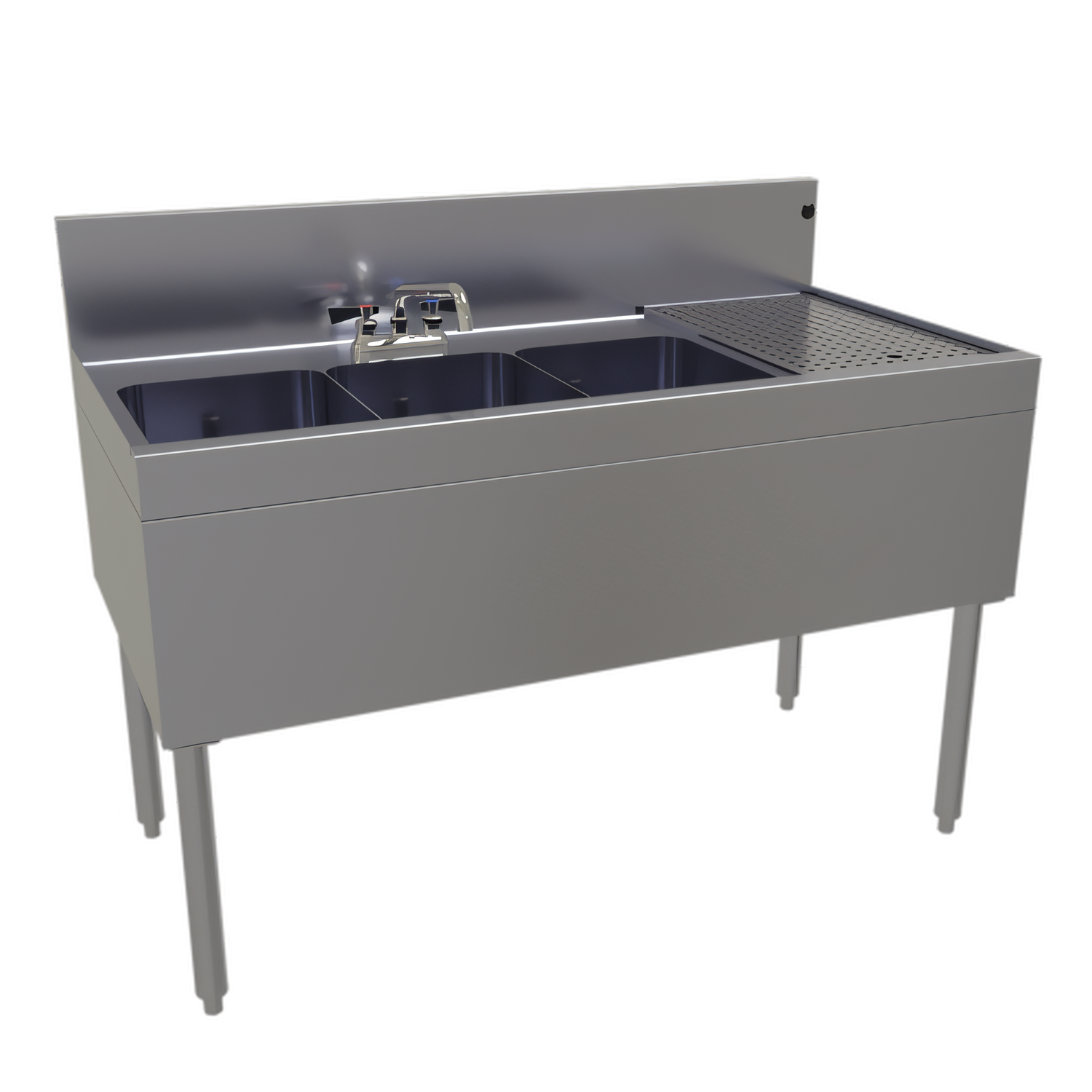

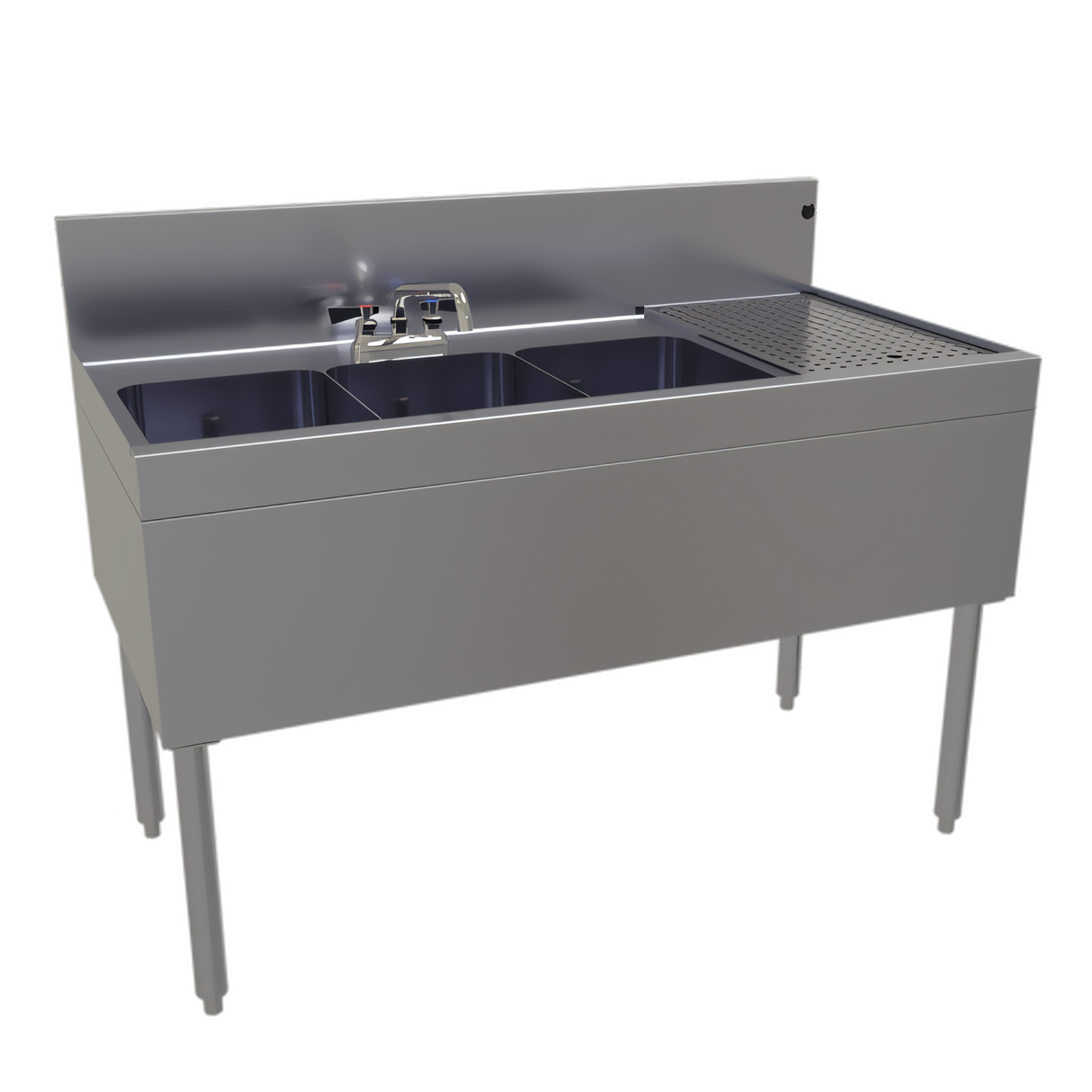

Three-Compartment Underbar Sink Unit with Right Drainboard, 48 Inch W x 24 Inch D

Stainless Steel, Deck-Mount Faucet, 10-1/4 Inch Deep Bowls

Designed for busy bar and beverage stations, this three-compartment underbar sink combines a right-side drainboard, seamless stainless construction, and a mounted low-lead faucet in a compact 48-inch footprint.

  • Three sink compartments support wash, rinse, and sanitize workflow separation.
  • 11 inch x 14 inch bowls are 10-1/4 inches deep for everyday prep and cleanup tasks.
  • 12-inch right-side drainboard includes a lift-out perforated stainless insert for better drainage.
  • Deck-mounted hot and cold faucet ships installed and is low-lead compliant.
  • Stainless steel legs with bullet feet help keep the unit stable and level.

Overall Dimensions:

48.0"W x 24.0"D x 37.0"H

Product Weight:

120.0 lb

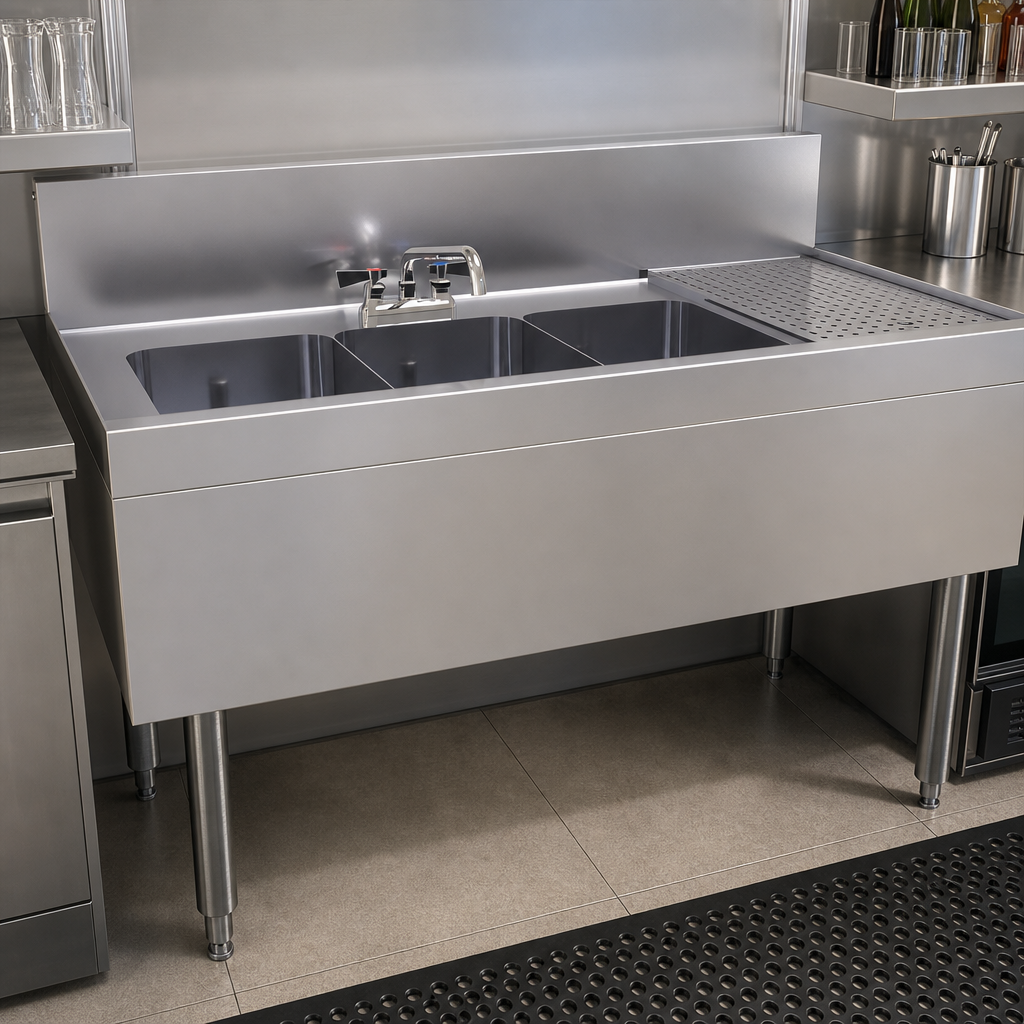

Three Compartment Layout

Provides three separate sink bowls for efficient multi-step washing and rinsing.

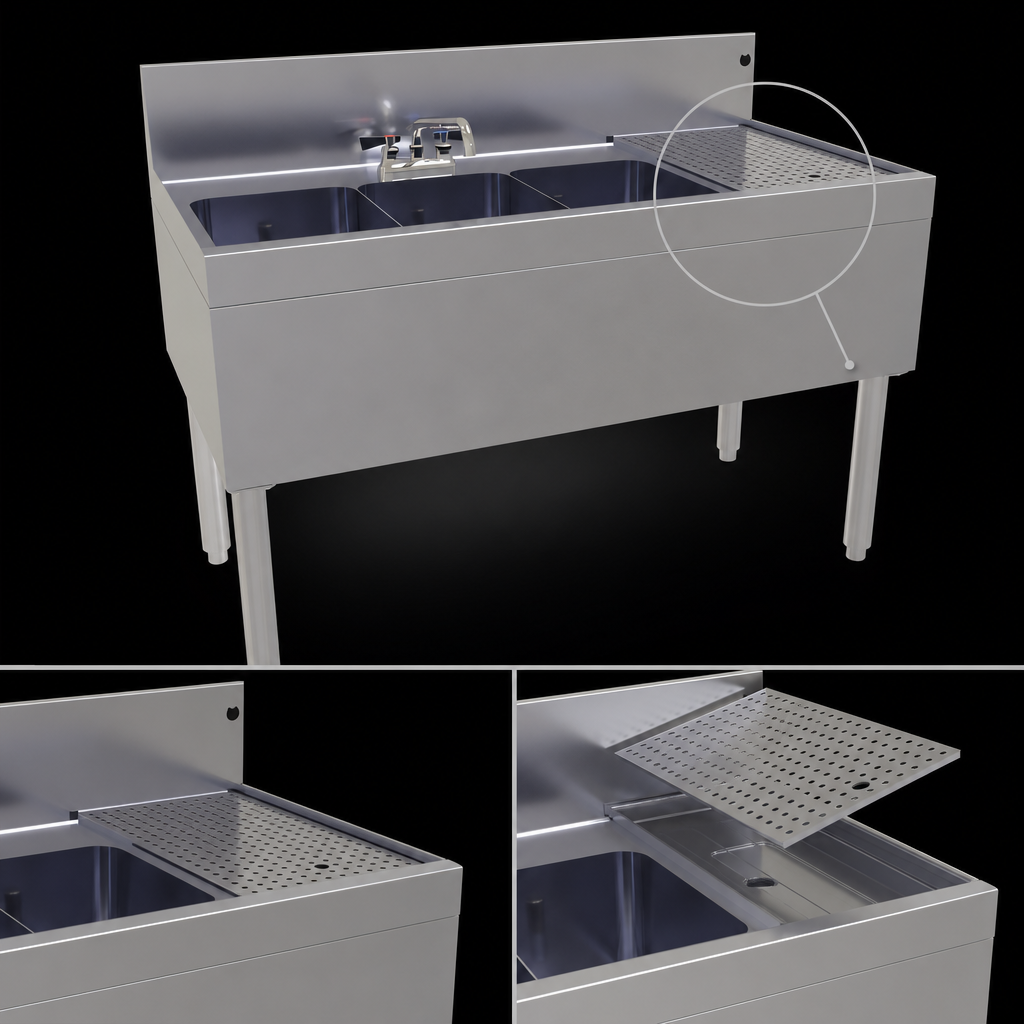

Right-Side Drainboard

Integral 12-inch drainboard on the right includes a removable perforated stainless insert to promote air circulation and drainage.

Seamless Stainless Steel Top

One-piece stainless steel top, front rail, and backsplash are easier to clean and maintain.

Heavy-Gauge Sink Bowls

Fabricated sink bowls are 16-gauge stainless steel, while the top, front rail, and backsplash are 18-gauge stainless steel.

Deck-Mount Faucet Included

Hot and cold water faucet ships mounted on 4-inch centers and is NSF/ANSI 61 Annex G low-lead compliant.

Overflow Standpipes Included

Three overflow standpipes are included, one for each sink bowl.

Stainless Steel Legs and Bullet Feet

Stainless steel legs with bullet feet provide a sturdy, adjustable base.

Type Underbar Sink Unit
Style Three Compartment
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Compartments 3
Mounting Type Deck Mount
Drainboard Location Right
Sink Location Left
Sink Bowl Size 11 Inches x 14 Inches Front-to-Back x 10-1/4 Inches Deep
Drain Connection Size 1-1/2 Inches I.P.S. Threaded
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 48 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 120 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three sink compartments.
Yes. A deck-mounted hot and cold faucet ships mounted and is low-lead compliant.
Each bowl measures 11 inches wide by 14 inches front-to-back by 10-1/4 inches deep.
The drainboard includes a lift-out perforated stainless insert.
Three overflow standpipes are included, one for each sink bowl.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
