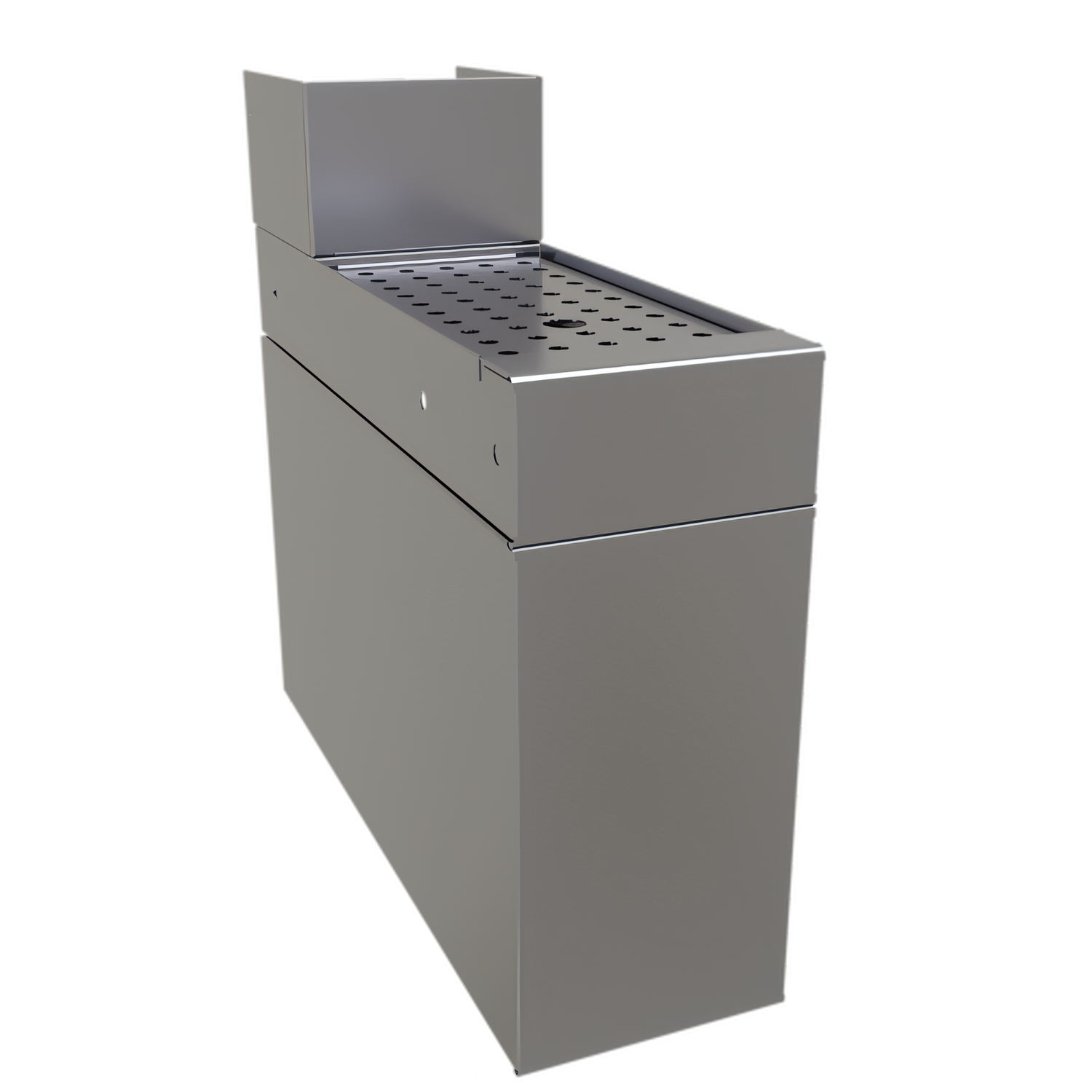

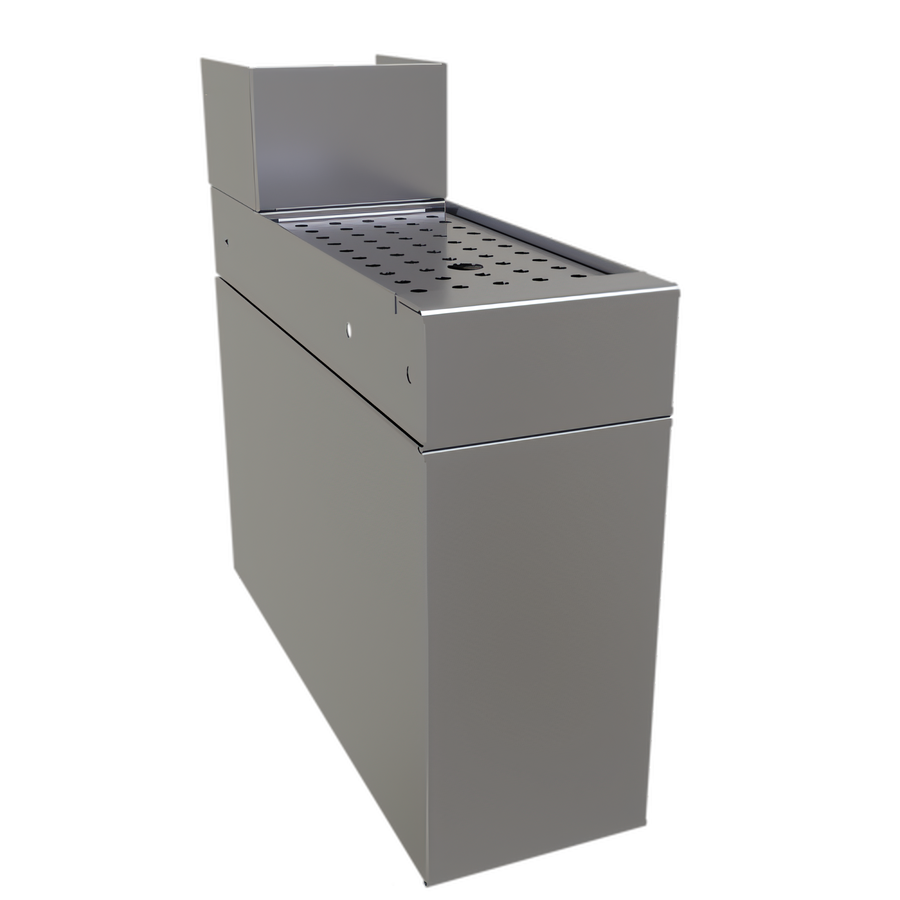

Glastender TCA Stainless Steel Tubing Chase for 19-Inch Deep Underbar Units, 6-Inch Wide

Stainless steel, with drain pan work surface and perforated insert

Organize beverage lines cleanly with a compact stainless steel tubing chase designed to mount neatly between adjacent underbar units.

  • Sized for 19-inch deep underbar equipment with a 6-inch-wide chase.
  • Durable stainless steel construction built for commercial bar environments.
  • Includes a stainless steel drain pan, removable perforated insert, front rail, and front skirt.
  • Mounts between adjacent underbar units; no leg mounting provisions and not freestanding.
  • Can be set in place after beverage lines are installed for easier setup.
  • ETL sanitation listed and designed for sanitary installation.

Overall Dimensions:

6.0"W x 19.0"D x 4.0"H

Product Weight:

17.0 lb

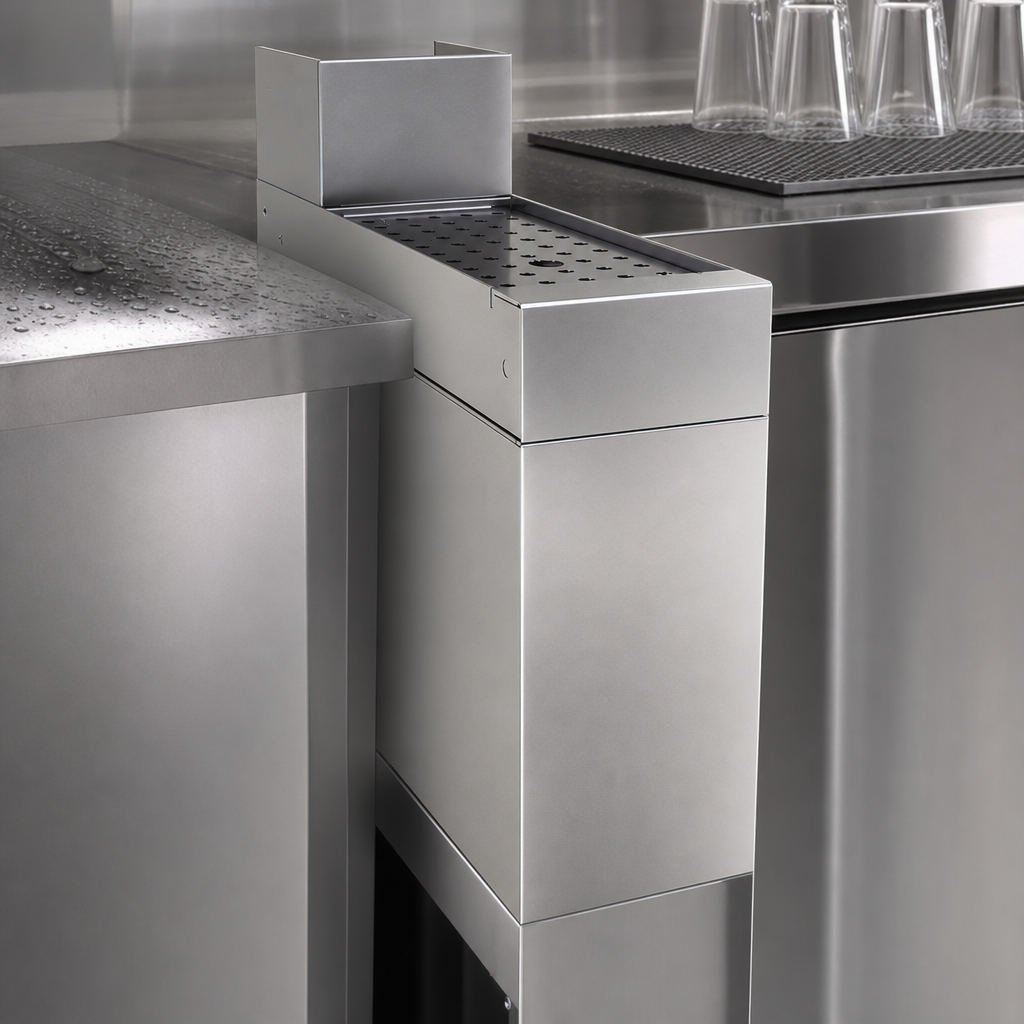

Stainless Steel Construction

Built from 20 gauge stainless steel for durability and corrosion resistance in wet bar areas.

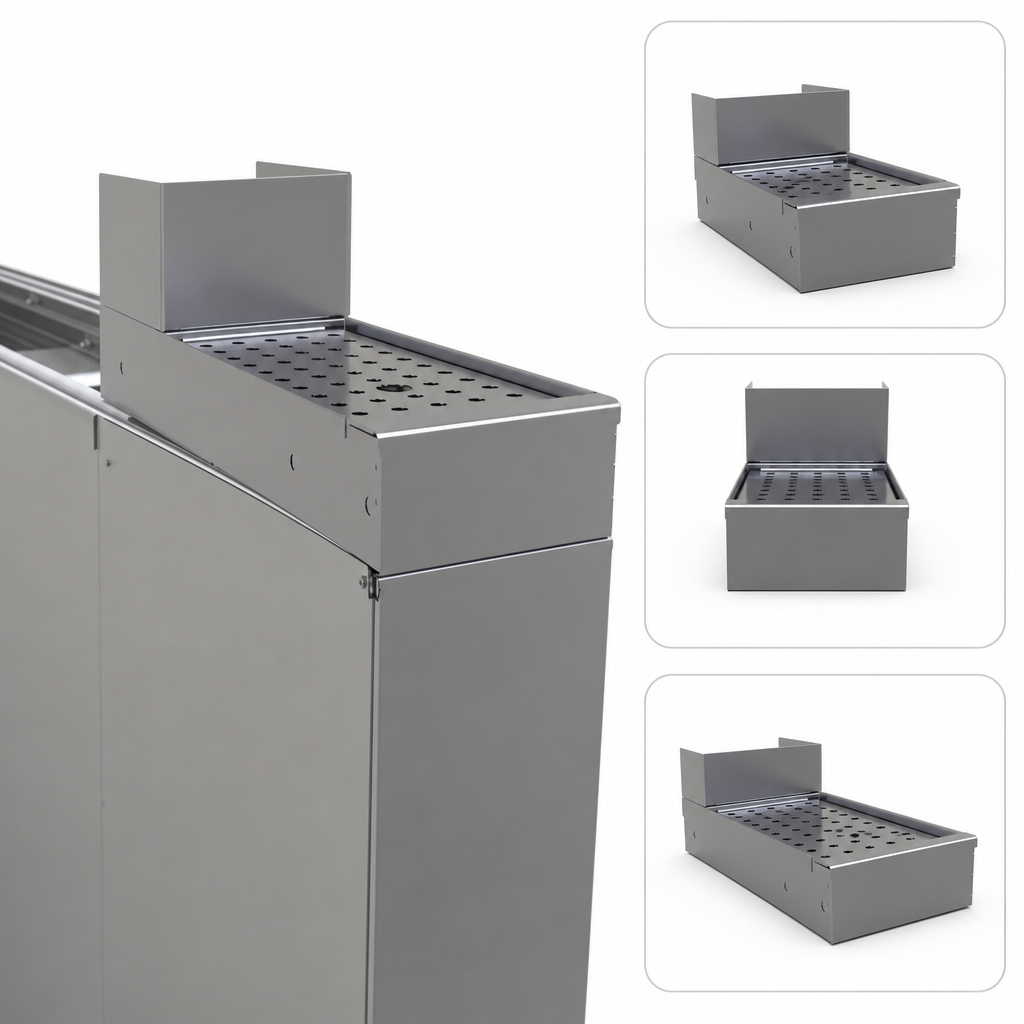

Compact Tubing Chase

Measures 6 inches wide x 6 inches deep x 4 inches high and is designed for 19-inch deep units.

Integrated Drain Pan

Includes a stainless steel drain pan with a 1-inch recess, radius corners, and a drain fitting for easier cleaning.

Removable Perforated Insert

A removable stainless steel perforated drain pan insert helps keep the surface clean and serviceable.

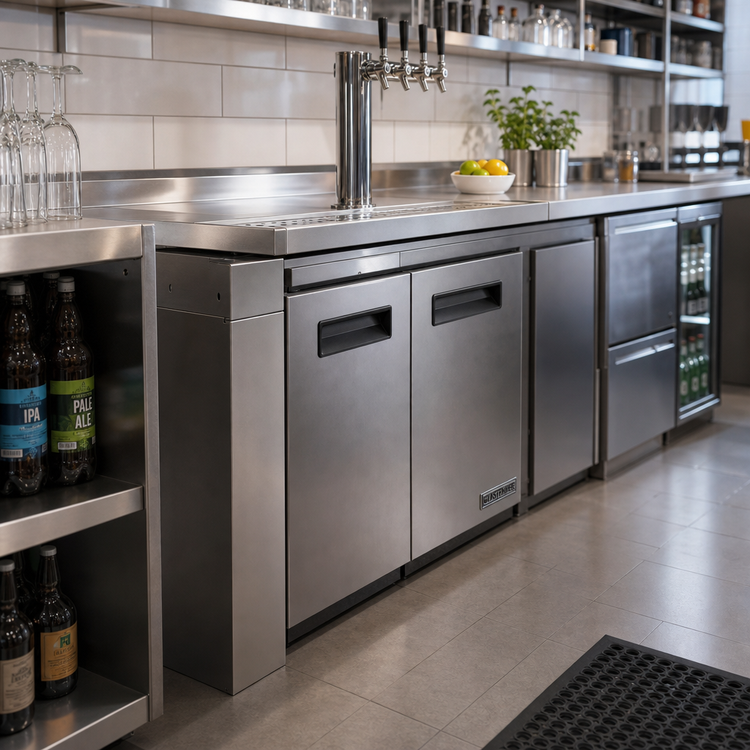

Underbar Mounting

Mounts between adjacent free-standing underbar equipment; there are no provisions for leg mounting.

Finished Front

Includes a front rail and front skirt to match adjacent equipment for a clean installed look.

Factory Drain Connection

Supplied with a 1/2-inch welded tailpiece, factory-connected clear vinyl drain line, and a 1/2-inch x 1/2-inch barbed plastic elbow.

Sanitation Listed

ETL sanitation listed and conforms to ANSI/NSF Standard 2.

Type Tubing Chase
Style Underbar
Installation Type Built-In
Material Stainless Steel
Drain Connection Required
Drain Connection Size 1/2 Inch
Leg Quantity 0
Country of Origin USA
Shipping Width 6 Inches
Shipping Depth 19 Inches
Shipping Height 4 Inches
Shipping Weight 17 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for 19-inch deep underbar units and measures 6 inches wide x 6 inches deep x 4 inches high.
No. It must be mounted to adjacent underbar equipment and has no provisions for leg mounting.
It includes a 1/2-inch welded tailpiece, a clear vinyl drain line connected at the factory, and a 1/2-inch x 1/2-inch barbed plastic elbow for connection at the bottom of the unit.
Yes. The stainless steel perforated drain pan insert is removable.
Yes. It is made to order and not returnable.
