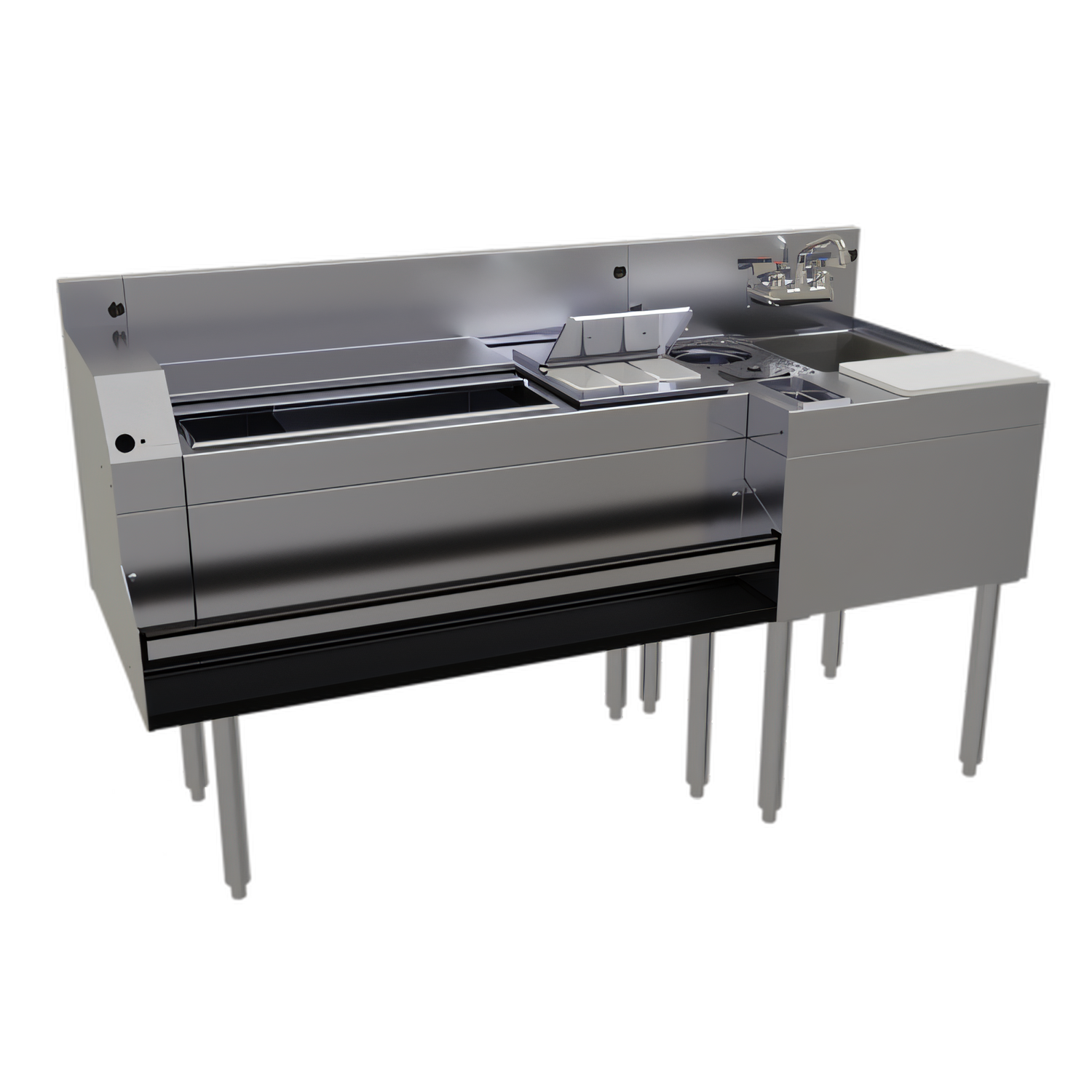

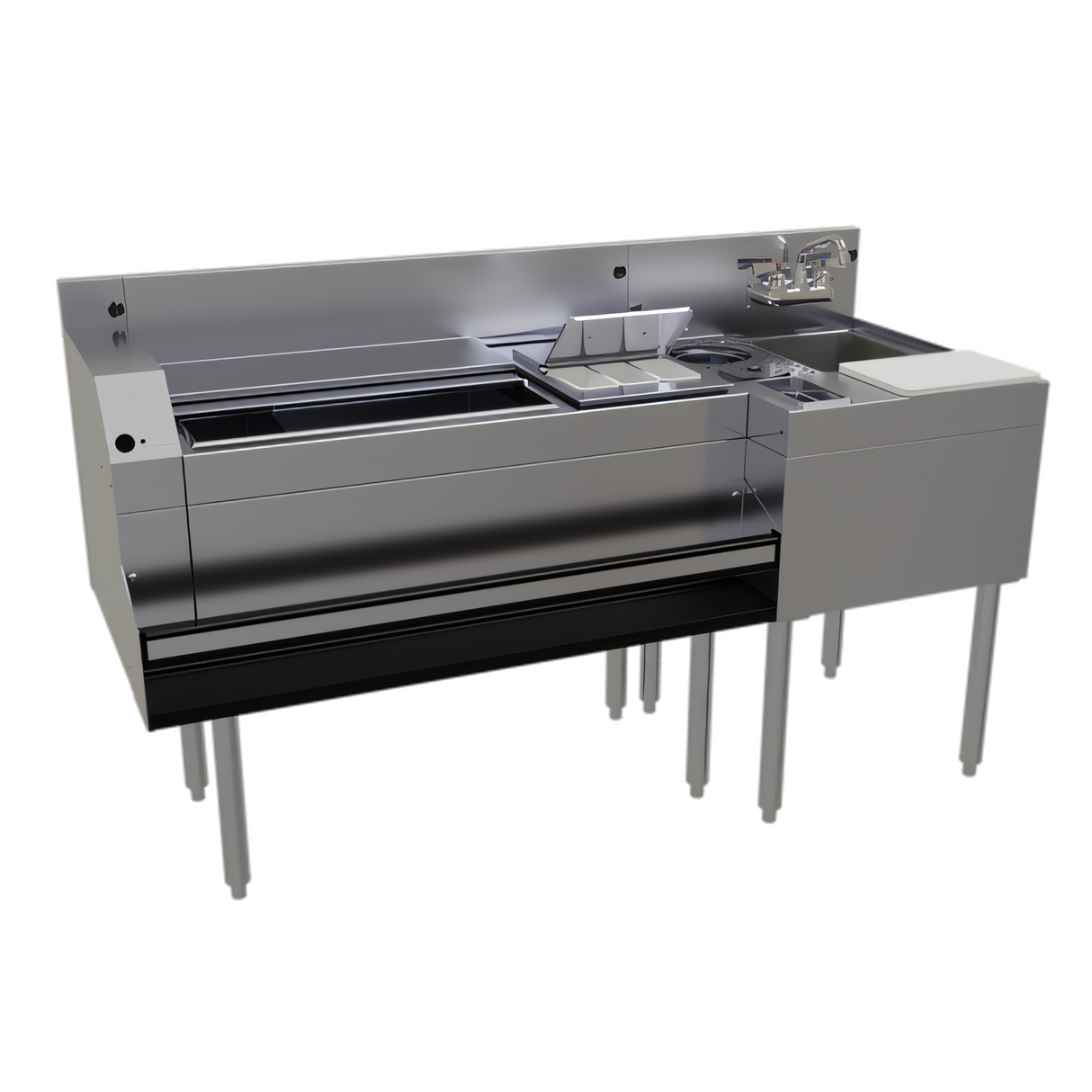

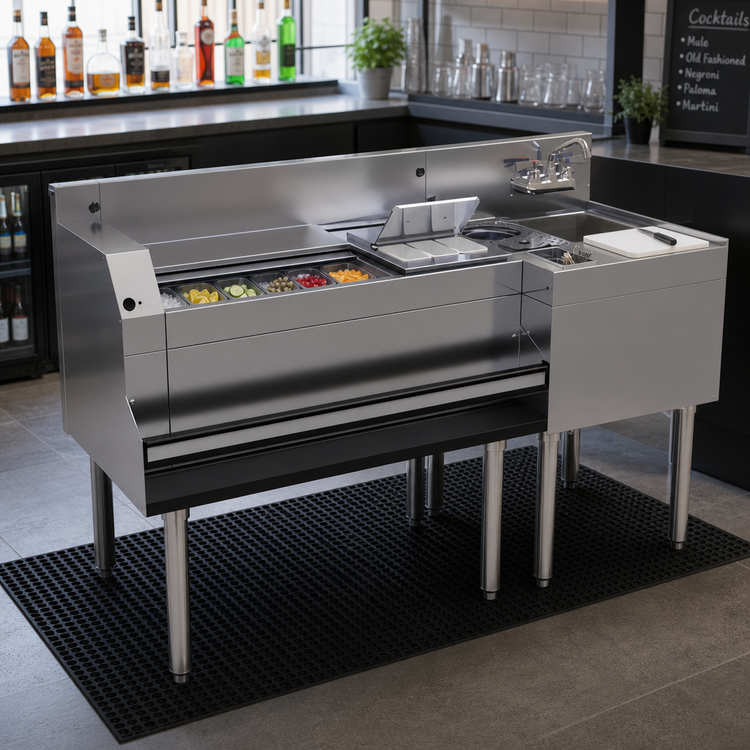

Glastender MXS60-CP10 60-Inch Stainless Steel Underbar Mixology Cocktail Station with 10-Circuit Cold Plate

SKU: MXS60-CP10
$6,886.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Glastender MXS60-CP10 60-Inch Stainless Steel Underbar Mixology Cocktail Station with 10-Circuit Cold Plate

24-Inch Deep, Floor Model with Speed Rail and Ice-Chilled Condiment Well

Built for efficient cocktail service, this stainless steel underbar station keeps ice, garnishes, rinsing, and bottle storage organized in one compact 60-inch footprint.

  • 60-inch wide cocktail station designed for organized underbar drink prep.
  • 36-inch combo ice bin includes a sliding cover, 10-circuit cold plate, and divider.
  • Six-cup ice-chilled condiment well keeps garnishes cold and ready.
  • MFT-20 mixology unit adds rinsing, a dipper well, a cutting board, a sink strainer, and an ice scoop well.
  • SMHA-4 soda manifold housing and a 40-inch speed rail streamline bar service.
  • Stainless steel construction with adjustable bullet feet supports durability and easy leveling.

Overall Dimensions:

60.0"W x 24.0"D x 37.0"H

Product Weight:

279.0 lb
Proposition 65: The plastic wet waste strainer included with this product can expose you to chemicals including Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Warning applies to State of California only Part#03000483

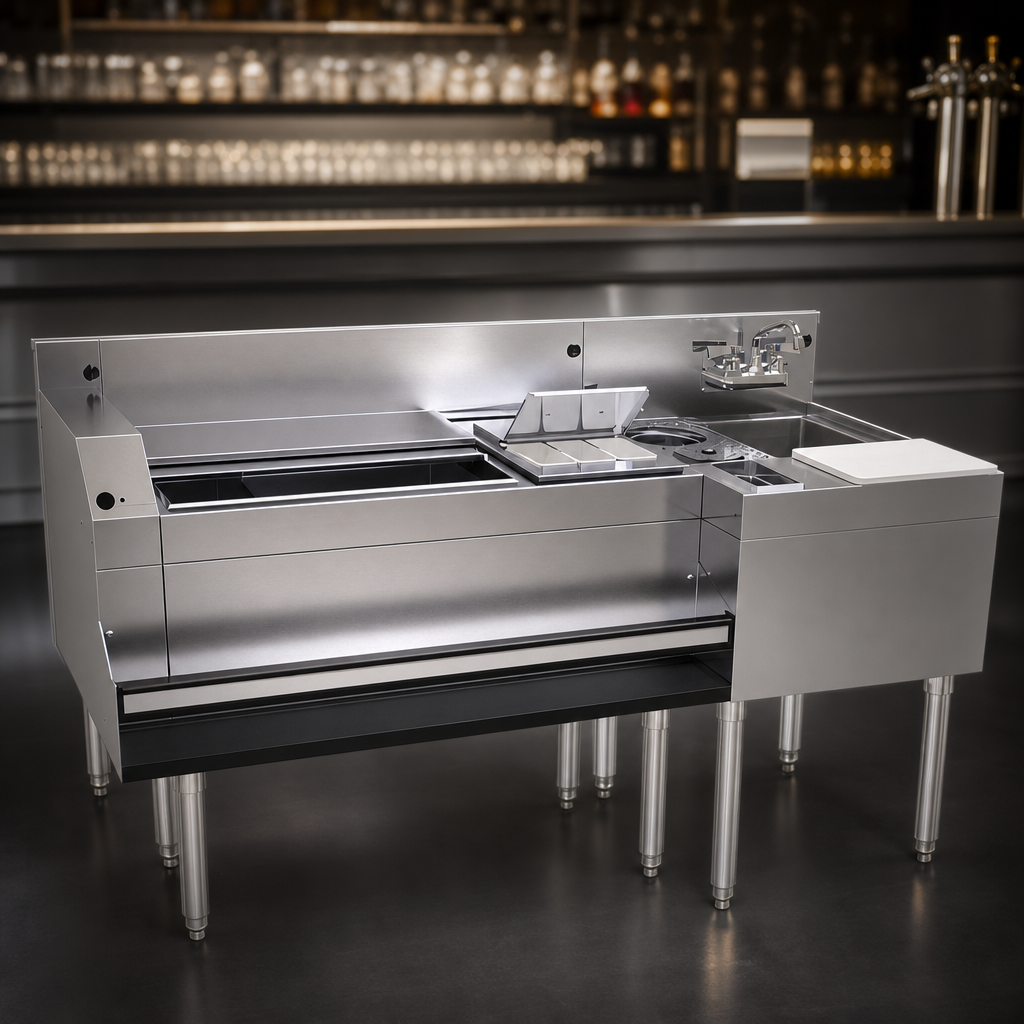

Stainless Steel Construction

All-stainless construction provides durability, corrosion resistance, and easy cleanup in busy bar environments.

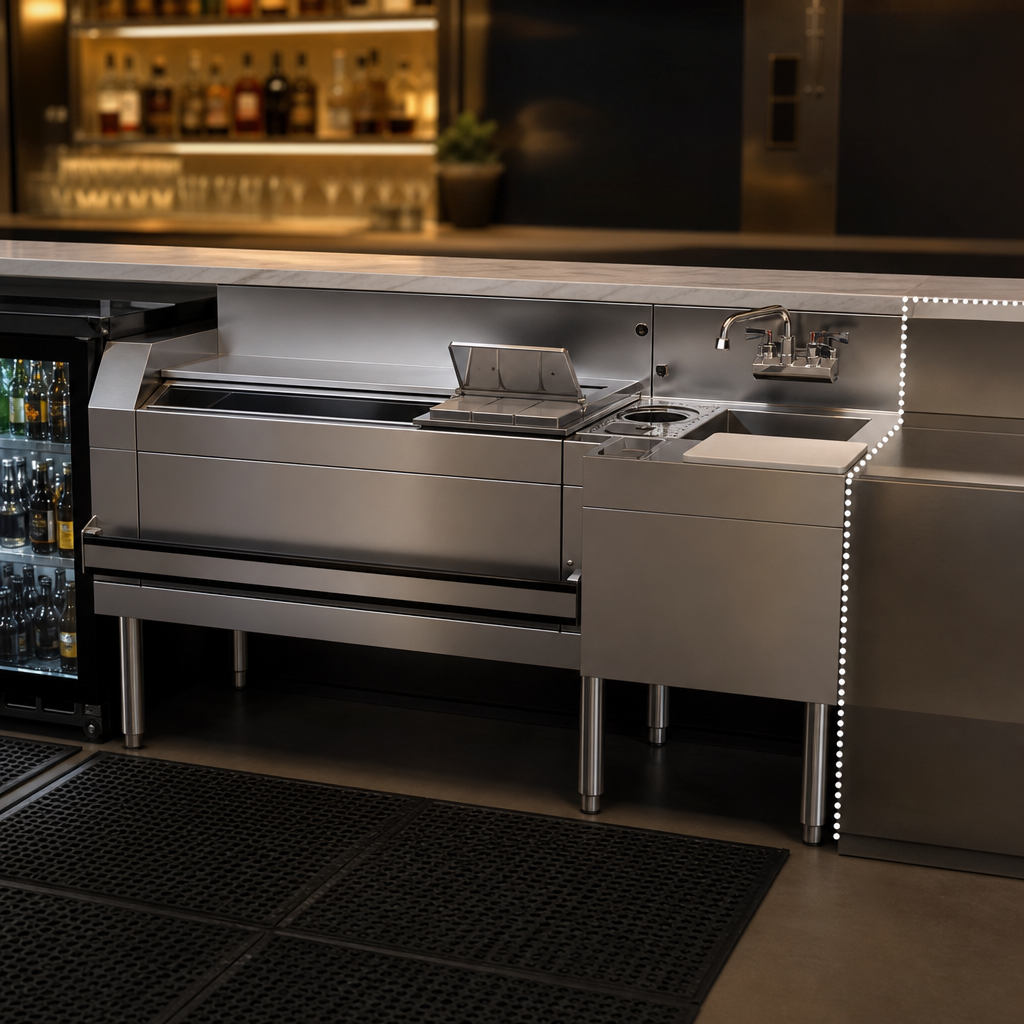

Flush 24-Inch Deep Layout

The line-up is flush at 24 inches deep to align with adjacent underbar equipment.

SMHA-4 Soda Manifold Housing

Designed to house the manifold for Wunder-Bar or Schroeder America 8- to 14-button soda guns.

36-Inch Combo Ice Bin

Foamed-in-place insulated ice bin includes a sliding stainless steel cover, stainless steel divider, and built-in 10-circuit cold plate.

Six-Cup Ice-Chilled Condiment Well

Keeps six pint-size 16 oz condiment cups cold and includes two lift-off stainless steel covers.

MFT-20 Mixology Unit

Includes a push-down rinser faucet, lift-out perforated plastic sink strainer, 6-inch diameter seamless welded draining dipper well and faucet, removable 8 x 11 cutting board, and ice scoop well.

Speed Rail Included

A 40-inch single speed rail keeps bottles within easy reach for faster drink prep.

Stainless Steel Legs with Bullet Feet

Durable stainless steel legs with adjustable bullet feet help support the station and make leveling easier.

Low-Lead Compliant Faucets

All faucets are NSF/ANSI 61, Annex G low-lead compliant.

Type Mixology Station
Style Underbar
Installation Type Floor Model (With Legs)
Material Stainless Steel
Capacity 67 Pounds
Water Inlet Size 3/8 Inches
Drain Connection Size 1-1/2 Inches
Water Connection Required
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 279 Pounds

Frequently Asked Questions

It includes the SMHA-4 soda manifold housing, 36-inch combo ice bin with sliding cover and 10-circuit cold plate, ice bin divider, 6-cup ice-chilled condiment well, 40-inch single speed rail, and MFT-20 mixology unit.
The main ice bin capacity is 67 pounds.
The backsplash mounts on 4-inch centers and accepts 3/8-inch sink leads with hot and cold water connections required. The dipper well faucet and rinser faucet accept 3/8-inch cold water leads, and the rinser faucet includes a 30 psi water regulator.
Yes. All faucets are NSF/ANSI 61, Annex G low-lead compliant.
Yes. A backflow prevention device conforming to ANSI/ASSE 1022 or ANSI/ASSE 1024 must be installed when required by plumbing code, and it is not included.
This unit is made to order and is not returnable.
