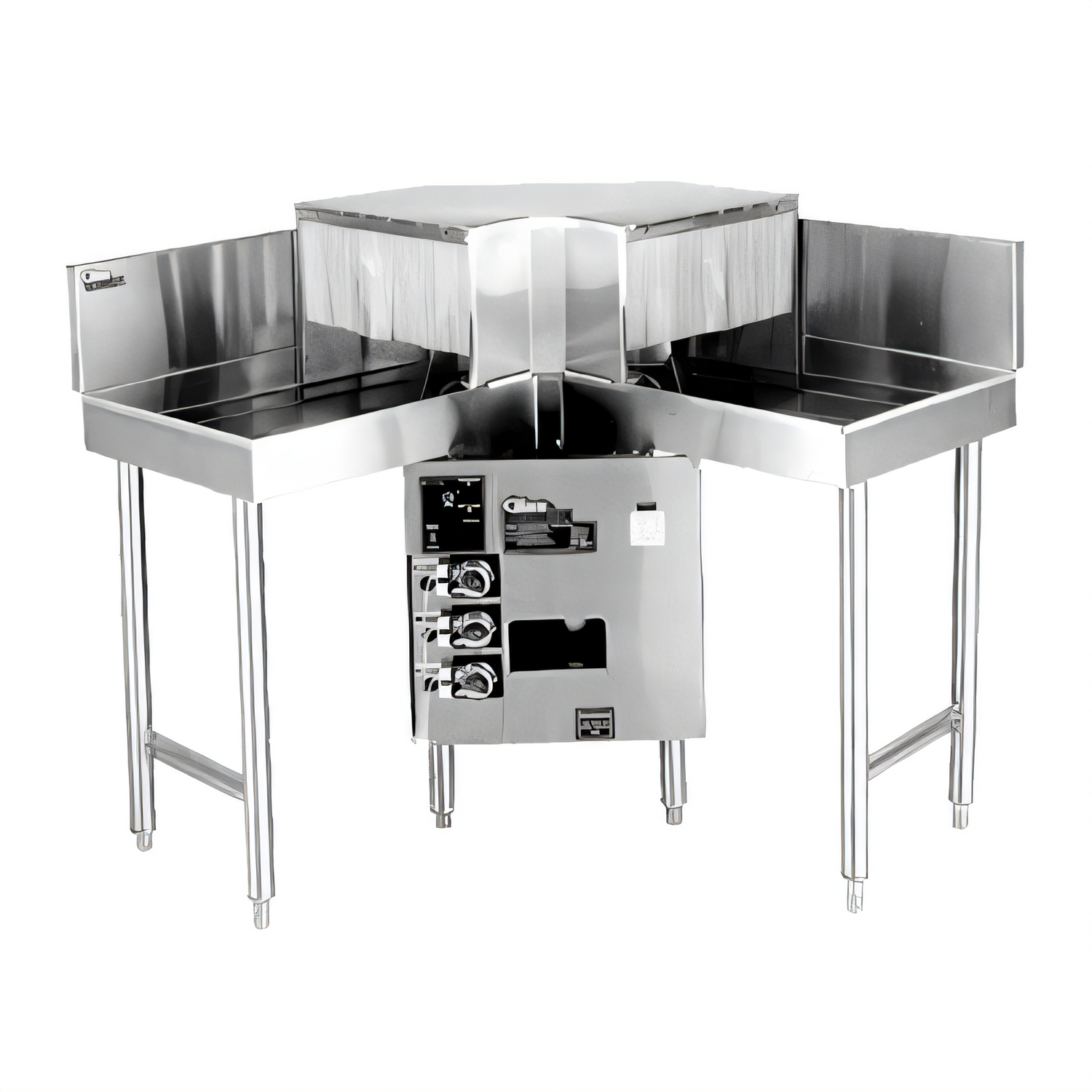

Glastender GT-18+2-IC Inside Corner Pass-Thru Glasswasher Station with Dual Drain Tables

SKU: GT-18+2-IC
$9,904.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Glass Washers Glastender, Inc. New Arrivals Restaurant Equipment Sanitizers & Cleaning Sanitizing Stations

Glastender GT-18+2-IC Inside Corner Pass-Thru Glasswasher Station with Dual Drain Tables

18-Inch Washer, Low-Temperature Chemical Sanitizing

Built for busy bars, this inside corner pass-thru glasswasher streamlines loading, washing, and unloading with dual drain tables, automatic chemical dosing, and a high-output rotary rack wash system.

  • Inside corner pass-thru layout with built-in drain tables on both sides for efficient loading and unloading.
  • Low-temperature chemical sanitizing operation with automatic detergent, sanitizer, and rinse-aid pumps.
  • Washes up to 720 2-1/2-inch glasses per hour and handles glassware up to 10 inches high.
  • Includes two 16-inch polypropylene racks and two end curtains.
  • Removable top and side panels plus lift-out components simplify cleaning and service.
  • Stainless steel construction with adjustable feet, built-in air gap, and external chemical storage.

Overall Dimensions:

42.0"W x 19.0"D x 38.5"H

Product Weight:

245.0 lb

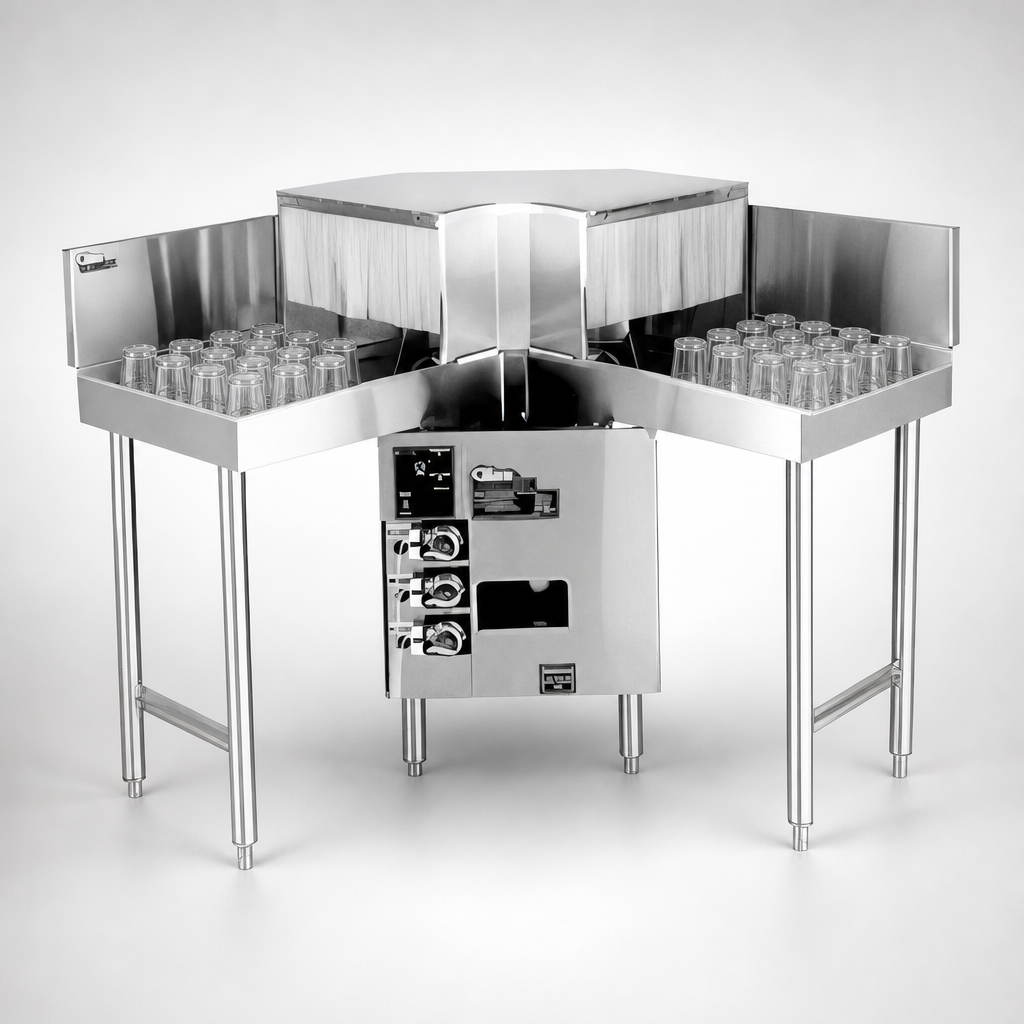

Built-In Drain Tables

Drain tables on each side provide a glass landing area and help increase throughput.

Built-In Drain Tables

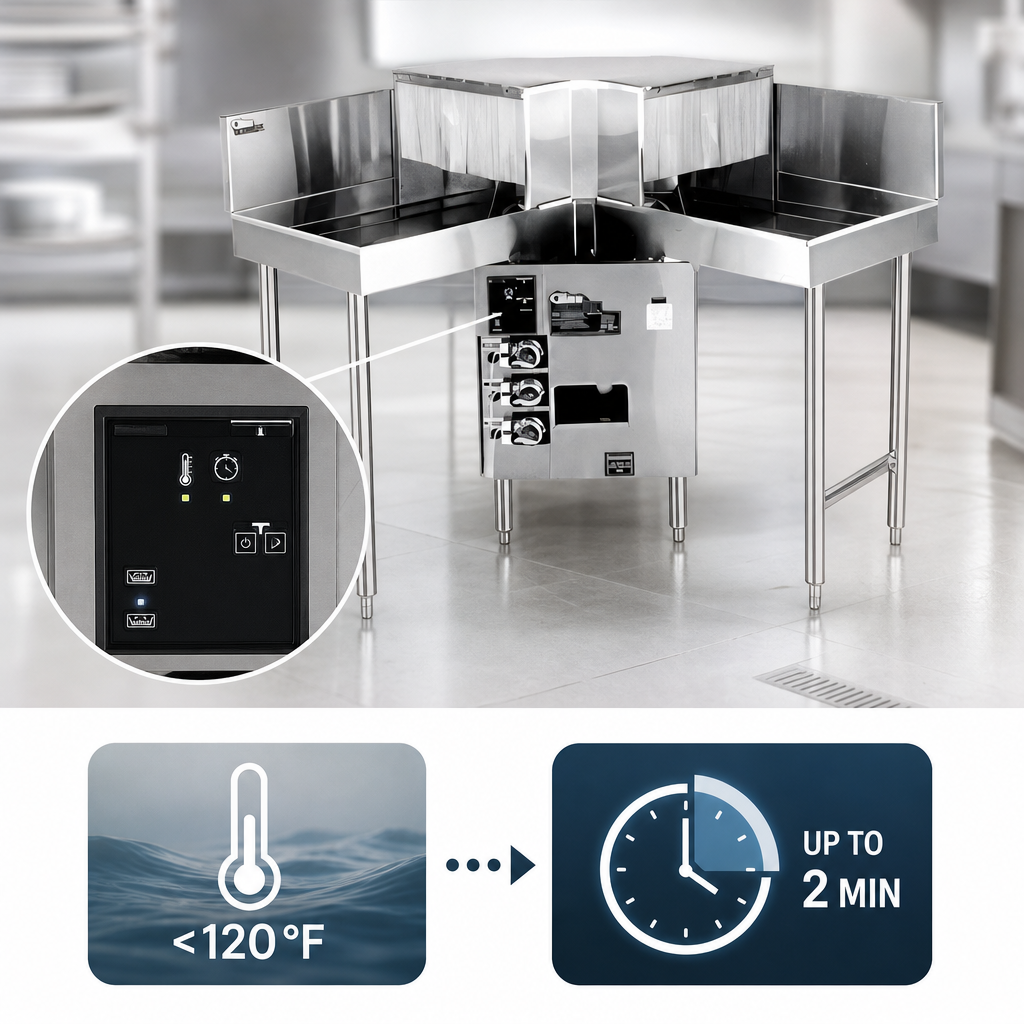

Intelligent Microprocessor Control

Delays cycle start by up to two minutes when incoming water is below 120°F.

Intelligent Microprocessor Control

Automatic Chemical Pumps

Peristaltic pumps dispense detergent, sanitizer, and rinse aid automatically; a prime switch helps with quick chemical priming.

Easy-Service Access

Removable top, removable side panels, and lift-out drive wheel and glass rack make cleaning and service easier.

High-Performance Wash System

Spray box unlatches for cleaning and inspection, and 15 spray nozzles are engineered for maximum soil removal.

Recirculation and Rotary Drive System

A 1/6 HP pump recirculates wash and rinse water, and a fractional HP drive motor powers the belt-driven rotary rack with a built-in slip clutch.

Included Accessories

Comes with two 16-inch diameter polypropylene racks and a set of two end curtains.

Stainless Steel Construction

Cabinet, floor, tanks, leg mounting brackets, and legs are stainless steel for durability, with adjustable feet for leveling.

Type Glasswasher Station
Style Inside Corner Pass-Thru
Installation Type Floor Model
Capacity 720 2-1/2 Inch Glasses Per Hour
Material Stainless Steel
Controls Intelligent Microprocessor
Voltage 120 Volts
Amps 3.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Water Inlet Size 1/2 Inch
Water Connection Required
Drain Connection Size 1-1/2 Inches
Drain Connection Required
Breaker Size 15 Amps
Shipping Width 42 Inches
Shipping Depth 19 Inches
Shipping Height 39 Inches
Shipping Weight 245 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Instructional video PDF Download PDF Brochure PDF Download PDF Glasswasher accessories PDF Download PDF Operations manual PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires 120V, single-phase, 60Hz power with a 6-foot NEMA 5-15P grounded cord. A dedicated 15 amp circuit is recommended.
Plumb the unit with a 1/2-inch water supply adapted to 3/8-inch FMPT. The drain uses a 1-1/2-inch tailpiece.
It washes up to 720 2-1/2-inch glasses per hour, or 600 2-3/4-inch glasses per hour.
The maximum glass height is 10 inches, including pitchers and wine carafes.
No. The unit has a built-in air gap, so a vacuum breaker is not required.
It requires extra heavy-duty non-foaming commercial liquid dishwashing detergent, liquid chlorine bleach sanitizer adjusted to 50 ppm, and liquid rinse aid for proper sheeting.
