Glastender, Inc.

Glastender Back Bar Glass Ice Display Unit, 66 Inch W x 16 Inch D x 9 Inch H

SKU: GDU-16X66
$2,435.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Food Bar Food Bars & Buffets Food Wells & Serving Lines Glastender, Inc. New Arrivals Restaurant Equipment

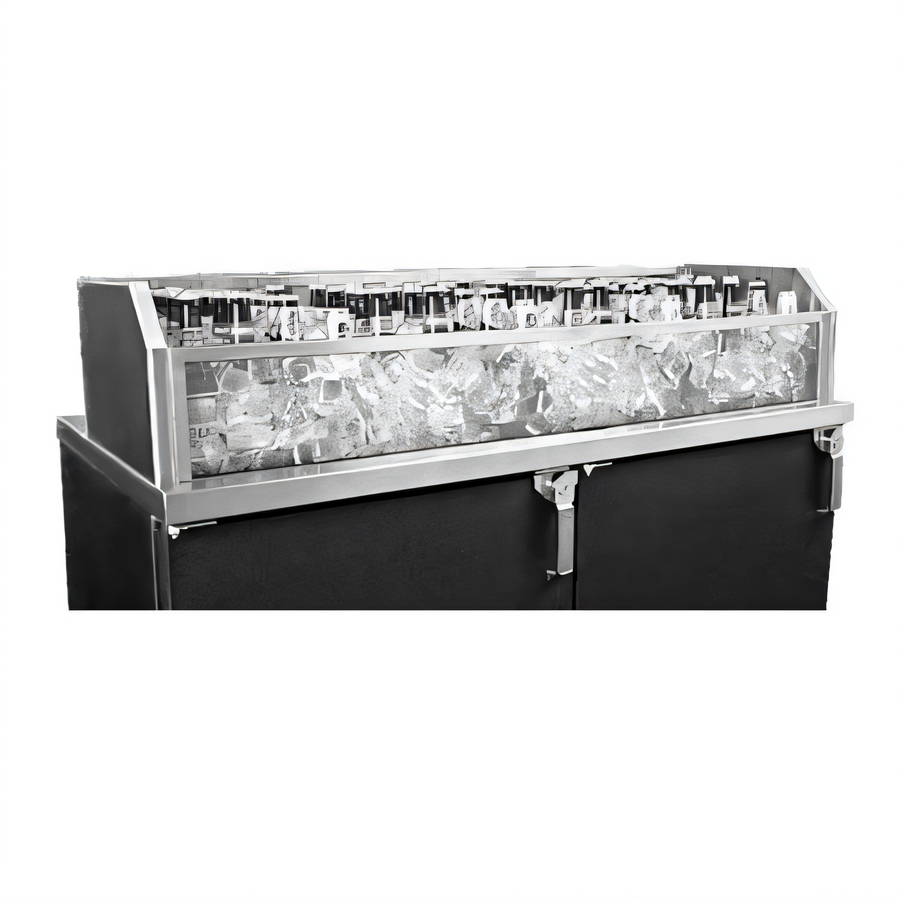

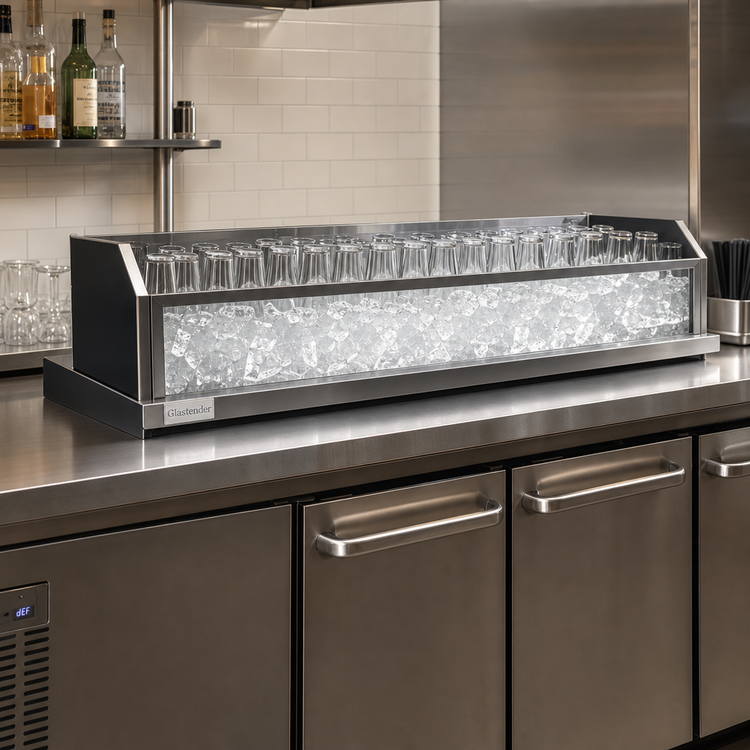

Glastender Back Bar Glass Ice Display Unit, 66 Inch W x 16 Inch D x 9 Inch H

Double-Pane Glass Front and Back, Stainless Steel Trim, Made to Order

Built for back bar presentation, this glass ice display unit merchandises bottled beverages with double-pane glass, insulated stainless steel construction, and a countertop-mounted drain pan.

  • Designed to merchandise bottled beverages in back bar applications.
  • 66-inch-wide footprint replaces the entire top or a portion of a back bar unit.
  • Double-pane glass front and back panels with stainless steel trim.
  • Stainless steel insulated end panels and removable perforated bottom inserts.
  • Includes an insulated stainless steel drain pan that mounts to an existing countertop.
  • 66-inch and wider units include a stainless steel center partition.
  • Made to order and not returnable.

Overall Dimensions:

66.0"W x 16.0"D x 9.0"H

Product Weight:

105.0 lb

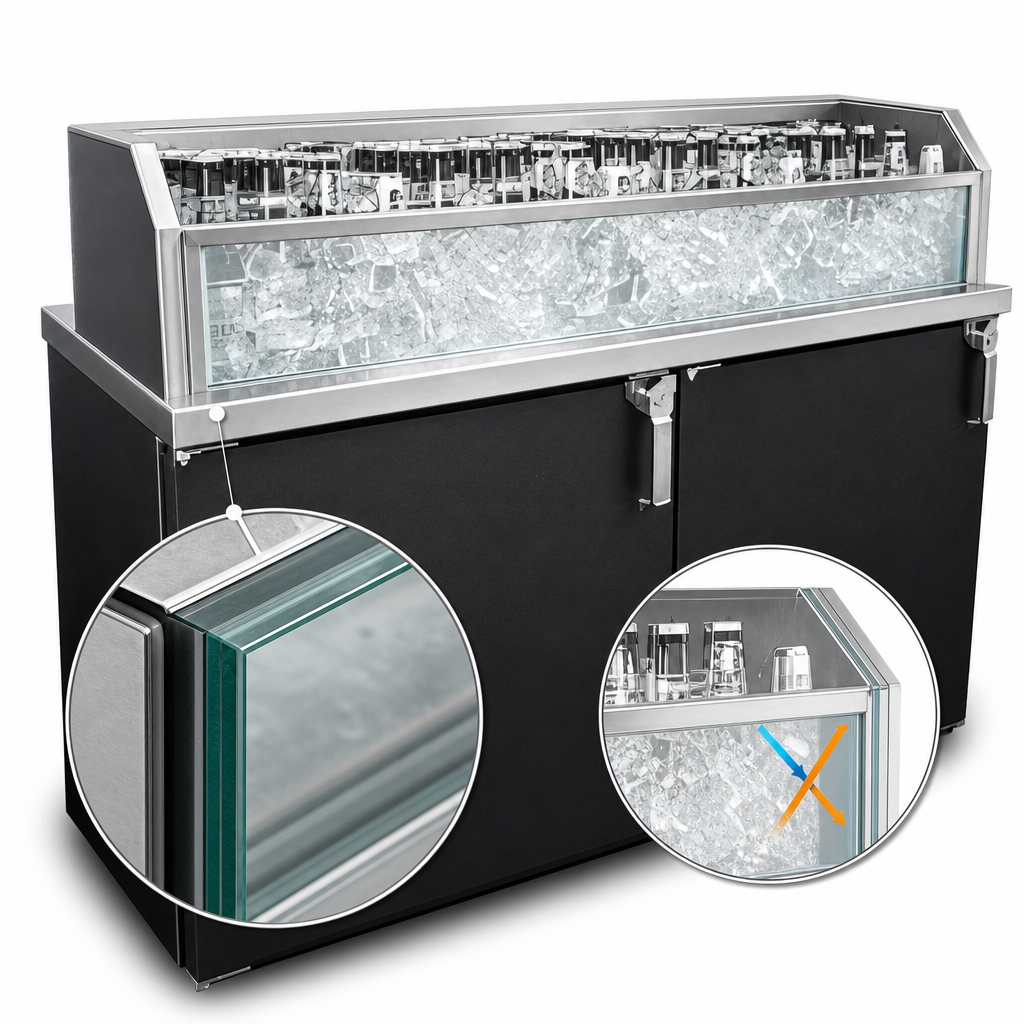

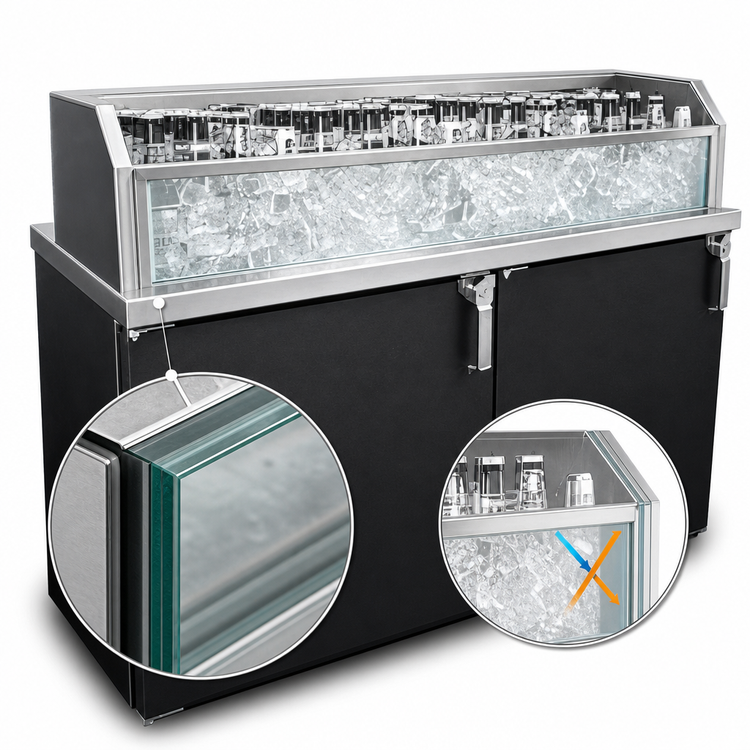

Double-Pane Glass Panels

1/2-inch thick double-pane glass front and back panels provide a clean display while helping insulate the unit.

Stainless Steel Trim

Stainless steel trim pieces finish the glass panels for a durable, professional look.

Insulated End Panels

Stainless steel insulated side panels help maintain the display environment and support the unit structure.

Removable Perforated Bottom Inserts

1/2-inch tall perforated stainless steel bottom inserts are removable for cleaning and display flexibility.

Insulated Drain Pan

A stainless steel insulated drain pan mounts to an existing countertop for back bar installation.

Center Partition

Units wider than 54 inches include a 2-inch stainless steel center partition; this 66-inch model includes one.

Bottom Drain Exit

The drain uses a 1-inch tailpiece that exits through the bottom of the unit.

Made to Order

Built to order and not returnable.

Type Glass Ice Display Unit
Style Back Bar
Installation Type Countertop
Material Stainless Steel
Country of Origin USA
Drain Connection Required
Drain Connection Size 1 Inch Tailpiece
Selling Unit Each
Units Per Case 1
Shipping Width 66 Inches
Shipping Depth 16 Inches
Shipping Height 9 Inches
Shipping Weight 105 Pounds

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Brochure- bar refrigeration PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed to merchandise bottled beverages in a back bar setting and can replace the entire top or a portion of a back bar unit.
Yes. Models larger than 54 inches wide include a 2-inch stainless steel center partition, and this 66-inch model is one of them.
It uses a 1-inch tailpiece drain that exits through the bottom of the unit.
It uses 20-gauge stainless steel parts and 1/2-inch thick double-pane glass front and back panels.
No. It is made to order and not returnable.
