Glastender, Inc. Elevation E-DS-48 Two-Compartment Underbar Sink Unit with Left and Right Drainboards, 48"W x 24"D

SKU: E-DS-48
$6,002.70
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

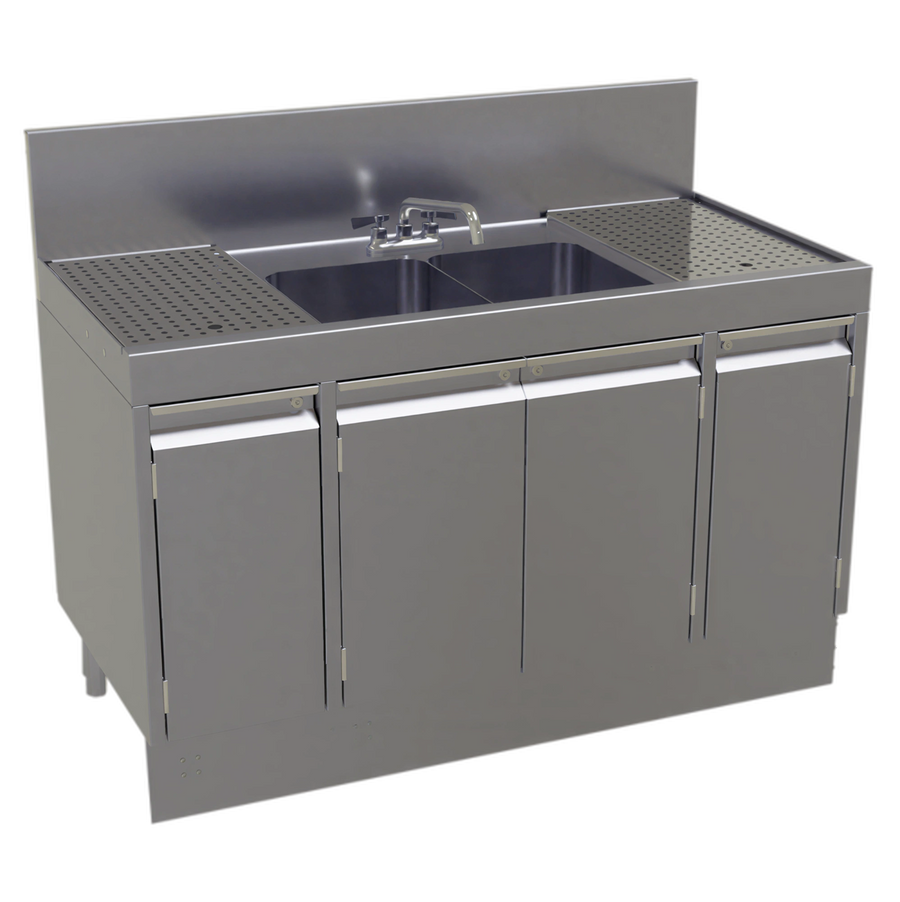

The Glastender Elevation E-DS-48 is a two-compartment underbar sink unit measuring 48 inches wide by 24 inches deep. It includes 12-inch drainboards on the left and right, removable perforated inserts, a deck-mounted low-lead-compliant faucet, two overflow standpipes, and a cabinet base with hinged doors.

The stainless steel construction includes a one-piece seamless top, front rail, and backsplash. The sink bowls are 11 inches wide by 14 inches front-to-back by 10-1/4 inches deep. Stainless steel legs with adjustable bullet feet provide the base support.

Made to order and not returnable.

Overall Dimensions:

48.0"W x 24.0"D x 38.0"H

Product Weight:

180.0 lb

Two sink compartments

Each compartment measures 11 inches wide by 14 inches front-to-back by 10-1/4 inches deep.

Left and right drainboards

The unit has 12-inch drainboards on both sides with removable perforated inserts.

Seamless stainless steel top

The 18-gauge stainless steel top, front rail, and backsplash form a one-piece seamless construction.

Fabricated stainless steel bowls

The sink bowls are made from 16-gauge fabricated stainless steel.

Deck-mounted faucet

The low-lead-compliant faucet is deck mounted; the cutsheet specifies 4-inch centers and hot and cold water connections.

Overflow standpipes

Two overflow standpipes are included, with one specified for each sink bowl.

Cabinet base

The base includes hinged doors.

Adjustable bullet feet

Stainless steel legs are fitted with adjustable bullet feet.

Made-to-order unit

The product is made to order and is not returnable.

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Underbar Equipment Underbar Sinks
Overall Width 48 in
Overall Depth 24 in
Overall Height 38 in
Weight 180 lb
Sink Compartments 2
Sink Bowl Size 11 in W x 14 in front-to-back
Sink Bowl Depth 10-1/4 in
Drainboards Left and right, 12 in each
Drainboard Inserts Removable perforated inserts
Construction Stainless steel
Top, Front Rail and Backsplash 18-gauge stainless steel, one-piece seamless construction
Sink Bowls 16-gauge fabricated stainless steel
Faucet Deck mounted, low lead compliant, 4 in centers
Water Connections Hot and cold water required
Drain Connection 1-1/2 in I.P.S. threaded drain
Cabinet Base Hinged doors
Legs and Feet Stainless steel legs with adjustable bullet feet
Splash Height 4 in
Work Height 30 in
Made to Order Yes; not returnable

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Glastender warrants all products to be free of defects in material and workmanship.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The unit measures 48 inches wide by 24 inches deep by 38 inches high.
It has two sink compartments, each measuring 11 inches wide by 14 inches front-to-back by 10-1/4 inches deep.
Yes. The unit includes 12-inch drainboards on the left and right, with removable perforated inserts.
The product specification includes a deck-mounted low-lead-compliant faucet. The cutsheet states that faucets are standard and ship mounted.
Hot and cold water connections are required.
Yes. Two overflow standpipes are included, one per sink bowl.
No. The product is made to order and is not returnable.
