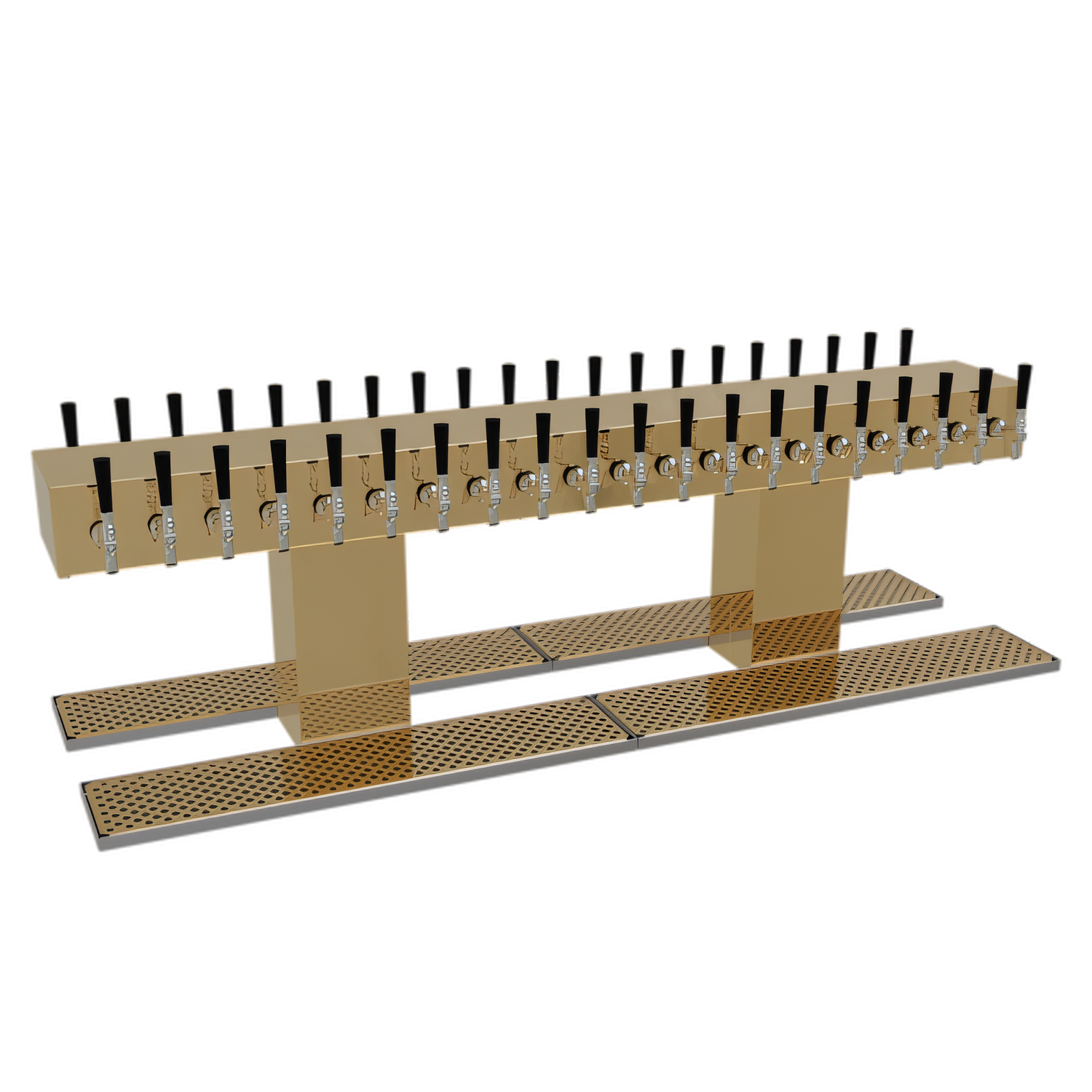

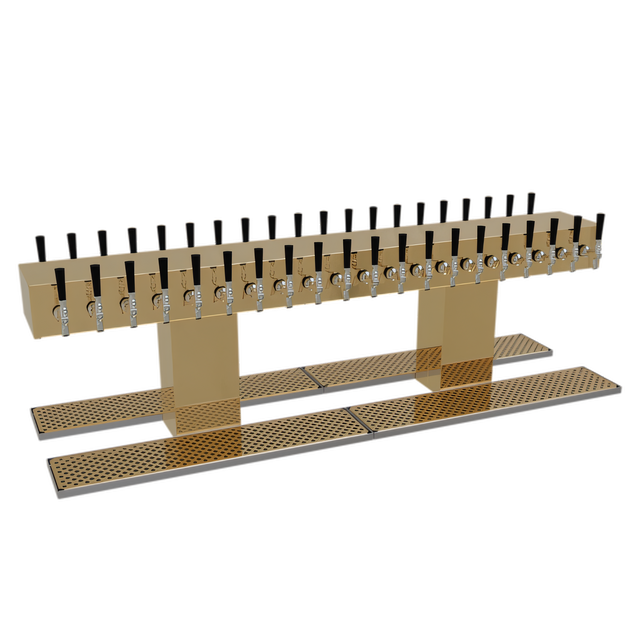

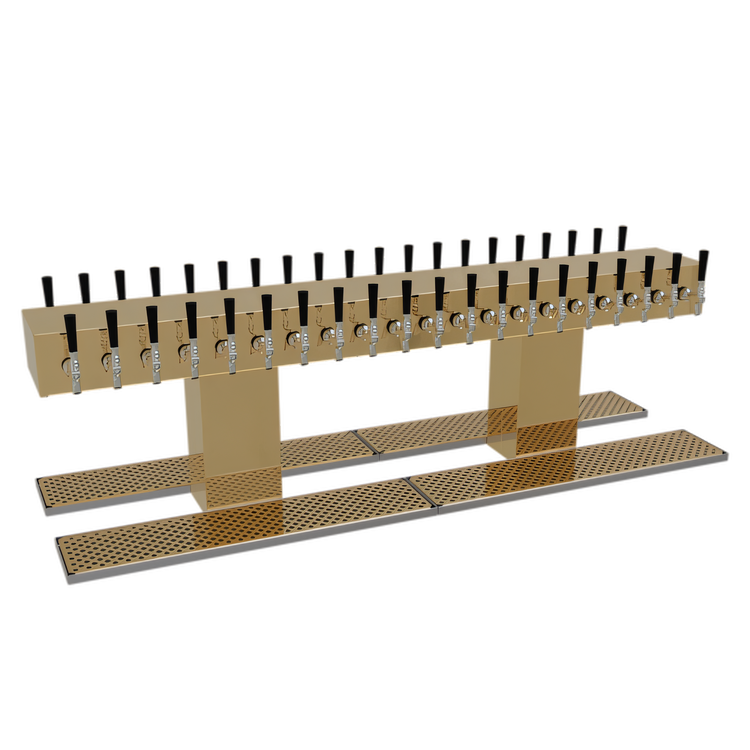

Glastender Double-Sided 40-Faucet Glycol-Cooled Draft Dispensing Tower, Countertop, Polished Brass Finish

SKU: DT-40-PBR
$11,085.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Draft Beer & Wine Dispensers Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

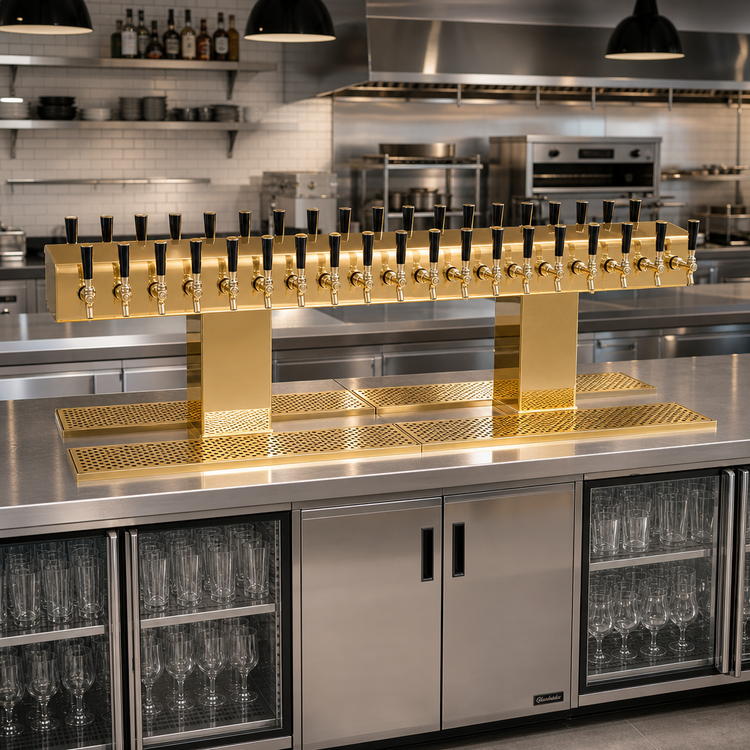

Glastender Double-Sided 40-Faucet Glycol-Cooled Draft Dispensing Tower, Countertop, Polished Brass Finish

Two Insulated Columns, Handles Not Included

Built for high-volume draft service, this countertop tower combines 40 faucets, glycol cooling, and stainless steel construction in a polished brass presentation.

  • Double-sided countertop draft tower designed for 40 faucets across two insulated columns.
  • Glycol-cooled with an insulated cold plate assembly for recirculating beverage systems.
  • All stainless steel construction with a polished brass finish for a premium bar look.
  • Includes surface-mount drain pans with removable inserts; faucet handles are not included.
  • Foamed-in-place insulated columns add rigidity and help support thermal performance.
  • Optional rinser faucet extension can be positioned to the left or right of the drain pan.

Overall Dimensions:

62.0"W x 19.87"D x 18.12"H

Product Weight:

170.0 lb

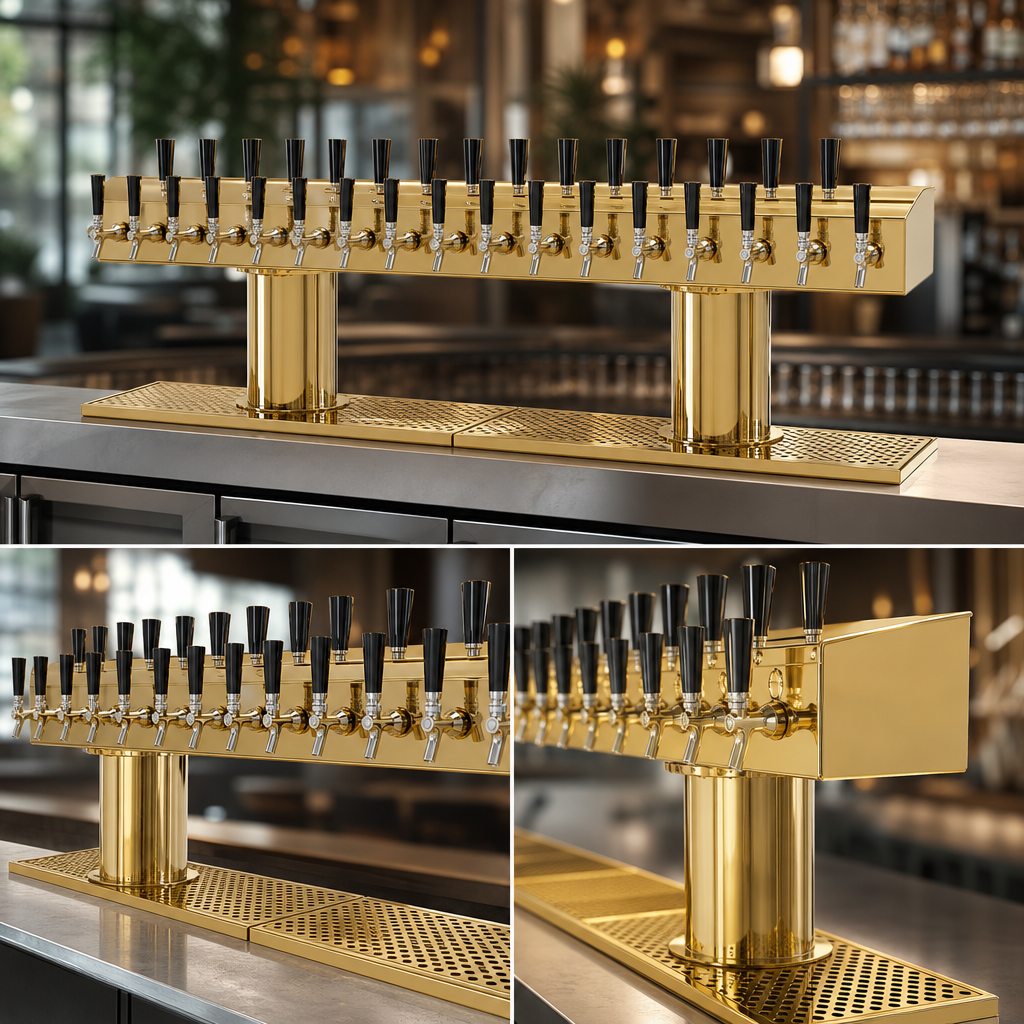

Double-Sided Two-Column Design

Countertop tower with two 6-3/4-inch insulated columns and a 40-faucet configuration.

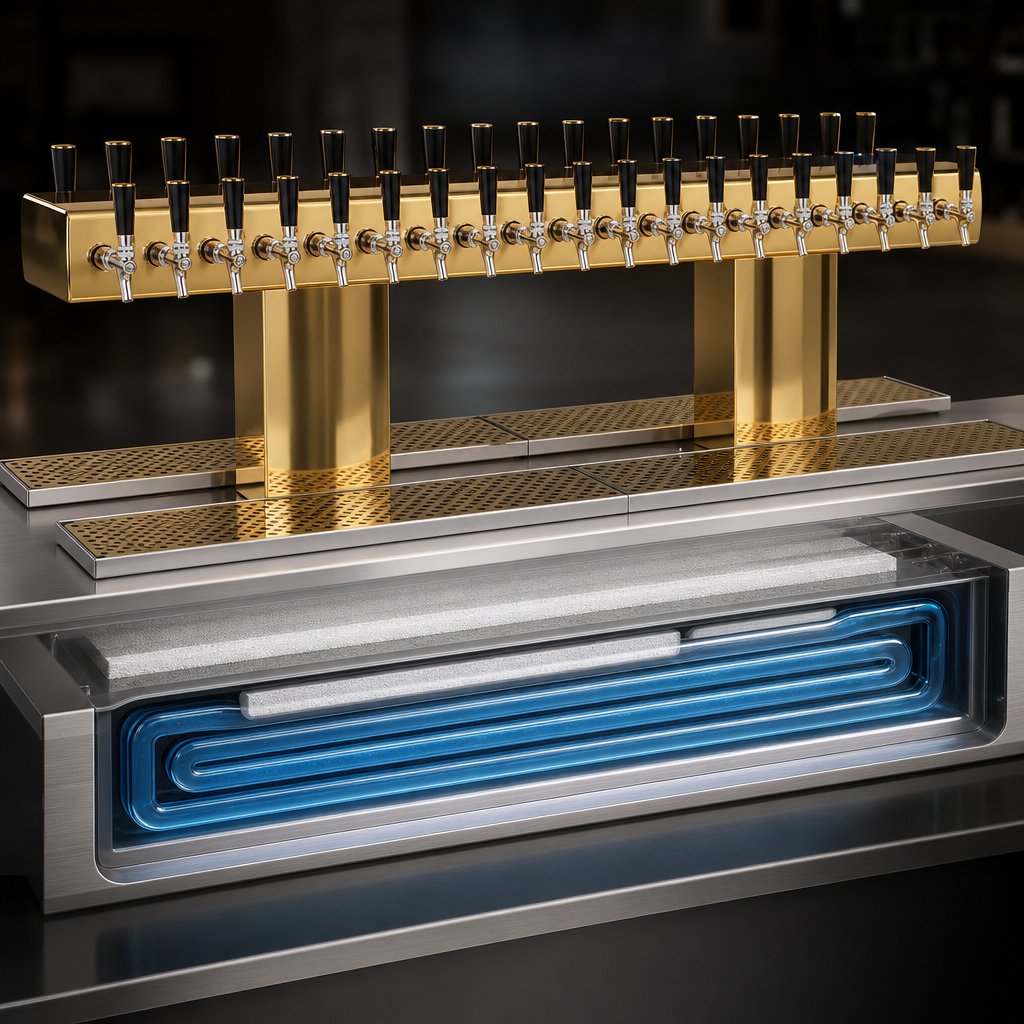

Glycol-Cooled Cold Plate Assembly

Insulated cold plate assembly supports recirculating glycol cooling systems.

Stainless Steel Construction

Durable all-stainless-steel build for long service life in beverage applications.

Polished Brass Finish

Finished in polished brass, with mirror-finish drain pans and brass-finish removable inserts.

Included Faucets and Shanks

Supplied with stainless steel faucets and shanks; faucet handles are not included.

Surface-Mount Drain Pans

Four surface-mount drain pans with lift-out perforated inserts for easier cleanup.

Installation Support Details

Includes an in-line water pressure regulator; external backflow prevention is required.

Optional Rinser Faucet Extension

RFE option can be installed to either the left or right side of the drain pan.

Type Draft Dispensing Tower
Style Double-Sided
Installation Type Countertop
Capacity 40 Faucets
Columns 2
Material Stainless Steel
Finish Polished Brass
Refrigeration Type Glycol Cooled
Drain Connection Size 1/2 Inch Tailpiece
Shank Size 1/4 Inch I.D.
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 62 Inches
Shipping Depth 20 Inches
Shipping Height 19 Inches
Shipping Weight 170 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is configured for 40 stainless steel faucets.
It is designed for countertop installation.
No. Faucet handles are not included.
It is glycol-cooled and includes an insulated cold plate assembly for recirculating systems.
The unit does not provide a 1-inch air gap, external backflow prevention is required, an in-line water pressure regulator is included, and a separate shut-off valve is recommended.
Yes. An optional rinser faucet extension can be placed to the left or right of the drain pan using the RFE option.
