Glastender, Inc.

Glastender Two-Compartment Stainless Steel Underbar Sink Unit with Left Drainboard, 36 x 19 Inches

SKU: DSA-36R-S
$2,230.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

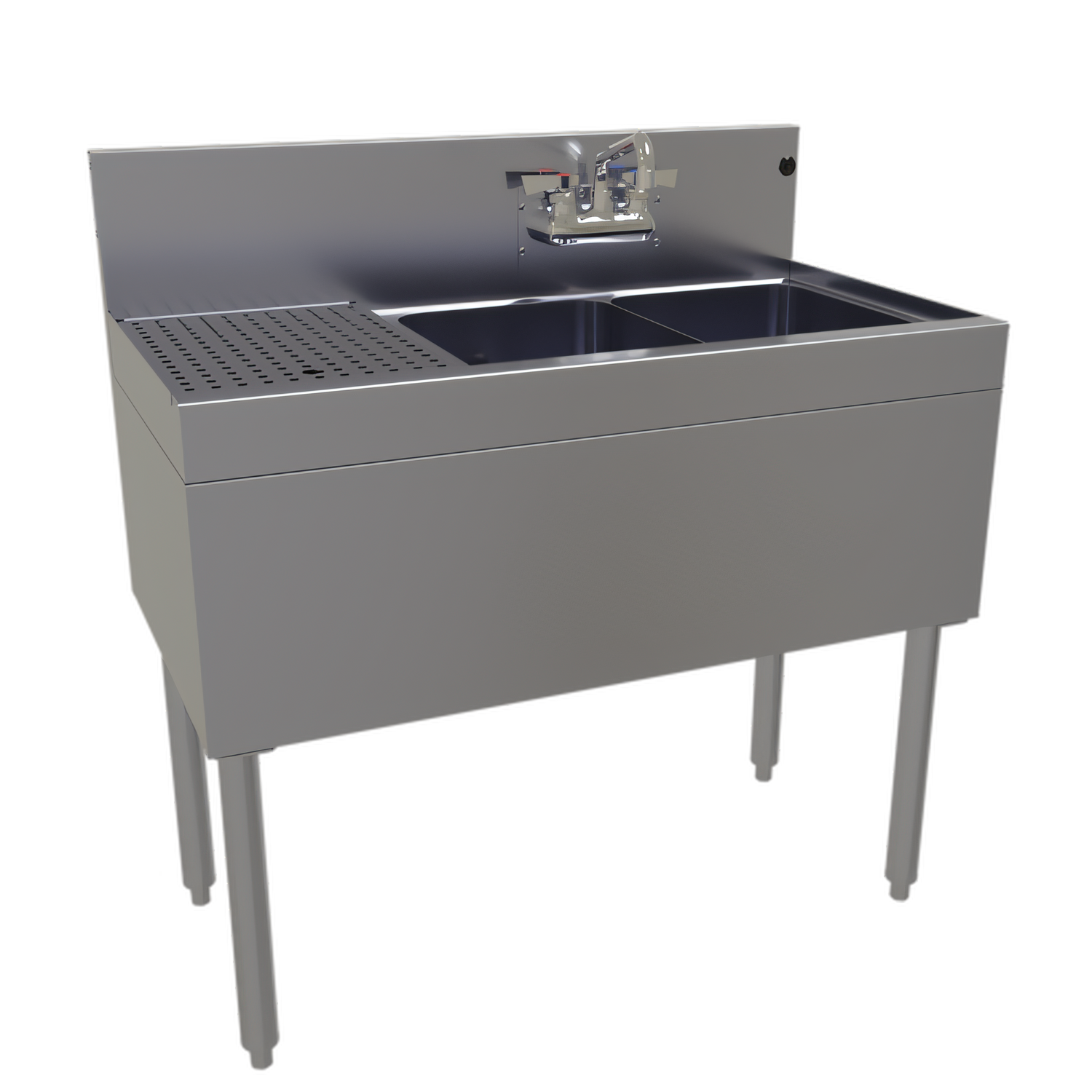

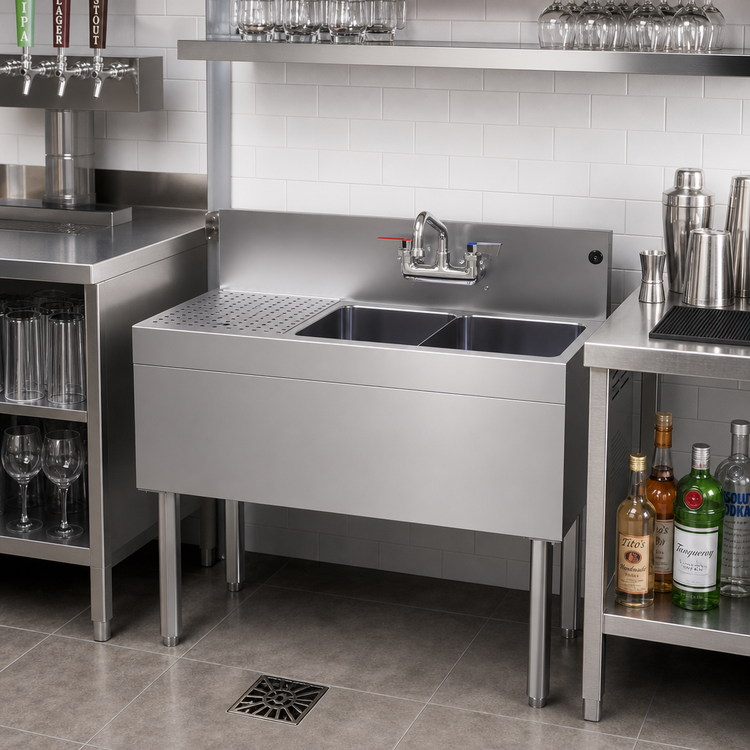

Glastender Two-Compartment Stainless Steel Underbar Sink Unit with Left Drainboard, 36 x 19 Inches

Right-side sink bowls; 12-inch left drainboard; backsplash-mounted faucet included

Built for compact bar stations, this 36-inch underbar sink combines two roomy bowls, a left drainboard, and a mounted low-lead faucet in durable stainless steel.

  • Two-compartment underbar sink with 11 x 14 x 10-1/4 inch bowls.
  • 12-inch left drainboard with lift-out perforated insert for better air circulation and drainage.
  • One-piece 18-gauge stainless steel top, front rail, and backsplash for easier cleaning.
  • Backsplash-mounted hot and cold faucet ships mounted and is low-lead compliant.
  • Includes two overflow standpipes and 1-1/2-inch IPS threaded drains.
  • Stainless steel legs with adjustable bullet feet provide sturdy support and leveling.

Overall Dimensions:

36.0"W x 19.0"D x 37.0"H

Product Weight:

100.0 lb

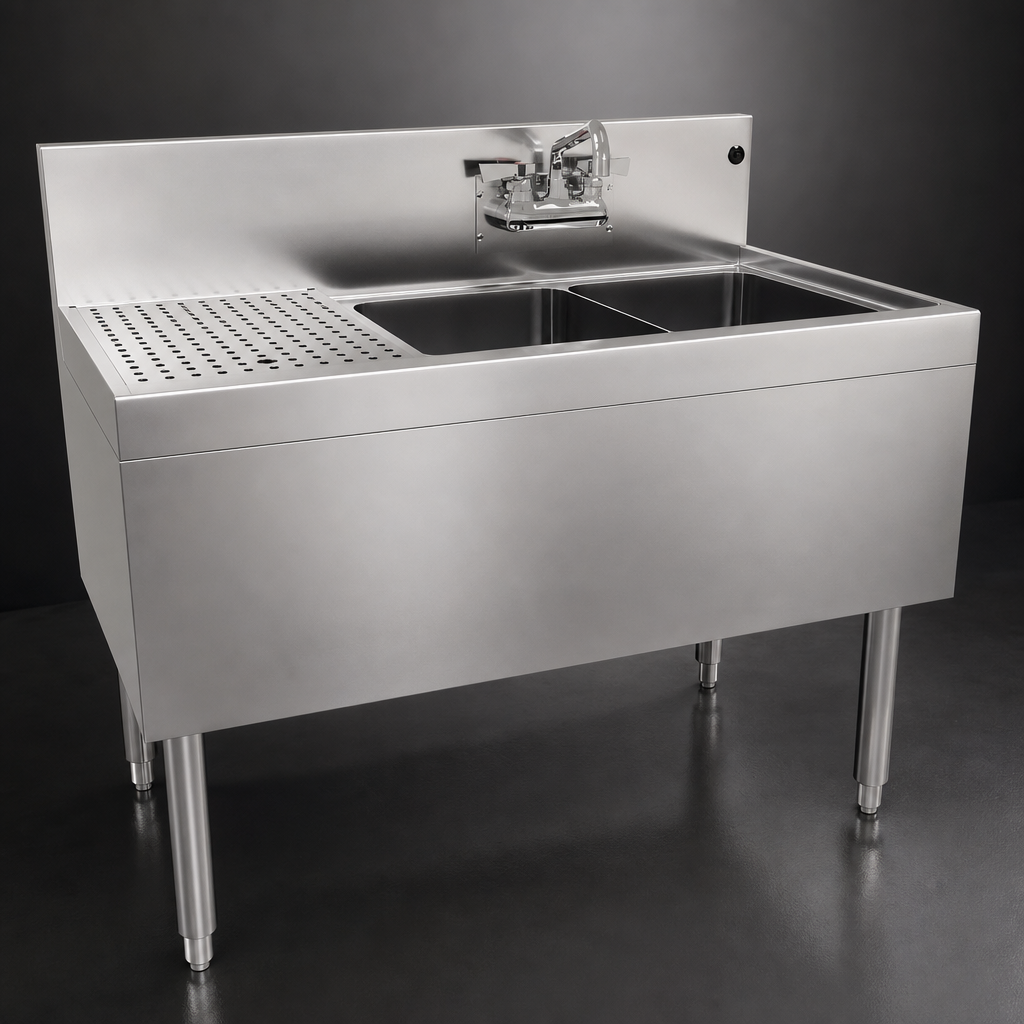

One-Piece Seamless Stainless Steel Top

18-gauge stainless steel top, front rail, and backsplash with 1/4-inch radius corners for easier cleaning and better sanitation.

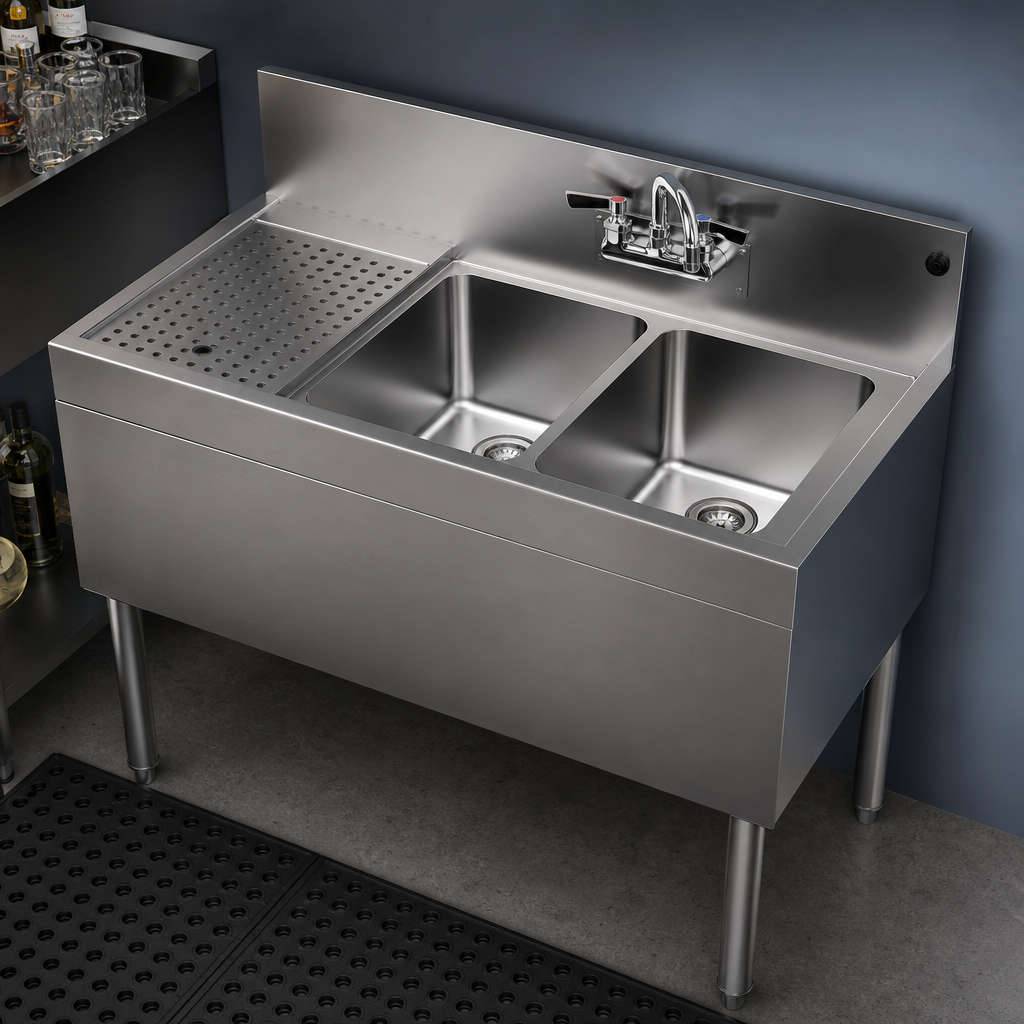

Two Fabricated Sink Bowls

Two 16-gauge stainless steel bowls measure 11 x 14 x 10-1/4 inches for roomy sink capacity.

Left Drainboard with Removable Insert

Integral left drainboard includes a lift-out perforated stainless steel insert to improve drainage and air circulation.

Backsplash-Mounted Low-Lead Faucet

Hot and cold water faucet ships mounted on the backsplash and is NSF/ANSI 61 Annex G low-lead compliant.

Overflow Standpipes Included

Two overflow standpipes are included, one for each sink bowl.

Heavy-Duty Stainless Steel Legs

1-5/8-inch diameter stainless steel legs with stainless steel bullet feet support the unit and allow leveling.

Threaded Drain Connections

1-1/2-inch IPS threaded drains are provided and are compatible with Dearborn part #8033 slipnut and W-573P washer.

Type Underbar Sink Unit
Style Two Compartment
Installation Type Freestanding
Compartments 2
Material Stainless Steel
Drainboard Location Left
Drainboard Length 12 Inches
Sink Location Right
Bowl Size 11 Inches x 14 Inches x 10-1/4 Inches
Top Gauge 18 Gauge
Bowl Gauge 16 Gauge
Country of Origin USA
Shipping Width 36 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 100 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The overall dimensions are 36 inches wide, 19 inches deep, and 37 inches high.
Each sink bowl measures 11 inches wide by 14 inches front-to-back by 10-1/4 inches deep.
Yes. A hot and cold water faucet ships mounted on the backsplash, and it is low-lead compliant.
This model has a 12-inch drainboard on the left side.
Yes. Two overflow standpipes are included, one for each sink bowl.
No. It is made to order and not returnable.
