Glastender, Inc.

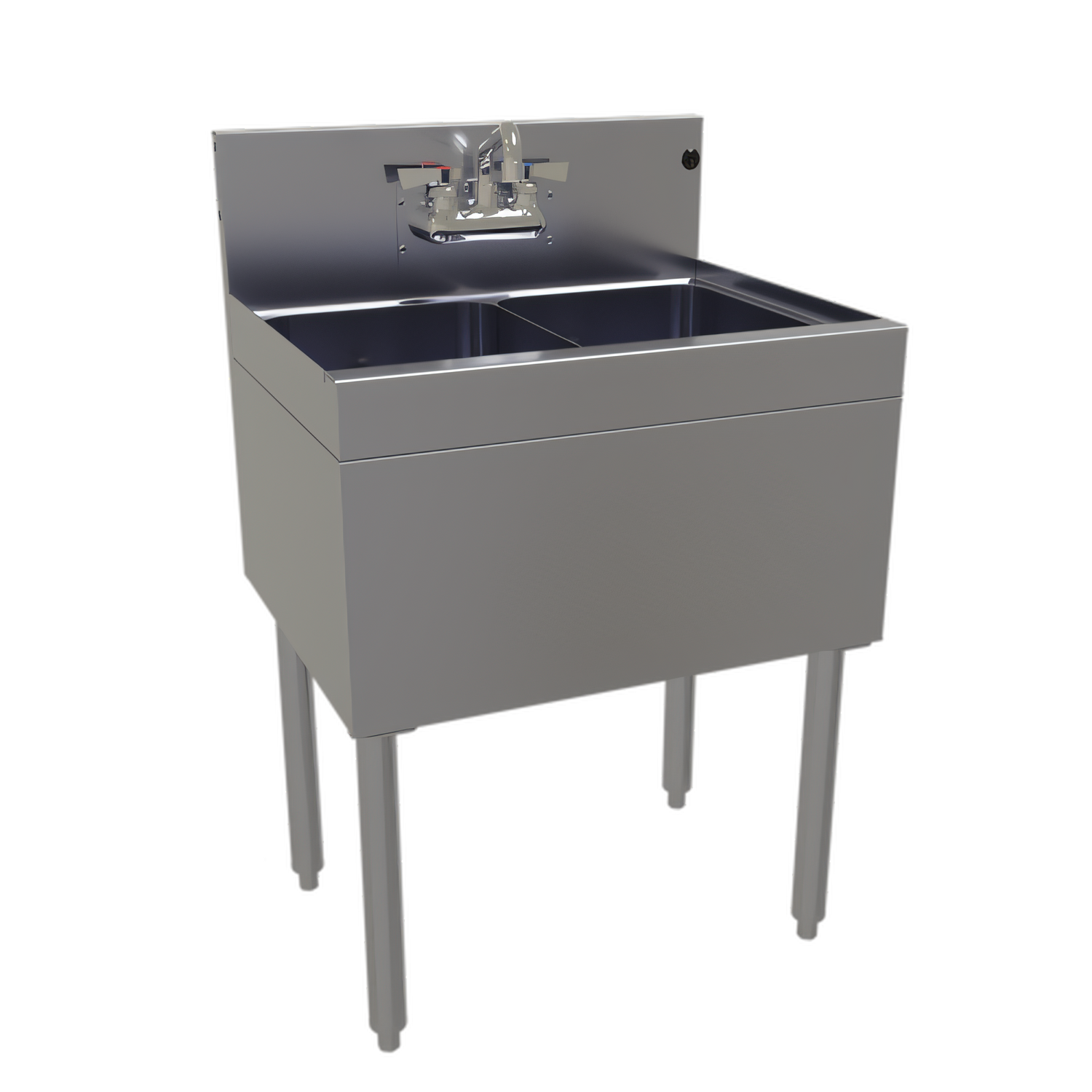

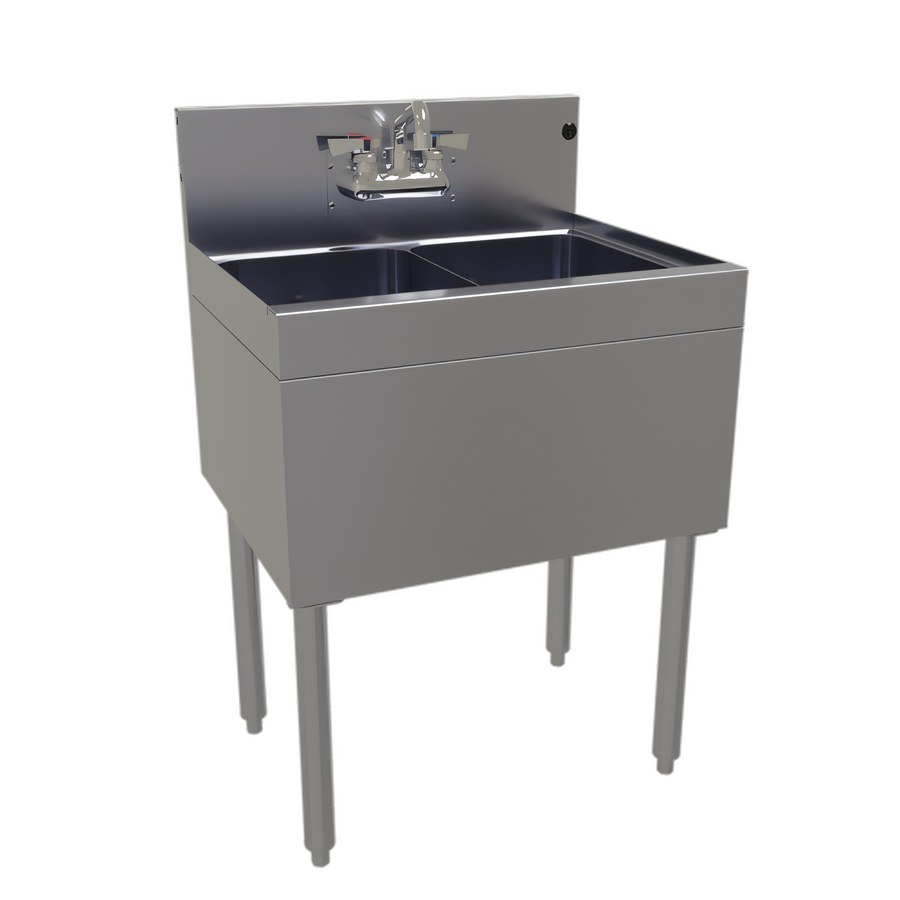

Glastender Two-Compartment Underbar Sink Unit with Backsplash-Mounted Faucet, 24 x 19 Inches, Stainless Steel

SKU: DSA-24-S
$2,047.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Glastender Two-Compartment Underbar Sink Unit with Backsplash-Mounted Faucet, 24 x 19 Inches, Stainless Steel

19-Inch Deep, Center Layout

Built for busy bar and beverage stations, this stainless steel underbar sink combines a mounted low-lead faucet, deep dual bowls, and included overflow standpipes for dependable daily use.

  • Two-compartment underbar sink unit with a compact 24-inch-wide footprint and no drainboards.
  • Stainless steel construction with a seamless top and fabricated bowls supports durability and easy cleaning.
  • Standard backsplash-mounted faucet ships mounted and is low-lead compliant.
  • Includes two overflow standpipes and stainless steel bullet feet.
  • Hot and cold water connections are required, and the drain uses a 1-1/2-inch I.P.S. threaded connection.

Overall Dimensions:

24.0"W x 19.0"D x 37.0"H

Product Weight:

90.0 lb

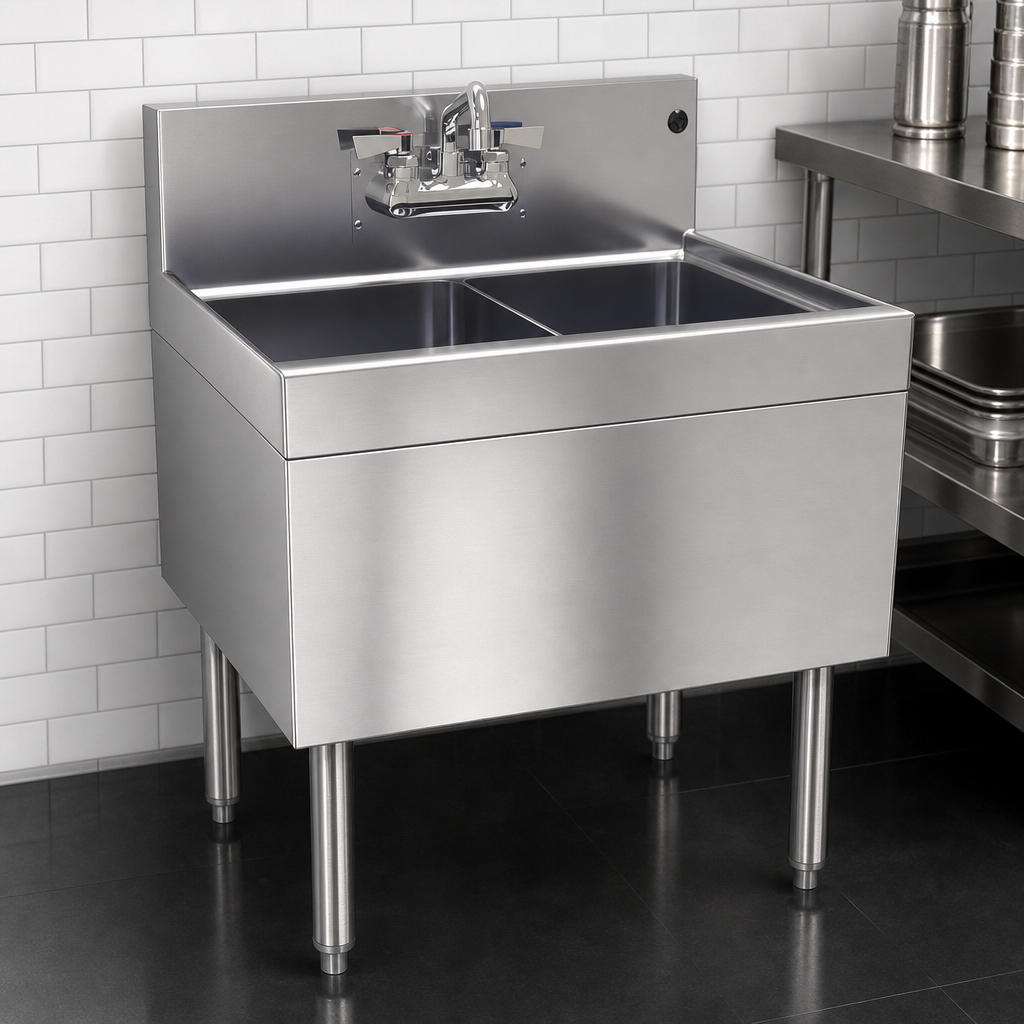

Seamless One-Piece Top

18-gauge stainless steel top, front rail, and backsplash with 1/4-inch radius corners help simplify cleanup and improve durability.

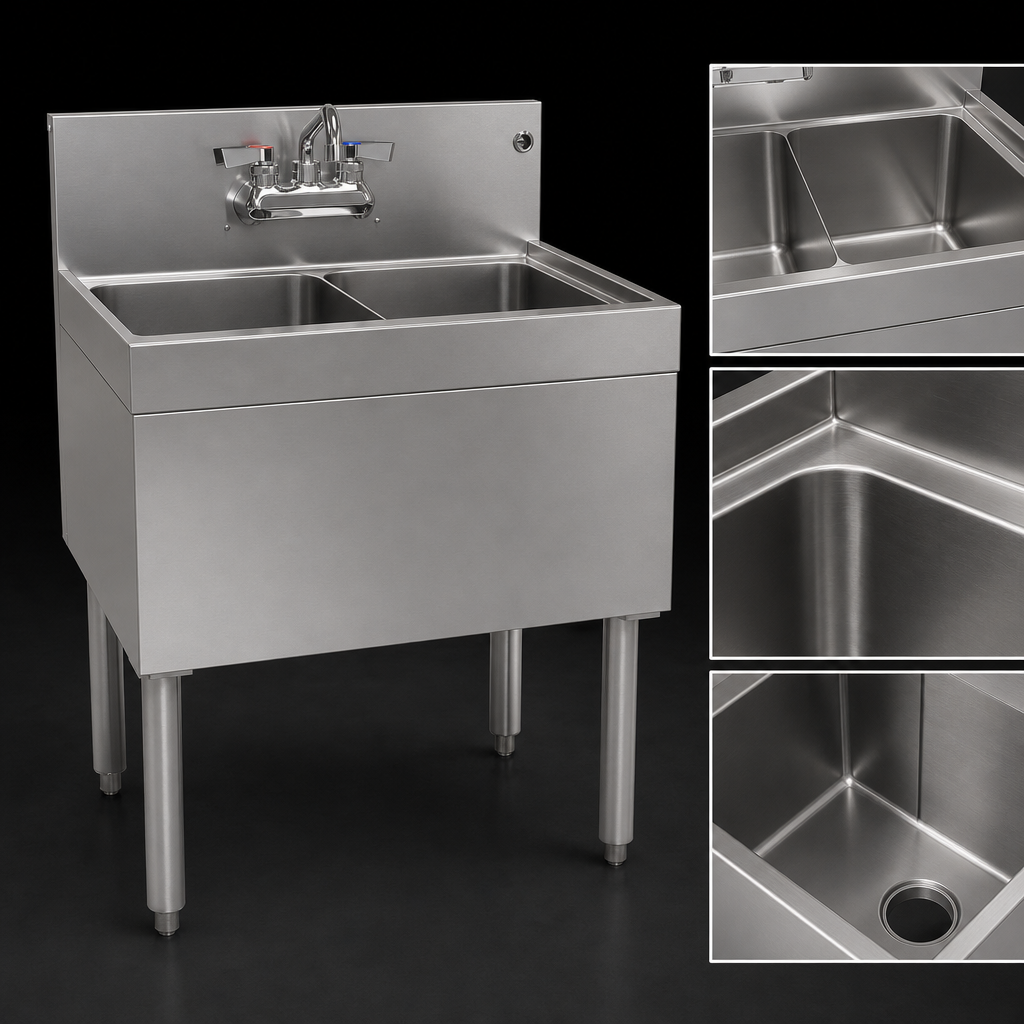

Fabricated Sink Bowls

16-gauge stainless steel bowls measure 11 inches x 14 inches front-to-back x 10-1/4 inches deep and provide extra-wide working space.

Backsplash-Mounted Faucet

The 19-inch deep model uses a backsplash-mounted faucet on 4-inch centers; hot and cold water connections are required and the faucet ships mounted.

Low-Lead Compliance

Standard faucet is NSF/ANSI 61, Annex G low lead compliant.

Overflow Standpipes Included

One overflow tube is included per sink bowl, for a total of two.

Stainless Steel Legs and Bullet Feet

1-5/8-inch diameter stainless steel legs are paired with stainless steel bullet feet for stable support.

Threaded Drain Connection

The 1-1/2-inch I.P.S. threaded drain fits Dearborn part #8033 slipnut and part #W-573P washer.

No Drainboards

Supplied without drainboards to keep the unit compact for underbar installation.

Type Underbar Sink Unit
Style Two Compartment
Installation Type Floor Model (With Legs)
Compartments 2
Sink Location Center
Drainboards Without Drainboards
Material Stainless Steel
Bowl Size 11 Inches x 14 Inches Front-To-Back x 10-1/4 Inches Deep
Water Connection Required
Drain Connection Required
Drain Connection Size 1-1/2 Inches I.P.S. Threaded
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 90 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has two sink compartments.
Each bowl measures 11 inches wide x 14 inches front-to-back x 10-1/4 inches deep.
Yes. The standard faucet ships mounted, and 19-inch deep models use a backsplash-mounted faucet on 4-inch centers.
Yes, one overflow tube is included per sink bowl.
No, this model is supplied without drainboards.
Yes. The product note states that it is made to order and not returnable.
