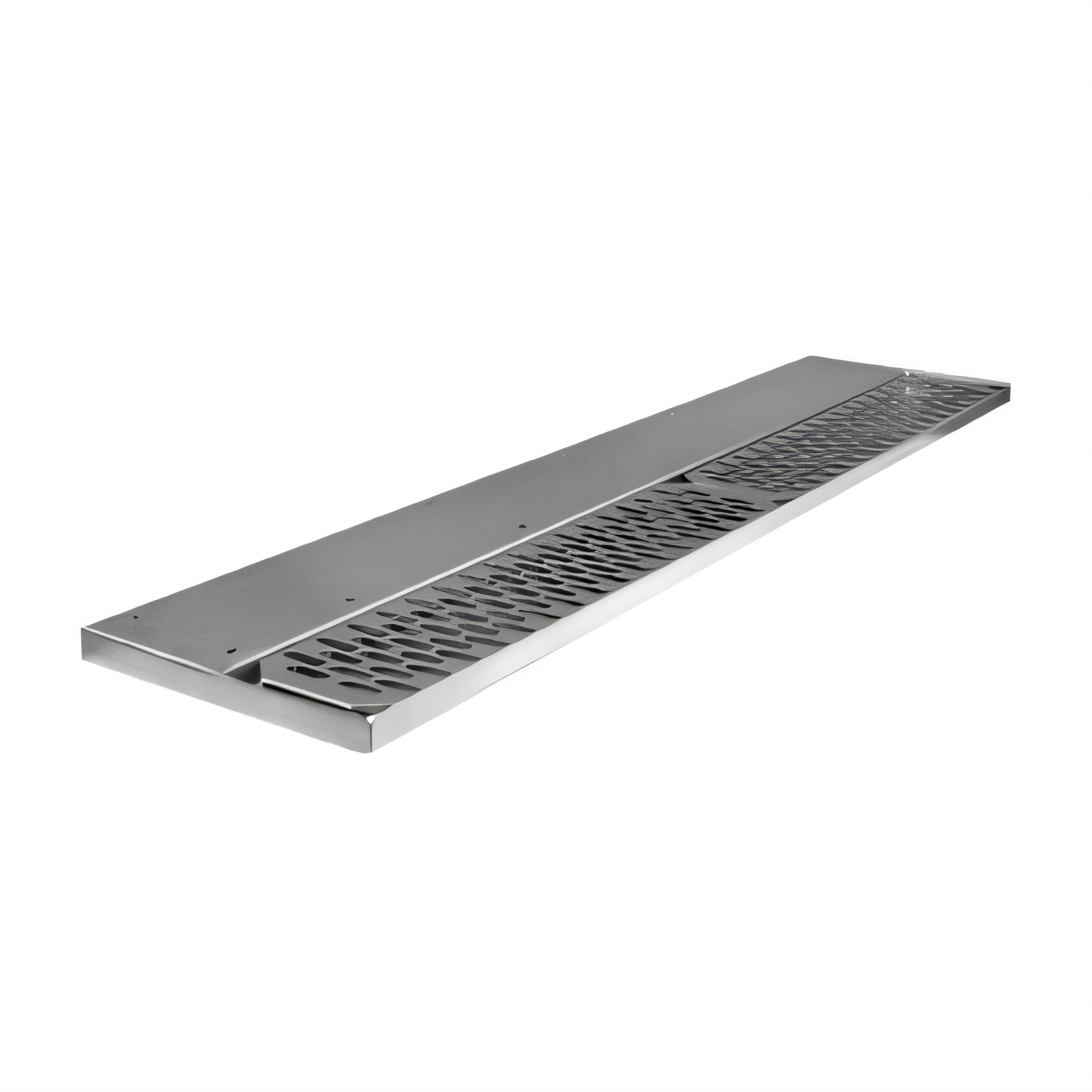

Glastender 42-Inch Left-Drain Stainless Steel Underbar Drink Rail with Removable Perforated Insert

1/2-Inch Welded Tailpiece; Model DR-42L

Built for efficient bar-top drainage, this stainless steel drink rail combines a left-side drain, removable insert, and seamless pan design for dependable everyday service.

  • 42-inch drink rail designed for underbar mounting
  • All stainless steel construction for durability and easy cleaning
  • Left-side drain with 1/2-inch welded tailpiece
  • Removable perforated insert helps capture debris and simplifies maintenance
  • One-piece seamless mounting deck and pan support a cleaner installation
  • 42-inch and 48-inch models include two gussets for added strength

Overall Dimensions:

42.0"W x 8.0"D x 0.75"H

Product Weight:

15.0 lb

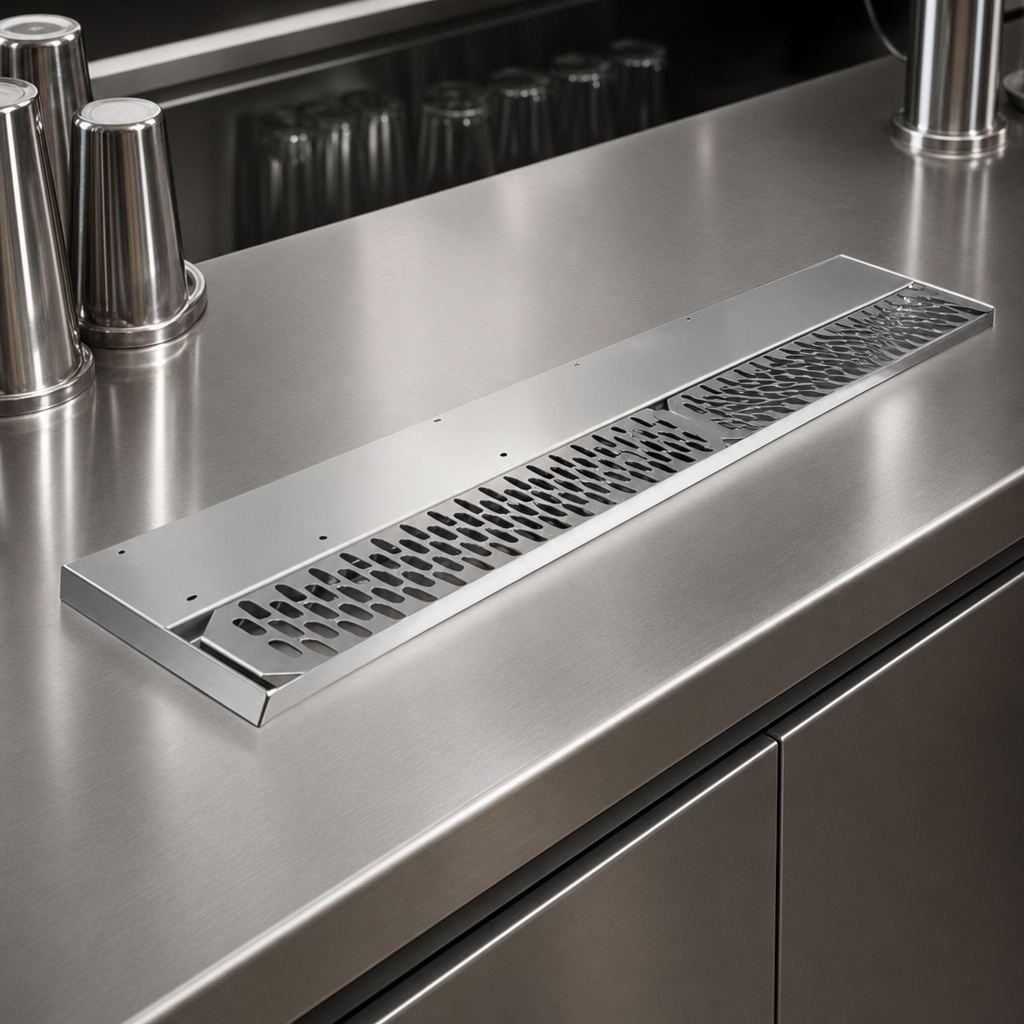

All Stainless Steel Construction

Durable stainless steel build designed for long-lasting bar use and easy cleaning.

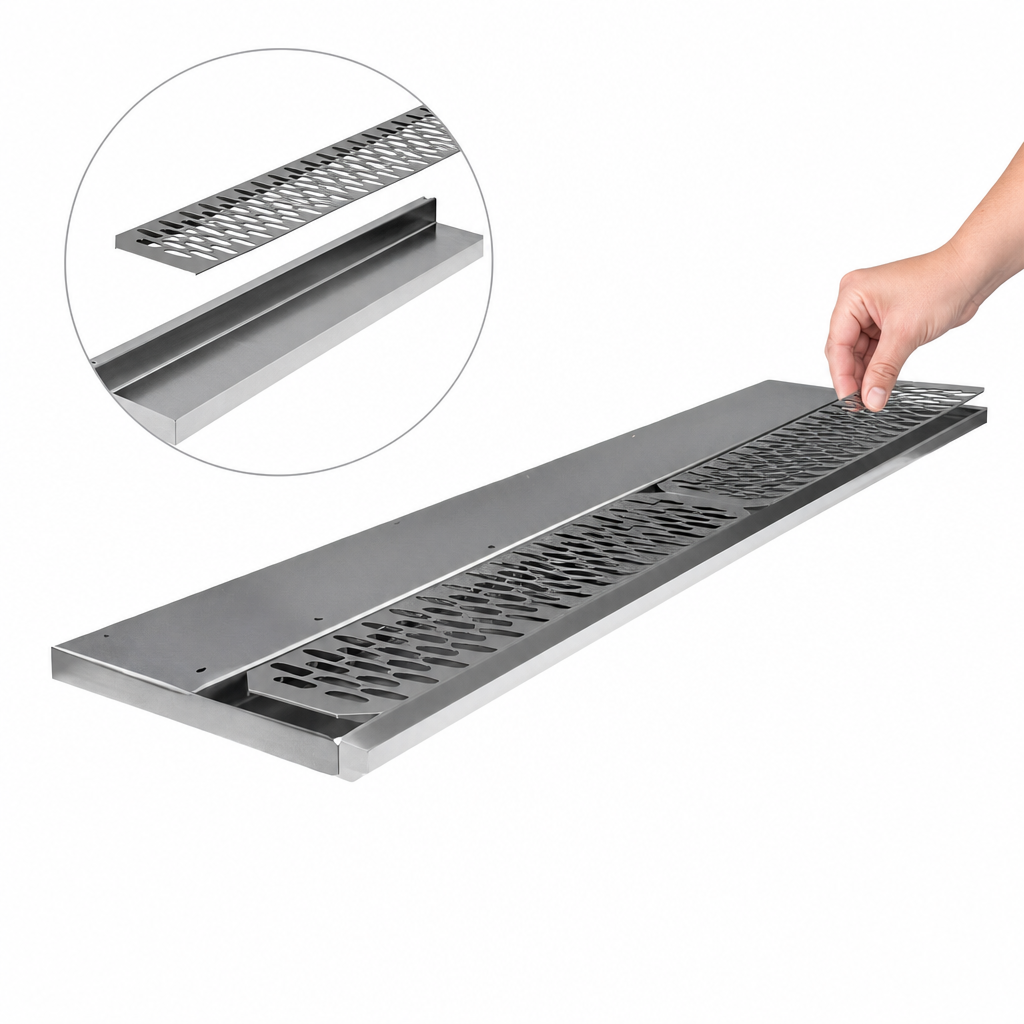

Removable Perforated Insert

Helps catch debris and lifts out for simpler cleaning and maintenance.

Left-Side Drain

L models drain on the left and use a 1/2-inch welded tailpiece that exits from the back of the unit.

One-Piece Seamless Mounting Deck and Pan

Seamless construction supports a cleaner installation and helps reduce crevices.

Reinforced 42-Inch Design

The 42-inch version includes two gussets for added strength.

Installation Kit Included

Includes clear vinyl drain tube, Ty-wrap, stainless steel screws, cable clamps, and a plastic tee for installation.

Type Drink Rail
Mounting Type Underbar Mount
Drain Side Left
Drain Connection Size 1/2 Inch
Material Stainless Steel
Shipping Width 42 Inches
Shipping Depth 8 Inches
Shipping Height 1 Inch
Shipping Weight 15 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

DR-42L is the left-drain model; R versions drain on the right.
The series is available in 6-inch increments from 12 inches to 48 inches.
The unit has all stainless steel construction, with a 20-gauge stainless steel perforated insert and an 18-gauge stainless steel drain pan.
The installation kit includes 10 ft. of clear vinyl drain tube, one 4-inch Ty-wrap, three #10 x 1/2-inch stainless steel wood screws, three cable clamps, one 1/2-inch x 1/2-inch x 1/2-inch plastic tee, and 17 #10 x 1/2-inch black sheet metal screws.
Yes, 45° and 90° inside and outside corner filler sections are available.
