Glastender 30-Inch Stainless Steel Underbar Drink Rail with Left Drain

SKU: DR-30L
$366.30
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

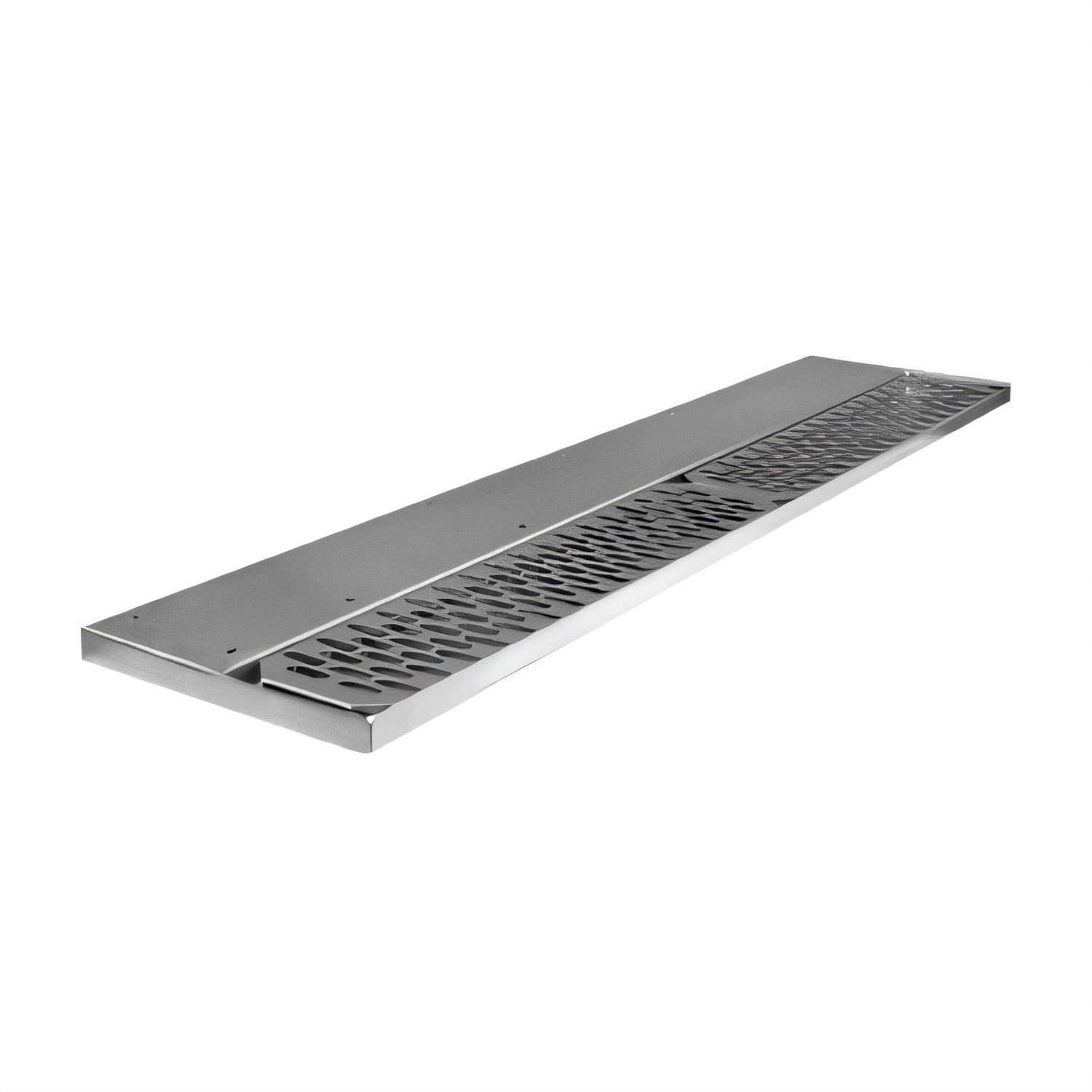

Glastender 30-Inch Stainless Steel Underbar Drink Rail with Left Drain

Removable Perforated Insert, 8-Inch Depth

A durable underbar drink rail with a left-side drain and removable perforated insert to help keep bar tops clean and drainage simple.

  • 30-inch stainless steel drink rail designed for underbar mounting.
  • Left-side drain with a 1/2-inch welded tailpiece exiting from the back.
  • One-piece seamless mounting deck and pan with removable perforated insert.
  • 30-inch model includes one gusset for added strength.
  • Installation kit included with drain tube, screws, clamps, and plastic tee.
  • ETL Sanitation Listed and conforms to ANSI/NSF STD 2.

Overall Dimensions:

30.0"W x 8.0"D x 0.75"H

Product Weight:

11.0 lb

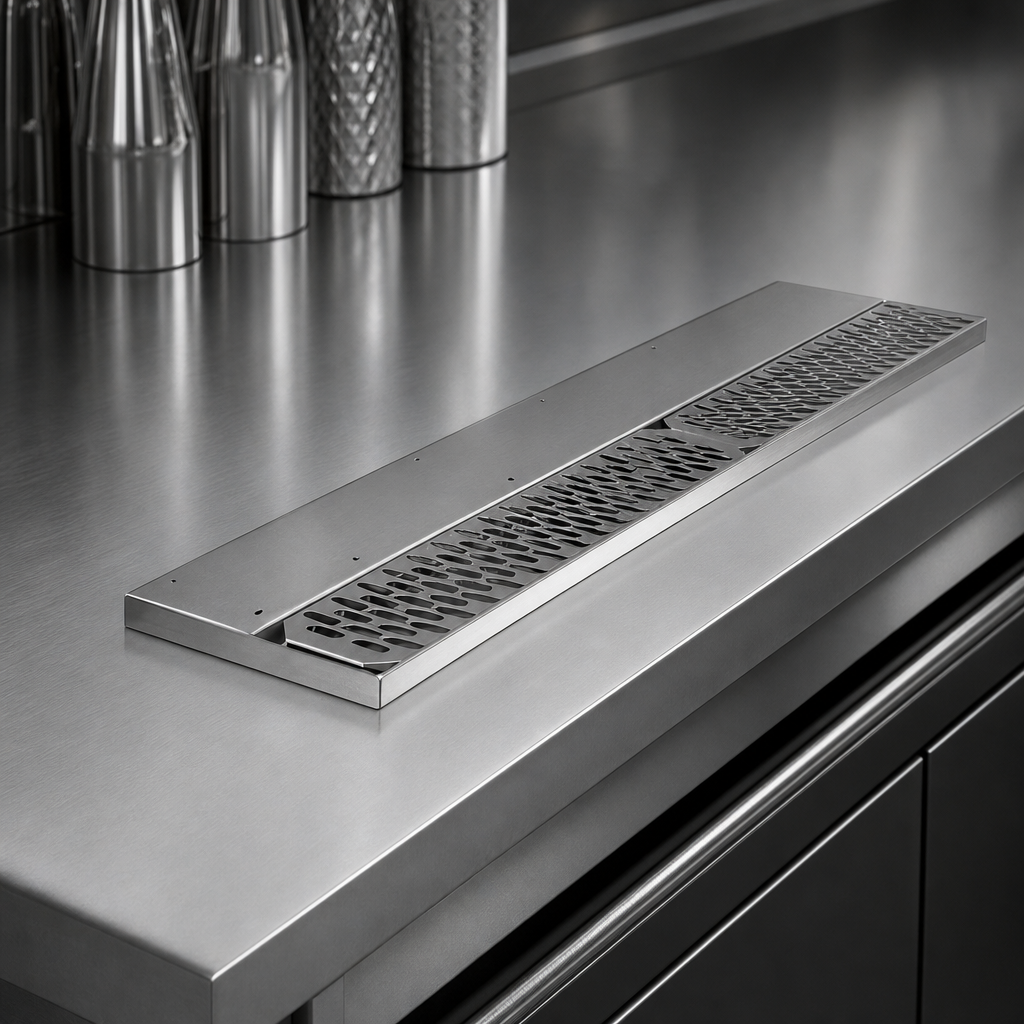

All Stainless Steel Construction

Built with stainless steel components for durability and easy cleaning in bar applications.

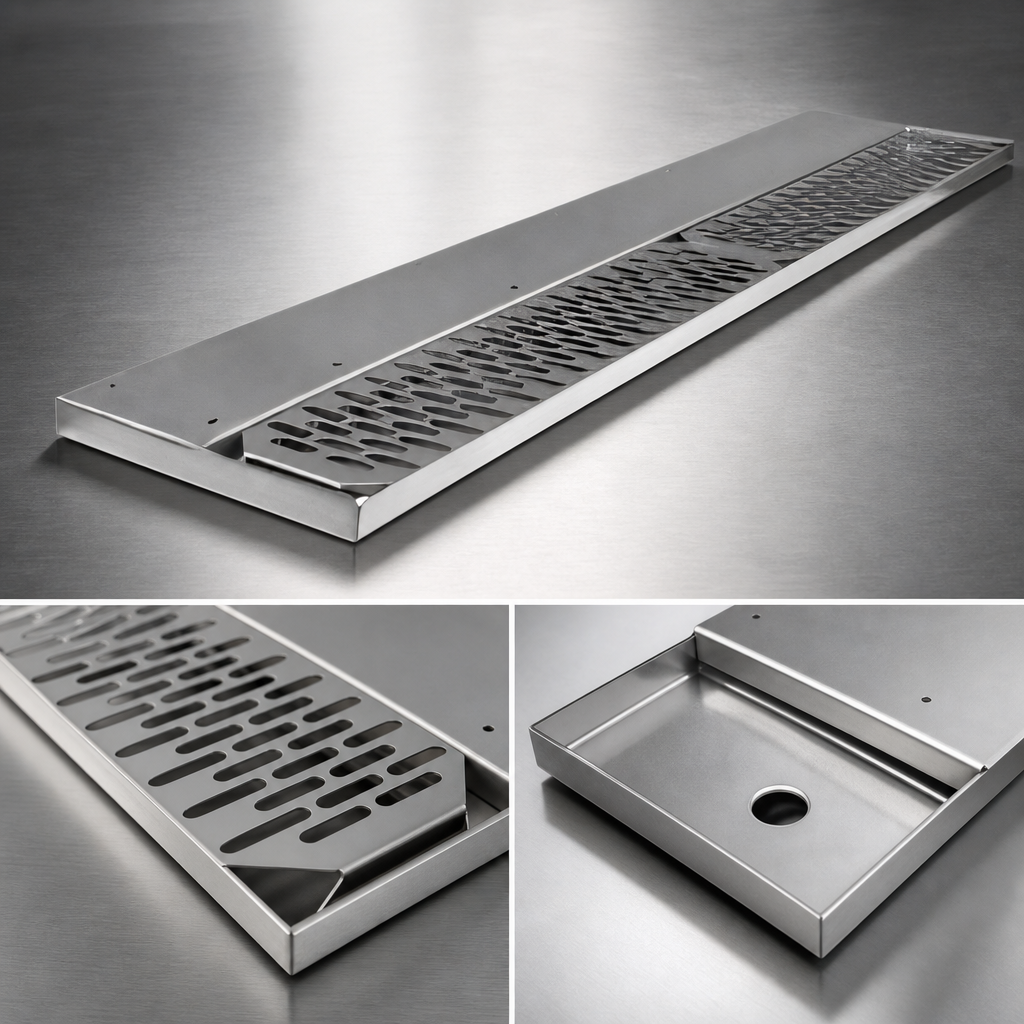

Heavy-Gauge Components

Perforated insert is 20 gauge stainless steel and the drain pan is 18 gauge stainless steel.

One-Piece Seamless Deck And Pan

Seamless construction helps reduce crevices where spills and debris can collect.

Removable Perforated Insert

The insert lifts out for easier cleaning and maintenance.

Left Drain With Rear Tailpiece

"L" models drain to the left, and the drain uses a 1/2-inch tailpiece that exits from the back of the unit.

Included Installation Kit

Includes 10 ft. clear vinyl drain tube, one 4-inch Ty-wrap, three #10 x 1/2-inch stainless steel wood screws, three cable clamps, one 1/2 x 1/2 x 1/2 plastic tee, and 17 #10 x 1/2 black sheet metal screws.

Reinforced 30-Inch Model

The 30-inch model includes one gusset for added strength.

Corner Filler Options Available

45° and 90° inside and outside corner filler sections are available for drink rail layouts.

Sanitation Listed

ETL Sanitation Listed and conforms to ANSI/NSF STD 2.

Type Drink Rail
Installation Type Underbar Mount
Drain Side Left
Material Stainless Steel
Country of Origin USA
Shipping Width 30 Inches
Shipping Depth 8 Inches
Shipping Height 1 Inch
Shipping Weight 11 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has a left-side drain, and the 1/2-inch tailpiece exits from the back of the unit.
Yes. The drink rail uses a removable perforated insert for easier cleaning.
The installation kit includes 10 ft. of clear vinyl drain tube, one 4-inch Ty-wrap, three #10 x 1/2-inch stainless steel wood screws, three cable clamps, one 1/2 x 1/2 x 1/2 plastic tee, and 17 #10 x 1/2 black sheet metal screws.
Yes. The unit must be sealed to the mounting surface with an NSF listed sealant for proper sanitation operation.
It is ETL Sanitation Listed and conforms to ANSI/NSF STD 2.
Yes. Inside and outside 45° and 90° corner filler sections are available.
