Glastender 18-Inch Left-Drain Stainless Steel Underbar Drink Rail with Removable Perforated Insert

Underbar mount, 1/2-inch tailpiece, ETL-Sanitation listed

This durable stainless steel drink rail combines left-side drainage, a removable perforated insert, and an included install kit for a clean, efficient bar-top solution.

  • 18-inch underbar-mount drink rail designed for bar-top installation.
  • Left-drain configuration with a 1/2-inch tailpiece exiting from the back of the unit.
  • All stainless steel construction for commercial durability and corrosion resistance.
  • Removable perforated insert helps manage runoff while making cleanup easier.
  • Installation kit is included to help simplify setup and plumbing.
  • ETL-Sanitation listed and conforms to ANSI/NSF Standard 2.

Overall Dimensions:

18.0"W x 8.0"D x 0.75"H

Product Weight:

8.0 lb

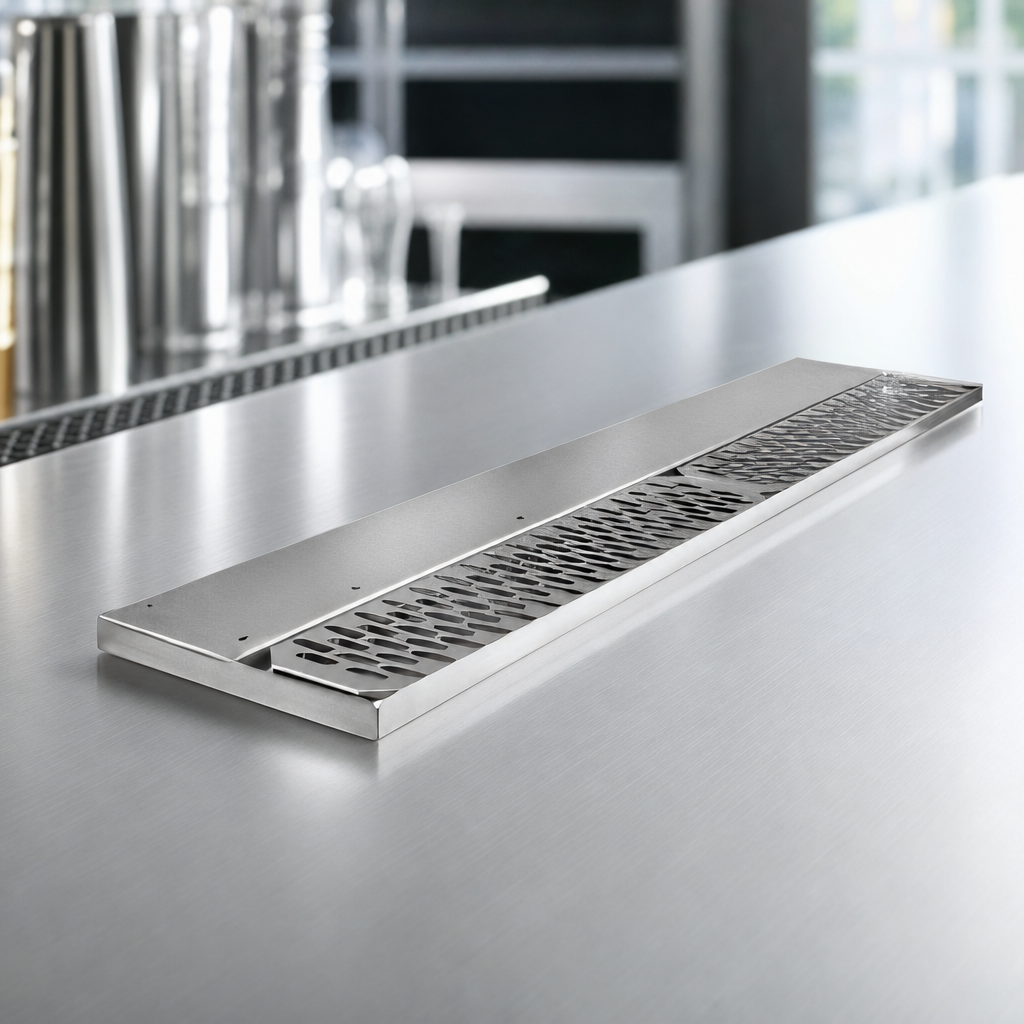

Stainless Steel Construction

Built from stainless steel for durability, easy maintenance, and long service life in bar environments.

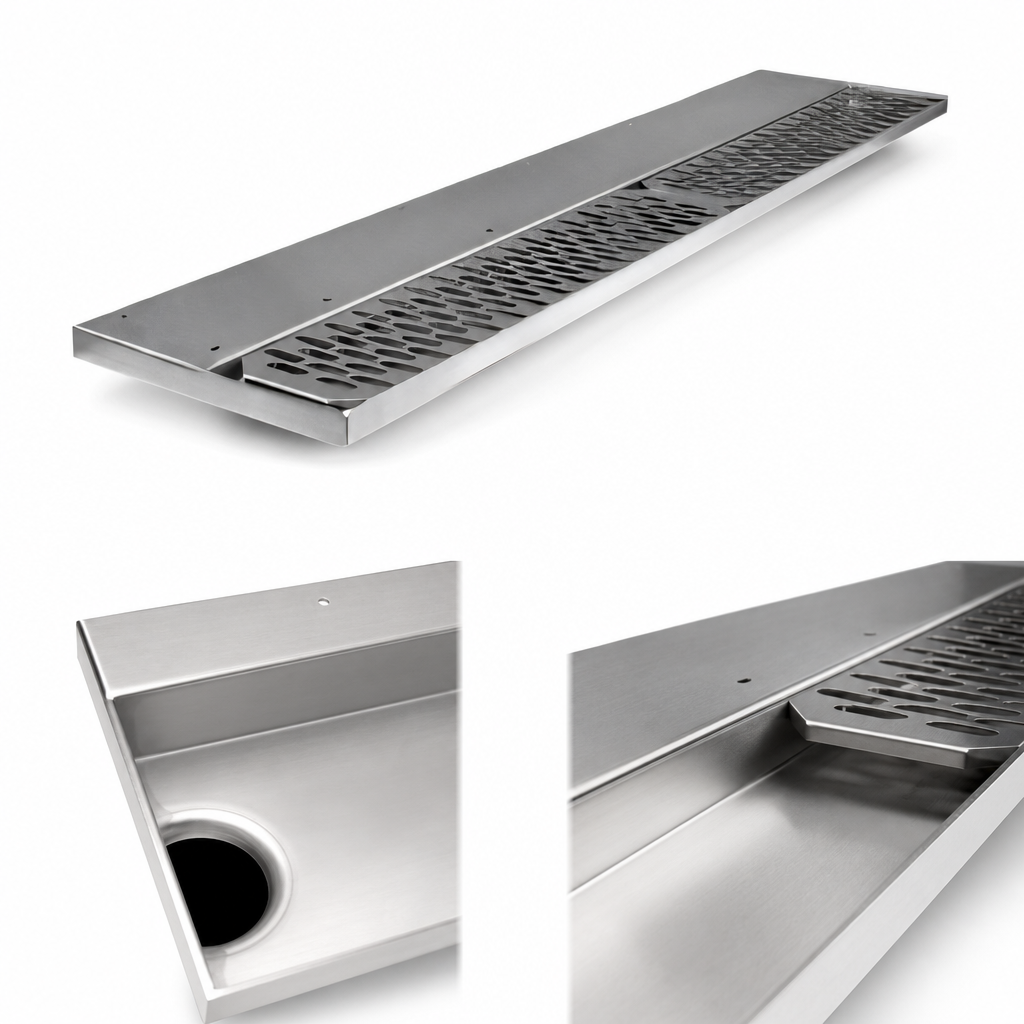

Seamless Mounting Deck and Pan

One-piece, seamless mounting deck and pan design helps reduce buildup points and supports easier cleaning.

Removable Perforated Insert

The perforated insert removes for cleaning and helps manage drainage at the bar top.

Left Drain Orientation

The "L" model drains to the left, making it easier to match your bar layout and plumbing run.

Rear-Exiting 1/2-Inch Tailpiece

Drain consists of a 1/2-inch tailpiece that exits from the back of the unit for plumbing connection.

Installation Kit Included

Includes 10 feet of clear vinyl drain tube, one 4-inch Ty-wrap, three #10 x 1/2-inch stainless steel wood screws, three cable clamps, and one 1/2 x 1/2 x 1/2-inch plastic tee.

Corner Filler Compatibility

45-degree and 90-degree inside and outside corner filler sections are available for custom bar layouts.

ETL-Sanitation Listed

Sanitation listed and conforms to ANSI/NSF Standard 2.

Type Drink Rail
Style Underbar Mount
Installation Type Built-In
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 8 Inches
Shipping Height 1 Inch
Shipping Weight 8 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The DR-18L is the left-drain version.
Yes, the unit includes a removable perforated insert.
The installation kit includes 10 feet of clear vinyl drain tube, one 4-inch Ty-wrap, three #10 x 1/2-inch stainless steel wood screws, three cable clamps, and one 1/2 x 1/2 x 1/2-inch plastic tee.
It is constructed from stainless steel.
Yes, it is ETL-Sanitation listed and conforms to ANSI/NSF Standard 2.
It is made to order and noted as not returnable.
