Glastender DR-12R 12-Inch Stainless Steel Underbar Mount Drink Rail, Right Drain

SKU: DR-12R
$307.45
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

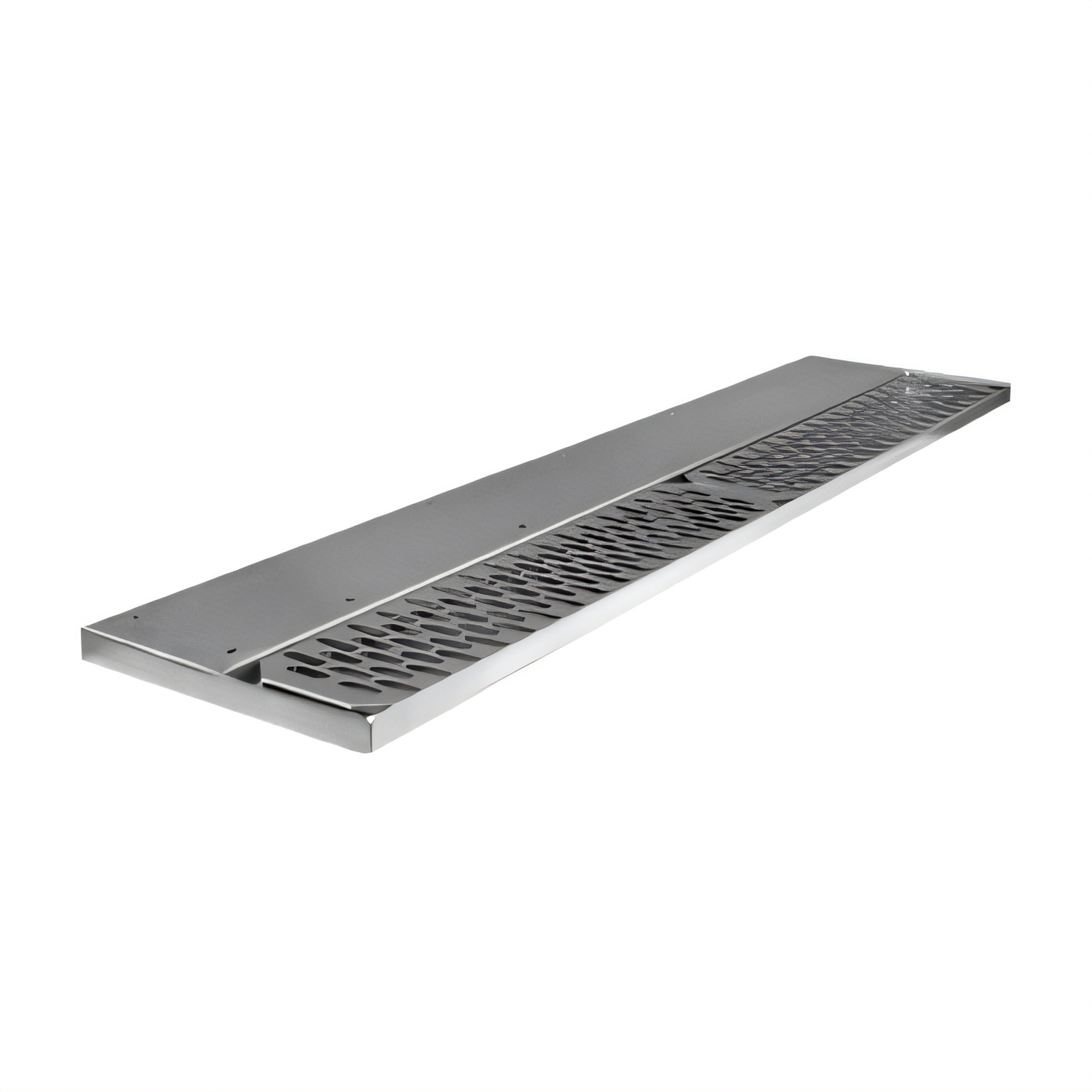

Glastender DR-12R 12-Inch Stainless Steel Underbar Mount Drink Rail, Right Drain

Removable perforated insert; rear-exit 1/2-inch tailpiece

A compact stainless steel drink rail designed for underbar installation, with right-side drainage and an easy-clean removable insert.

  • 12-inch drink rail for bar-top beverage stations and compact installations.
  • Right-side drain with a 1/2-inch welded tailpiece that exits from the back.
  • All stainless steel construction with a removable perforated insert for easier cleaning.
  • One-piece, seamless mounting deck and pan help simplify installation and sanitation.
  • Includes drain hookup hardware and is ETL Sanitation Listed.

Overall Dimensions:

12.0"W x 8.0"D x 0.75"H

Product Weight:

7.0 lb

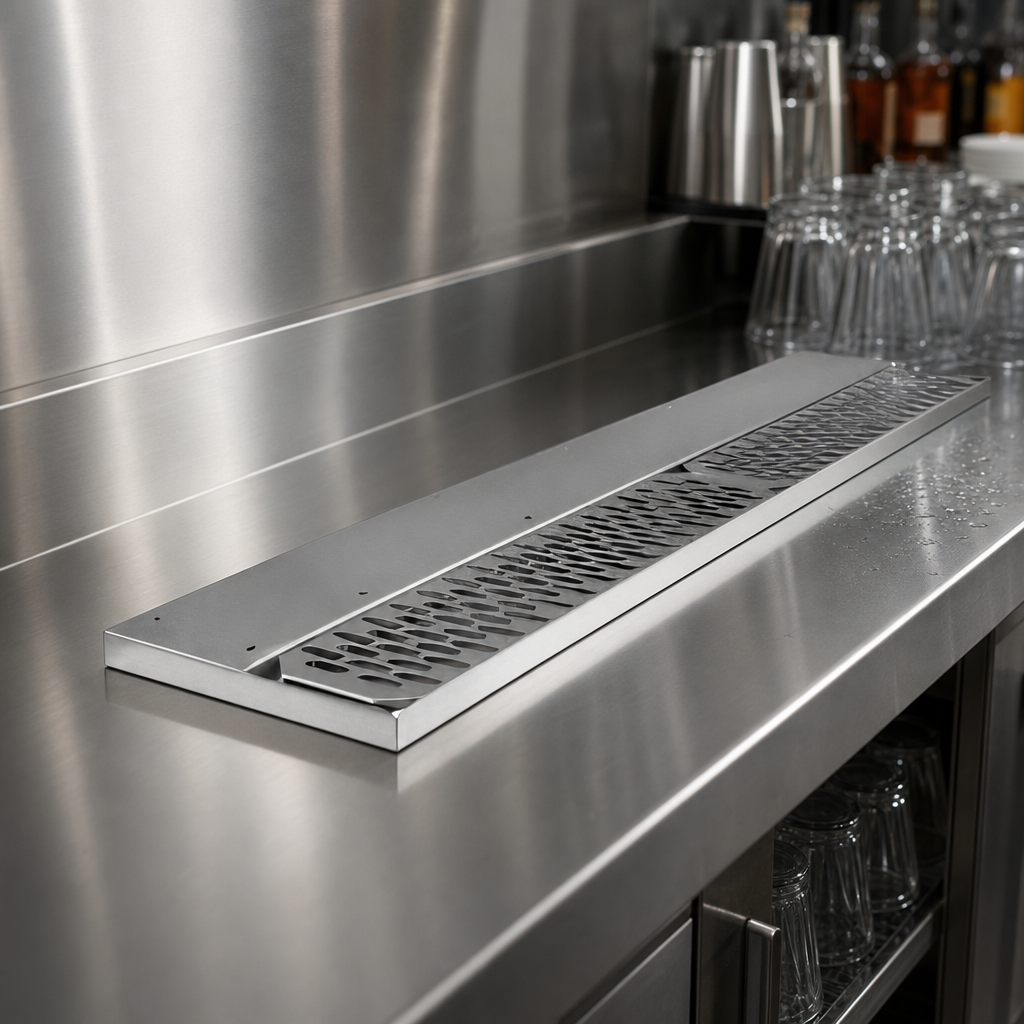

Stainless Steel Construction

Built from stainless steel parts for durability and corrosion resistance in wet bar environments.

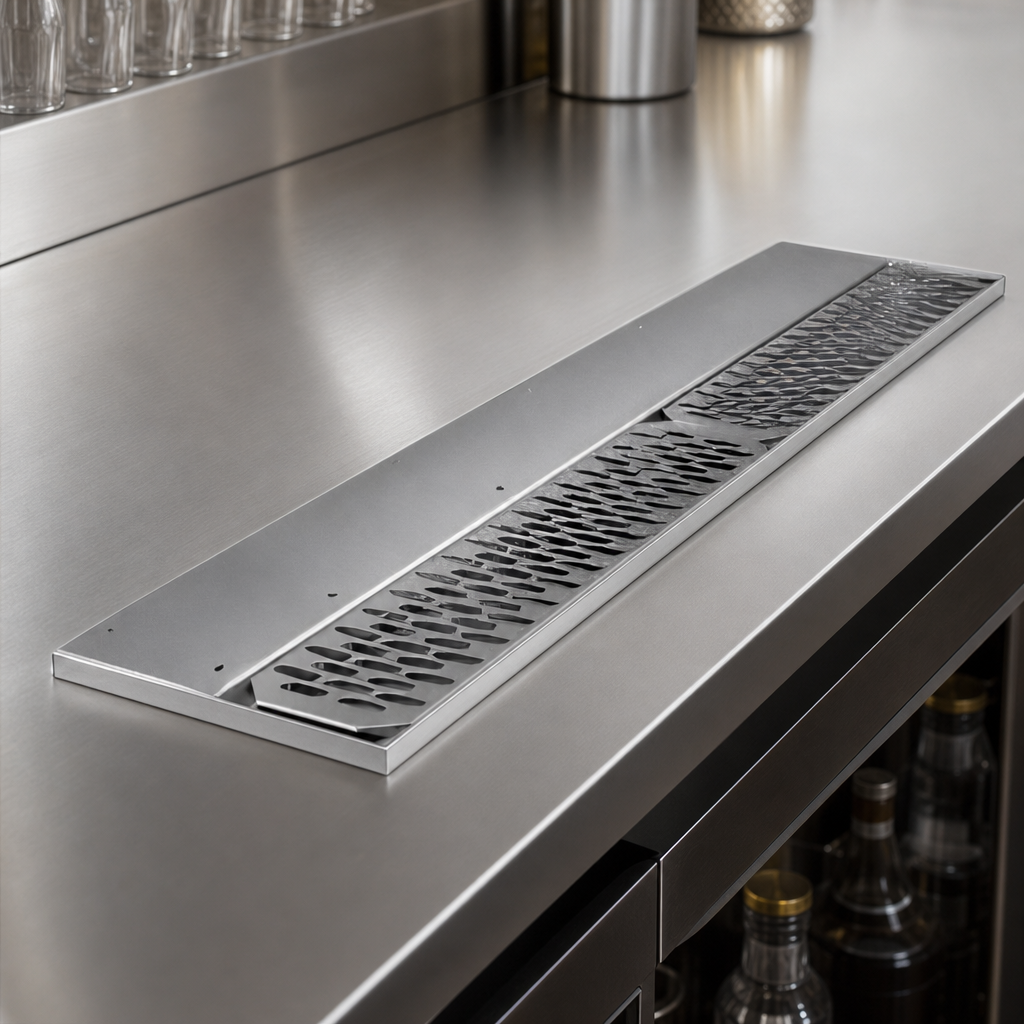

Seamless Mounting Deck And Pan

One-piece construction reduces joints and crevices and supports easier cleaning.

Removable Perforated Insert

The 4-inch-deep perforated insert lifts out for fast cleanup and efficient drainage.

Right-Side Drain

This DR-12R version drains on the right and uses a 1/2-inch welded tailpiece that exits from the back.

Included Installation Kit

Kit includes 10 feet of clear vinyl drain tube, a 4-inch Ty-wrap, three stainless steel wood screws, three cable clamps, and a 1/2 x 1/2 x 1/2 plastic tee.

Sanitation Listed

ETL Sanitation Listed and conforms to ANSI/NSF Standard 2.

Made In The USA

Manufactured in the USA.

Type Drink Rail
Style Underbar
Installation Type Underbar Mount
Drain Location Right
Drain Connection Size 1/2 Inch
Drain Connection Required
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 8 Inches
Shipping Height 1 Inch
Shipping Weight 7 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is the right-drain version. In the series, R models drain right and L models drain left.
The kit includes 10 feet of clear vinyl drain tube, one 4-inch Ty-wrap, three #10 x 1/2-inch stainless steel wood screws, three cable clamps, and one 1/2 x 1/2 x 1/2 plastic tee.
It features stainless steel construction, a 20-gauge stainless steel perforated insert, and an 18-gauge stainless steel drain pan.
The drink rail series is available in 12-inch, 18-inch, 24-inch, 30-inch, 36-inch, 42-inch, and 48-inch lengths.
Yes. 45-degree and 90-degree inside and outside corner filler sections are available.
