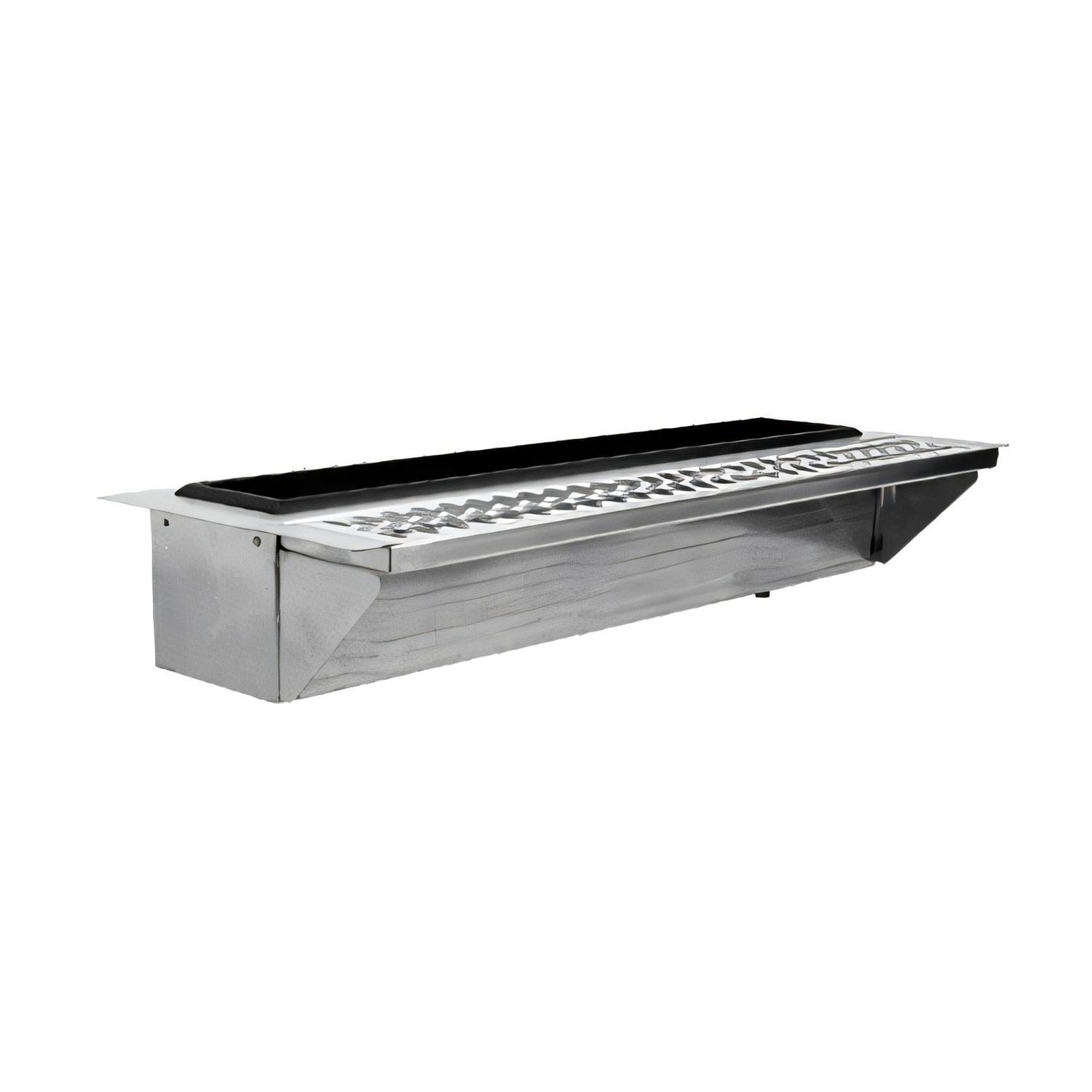

Glastender DI-MDR36 36 Inch Drop-In Stainless Steel Mixology Well and Drink Rail

Ice-Chilled Storage, 4 Inch Deep Well, Removable Perforated Insert

Keep ice-chilled ingredients organized and within reach with a durable drop-in mixology well and drink rail built for busy bar service.

  • 36-inch drop-in mixology well and drink rail for ice-chilled bar storage.
  • Stainless steel top, liner, and perforated insert for durability and easy cleaning.
  • 4-inch deep well liner and 4-inch front-to-back drink rail maximize service space.
  • Removable perforated insert and drain pan support efficient drainage and cleanup.
  • Designed to hold bottles up to 3-1/2 inches wide or 1/9 size pans.
  • Includes installation hardware and drain components for setup.

Overall Dimensions:

36.0"W x 11.0"D x 5.19"H

Product Weight:

24.0 lb

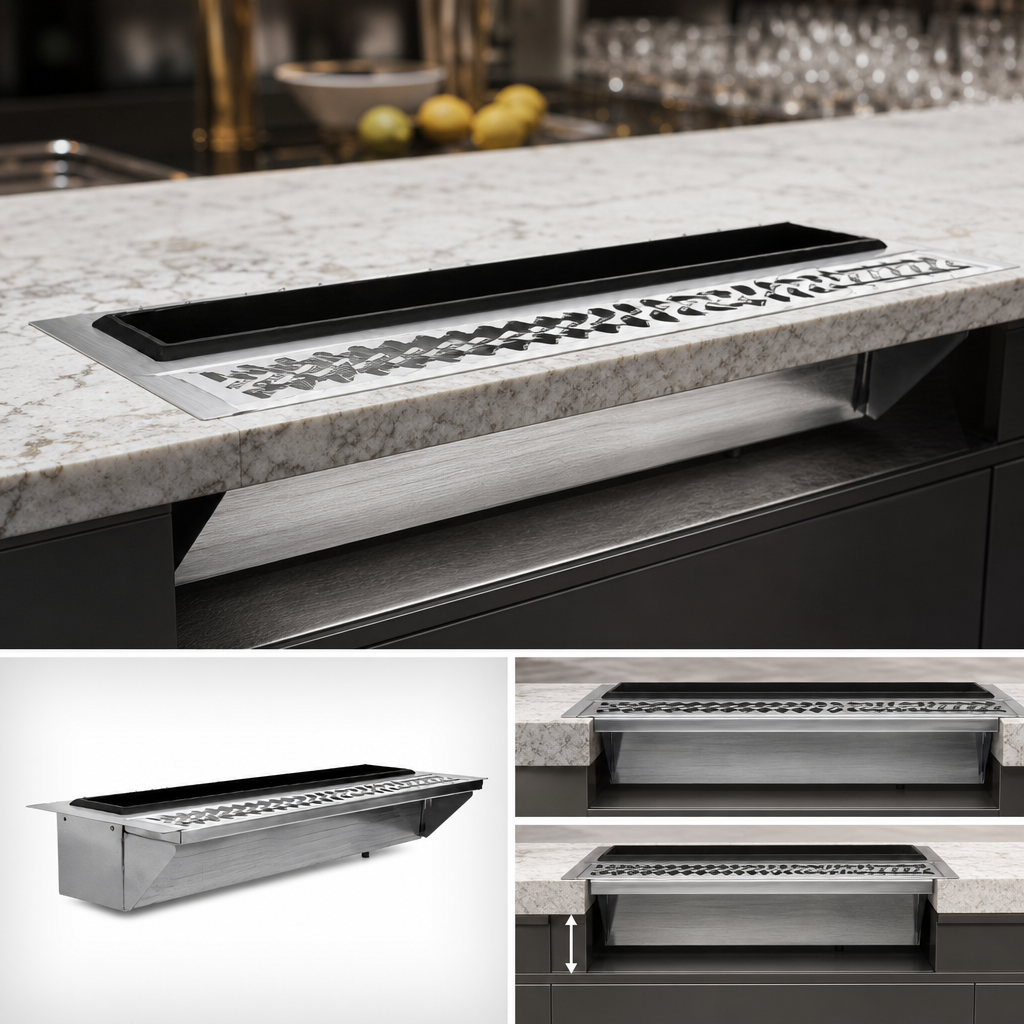

Drop-In Mounting

Designed to install into a notch cut-out in the bar top; a 10-inch deep notch is required when you want the drain pan front flush with the bar top.

Drop-In Mounting

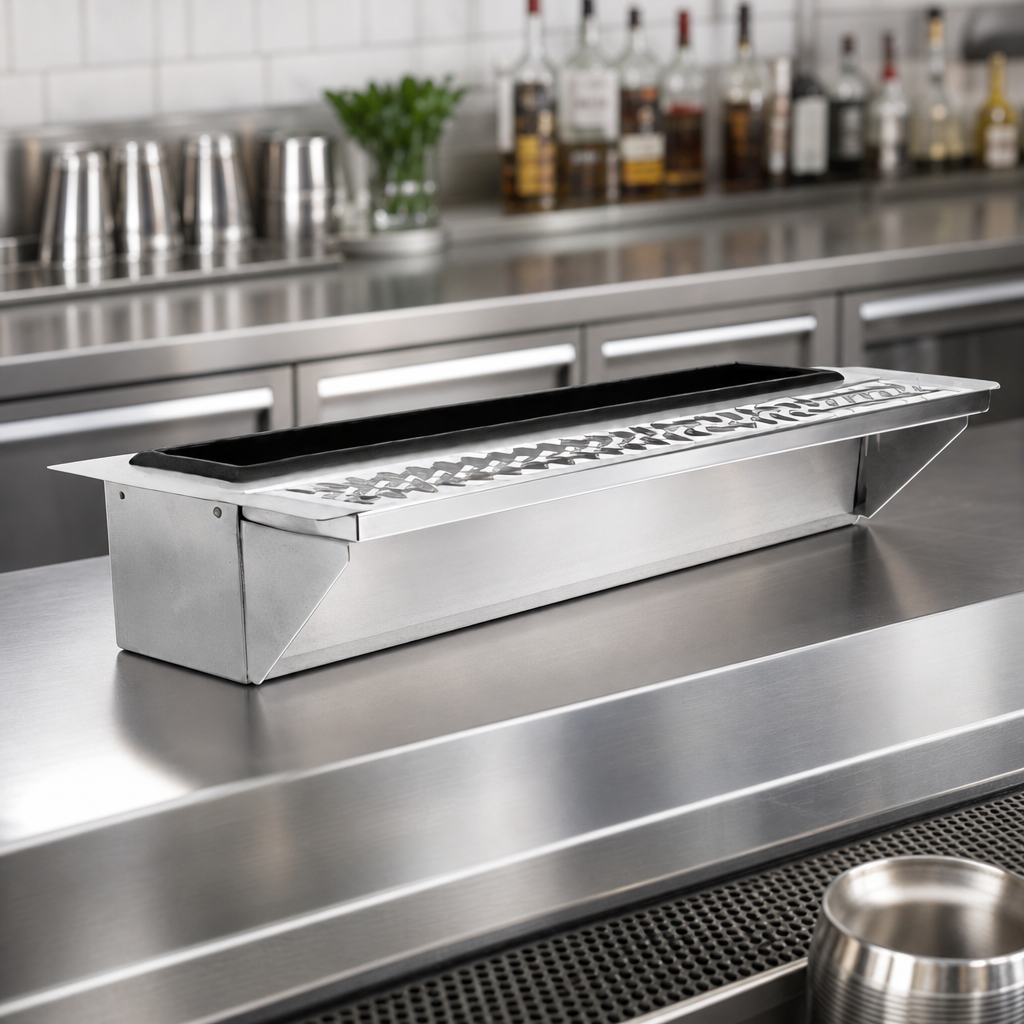

Stainless Steel Construction

Stainless steel top, interior liner, and perforated insert provide durability and a clean, professional finish.

Stainless Steel Construction

Removable Perforated Insert

One-piece top includes a drain pan with a removable perforated insert for mixology service.

Ice-Chilled Well Liner

4-inch deep well liner is designed for ice-chilled storage behind the bar.

Thermal Breaker Strip

PVC breaker strip around the liner helps reduce heat transfer.

Foamed-In-Place Insulation

Eco-friendly insulation helps maintain temperature and is designed to have zero impact on global warming or ozone depletion.

Bottle and Pan Capacity

Designed to hold bottles up to 3-1/2 inches wide or 1/9 size pans.

Installation Kit Included

Includes clear vinyl drain tube, Ty-wraps, PVC tee, nylon elbow, and drainline splicers.

Type Mixology Well and Drink Rail
Style Drink Rail
Installation Type Drop-In
Material Stainless Steel
Pan Capacity 1/9 Size Pans
Drain Connection Size 1/2 Inch Welded Tailpiece
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 11 Inches
Shipping Height 6 Inches
Shipping Weight 24 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

If you want the drain pan front flush with the bar top, a 10-inch deep notch with a 34-1/4 inch left-to-right cut-out is required.
The unit uses stainless steel for the top, interior liner, and perforated insert, along with a PVC breaker strip and foamed-in-place insulation.
It is designed to hold bottles up to 3-1/2 inches wide or 1/9 size pans.
Yes. The installation kit includes clear vinyl drain tube, Ty-wraps, a PVC tee, a nylon elbow, and drainline splicers.
Yes. The top includes a drain pan with a removable perforated insert.
