Glastender, Inc.

Glastender DI-MDR30 Drop-In Stainless Steel Mixology Well & Drink Rail, 30-Inch Wide

SKU: DI-MDR30
$1,164.90
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

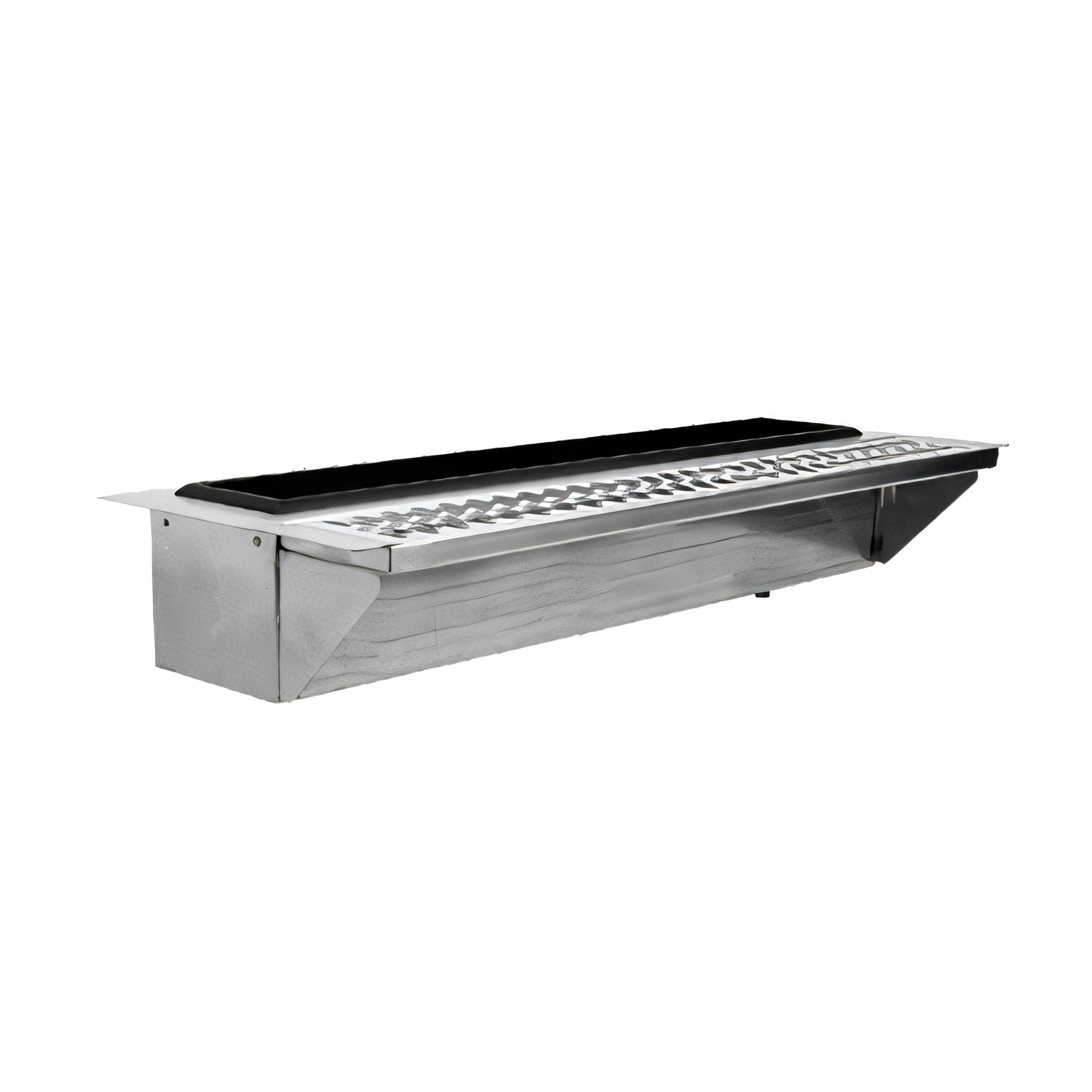

Glastender DI-MDR30 Drop-In Stainless Steel Mixology Well & Drink Rail, 30-Inch Wide

Ice-Chilled Storage, 10-Inch Deep Notch Cut-Out, Removable Perforated Insert

Add efficient, chilled bar service with a durable drop-in well and drink rail that keeps bottles and pans close at hand.

  • 30-inch outer flange drop-in mixology well and drink rail for bar-top installation.
  • Ice-chilled storage keeps bottles or 1/9-size pans within easy reach.
  • Removable perforated insert and drain pan support fast drainage and cleanup.
  • Stainless steel construction is built for daily commercial bar use.
  • PVC breaker strip helps reduce heat transfer around the ice liner.
  • Includes drain installation hardware and requires a 10-inch-deep by 28-1/4-inch cut-out for flush-front installation.

Overall Dimensions:

30.0"W x 11.0"D x 5.19"H

Product Weight:

20.0 lb

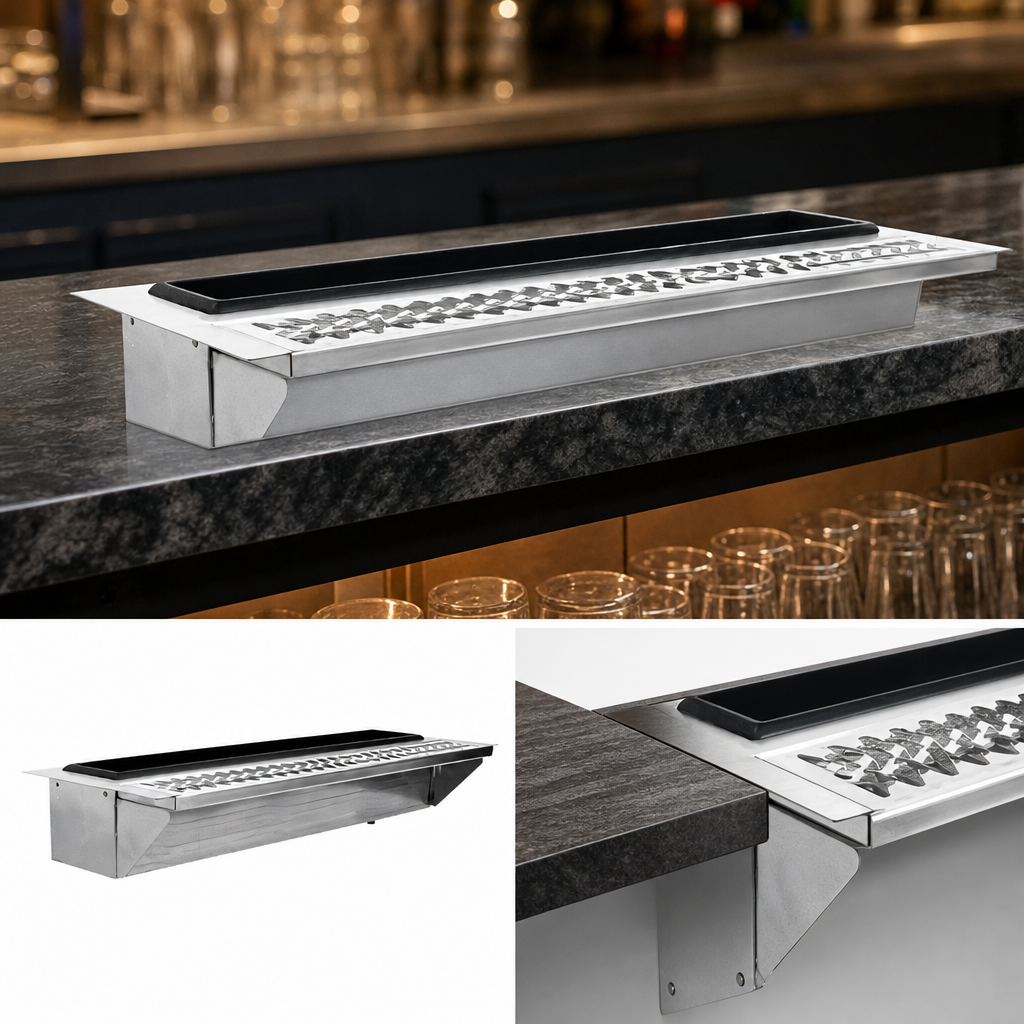

Drop-In Bar-Top Installation

Back and side flanges are designed for a notch cut-out; the DI-MDR30 uses a 10-inch-deep by 28-1/4-inch left-to-right opening for flush-front installation.

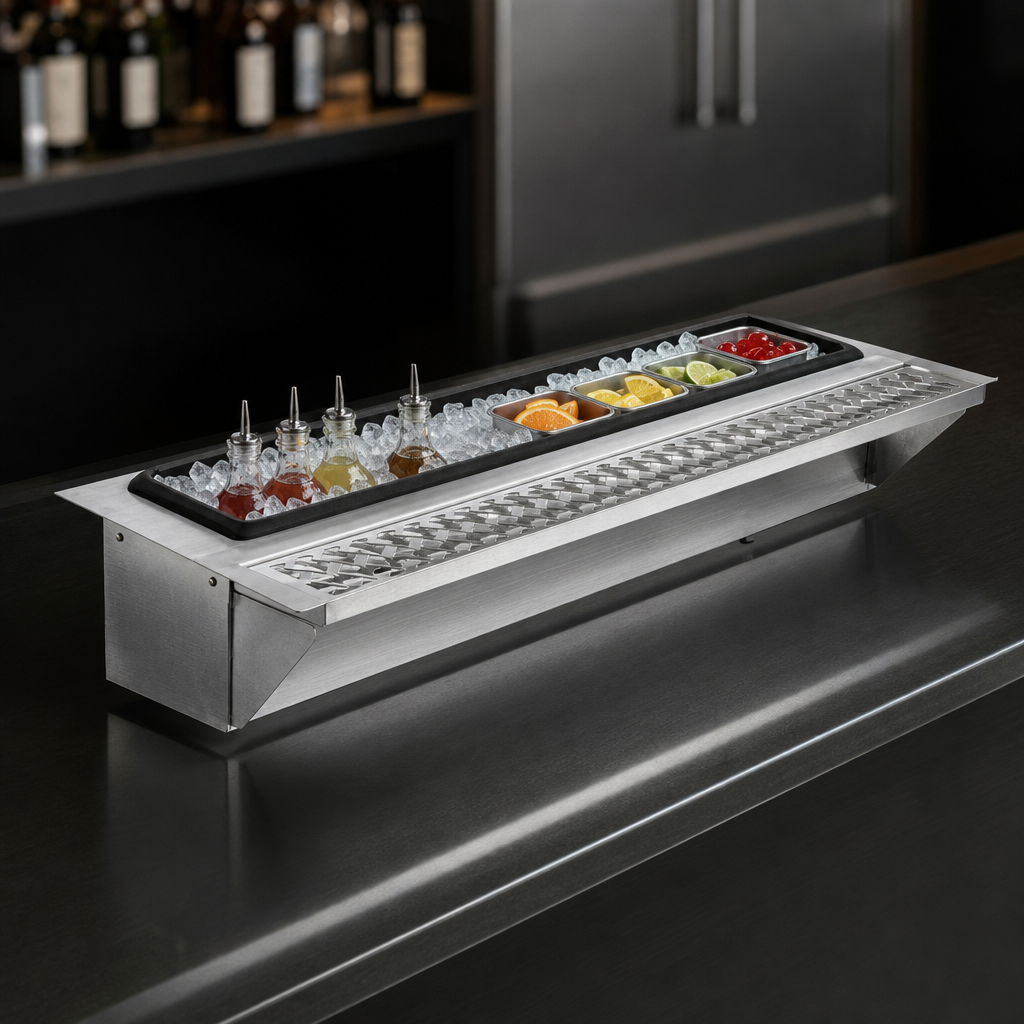

Ice-Chilled Storage

Designed to keep chilled bottles or 1/9-size pans close to the bartender for faster service.

Removable Perforated Insert

One-piece top includes a drain pan with a removable perforated insert for drainage and easier cleanup.

Stainless Steel Build

Stainless steel top, liner, insert, and exterior wrap provide durability and a professional appearance.

Thermal Breaker Strip

PVC breaker strip around the liner creates a thermal barrier and raised edge to help reduce heat transfer.

Installation Kit Included

Includes 10 feet of clear vinyl drain tube, Ty-wraps, a PVC tee, a nylon elbow, and drainline splicers.

Sanitation Listed

ETL sanitation listed for commercial foodservice use.

Type Mixology Well & Drink Rail
Installation Type Drop-In
Material Stainless Steel
Drain Connection Size 1/2 Inch
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 11 Inches
Shipping Height 6 Inches
Shipping Weight 20 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit is designed for a 10-inch-deep notch cut-out with a 28-1/4-inch left-to-right opening for flush-front installation.
The installation kit includes 10 feet of clear vinyl drain tube, seven 4-inch Ty-wraps, one 1/2-inch PVC tee, one 1/2-inch nylon elbow, and two drainline splicers.
It is designed to hold up to 3-1/2-inch-wide bottles or 1/9-size pans.
The unit uses a 1/2-inch welded tailpiece.
No. It is made to order and not returnable.
