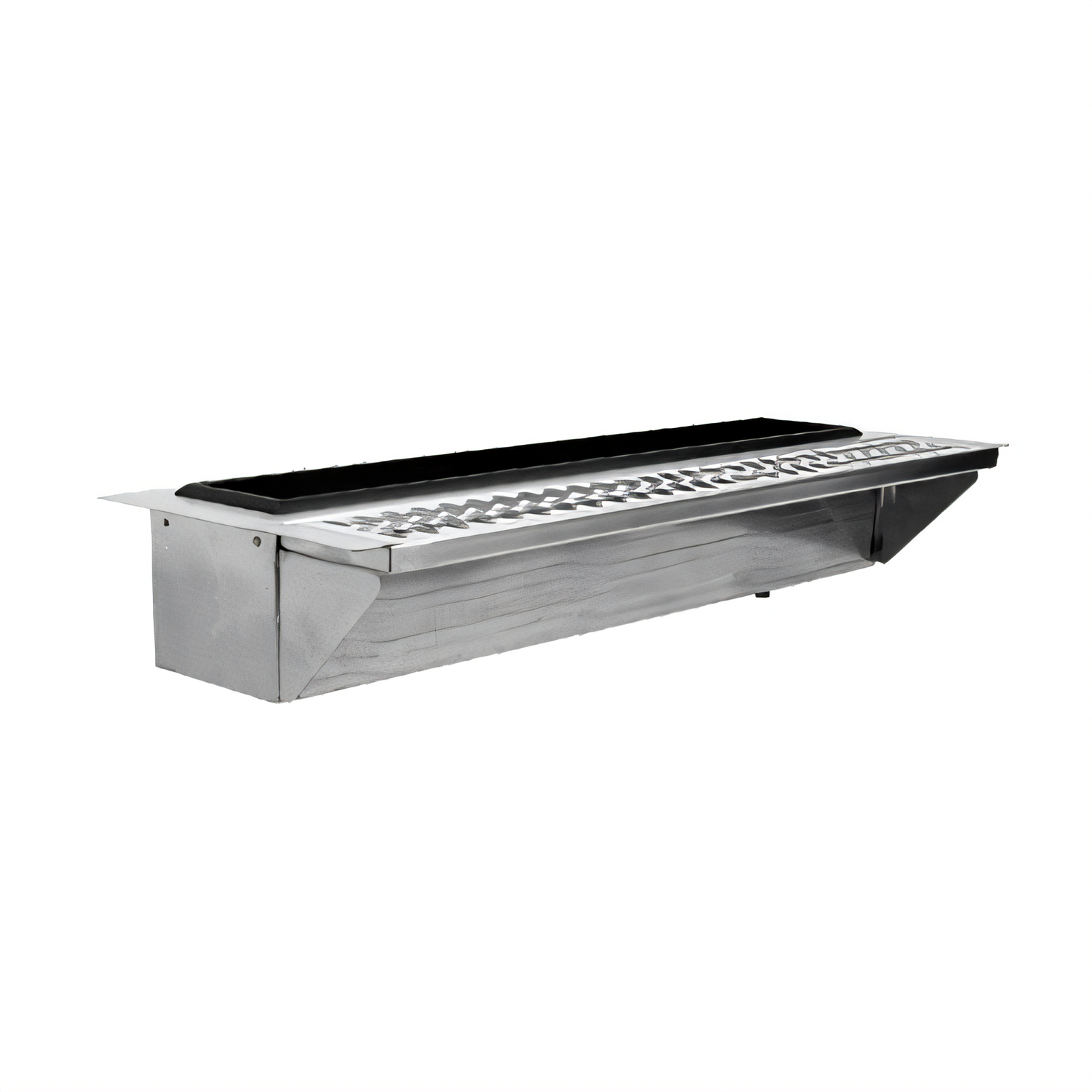

Glastender Drop-In Mixology Ice Well and Drink Rail, 24-Inch Wide, Stainless Steel

Ice-chilled storage with removable perforated insert; 10" x 22-1/4" cutout required

Add ice-chilled bottle and pan storage directly to the bar top with a durable stainless steel drop-in rail designed for easy drainage and fast installation.

  • Drop-in mixology well and drink rail keeps ice-chilled bottles and pans within easy reach.
  • Stainless steel top, liner, insert, and exterior wrap provide a durable, easy-clean build.
  • One-piece top includes a drain pan with a removable perforated insert for efficient drainage.
  • 4-inch deep well liner is designed to hold up to 3-1/2-inch-wide bottles or 1/9 pans.
  • Foamed-in-place insulation and a PVC breaker strip help reduce heat transfer to the ice bin.
  • Includes a drain-line installation kit and 1/2-inch welded tailpiece for hookup.

Overall Dimensions:

24.0"W x 11.0"D x 5.19"H

Product Weight:

16.0 lb

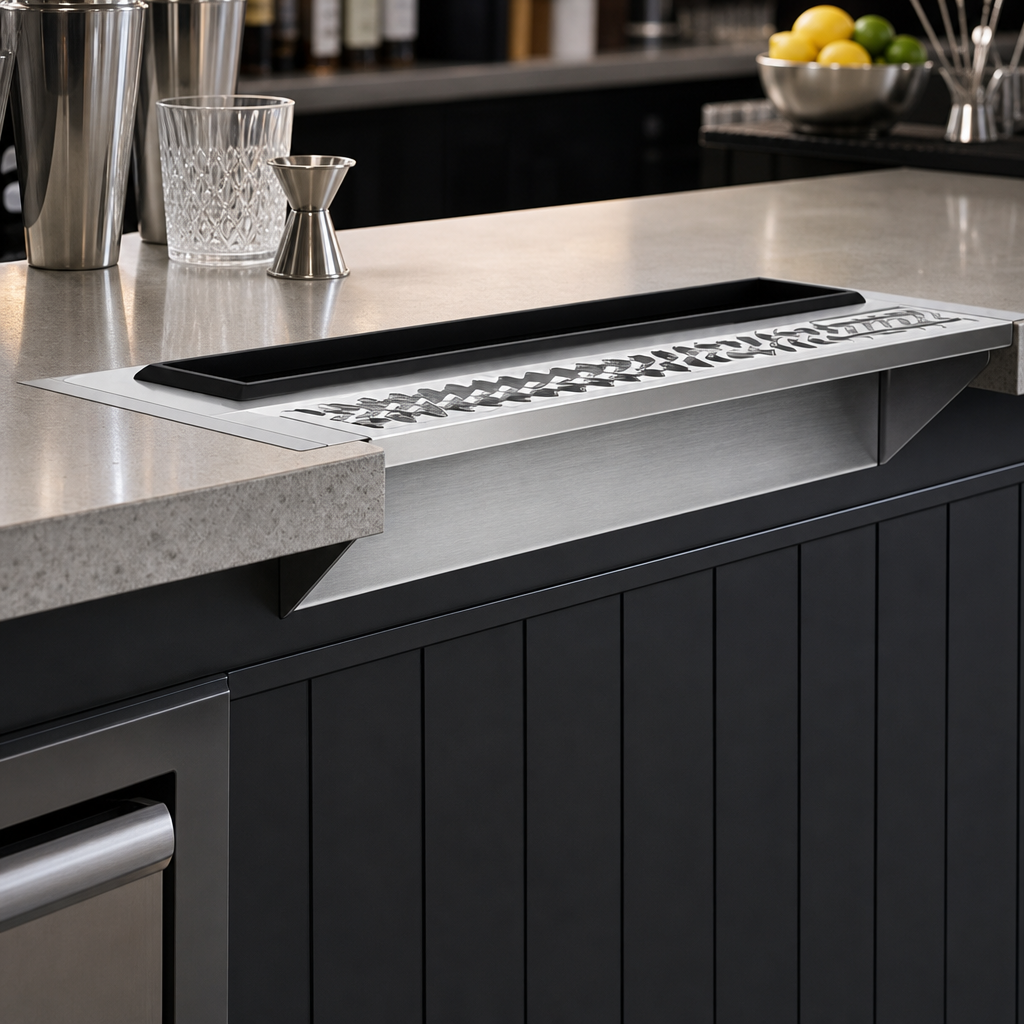

Drop-In Bar Top Design

Installs into a notch cutout in the bar top for a clean, built-in look.

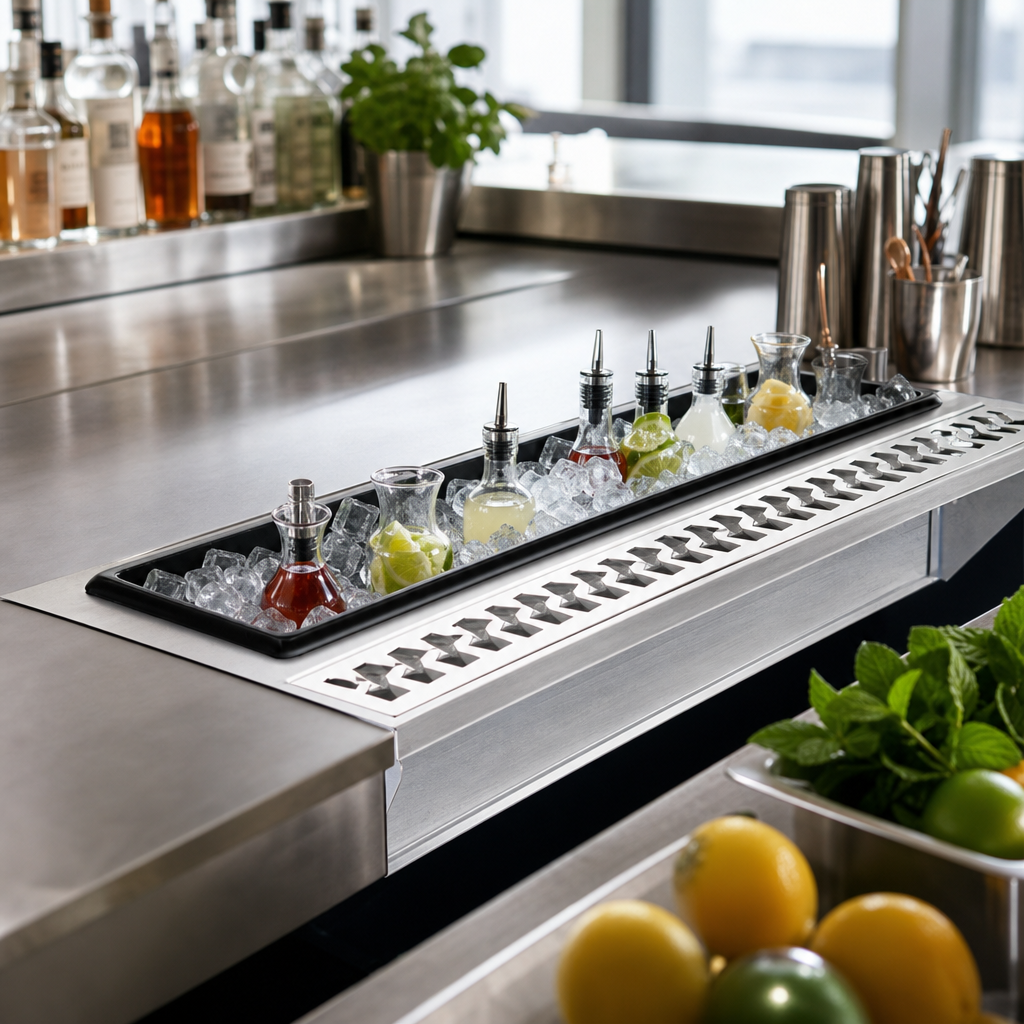

Ice-Chilled Storage

Designed for mixology service with chilled storage right in the work area.

Stainless Steel Construction

Features stainless steel top and interior liner for durability and easy cleaning.

Removable Perforated Insert

The one-piece top includes a drain pan with a removable perforated insert to help drainage.

Thermal Barrier Breaker Strip

PVC breaker strip around the ice bin liner helps reduce heat transfer.

Installation Kit Included

Includes clear vinyl drain tube, Ty-wraps, PVC tee, nylon elbow, and drainline splicers.

Sanitation Listed

ETL-Sanitation listed and conforms to ANSI/NSF Std. 2.

Type Drink Rail
Style Mixology Well
Installation Type Drop-In
Material Stainless Steel
Interior Finish Stainless Steel
Pan Size 1/9 Pans
Drain Connection Size 1/2 Inch
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 11 Inches
Shipping Height 6 Inches
Shipping Weight 16 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The DI-MDR24 requires a 10-inch deep notch cutout with a 22-1/4-inch left-to-right dimension.
The unit features a stainless steel top and interior liner, plus a stainless steel insert and exterior wrap.
It is designed to hold up to 3-1/2-inch-wide bottles or 1/9 pans.
Yes. It includes a 1/2-inch welded tailpiece and an installation kit with drain tubing and fittings.
Yes. It is ETL-Sanitation listed and conforms to ANSI/NSF Std. 2.
