Glastender 24" x 18" Drop-In Stainless Steel Drain Pan with Self-Rimming Edge

SKU: DI-DP18X24
$480.15
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

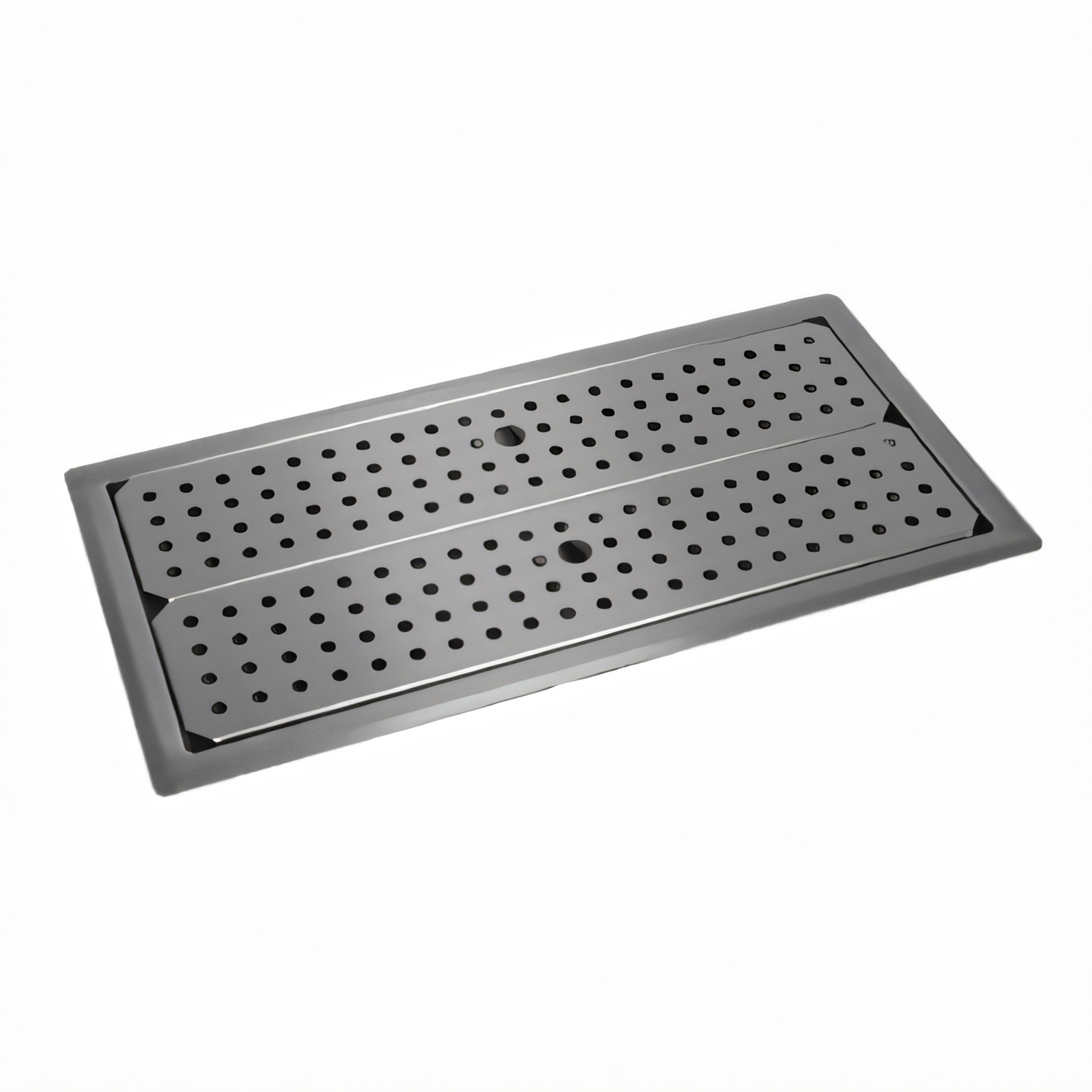

Glastender 24" x 18" Drop-In Stainless Steel Drain Pan with Self-Rimming Edge

Drip Tray Trough, Removable Perforated Inserts, 22-1/4" x 16-1/4" Cutout Required

A durable drop-in drain pan built for beverage stations, with stainless steel construction, a self-rimming edge, and removable inserts for easy cleanup.

  • 24" W x 18" D drop-in drain pan for beverage counters and bar stations
  • Stainless steel construction with an 18-gauge pan for long-lasting durability
  • Self-rimming flange helps create a clean, secure fit in the work surface
  • Removable perforated inserts make cleaning fast and simple
  • Bottom drain with 1/2" welded tailpiece supports easy plumbing hookup
  • Includes installation kit and is made to order, not returnable
  • Sanitation listed to help support NSF/health code installations

Overall Dimensions:

24.0"W x 18.0"D x 0.75"H

Product Weight:

18.0 lb

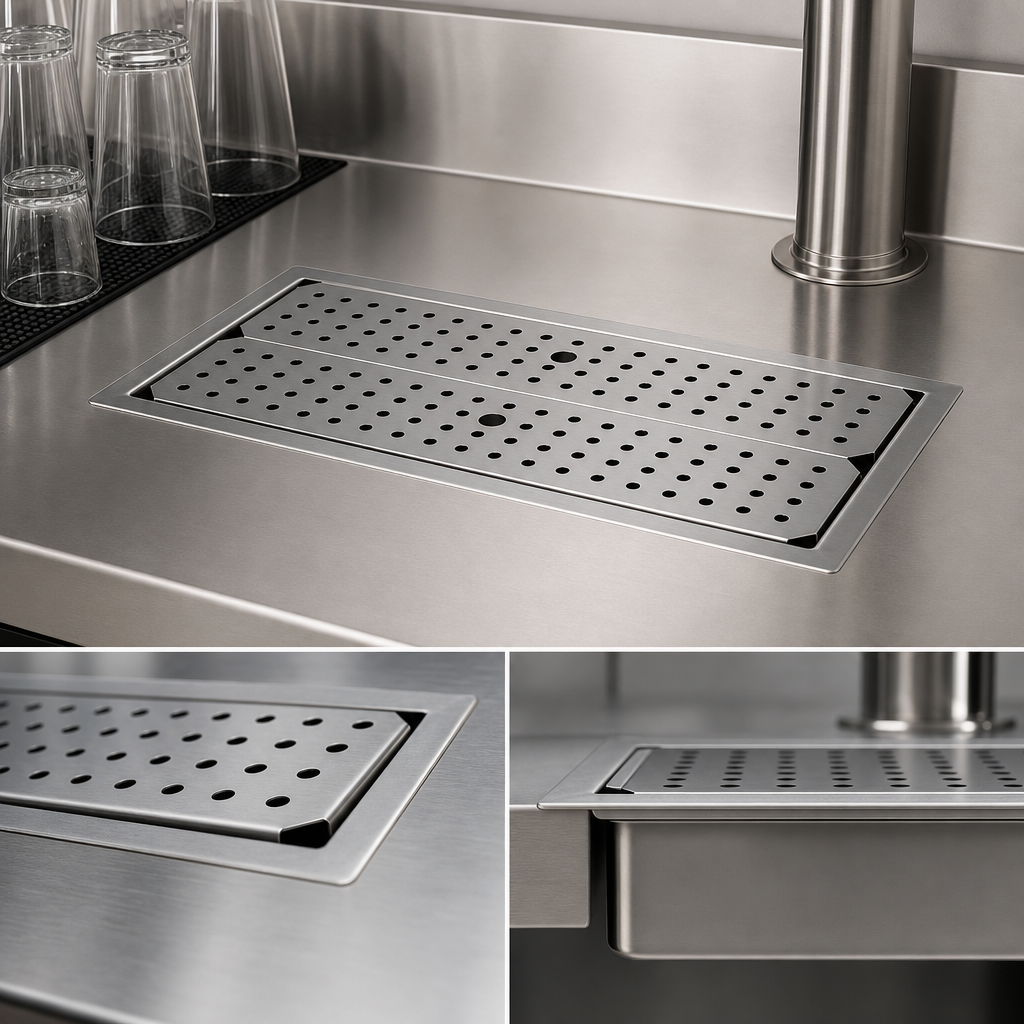

Drop-In Design

Installs into the work surface for a clean beverage station setup.

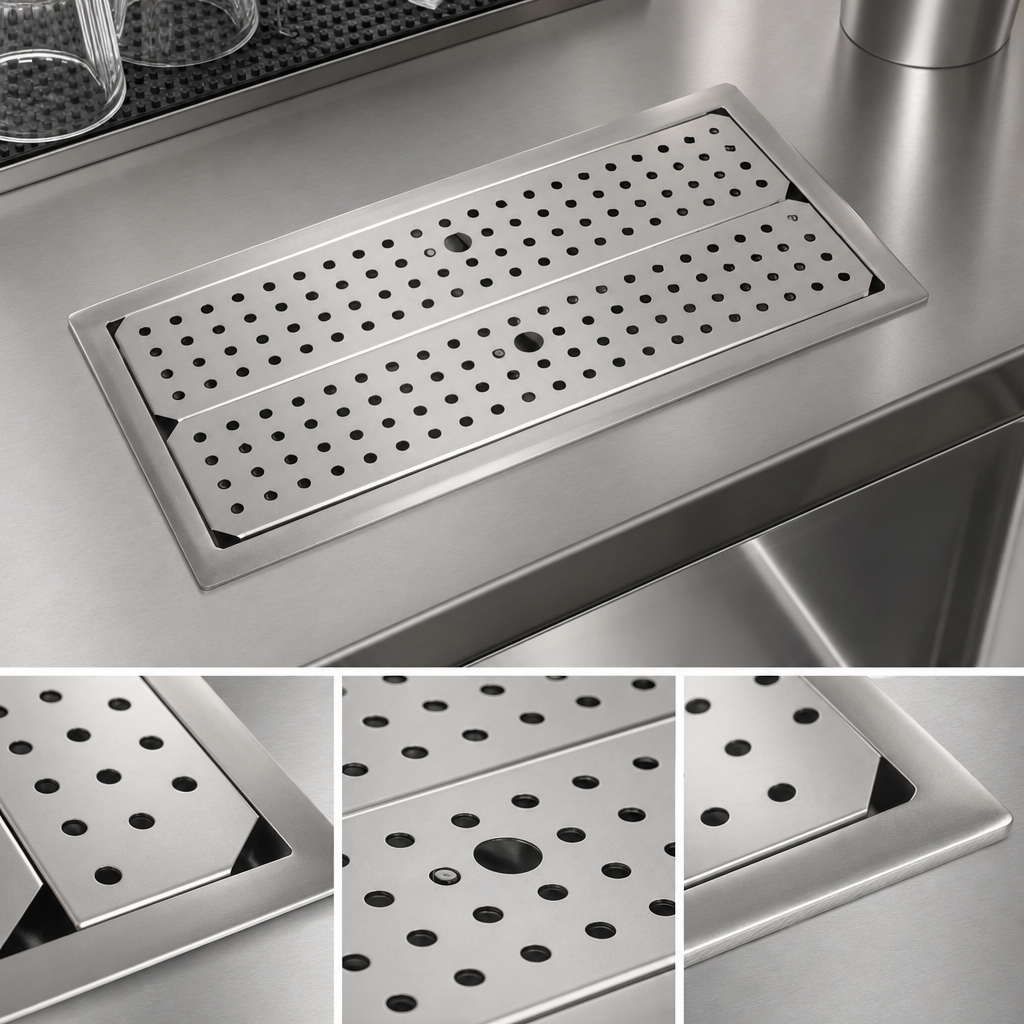

Stainless Steel Construction

All stainless steel construction helps provide corrosion resistance and durability.

18-Gauge Pan

Heavy-duty 18-gauge stainless steel pan adds strength for everyday use.

Removable Perforated Inserts

Lift-out inserts make the unit easier to clean and maintain.

Self-Rimming Flange

The flanged edge creates a tighter fit against the countertop opening.

1/2-Inch Bottom Drain Tailpiece

Drain exits from the bottom of the unit with a 1/2" welded tailpiece.

Installation Kit Included

Includes 10 ft. clear vinyl drain tube, one 4" Ty-wrap, stainless steel and black sheet metal screws, cable clamps, and plastic elbows.

Sanitation Listed

Sanitation listed and conforms to NSF/ANSI STD 2.

Made To Order

This unit is made to order and is not returnable.

Type Drop-In Drain Pan
Style Self-Rimming
Installation Type Drop-In
Material Stainless Steel
Drain Connection Size 1/2 Inch
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 18 Inches
Shipping Height 1 Inch
Shipping Weight 18 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It requires a 22-1/4" W x 16-1/4" D cutout.
The installation kit includes 10 ft. of clear vinyl drain tube, one 4" Ty-wrap, stainless steel and black sheet metal screws, cable clamps, and two 1/2" x 1/2" plastic elbows.
It features all stainless steel construction with an 18-gauge stainless steel pan.
Yes. The unit must be sealed to the mounting surface using an NSF-listed sealant for sanitary installation.
Yes. It is made to order and not returnable.
