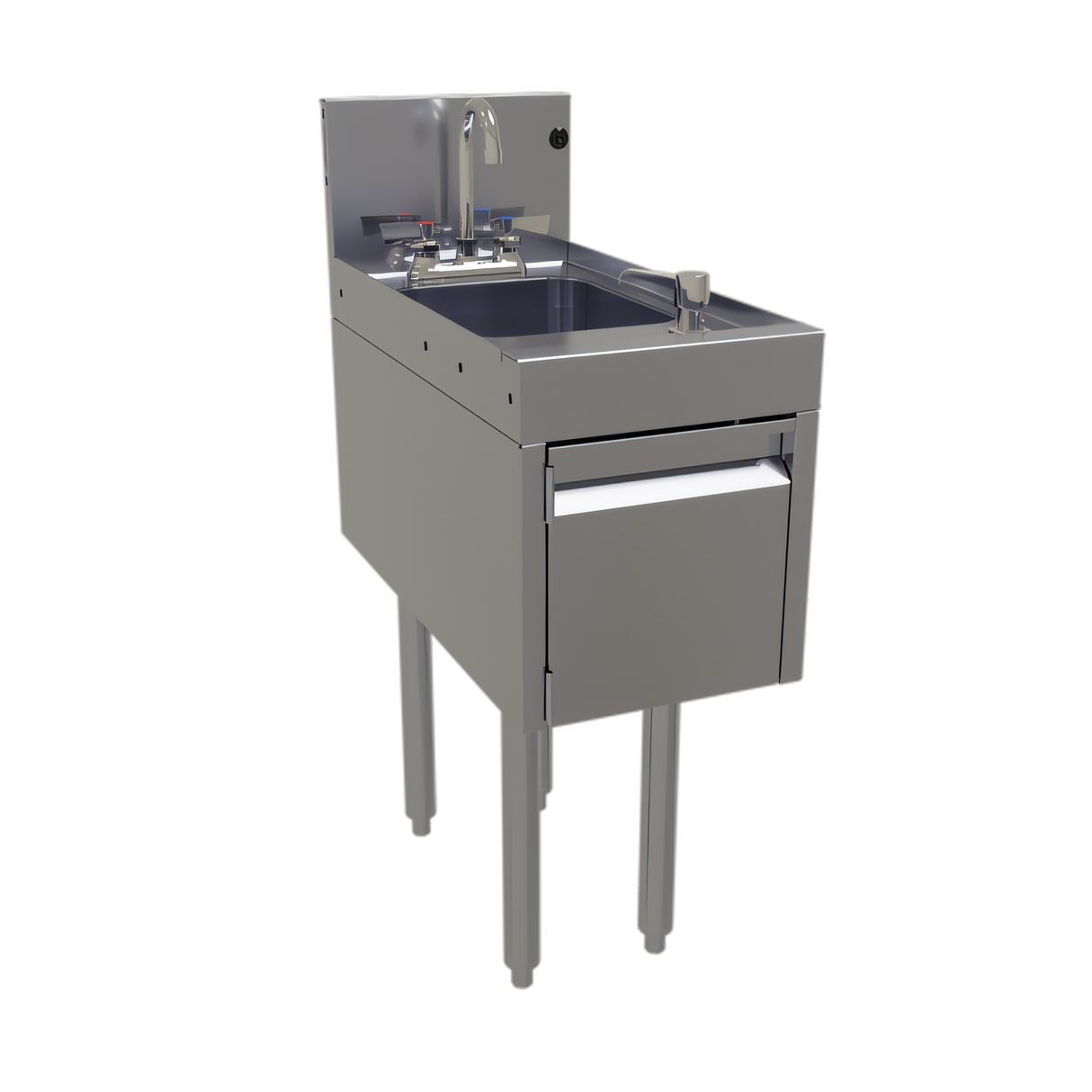

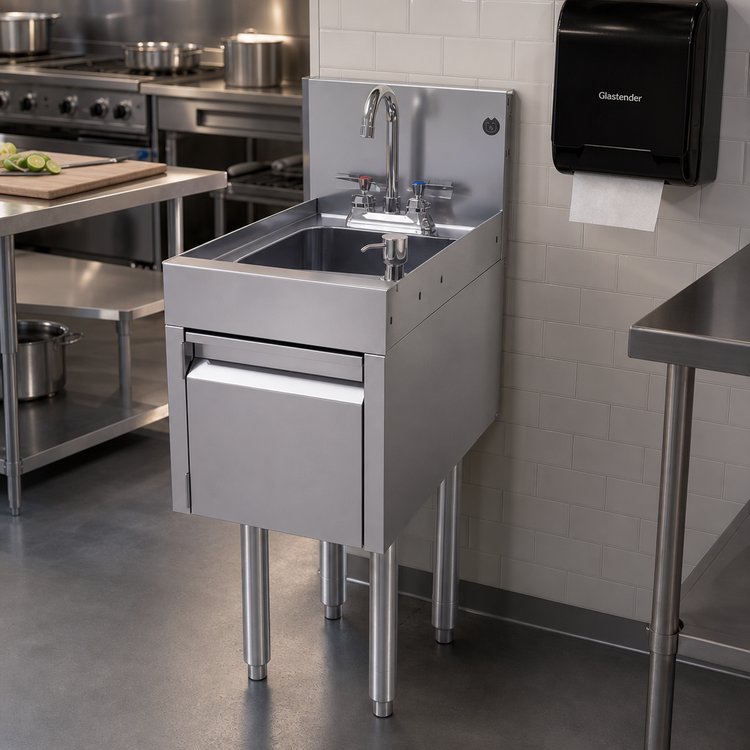

Glastender Deluxe Free-Standing Door-Style Underbar Hand Sink with Faucet, Soap Dispenser and Towel Dispenser

12" W x 24" D, Stainless Steel, 6" Deep Bowl

A compact stainless steel hand sink station that combines a faucet, soap dispenser, and concealed towel storage in a space-saving freestanding underbar design.

  • Compact 12-inch-wide freestanding underbar hand sink for beverage stations and tight back-of-house spaces.
  • Stainless steel construction with a one-piece seamless top, backsplash, and 1/4-inch radius corners.
  • Includes a deck-mount hot and cold faucet, soap dispenser, and concealed C-fold paper towel dispenser.
  • Drawn 9-1/4" x 11-1/2" x 6" bowl with a 1-1/2" I.P.S. threaded drain.
  • Adjustable stainless steel bullet feet help level the unit on uneven floors.
  • Optional foot-operated faucet and side splashes are available for DHSB models.

Overall Dimensions:

12.0"W x 24.0"D x 37.0"H

Product Weight:

60.0 lb

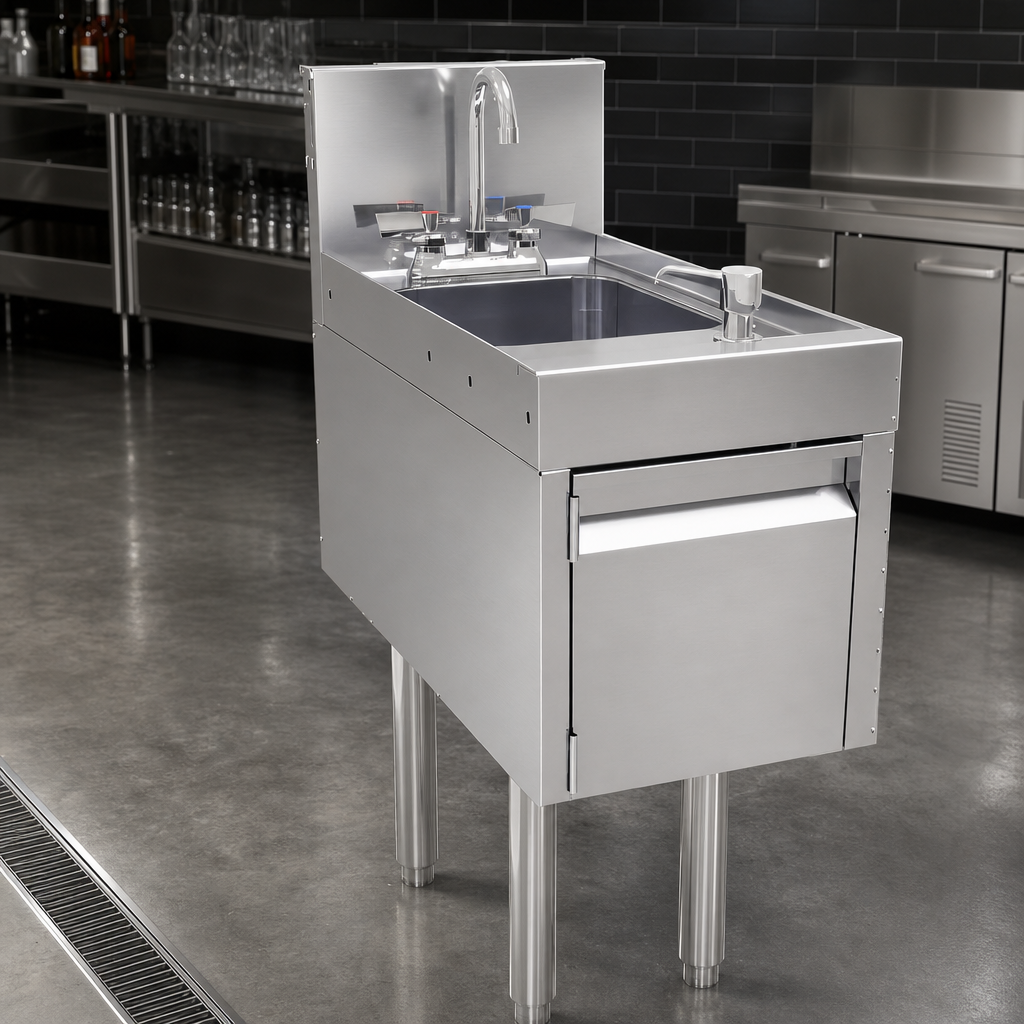

Stainless Steel Construction

Built with all stainless steel components for durability and easy cleaning in commercial use.

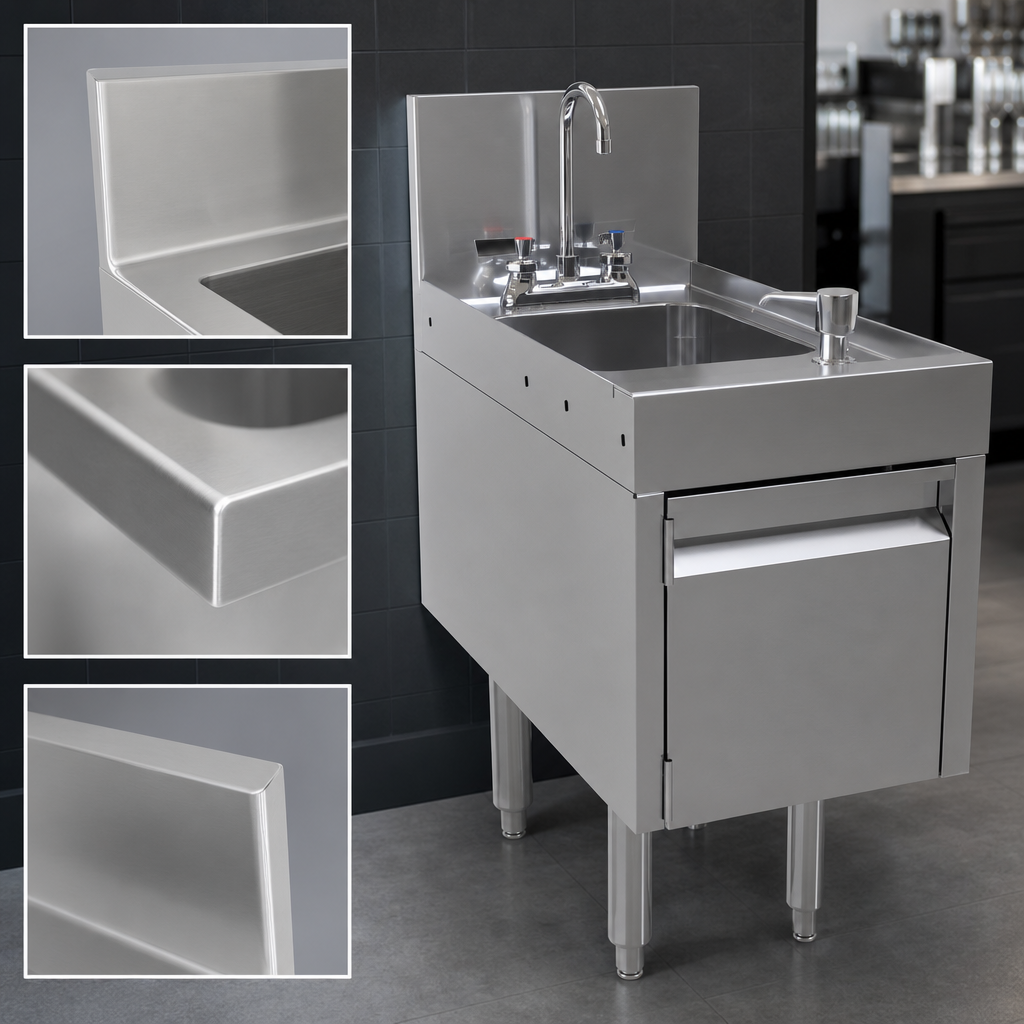

One-Piece Seamless Top And Backsplash

Seamless construction with 1/4-inch radius corners helps reduce dirt traps and simplifies sanitation.

Drawn Sink Bowl

Includes a 9-1/4" x 11-1/2" x 6" deep sink bowl.

Deck-Mount Faucet

Standard hot and cold water faucet mounts on 4-inch centers and accepts 3/8-inch sink leads.

Low-Lead Compliant Faucet

Faucet meets NSF/ANSI 61 and 372 low-lead compliance requirements.

Integrated Dispensers

Soap dispenser and C-fold paper towel dispenser are included for a complete handwashing station.

Front-Hinged Access Door

Door conceals the towel dispenser and provides easy access for refilling paper towels.

Adjustable Bullet Feet

Stainless steel bullet feet allow leveling and help keep the sink stable during installation.

Threaded Drain Connection

Features a 1-1/2" I.P.S. threaded drain connection.

Type Hand Sink
Style Door-Style
Installation Type Freestanding
Material Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inches
Drain Connection Size 1-1/2 Inches I.P.S. Threaded
Shipping Width 12 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 60 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Standard features include a deck-mount hot and cold faucet, soap dispenser, C-fold paper towel dispenser, front-hinged access door, and adjustable stainless steel bullet feet.
The sink bowl measures 9-1/4 inches wide by 11-1/2 inches front-to-back by 6 inches deep.
The faucet requires hot and cold water connections, and the sink uses a 1-1/2 inch I.P.S. threaded drain.
Yes. A foot-operated faucet option is available as FOF-D, and side splashes are available for DHSB models.
Yes. The standard deck-mount faucet is NSF/ANSI 61 and 372 low-lead compliant.
