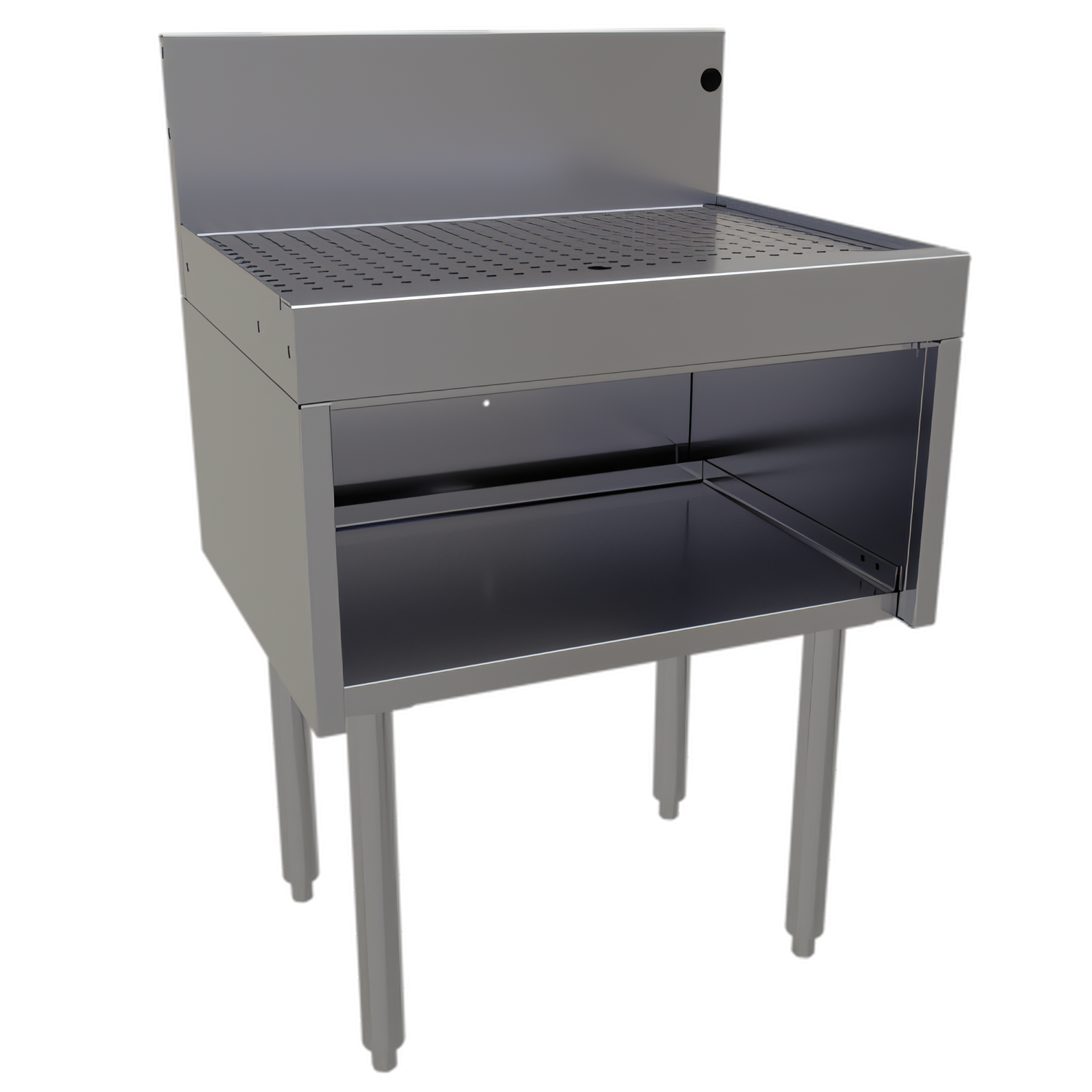

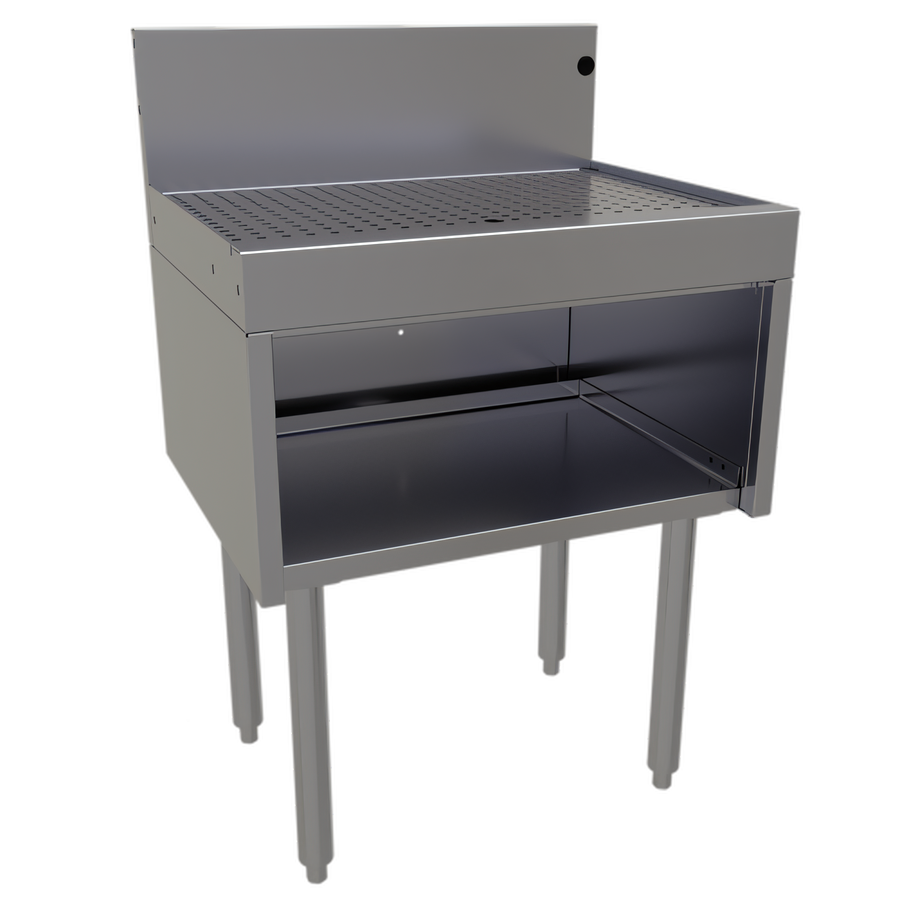

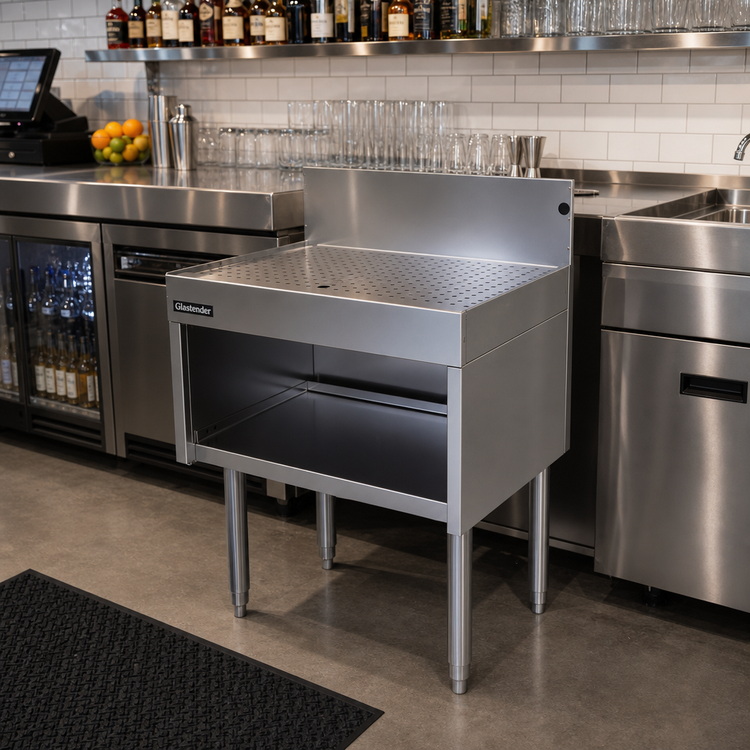

Glastender DBHA-24-LD Underbar Drainboard Half Cabinet, 24 x 19 Inch, Open Front, Stainless Steel

Doorless freestanding base with drainboard top, perforated insert, and adjustable bullet feet

This doorless underbar drainboard cabinet combines durable stainless steel construction with efficient drainage and easy-access storage in one compact 24-inch unit.

  • Open-front, doorless design provides fast access to underbar storage.
  • Drainboard top includes a drain pan and separate perforated insert for better air circulation.
  • Stainless steel construction is built for demanding commercial bar use.
  • Removable bottom shelf/floor stays accessible even after the unit is plumbed.
  • Adjustable stainless steel bullet feet help level the cabinet on uneven floors.
  • ETL Sanitation Listed and conforms to ANSI/NSF Standard 2.

Overall Dimensions:

24.0"W x 19.0"D x 37.0"H

Product Weight:

50.0 lb

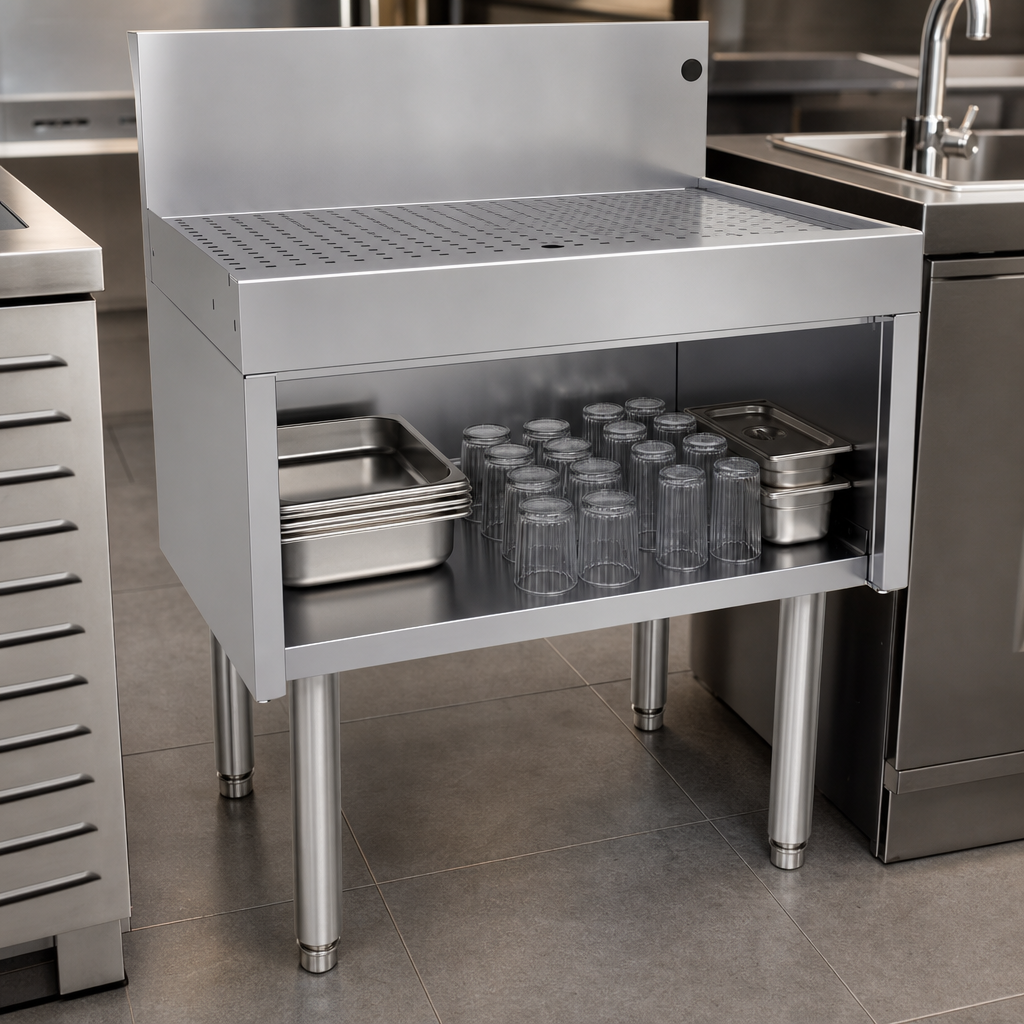

Open Front, Doorless Base

LD model is supplied without a door for easy access to stored items.

Drainboard Top with Perforated Insert

Work surface includes a drain pan and separate perforated insert to help water move away and improve drying.

Seamless Top and Backsplash

One-piece stainless steel top with backsplash and 1/4-inch radius corners helps simplify cleanup.

Removable Bottom Shelf

The floor remains removable even after the unit is plumbed, making access and service easier.

Under-Unit Drain Connection

Plumbing connects underneath the cabinet so it does not interfere with the storage shelf.

Adjustable Stainless Steel Bullet Feet

Adjustable bullet feet provide stable leveling on uneven floors.

ETL Sanitation Listed

Listed for sanitation and conforms to ANSI/NSF Standard 2.

Type Drainboard Half Cabinet
Style Open Front
Installation Type Freestanding
Material Stainless Steel
Drain Connection Size 1/2 Inch
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 50 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The LD version is the doorless, open-front model.
The unit measures 24 inches wide by 19 inches deep by 37 inches high.
It includes a drainboard top with a drain pan and a separate perforated insert for better air circulation.
The plumbing connection is made underneath the unit and does not interfere with the shelf. A 1/2-inch welded tailpiece with clear vinyl drain line and a 1/2-inch by 1/2-inch barbed plastic elbow are provided.
Yes. It is ETL Sanitation Listed and conforms to ANSI/NSF Standard 2.
