Glastender, Inc.

Glastender 12-Inch Underbar Drainboard Half Cabinet, Open Front, No Door, Stainless Steel

SKU: DBHA-12-LD
$985.05
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks Glastender, Inc. New Arrivals Restaurant Equipment

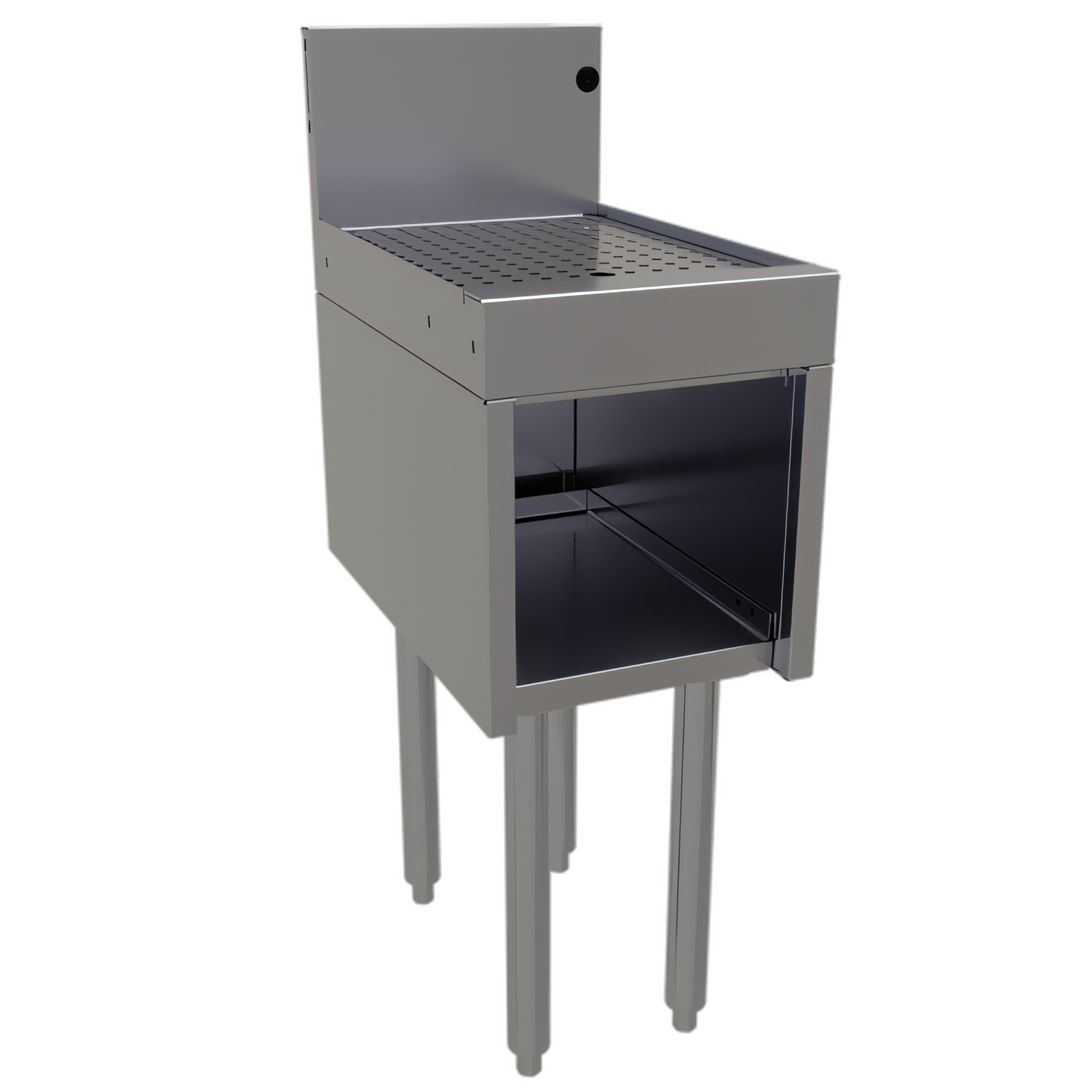

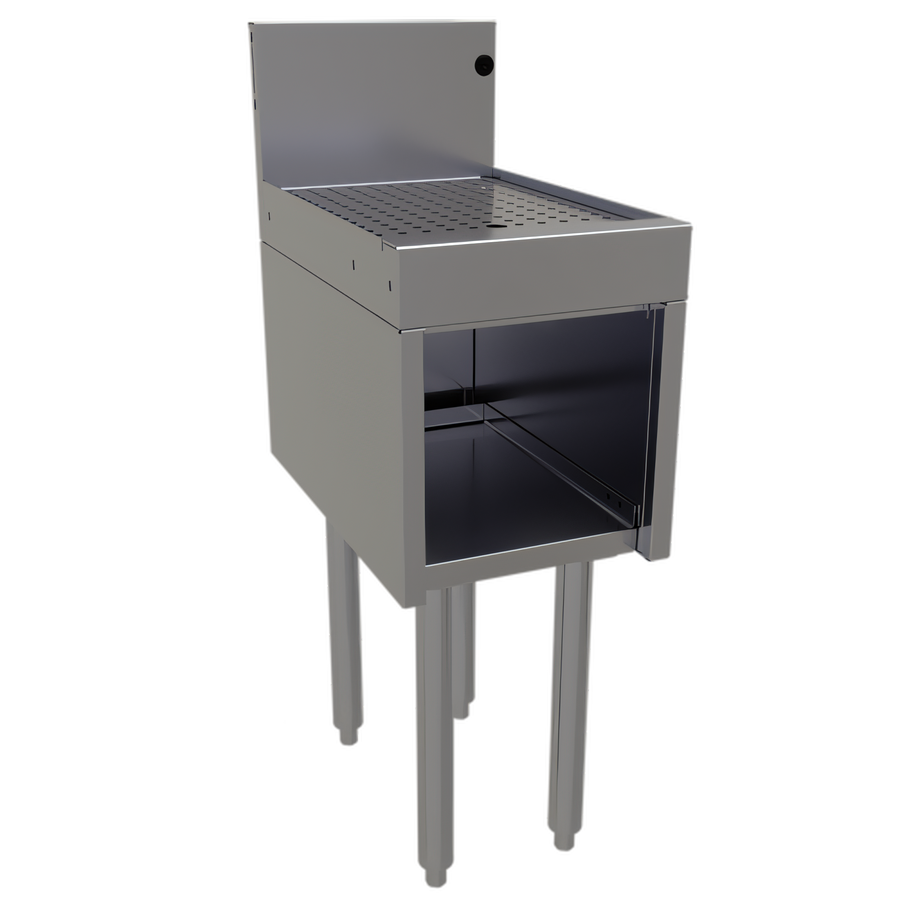

Glastender 12-Inch Underbar Drainboard Half Cabinet, Open Front, No Door, Stainless Steel

Freestanding, 12" W x 19" D Model

A compact stainless steel underbar cabinet with a drainboard work surface, open front access, and built-in drainage for busy bar and sink stations.

  • 12-inch wide, 19-inch deep freestanding underbar drainboard half cabinet
  • Open front, no-door LD configuration keeps the cabinet easy to access
  • Stainless steel construction for long-lasting commercial durability
  • Drainboard top includes a drain pan and separate perforated insert for airflow
  • Removable bottom shelf stays accessible after the unit is plumbed
  • Adjustable stainless steel bullet feet help level the cabinet on uneven floors

Overall Dimensions:

12.0"W x 19.0"D x 37.0"H

Product Weight:

40.0 lb

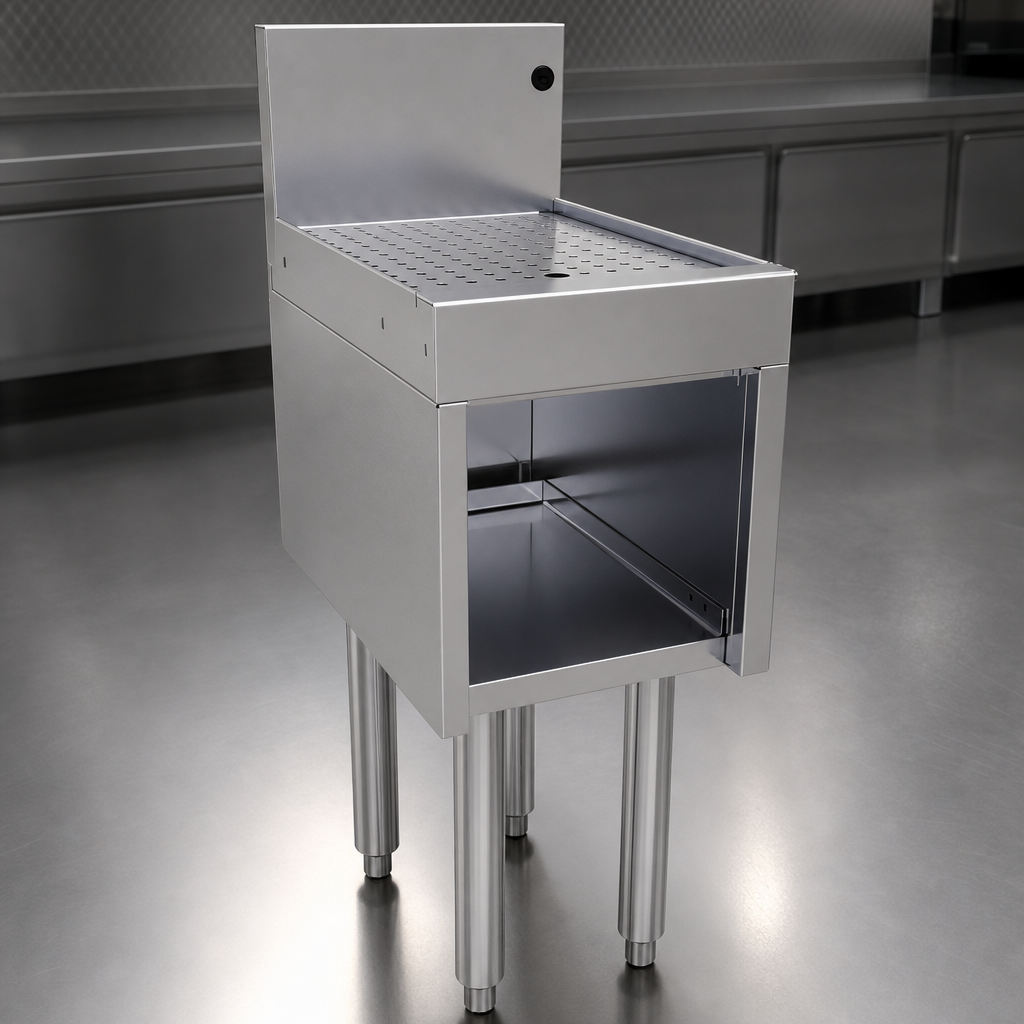

Stainless Steel Construction

Built from 20-gauge stainless steel with 18-gauge leg pads for commercial durability and easy cleaning.

Open Front, No-Door Design

The LD model is supplied without a door, leaving the front open for quick access to the cabinet interior.

Drainboard Top with Perforated Insert

The work surface uses a drain pan and separate perforated insert to support drainage and air circulation.

Removable Bottom Shelf

The floor remains removable even after the unit is plumbed, which helps simplify maintenance and cleaning.

Under-Unit Plumbing Connection

Plumbing connects underneath the cabinet so it does not interfere with the shelf area.

Adjustable Stainless Steel Bullet Feet

Adjustable bullet feet help level the cabinet on uneven floors.

Seamless Top and Backsplash

One-piece seamless top and backsplash with 1/4-inch radius corners helps reduce dirt traps and simplifies cleaning.

Factory Drain Components

Includes a 1/2-inch welded tailpiece, clear vinyl drain line, and 1/2-inch by 1/2-inch barbed plastic elbow for connection.

Type Drainboard Half Cabinet
Style Open Front
Installation Type Freestanding
Material Stainless Steel
Country Of Origin USA
Drain Connection Required
Drain Connection Size 1/2 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 40 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

LD indicates this model is available without a door.
The cabinet measures 12 inches wide, 19 inches deep, and 37 inches high.
It uses a 1/2-inch welded tailpiece with a clear vinyl drain line connected at the factory and a 1/2-inch by 1/2-inch barbed plastic elbow for connection at the bottom of the unit.
Yes. The removable floor or shelf remains removable after the unit is plumbed.
It is made from stainless steel, with 20-gauge construction and 18-gauge stainless steel leg pads.
Yes. It features a one-piece seamless top and backsplash with 1/4-inch radius corners.
