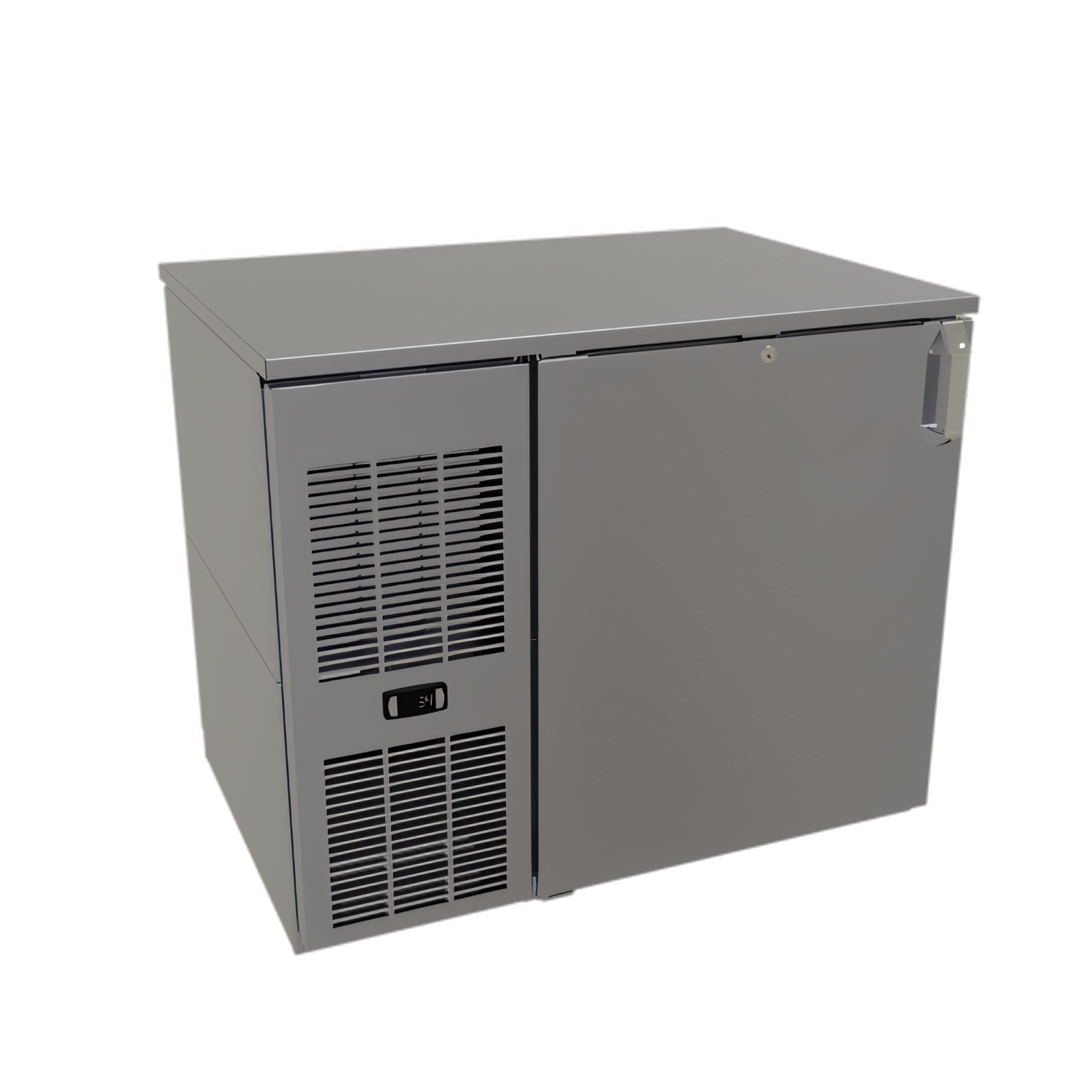

Glastender CP1FL36 Pass-Thru Back Bar Cooler, One Zone, Front Serviced, Low Profile, 36-Inch, One Section

SKU: CP1FL36
$5,056.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators Glastender, Inc. New Arrivals Restaurant Equipment

Glastender CP1FL36 Pass-Thru Back Bar Cooler, One Zone, Front Serviced, Low Profile, 36-Inch, One Section

Front-Serviced, Self-Contained, 20-Inch Door Opening

This compact pass-thru back bar cooler combines front-service access, self-contained R290 refrigeration, and bright LED lighting in a low-profile cabinet built for busy bar service.

  • Pass-thru, one-zone design provides access from either side of the bar.
  • Front-serviced, low-profile cabinet helps simplify maintenance in tight spaces.
  • Self-contained R290 refrigeration with front venting and automatic condensate evaporation.
  • One section with a 20-inch door opening and two adjustable coated-wire shelves per section.
  • LED interior lighting, heated mullion, and locking doors help improve visibility and reduce condensation.
  • Stainless steel interior and sub-top with a black vinyl-clad exterior for durable commercial use.

Overall Dimensions:

36.0"W x 25.75"D x 29.0"H

Product Weight:

320.0 lb

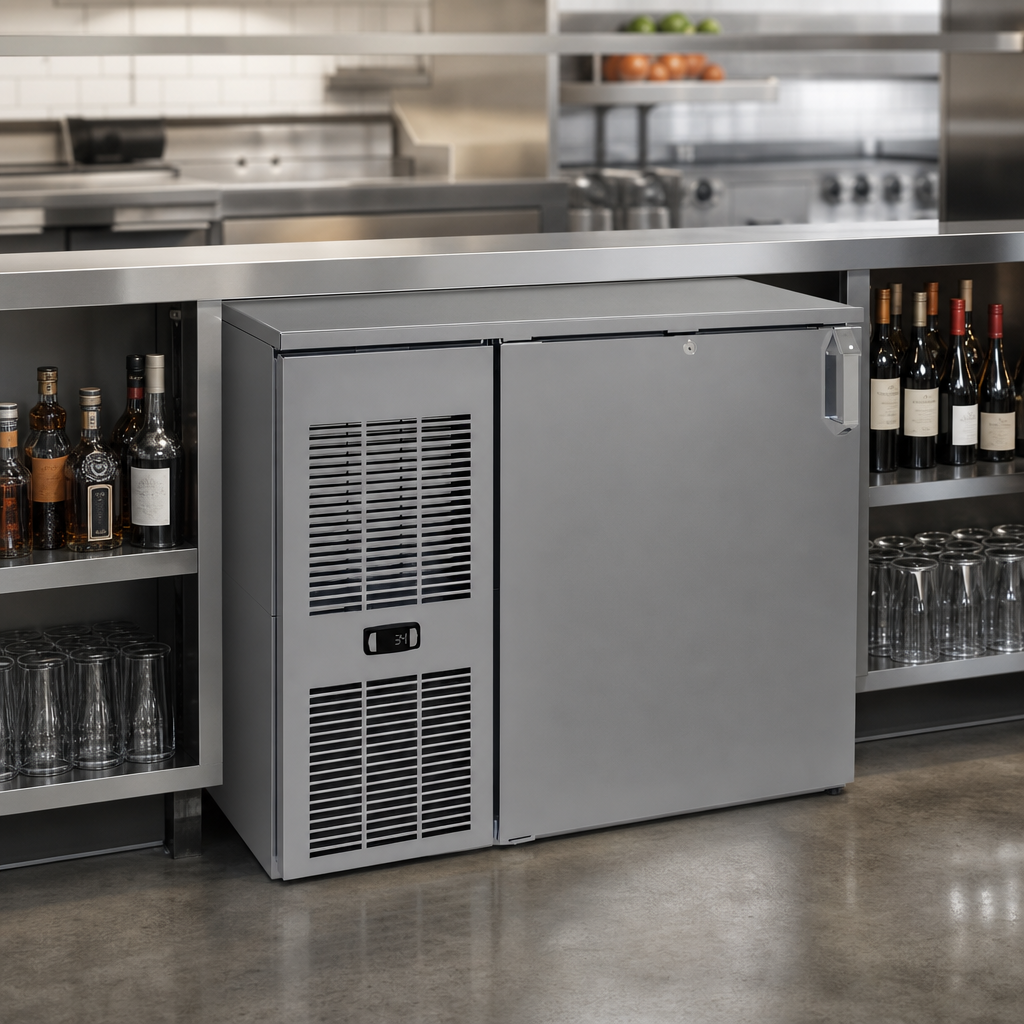

One-Zone Pass-Thru Cabinet

Single-temperature design supports organized storage and service access from both sides.

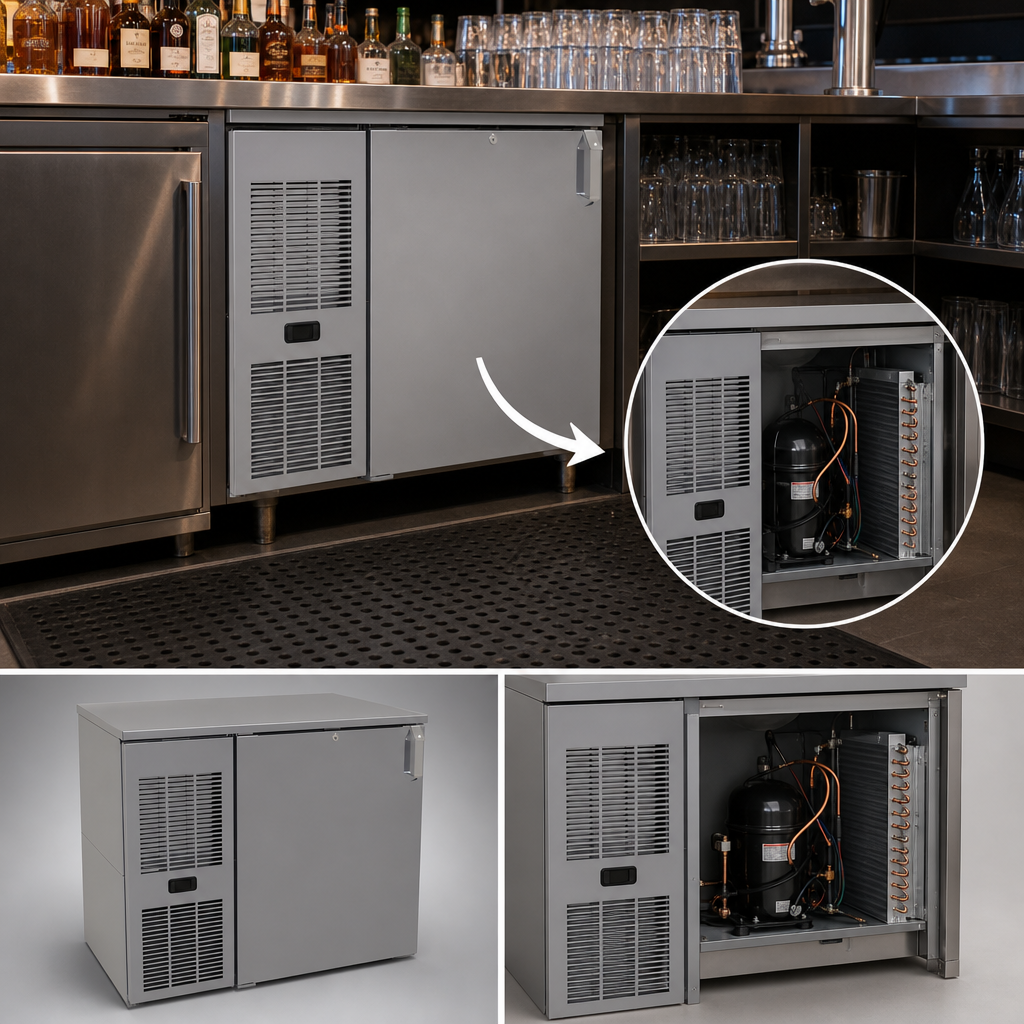

Front-Serviced Low-Profile Design

Refrigeration components are accessible from the front, which simplifies service in tight bar installations.

Self-Contained R290 Refrigeration

Integrated refrigeration uses R290 hydrocarbon refrigerant and front venting; no drain connection is required under standard conditions.

LED Interior Lighting

Bright LED lighting improves product visibility and presentation inside the cabinet.

Heated Mullion

Helps minimize condensation between the door openings.

Adjustable Coated-Wire Shelves

Two adjustable shelves per section provide flexible storage for bottles and other items.

Stainless Steel Interior and Sub-Top

Durable, easy-to-clean surfaces in the interior and top area.

Locking Doors

Helps secure contents after hours.

NSF Standard 7 Open Food Storage

Listed for open food storage applications.

Type Back Bar Cooler
Style Pass-Thru, Front Serviced, Low Profile
Installation Type Undercounter
Compartments 1
Refrigeration Type Self-Contained
Temperature Range 34°F to 65°F
Voltage 120 Volts
Amps 3.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Breaker Size 15 Amps
Refrigerant Type R290 Hydrocarbon
Material Steel
Finish Black Vinyl-Clad
Interior Finish Stainless Steel
Capacity 5.8 Cases of 12 Oz Bottles / 42 750 mL Wine Bottles
Drain Connection Not Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 26 Inches
Shipping Height 29 Inches
Shipping Weight 320 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Compressor details PDF Download PDF Jeweled stainless options PDF Download PDF Wood options & accessories PDF Download PDF Laminate options & accessories PDF Download PDF Wood compressor details PDF Download PDF Brochure- bar refrigeration PDF Download PDF Spec sheet - wood panel front serviced grilles PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 1 section.
The door opening is 20 inches.
It requires 120V, 1-phase, 60 Hz power and a dedicated 15 amp circuit, with an NEMA 5-15P plug.
No. It uses an automatic condensate evaporator, so no drain connection is required under standard conditions.
Capacity is listed at 5.8 cases of 12 oz bottles or 42 750 mL wine bottles.
Yes. The refrigeration compartment location can be configured left or right.
