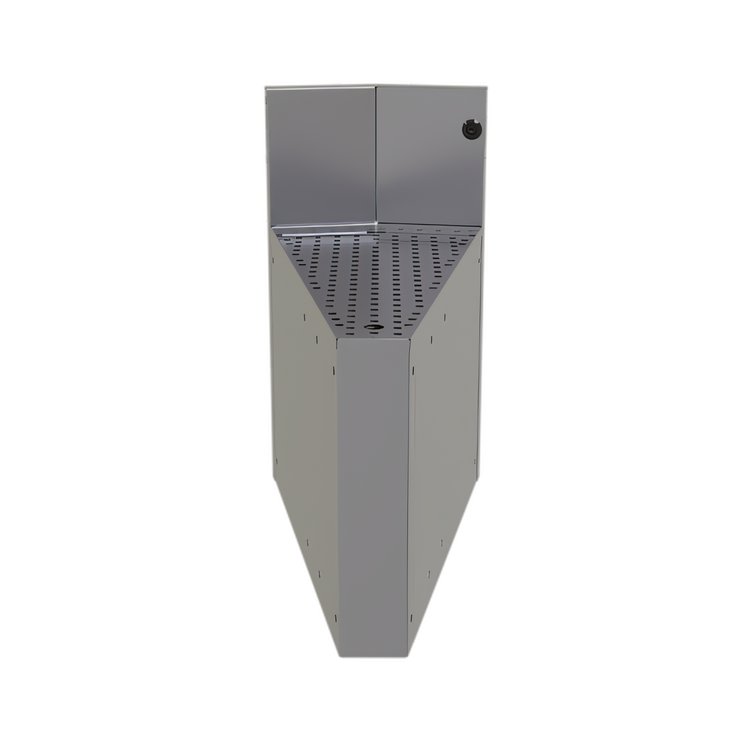

Glastender CIWB-20 Underbar Inside Wedge Corner Drainboard with Backsplash, 20° Angle, 24-Inch Deep, Stainless Steel, No Legs

SKU: CIWB-20
$663.85
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment Underbar Storage & Fillers

Glastender CIWB-20 Underbar Inside Wedge Corner Drainboard with Backsplash, 20° Angle, 24-Inch Deep, Stainless Steel, No Legs

Mounts Between Adjacent Underbar Pieces; Optional One-Side Leg Set Available

A durable stainless steel corner drainboard that fits between adjacent underbar units and uses a perforated insert to improve airflow and drainage.

  • 20° inside wedge corner drainboard designed for 24-inch deep B-depth underbar layouts
  • Stainless steel, 20-gauge construction stands up to commercial bar service
  • Separate perforated insert helps promote airflow and faster drainage
  • Mounts between adjacent underbar pieces with no legs required
  • 1/2-inch welded tailpiece drain provides a secure drainage connection
  • Backsplash helps contain spills and keep the work area cleaner
  • Optional one-side mounting leg set is available for alternate installation needs

Overall Dimensions:

12.0"W x 24.0"D x 37.0"H

Product Weight:

35.0 lb

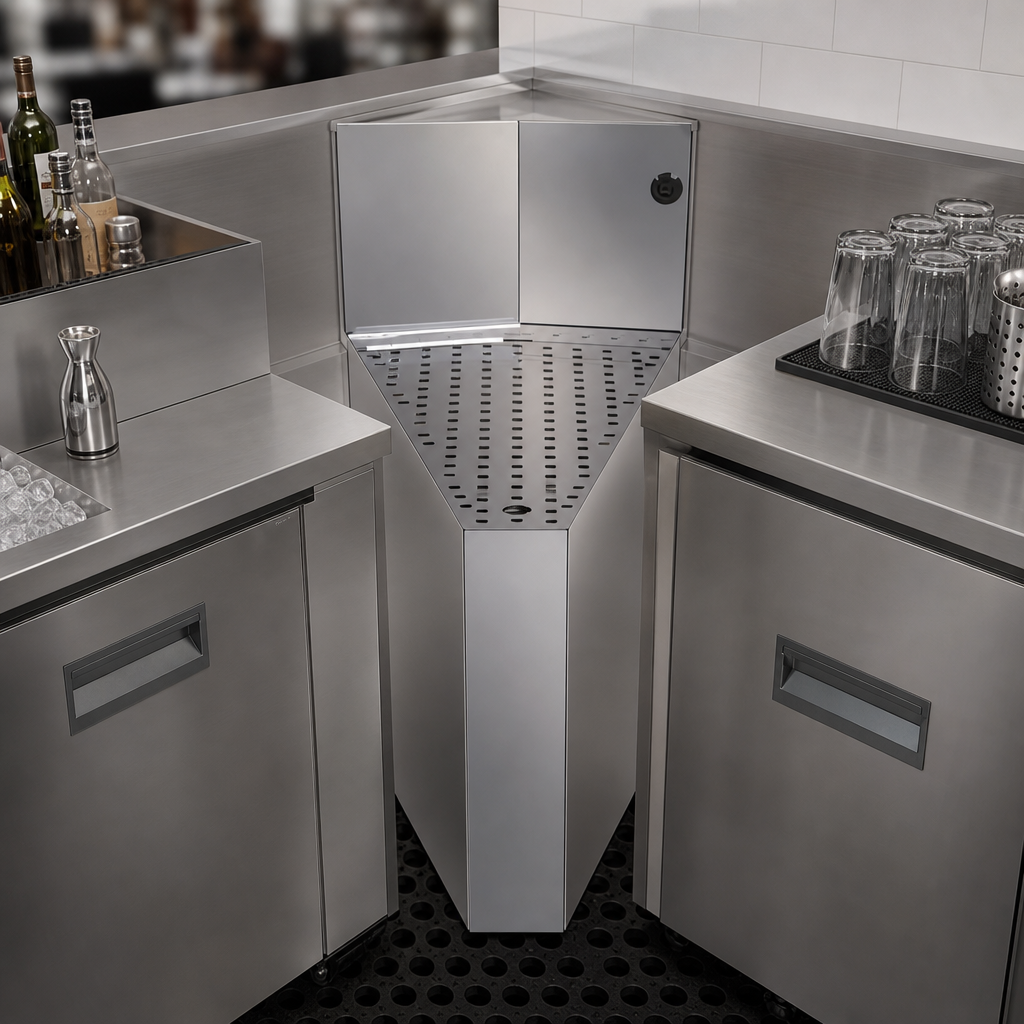

Inside Wedge Corner Design

Fills angled corner openings in underbar runs for a cleaner, more efficient layout.

Inside Wedge Corner Design

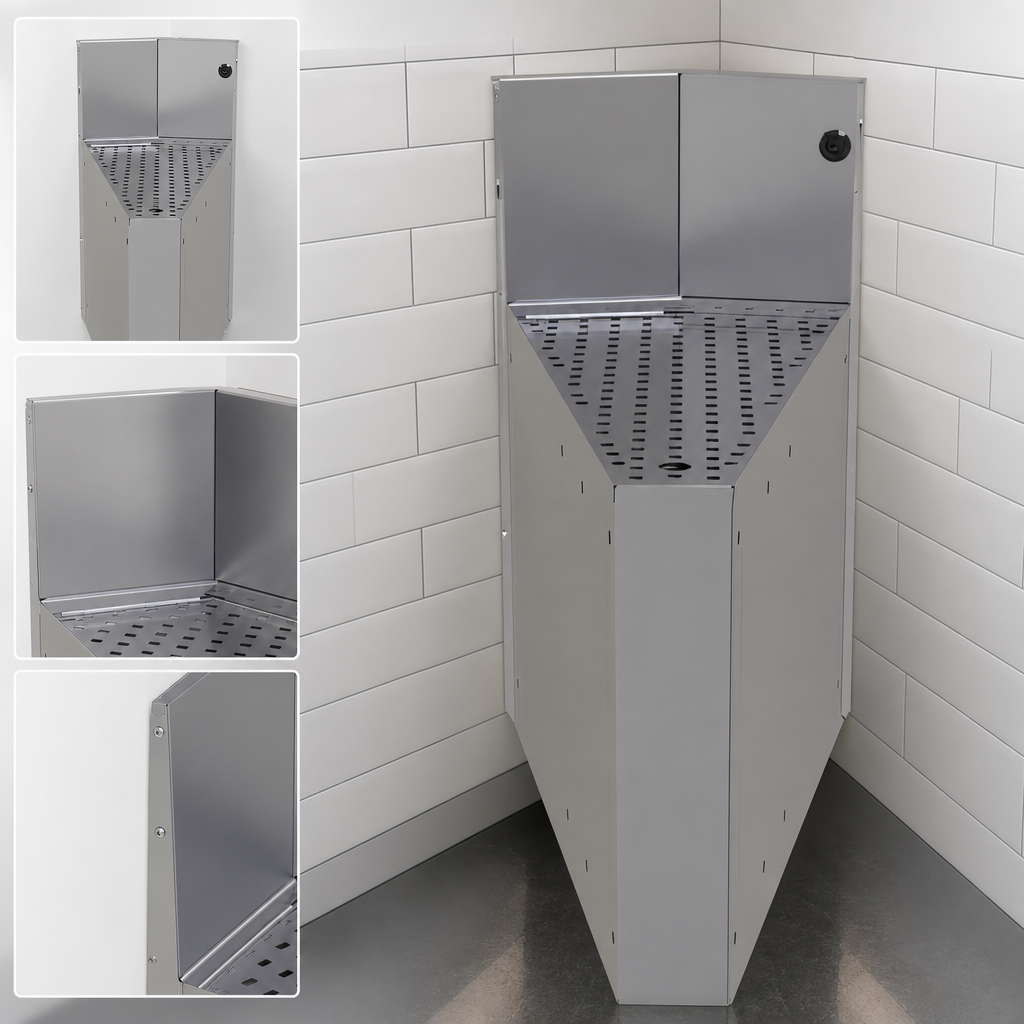

20° Corner Fill Angle

Matched to the CIWB-20 configuration for a tailored corner fit.

20° Corner Fill Angle

24-Inch Deep B-Depth

Deeper 24-inch footprint for corner installations in the B-depth line.

Stainless Steel Construction

Durable, easy-to-clean build suited to commercial beverage service.

20-Gauge Build

Commercial-grade 20-gauge stainless steel construction for dependable daily use.

Separate Perforated Insert

Helps improve air circulation and drainage; included on this model.

No-Leg Mounting

Designed to mount between two adjacent underbar pieces; optional one-side leg set available.

1/2-Inch Welded Tailpiece Drain

Provides a secure welded drain connection.

1/4-Inch Radius Corners

Smooth work surface corners help make cleaning easier.

Backsplash

Helps contain splashes behind the drainboard.

Type Inside Wedge Corner Drainboard
Style Clipped Rear
Installation Type Built-In
Material Stainless Steel
Corner Fill Angle 20 Degrees
Drain Connection Size 1/2 Inch Welded Tailpiece
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed to mount between two adjacent pieces of Glastender underbar equipment. A one-side leg set is available as an option.
Yes. The drain pan includes a separate perforated insert for better air circulation; the 5° and 10° models are excluded.
It uses a 1/2-inch welded tailpiece drain.
It features all stainless steel construction and a 20-gauge stainless steel build.
No legs are standard on this model. It is intended to mount between adjacent underbar pieces.
