Glastender, Inc.

Glastender Underbar Inside L-Shape Corner Drainboard, 24 x 24 Inch, No Legs

SKU: CILB-LN
$1,067.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment Underbar Storage & Fillers

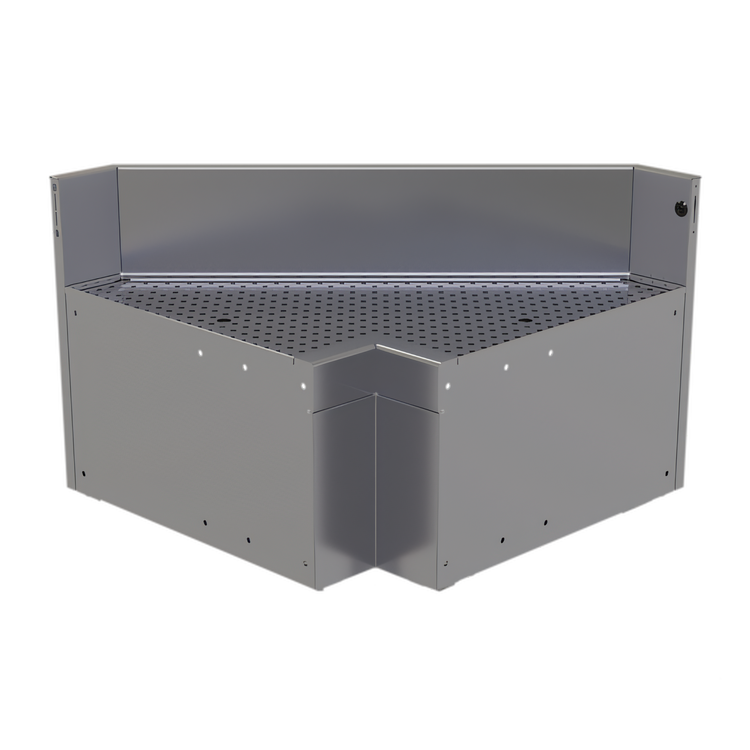

Glastender Underbar Inside L-Shape Corner Drainboard, 24 x 24 Inch, No Legs

90° angle, stainless steel, removable perforated insert

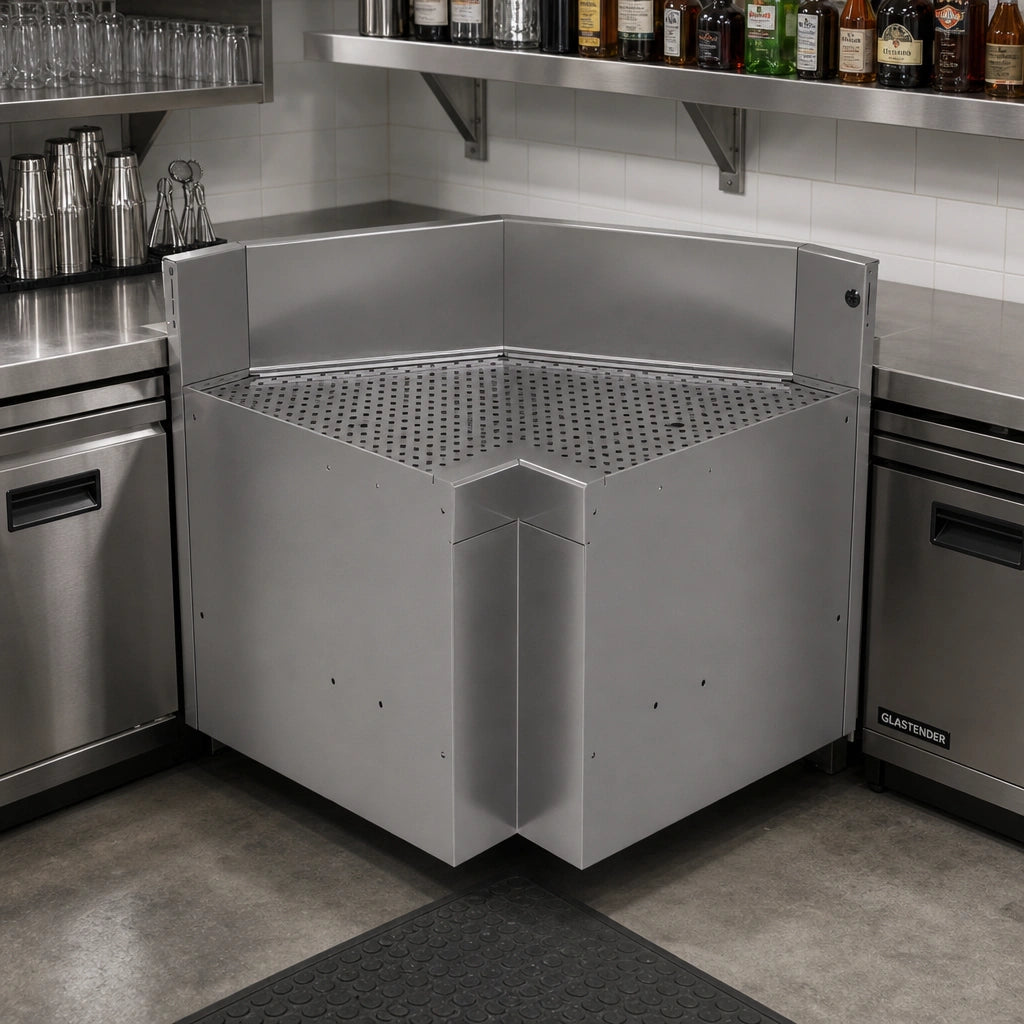

This compact stainless steel corner drainboard is designed to mount between adjacent underbar pieces, delivering efficient drainage in a clean, space-saving 90° corner layout.

  • Inside L-shape 90° corner design fits tight underbar runs and helps maximize available space.
  • All stainless steel construction is built for commercial durability and easy cleanup.
  • Drain pan includes a separate removable perforated insert for better air circulation and drainage.
  • No-leg design mounts between two adjacent underbar pieces for a seamless installation.
  • Large notched backsplash helps contain splashes and support a cleaner work area.
  • 1/4-inch radius work surface corners make routine cleaning easier.

Overall Dimensions:

24.0"W x 24.0"D x 37.0"H

Product Weight:

50.0 lb

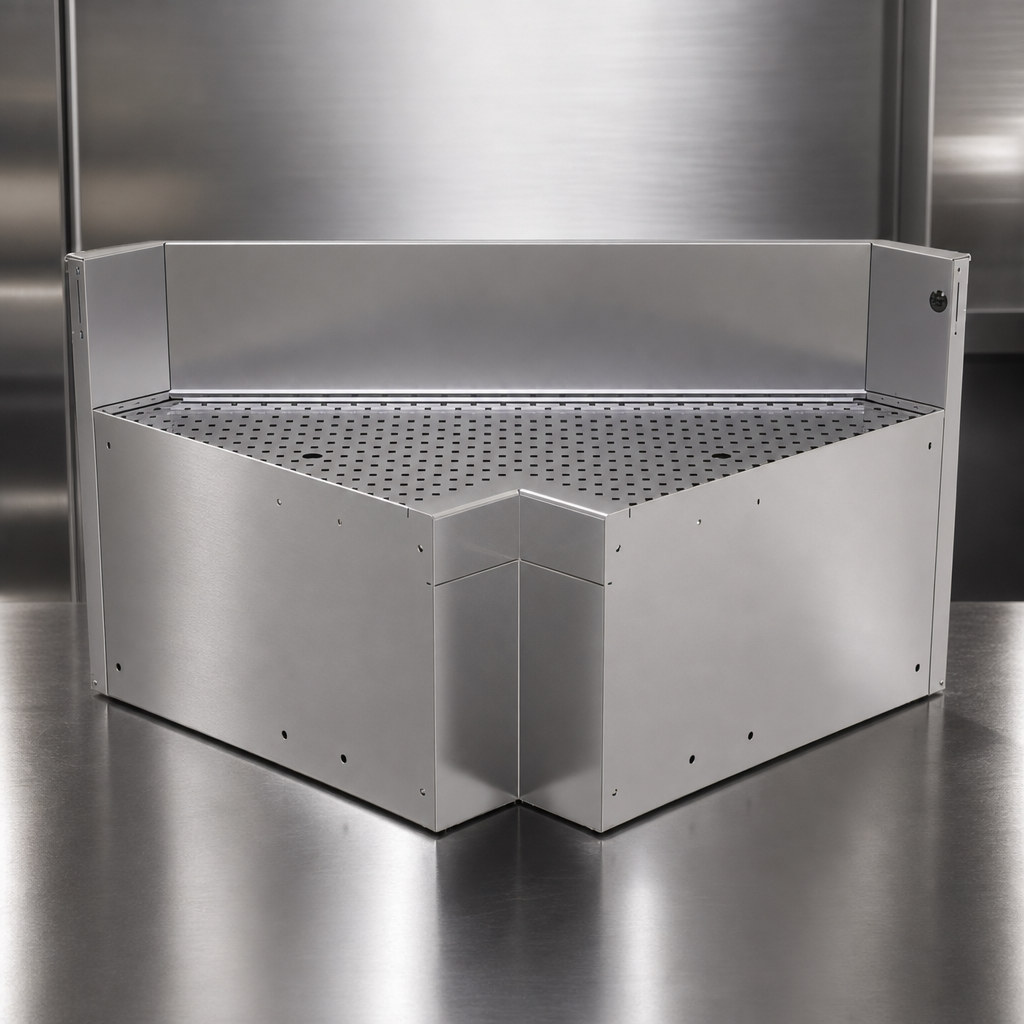

All Stainless Steel Construction

Built from stainless steel components for durability and straightforward cleaning in busy beverage service areas.

All Stainless Steel Construction

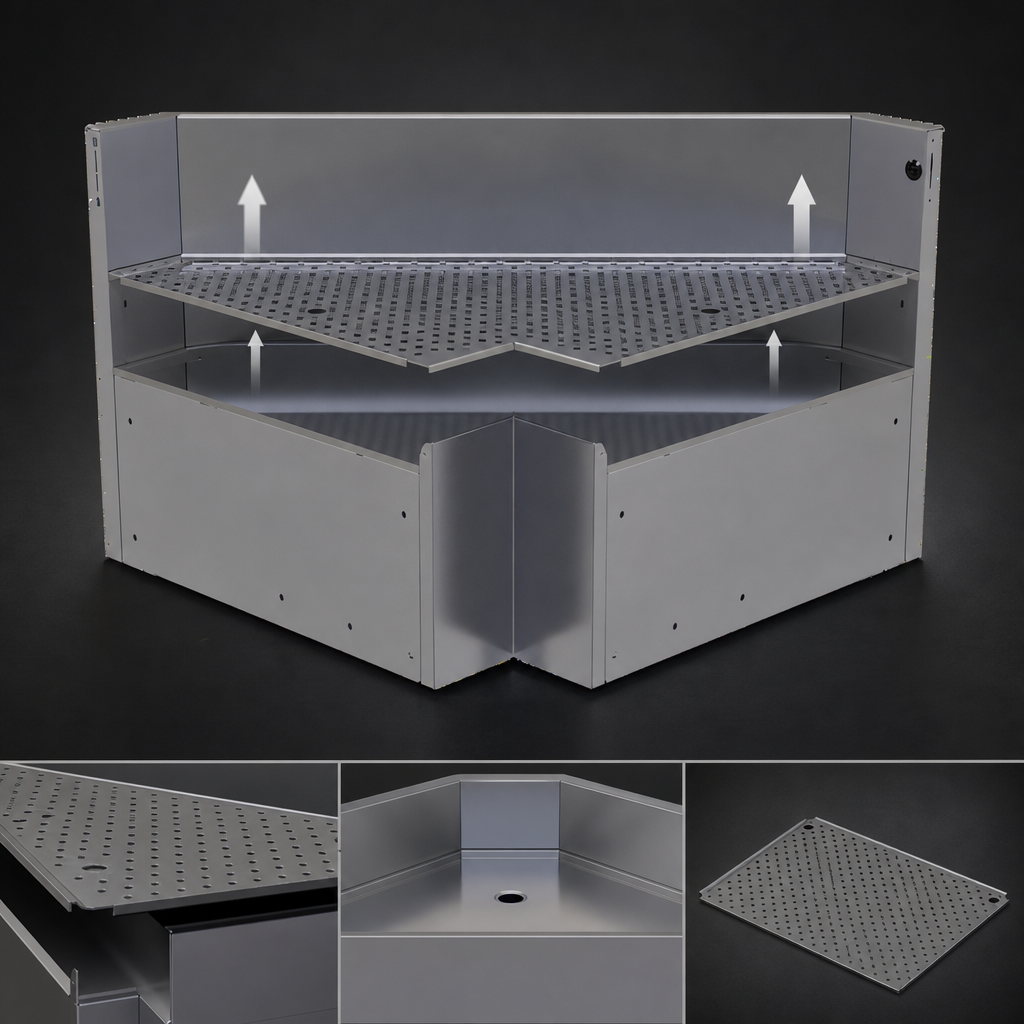

Removable Perforated Insert

The drain pan uses a separate perforated insert to promote air circulation and improve draining performance.

Removable Perforated Insert

No-Leg Mounting Design

Designed to mount between two adjacent pieces of underbar equipment; optional leg sets are available for other configurations.

Large Notched Backsplash

Provides added splash containment where the drainboard meets adjacent equipment.

1/2 Inch Welded Tailpiece Drain

Includes a welded tailpiece drain connection for drainage.

1/4 Inch Radius Corners

Rounded work surface corners support easier wiping and cleanup.

Heavy-Duty Stainless Gauges

Most stainless steel parts are 20 gauge, with a 14 gauge front rail for added strength.

Type Underbar Corner Drainboard
Style Inside L-Shape
Installation Type Built-In
Design Inside/Rear Full Corner
Corner Fill Angle 90 Degrees
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 50 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This model is the no-leg version and is designed to mount between two adjacent underbar pieces. Optional leg sets are available for one-side mounting or freestanding use.
It has a 1/2-inch welded tailpiece drain.
The unit is made of stainless steel, with 20-gauge stainless steel parts throughout and a 14-gauge stainless steel front rail.
Yes. It includes a drain pan with a separate perforated insert for better air circulation.
The unit has 1/4-inch radius work surface corners and a large notched backsplash to support easier cleaning and a tidier work area.
Yes. The document notes that this model is made to order and not returnable.
