Glastender, Inc.

Glastender 30-Inch Underbar Stainless Steel Combo Ice Bin/Cocktail Unit with Right 3-Bottle Storage and 10-Circuit Cold Plate

SKU: CBA-30R3-CP10
$3,275.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

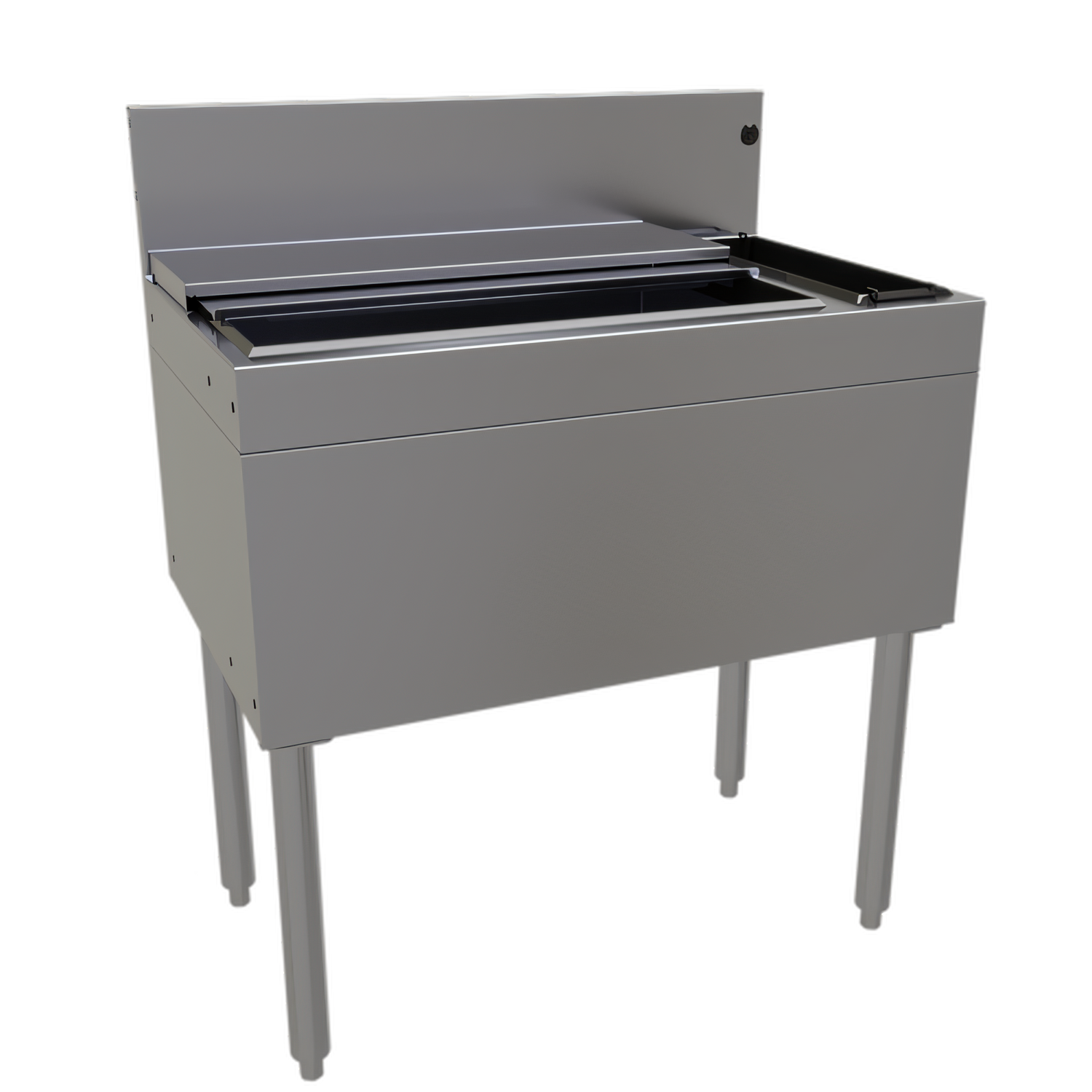

Glastender 30-Inch Underbar Stainless Steel Combo Ice Bin/Cocktail Unit with Right 3-Bottle Storage and 10-Circuit Cold Plate

7-Inch Backsplash, Sliding Stainless Steel Covers, Adjustable Bullet Feet

Built for busy bar stations, this stainless steel combo unit pairs an ice bin with right-side chilled bottle storage and a built-in 10-circuit cold plate.

  • 30-inch underbar unit combines a draining ice bin with a right-side 3-bottle insulated bottle well.
  • Built-in 10-circuit cold plate adds extra chilling performance for bar service.
  • All stainless steel construction with a one-piece seamless top and backsplash.
  • Includes stainless steel sliding covers, a plastic breaker strip, and a 10-1/2-inch deep bin liner.
  • Stainless steel legs with adjustable bullet feet help with leveling and installation.
  • Optional accessories include a tubing chase and backsplash-mounted ice-melting faucet.

Overall Dimensions:

30.0"W x 19.0"D x 37.0"H

Product Weight:

165.0 lb

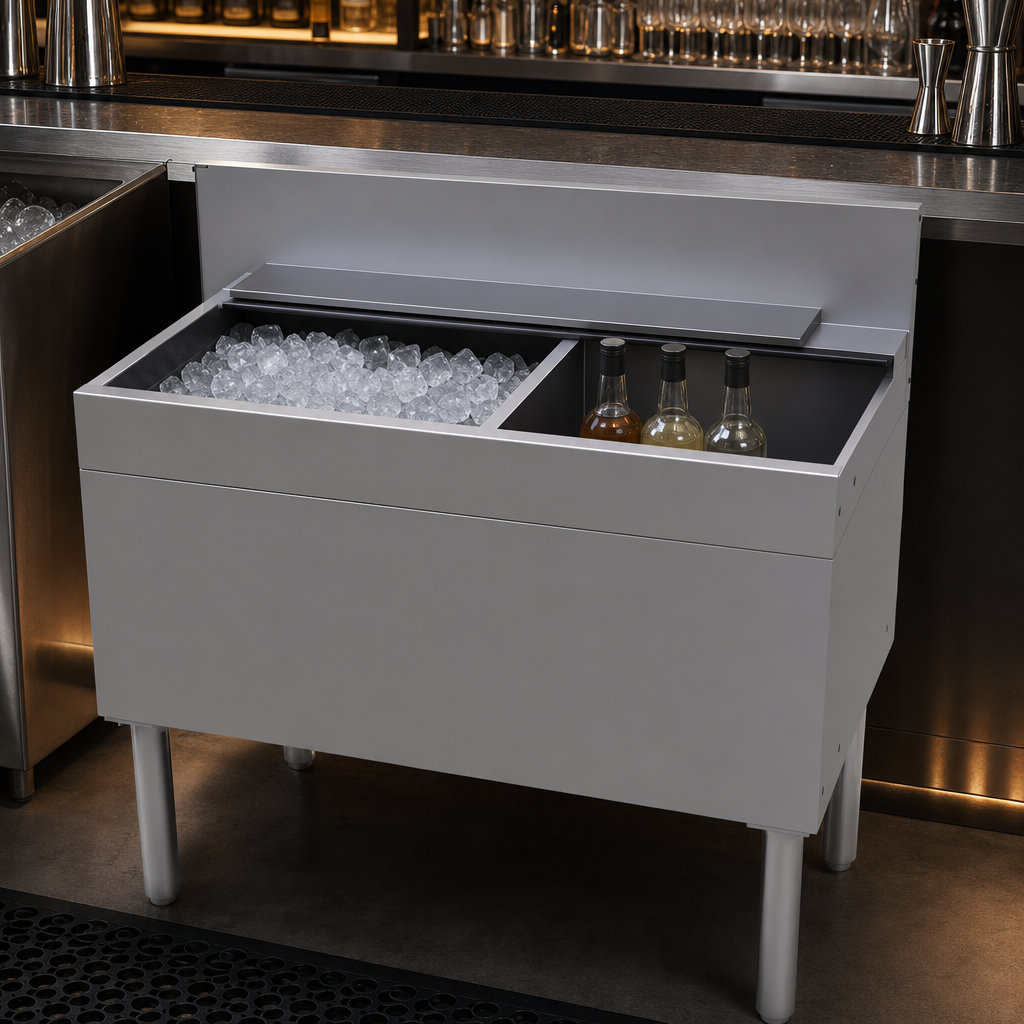

Combo Ice Bin and Bottle Well

Combines a draining ice bin and insulated bottle storage into one integral underbar unit.

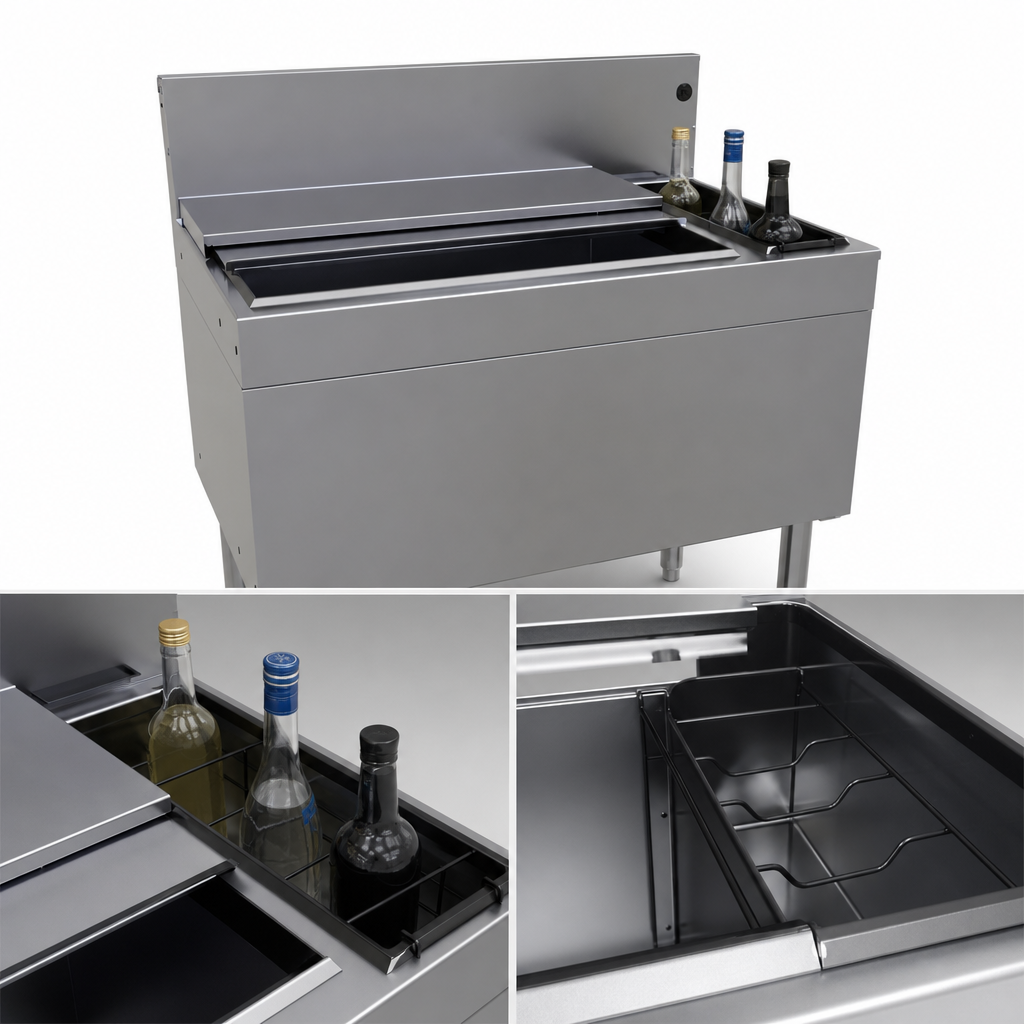

Right-Side 3-Bottle Storage

The bottle well is located on the right and includes a wire bottle rack for chilled bottle storage.

Built-In 10-Circuit Cold Plate

Integrated cold plate helps boost cooling performance in the ice bin section.

All Stainless Steel Construction

Durable stainless steel build with a one-piece seamless top and backsplash for easier cleaning.

Sliding Stainless Steel Covers

Included covers help protect ice and maintain temperature between uses.

Plastic Breaker Strip

Breaker strip around the liner acts as a thermal barrier and helps the cover slide more smoothly.

Adjustable Stainless Steel Bullet Feet

Heavy-duty stainless steel legs with bullet feet make it easier to level the unit on the floor.

Foamed-In-Place Insulation

Insulated construction helps reduce heat transfer and improve cold retention.

Type Combo Ice Bin/Cocktail Unit
Style With Cold Plate
Installation Type Undercounter
Material Stainless Steel
Capacity 67 Pounds
Bottle Capacity 3 Bottles
Bottle Well Location Right
Cold Plate Circuits 10
Drain Connection Size 3/4 Inch MPT
Bin Depth 10-1/2 Inches
Backsplash Height 7 Inches
Shipping Width 30 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 165 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure- bar fabrication PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The -CP10 suffix indicates that this unit includes a built-in 10-circuit cold plate.
The right-side insulated storage compartment holds 3 bottles and includes one wire bottle rack.
The ice bin liner is 10-1/2 inches deep.
The ten-circuit cold plate version uses a 3/4 inch MPT drain connection.
No. The documentation notes that combo ice bins are not recommended for dry, room-temperature bottle storage.
