Glastender, Inc.

CHOICE Underbar Drainboard Cabinet Base with Single Hinged Door, 12 Inch W x 24 Inch D

SKU: C-DBCB-12
$1,098.90
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks Glastender, Inc. New Arrivals Restaurant Equipment

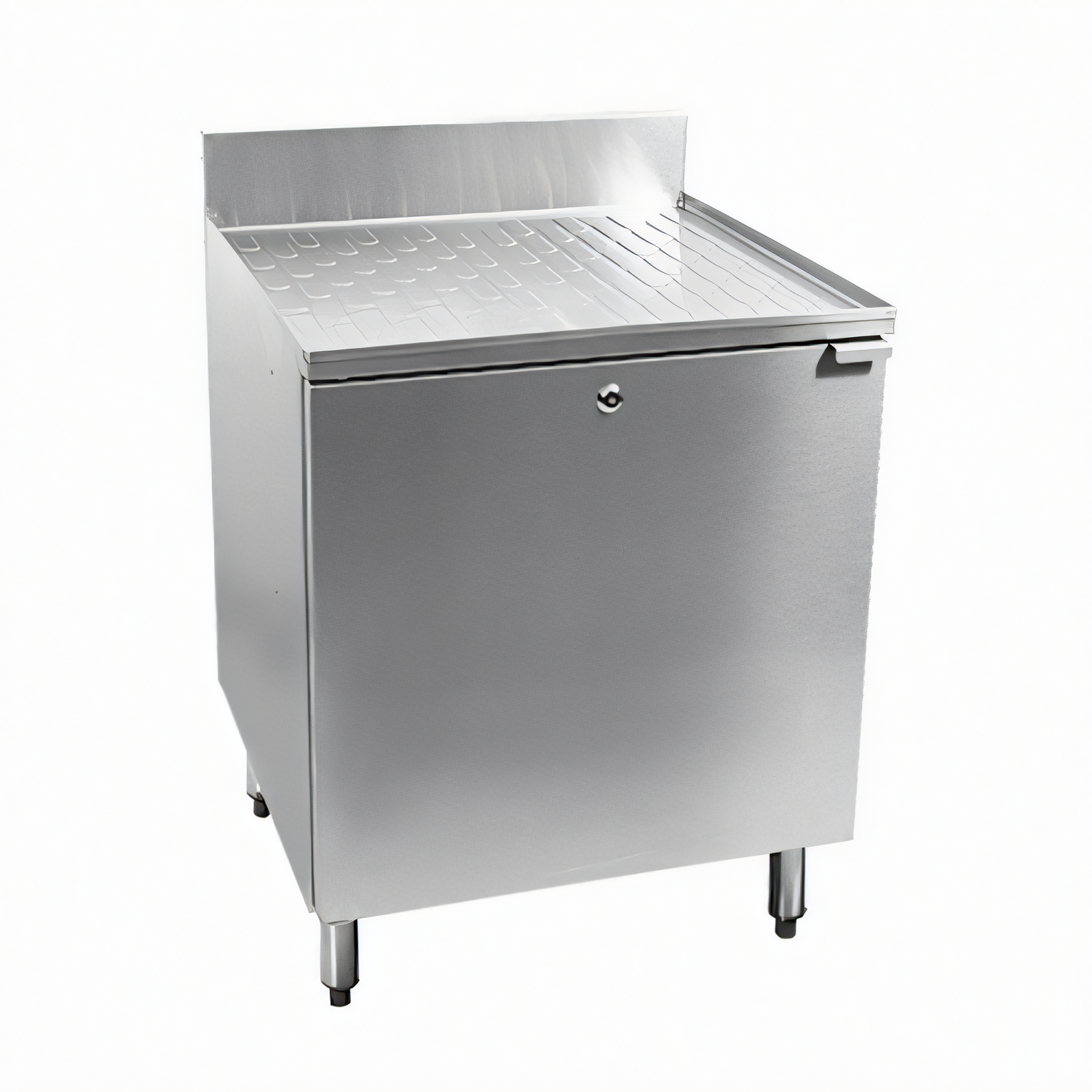

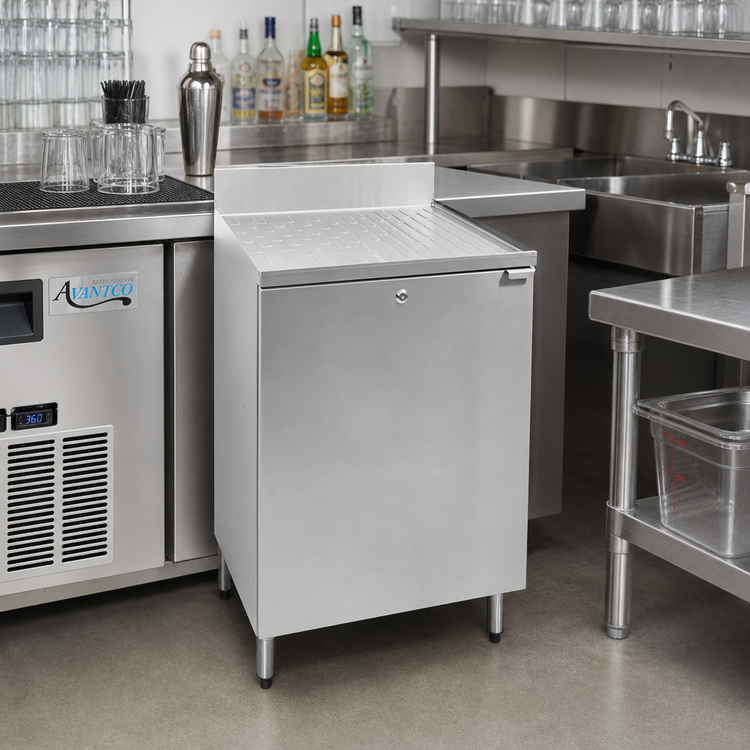

CHOICE Underbar Drainboard Cabinet Base with Single Hinged Door, 12 Inch W x 24 Inch D

Stainless Steel, Field-Reversible Door, Freestanding

A compact stainless steel underbar drainboard cabinet that combines easy-clean surfaces, secure storage, and adjustable leveling feet for busy bar installations.

  • 12-inch wide, 24-inch deep freestanding drainboard cabinet base with one hinged door.
  • All stainless steel construction is built for durability in demanding wet-service environments.
  • One-piece seamless top and backsplash with 1/4-inch radius corners simplifies cleaning.
  • Corrugated drainboard work surface helps move moisture away from the work area.
  • Single door ships hinged left and can be field-reversed; lock and handle are standard.
  • Adjustable stainless steel bullet feet help level the unit during installation.
  • Underneath drain connection keeps plumbing out of the way of shelves and flooring.

Overall Dimensions:

12.0"W x 24.0"D x 34.0"H

Product Weight:

75.0 lb

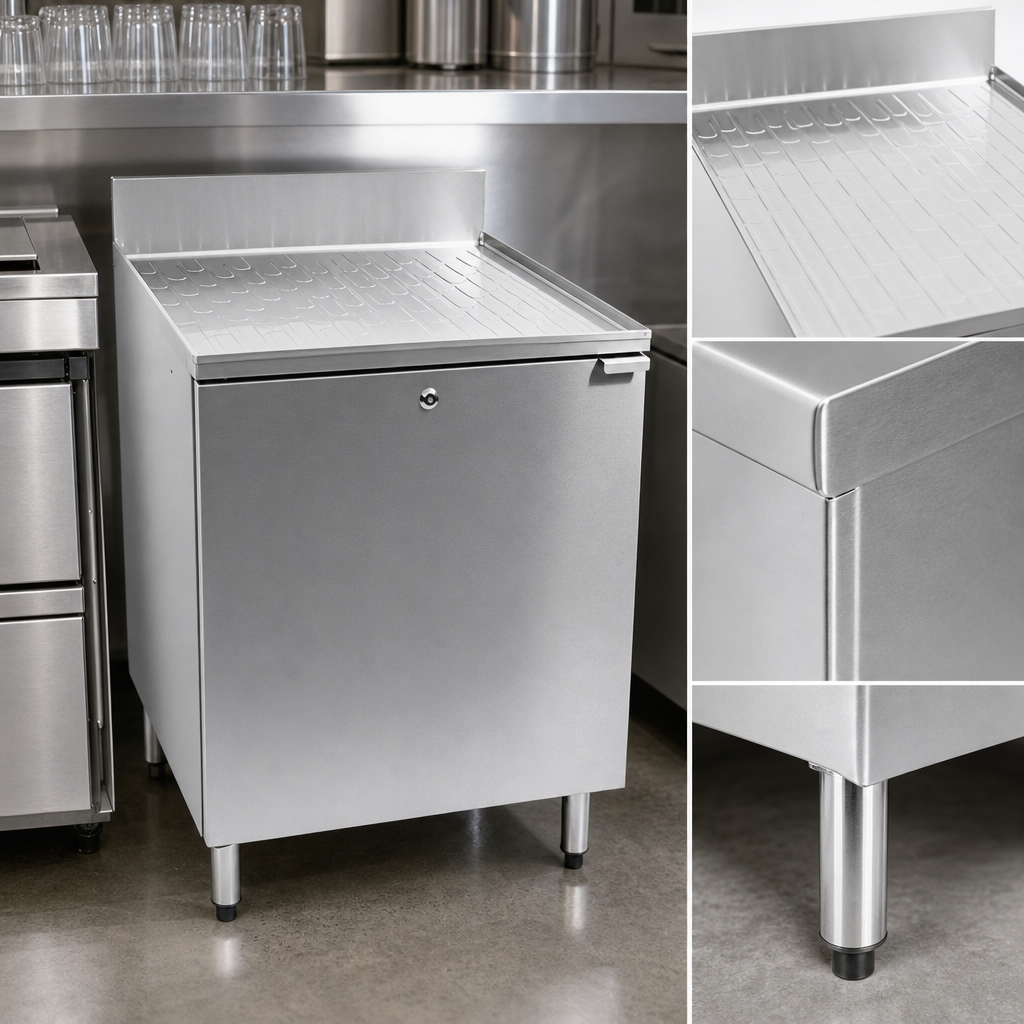

All Stainless Steel Construction

Durable stainless steel build for long service life and easier cleaning in commercial environments.

One-Piece Seamless Top and Backsplash

Seamless construction with 1/4-inch radius corners helps reduce crevices where dirt can collect.

Corrugated Work Surface

Designed to help channel moisture off the work area.

Field-Reversible Hinged Door

Single-door models ship hinged left, and the door can be reversed onsite for installation flexibility.

Standard Lock and Handle

The door includes a lock and handle for secure storage.

Adjustable Stainless Steel Bullet Feet

Helps level the cabinet on uneven floors.

Underbar Drain Connection

Plumbing connects underneath the unit so it does not interfere with shelves or the floor.

Factory Drain Components

Includes a 1/2-inch welded tailpiece, clear vinyl drain line, and 1/2-inch by 1/2-inch barbed plastic elbow.

Bottom Shelf Storage

Drainboard cabinets include a bottom shelf for added utility.

Type Underbar Drainboard Cabinet
Style Enclosed Cabinet Base
Installation Type Freestanding
Material Stainless Steel
Drain Connection Required
Drain Connection Size 1/2 Inch
Door Count 1
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 24 Inches
Shipping Height 34 Inches
Shipping Weight 75 Pounds

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. The C-DBCB-12 includes one hinged door with a lock and handle.
Yes. Single-door models ship hinged left, and the door is field reversible.
It features all stainless steel construction, including stainless steel legs and adjustable bullet feet.
The unit uses a 1/2-inch welded tailpiece with a clear vinyl drain line and a 1/2-inch by 1/2-inch barbed plastic elbow for connection underneath the unit.
Yes. A shelf kit is listed as an accessory for the C-DBCB-12.
