Glastender, Inc.

CHOICE Underbar Stainless Steel Drainboard Cabinet, Open Front, 48 Inch W x 19 Inch D, No Doors

SKU: C-DBCA-48-LD
$1,305.15
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks Glastender, Inc. New Arrivals Restaurant Equipment

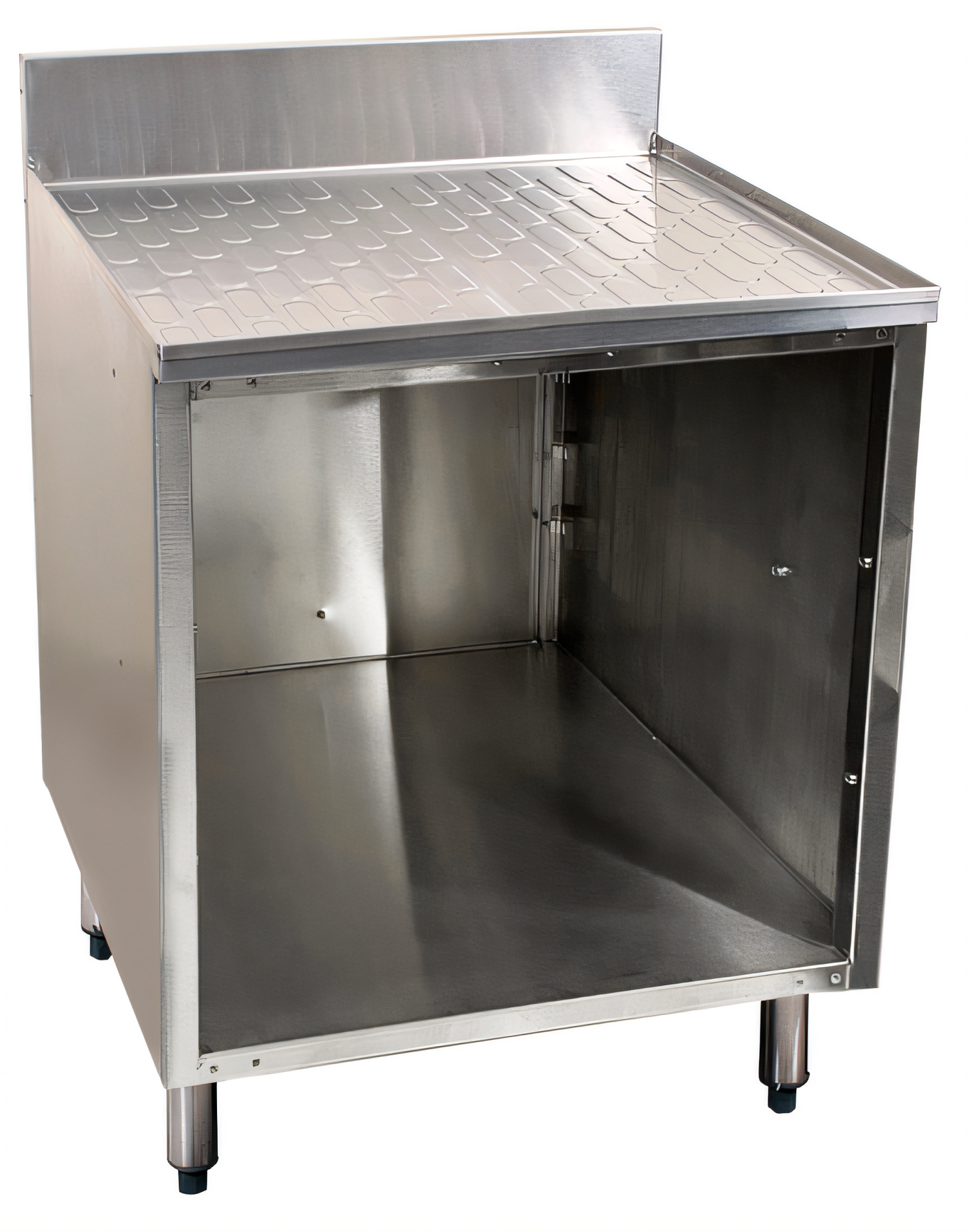

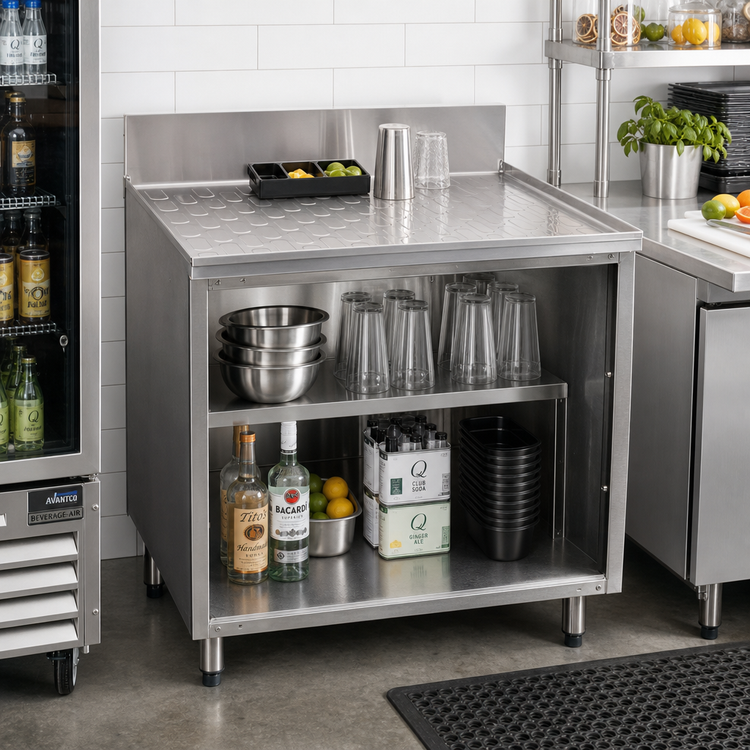

CHOICE Underbar Stainless Steel Drainboard Cabinet, Open Front, 48 Inch W x 19 Inch D, No Doors

One-Piece Seamless Top & Backsplash, Corrugated Drainboard Surface

This freestanding stainless steel drainboard cabinet gives you a sanitary, easy-to-clean underbar work surface with open front access and a factory-connected drain assembly.

  • 48-inch wide by 19-inch deep freestanding underbar drainboard cabinet
  • Open front, no-door (-LD) design for quick access beneath the work surface
  • All stainless steel construction with adjustable stainless steel bullet feet
  • One-piece seamless top and backsplash with radius corners for easier cleaning
  • Corrugated work surface and factory drain connection help manage runoff efficiently
  • ETL-Sanitation listed and designed for commercial bar service

Overall Dimensions:

48.0"W x 19.0"D x 34.0"H

Product Weight:

101.0 lb

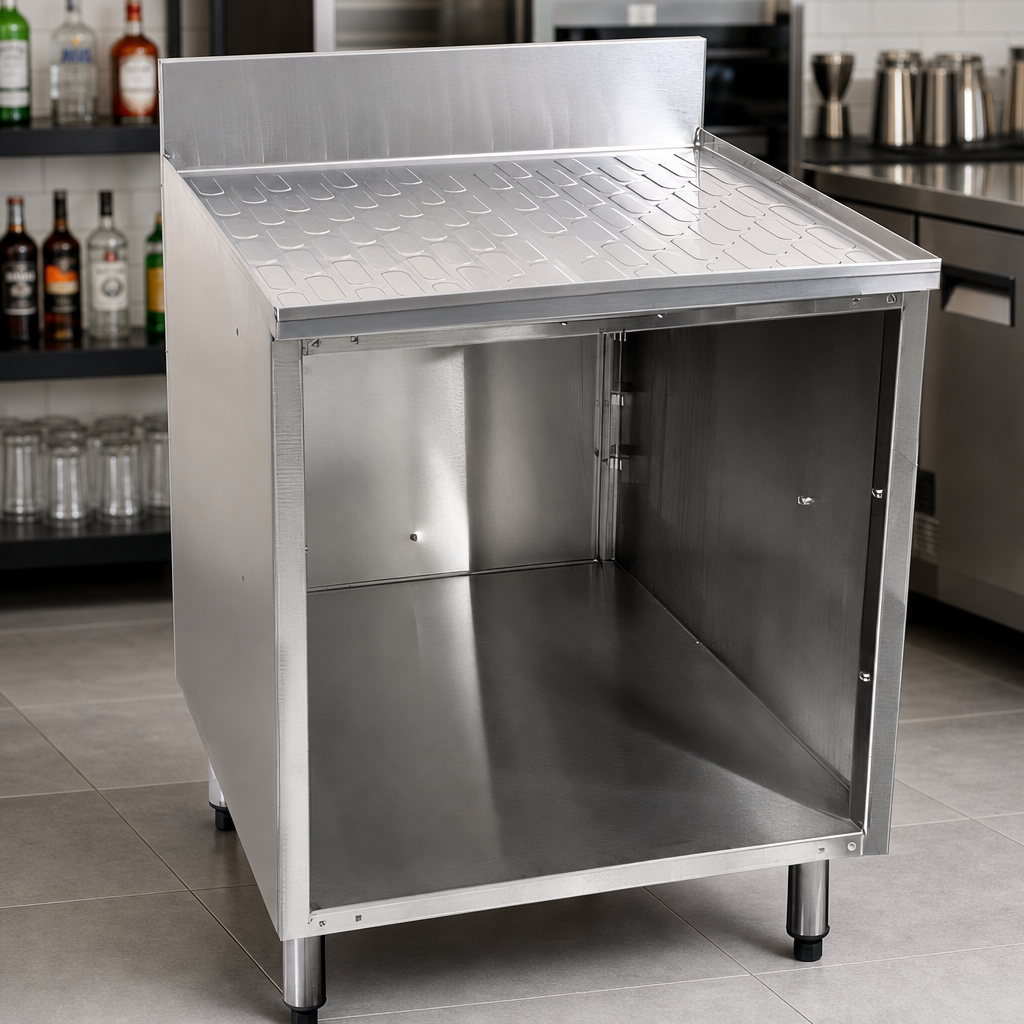

All Stainless Steel Construction

Built for durability and corrosion resistance in demanding commercial environments.

Open Front, No-Door Base

The -LD version ships without doors, creating an open front cabinet base for easier access.

One-Piece Seamless Top & Backsplash

Seamless construction with 1/4-inch radius corners helps simplify cleaning and reduce grime buildup.

Corrugated Drainboard Surface

The textured work surface helps direct liquid toward the drain area.

Adjustable Stainless Steel Bullet Feet

Provides stable support and lets the unit be leveled on uneven floors.

Bottom Shelf Included

Drainboard cabinets include a bottom shelf beneath the work surface for added utility.

Factory Drain Connection

Features a 1/2-inch welded tailpiece with a clear vinyl drain line connected at the factory and a 1/2-inch by 1/2-inch barbed plastic elbow for connection underneath the unit.

Sanitation Listed

Conforms to ANSI/NSF Std 2 and is ETL-Sanitation listed.

Optional Accessories Available

An adjustable intermediate shelf and side splash options are available for the C-DBCA series.

Type Drainboard Cabinet
Style Open Front
Installation Type Freestanding
Base Type Open Cabinet Base
Material Stainless Steel
Finish Stainless Steel
Drain Connection Size 1/2 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 19 Inches
Shipping Height 34 Inches
Shipping Weight 101 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The -LD suffix indicates the unit is supplied without doors, creating an open front cabinet base.
It includes a 1/2-inch welded tailpiece, a clear vinyl drain line connected at the factory, and a 1/2-inch by 1/2-inch barbed plastic elbow for connection underneath the unit.
Yes. It comes with adjustable stainless steel bullet feet.
Yes. A shelf kit is available for the 48-inch C-DBCA model, and side splash options are available for C-DBCA models.
Yes. It conforms to ANSI/NSF Std 2 and is ETL-Sanitation listed.
