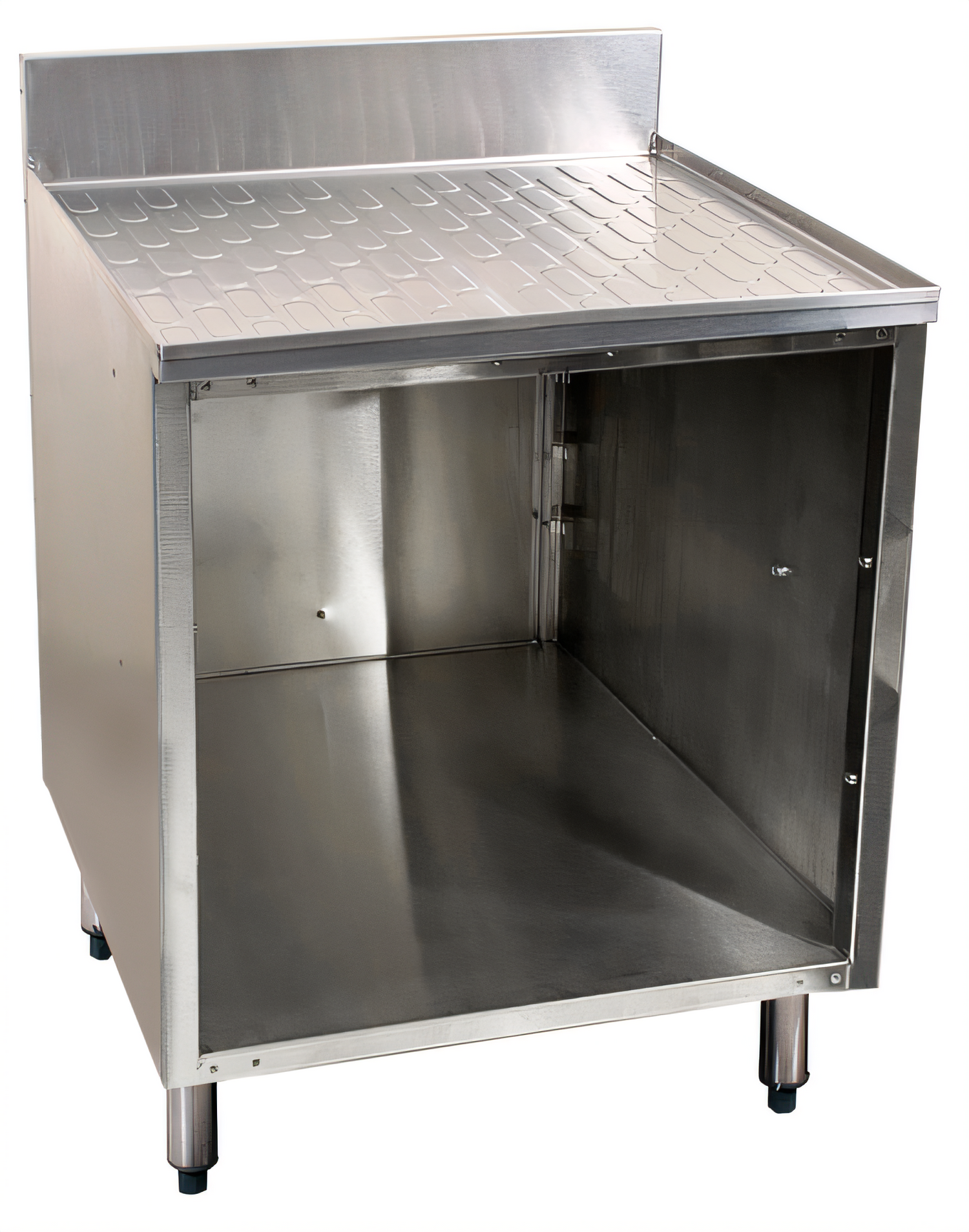

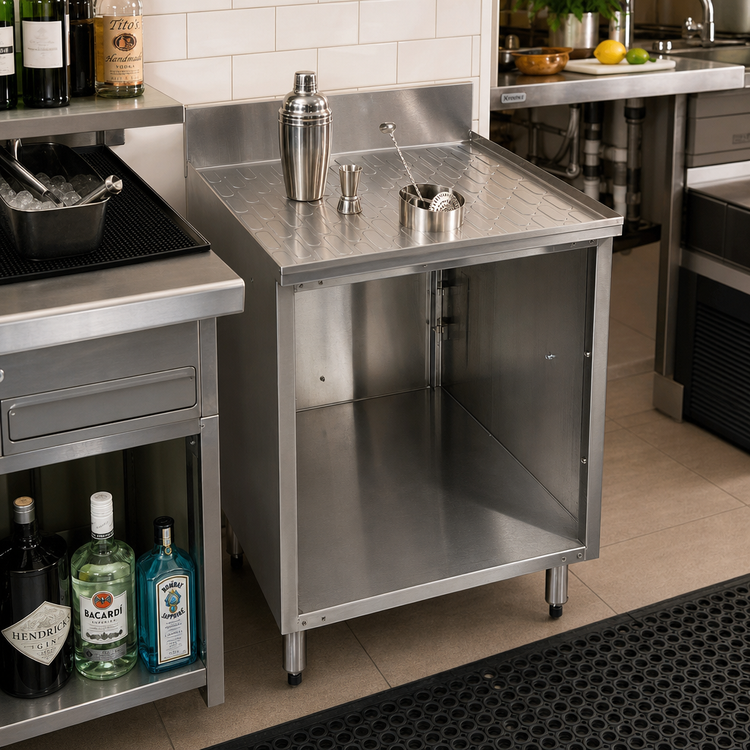

CHOICE by Glastender 36-Inch Open Front Underbar Drainboard Cabinet, 19-Inch Deep, Doorless

19-Inch Deep, Doorless (-LD) Model with Seamless Top and Backsplash

A durable, easy-to-clean underbar drainboard cabinet that combines open front access with a stainless steel build for busy bar service.

  • 36-inch-wide, 19-inch-deep underbar drainboard cabinet for compact bar or prep areas
  • Open front, doorless design provides easy access to stored items and service space
  • One-piece seamless top and backsplash with radius corners helps simplify cleaning
  • Corrugated work surface supports drainage and faster drying
  • Stainless steel construction and adjustable bullet feet deliver long-lasting durability and leveling
  • Factory drain components and underneath plumbing routing simplify installation

Overall Dimensions:

36.0"W x 19.0"D x 34.0"H

Product Weight:

87.0 lb

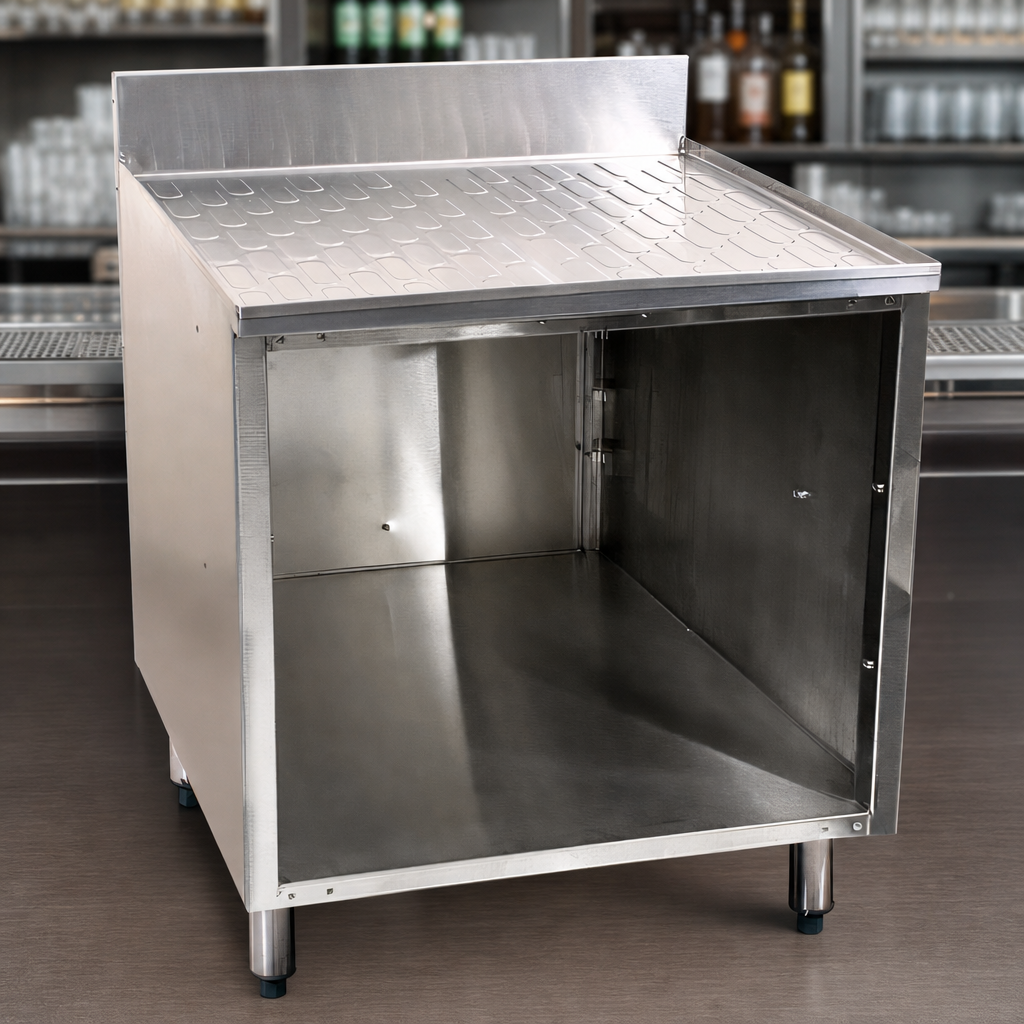

Stainless Steel Construction

Constructed for durability and corrosion resistance in commercial service.

Seamless Top and Backsplash

One-piece top and backsplash with 1/4-inch radius corners helps reduce buildup and makes cleanup easier.

Corrugated Work Surface

Textured drainboard surface helps channel water away from the work area.

Doorless Open Front Base

The -LD suffix indicates the unit is supplied without doors for open access to the cabinet base.

Adjustable Bullet Feet

1-5/8-inch diameter, 16-gauge stainless steel legs with adjustable stainless steel bullet feet support leveling on uneven floors.

Built-In Bottom Shelf

Includes a bottom shelf for storage beneath the drainboard work surface.

Factory Drain Connection

Includes a 1/2-inch welded tailpiece, clear vinyl drain line connected at the factory, and a 1/2-inch by 1/2-inch barbed plastic elbow.

Under-Unit Plumbing Routing

Plumbing connection is made underneath the unit so it does not interfere with the shelf or floor.

Type Underbar Drainboard Cabinet
Style Open Front Cabinet Base
Installation Type Freestanding
Material Stainless Steel
Finish Stainless Steel
Drain Connection Required
Drain Connection Size 1/2 Inch
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It means the cabinet is ordered without doors.
The unit is 36 inches wide, 19 inches deep, and 34 inches high.
It features stainless steel construction, including 20-gauge stainless steel body materials and 16-gauge stainless steel legs.
The drain uses a 1/2-inch welded tailpiece. A clear vinyl drain line is connected at the factory, and a 1/2-inch by 1/2-inch barbed plastic elbow is provided.
Yes. Left and right side splash options are available for C-DBCA models, and a shelf kit is listed for C-DBCA-36.
Yes. The model is ETL-Sanitation listed and conforms to ANSI/NSF STD 2.
