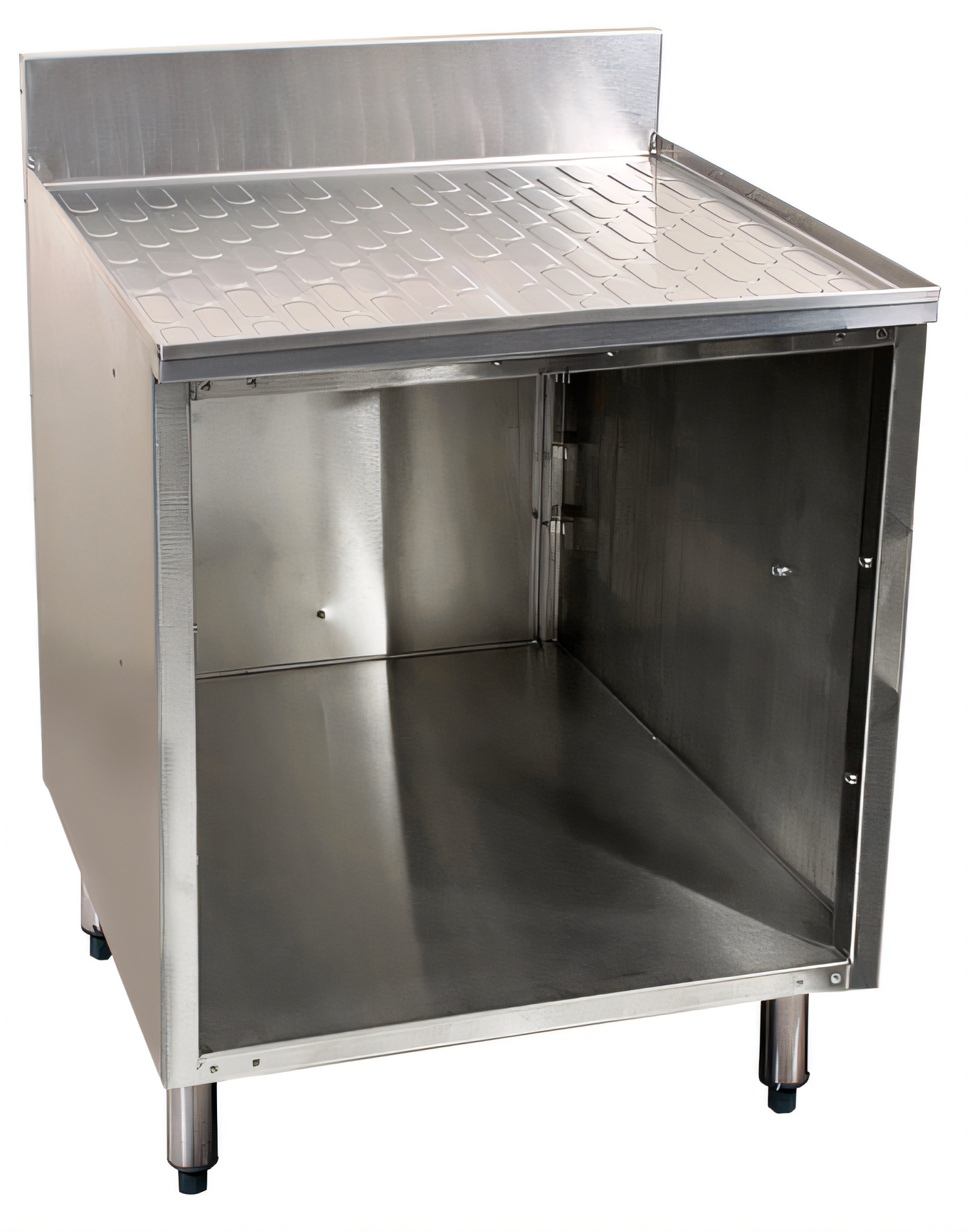

CHOICE by Glastender 24-Inch Wide x 19-Inch Deep Stainless Steel Open Front Underbar Drainboard Cabinet, No Doors

Freestanding -LD Model with Adjustable Bullet Feet

Built for busy bar stations, this stainless steel drainboard cabinet combines easy-clean construction, open-front access, and a compact underbar footprint.

  • Open-front, no-door design provides quick access beneath the drainboard.
  • One-piece seamless stainless steel top and backsplash with 1/4-inch radius corners simplifies cleaning.
  • Corrugated work surface helps manage drainage during glass and bar service.
  • Adjustable stainless steel bullet feet help level the unit on uneven floors.
  • Underneath plumbing connection keeps the shelf and floor area unobstructed.
  • ETL-Sanitation listed and conforms to ANSI/NSF Standard 2.

Overall Dimensions:

24.0"W x 19.0"D x 34.0"H

Product Weight:

73.0 lb

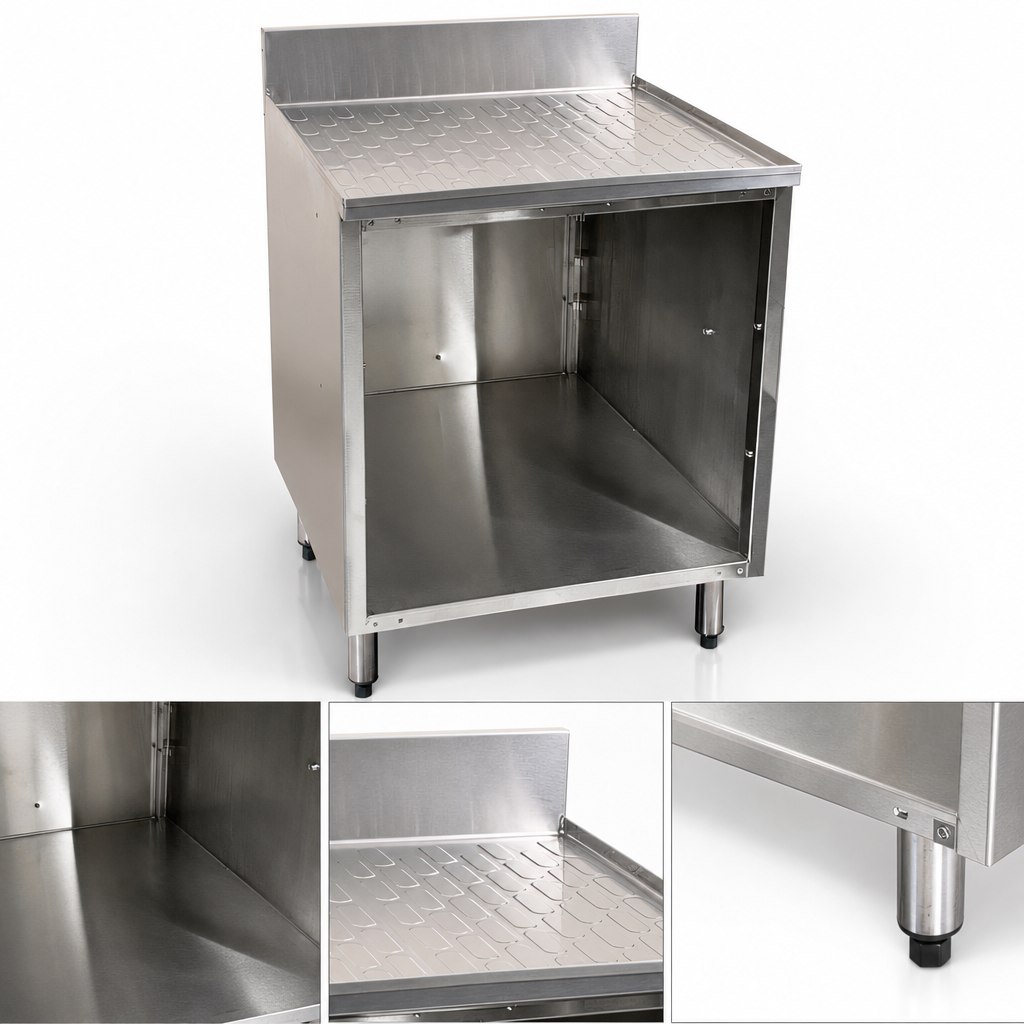

Open Front Cabinet Base

The -LD model is supplied without doors for unobstructed underbar access.

Stainless Steel Construction

All stainless steel build provides durability for commercial wet-service environments.

Seamless Top and Backsplash

One-piece construction with 1/4-inch radius corners helps prevent buildup and makes cleaning easier.

Corrugated Work Surface

Textured drainboard surface helps liquids move away from the work area.

Adjustable Bullet Feet

Stainless steel bullet feet allow for leveling on uneven floors.

Underbody Drain Connection

Plumbing connects underneath the unit so it does not interfere with the shelf or floor.

Factory Drain Assembly

Includes a 1/2-inch welded tailpiece, clear vinyl drain line, and a 1/2-inch by 1/2-inch barbed plastic elbow.

Sanitation Listed

ETL-Sanitation listed; conforms to ANSI/NSF Standard 2.

Type Drainboard Cabinet
Style Open Front Cabinet Base
Installation Type Freestanding
Material Stainless Steel
Shipping Width 24 Inches
Shipping Depth 19 Inches
Shipping Height 34 Inches
Shipping Weight 73 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The -LD suffix means this model is supplied without doors and uses an open-front cabinet base.
It is built with all stainless steel construction, including stainless steel legs and adjustable bullet feet.
The unit includes a 1/2-inch welded tailpiece with a clear vinyl drain line and a 1/2-inch by 1/2-inch barbed plastic elbow.
Yes. Left and right side splash options are listed for C-DBCA models.
Yes. Shelf kit 03013587 is listed for the C-DBCA-24 model.
Yes. The product is noted as made to order and not returnable.
