Glastender, Inc.

CHOICE Underbar Drainboard Cabinet, Open Front, 18 Inch W x 19 Inch D

SKU: C-DBCA-18-LD
$881.10
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks Glastender, Inc. New Arrivals Restaurant Equipment

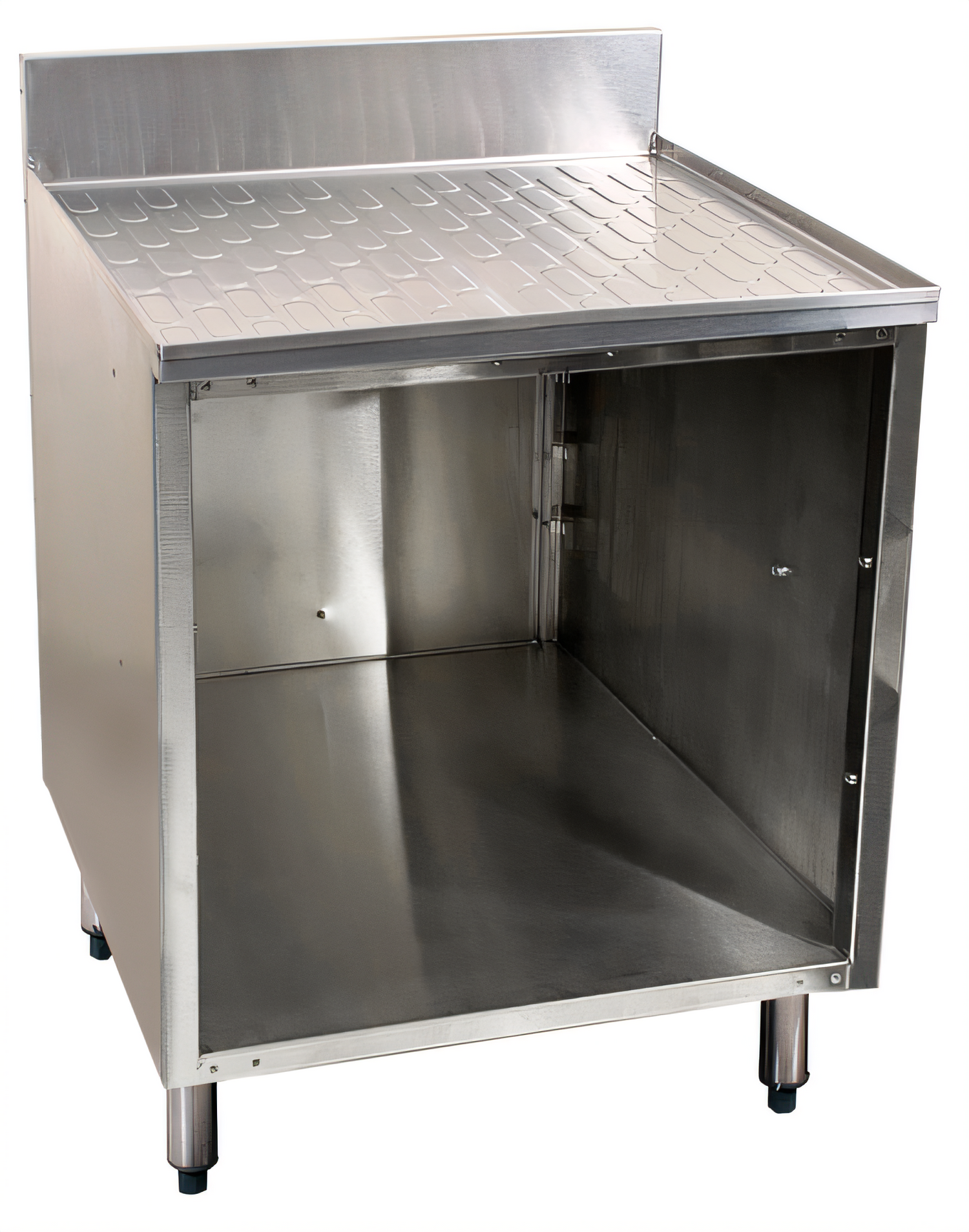

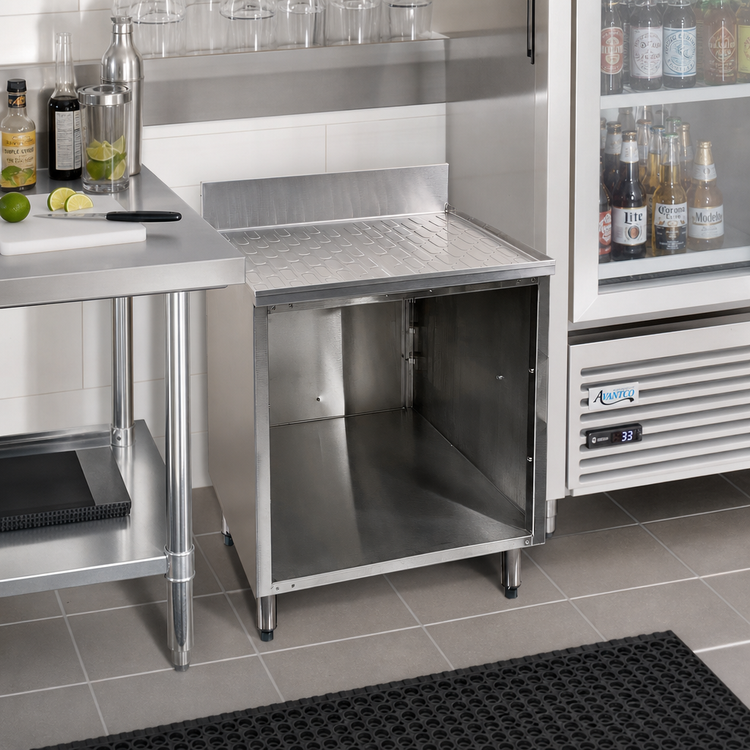

CHOICE Underbar Drainboard Cabinet, Open Front, 18 Inch W x 19 Inch D

Freestanding, Stainless Steel, Without Doors

This compact stainless steel drainboard cabinet adds durable, easy-clean underbar drainage space with an open-front design and adjustable leveling feet.

  • 18-inch-wide underbar drainboard cabinet designed for compact bar and sink stations
  • Open-front, doorless base keeps the lower section accessible
  • One-piece seamless top and backsplash with radius corners helps simplify cleaning
  • Corrugated drainboard surface helps water shed efficiently
  • All stainless steel construction with stainless steel legs and adjustable bullet feet
  • Under-unit plumbing connection helps preserve usable shelf or floor space

Overall Dimensions:

18.0"W x 19.0"D x 34.0"H

Product Weight:

66.0 lb

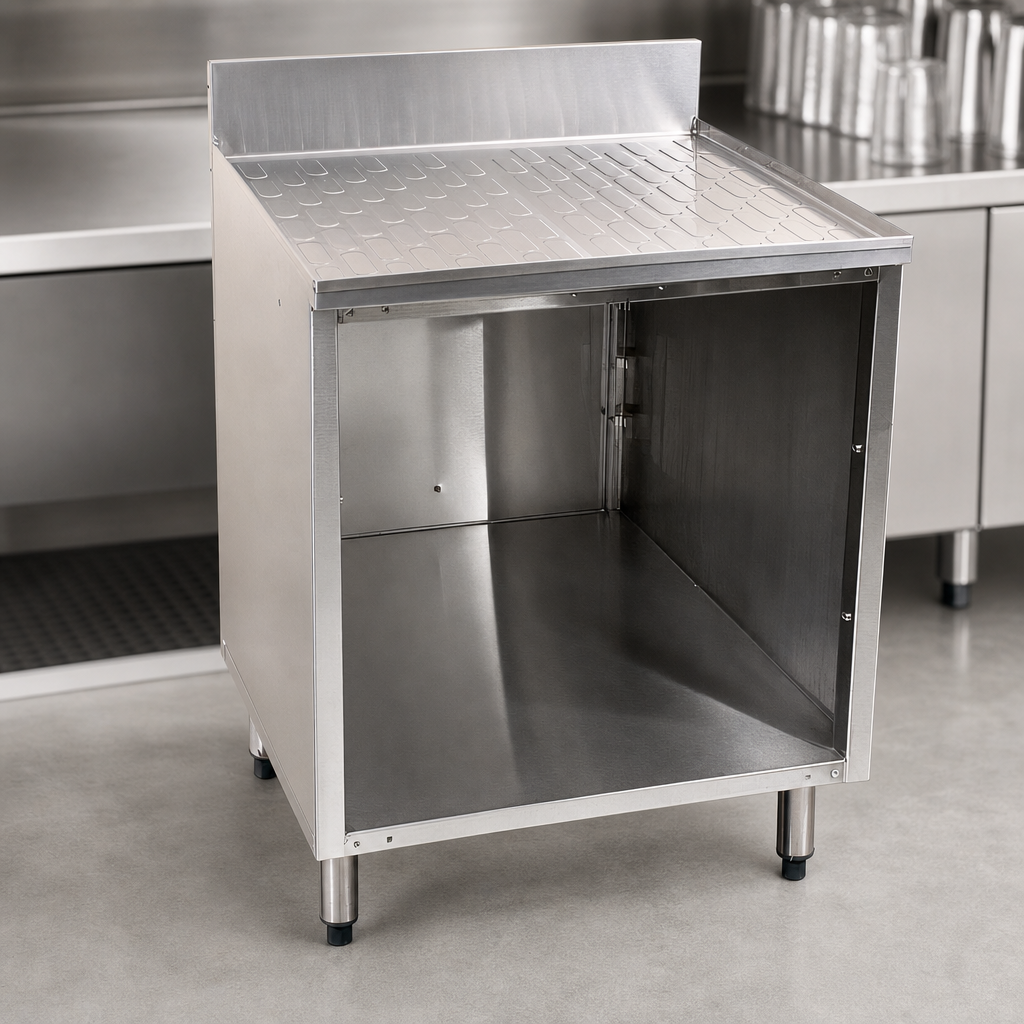

Open Front Cabinet Base

This -LD model is supplied without doors for open access to the cabinet base.

Seamless Top and Backsplash

One-piece construction with 1/4-inch radius corners helps reduce crevices and makes cleanup easier.

Corrugated Work Surface

The drainboard-style work surface helps channel water away from the top.

Stainless Steel Construction

Built with stainless steel materials for commercial durability and easy maintenance.

Adjustable Bullet Feet

Stainless steel legs with adjustable stainless steel bullet feet help level the unit on uneven floors.

Underbody Plumbing Connection

Plumbing connects underneath the unit so it does not interfere with a shelf or floor.

Type Drainboard Cabinet
Style Open Front
Installation Type Freestanding
Material Stainless Steel
Shipping Width 18 Inches
Shipping Depth 19 Inches
Shipping Height 34 Inches
Shipping Weight 66 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The -LD suffix indicates the unit is supplied without doors and uses an open-front cabinet base.
It features all stainless steel construction, including stainless steel legs and adjustable stainless steel bullet feet.
It has a one-piece seamless top and backsplash with 1/4-inch radius corners to reduce crevices and simplify cleanup.
Yes. A shelf kit is listed for the C-DBCA-18, and left and right side splash options are available for C-DBCA models.
The unit uses a 1/2-inch welded tailpiece with a clear vinyl drain line connected at the factory, plus a 1/2-inch by 1/2-inch barbed plastic elbow for the bottom connection.
