Glastender, Inc.

CHOICE C-DBB-24 Underbar Drainboard — Freestanding, 24 Inch W x 24 Inch D, Stainless Steel

SKU: C-DBB-24
$740.30
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks Glastender, Inc. New Arrivals Restaurant Equipment

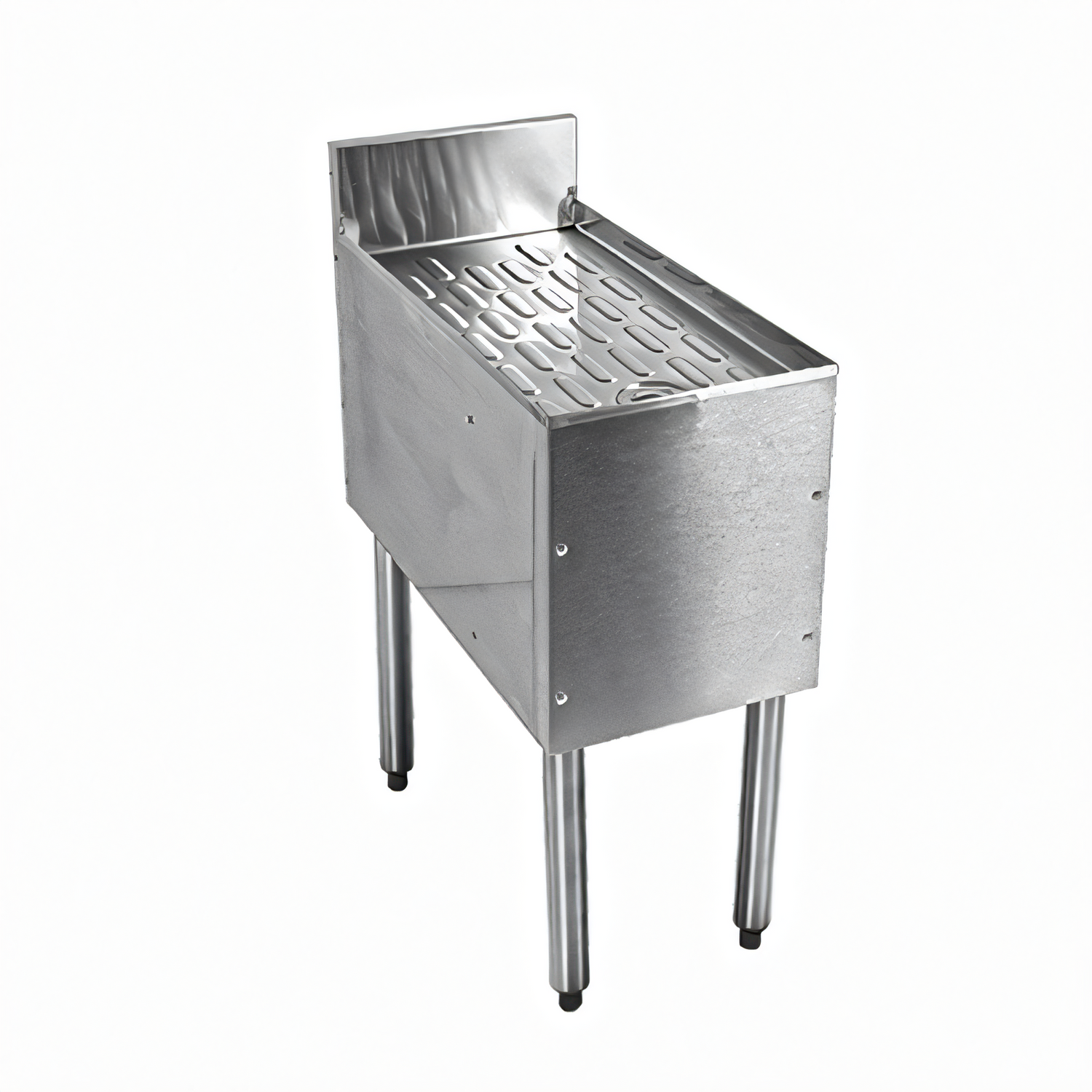

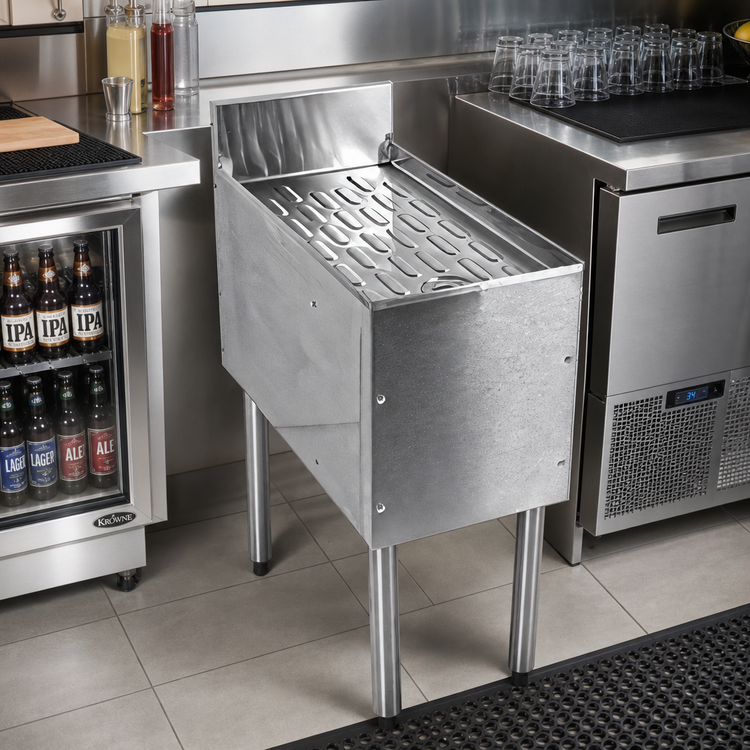

CHOICE C-DBB-24 Underbar Drainboard — Freestanding, 24 Inch W x 24 Inch D, Stainless Steel

One-piece seamless top & backsplash with 1/4 Inch radius corners; corrugated work surface; ETL-Sanitation listed

Durable 20-gauge stainless steel underbar drainboard with corrugated work surface and one-piece seamless top and backsplash for easy cleaning; ETL-Sanitation listed.

  • 24 Inch W x 24 Inch D freestanding underbar drainboard with corrugated work surface
  • One-piece seamless top and backsplash with 1/4 Inch radius corners for easy cleaning
  • 20-gauge stainless steel construction with 1-5/8 Inch diameter, 16-gauge stainless steel legs and adjustable stainless steel bullet feet
  • 1-1/2 Inch I.P.S. threaded drain (fits Dearborn part #8033 slipnut and #W-573P washer)
  • ETL-Sanitation listed (conforms to ANSI/NSF Std 2)

Overall Dimensions:

24.0"W x 24.0"D x 34.0"H

Product Weight:

60.0 lb

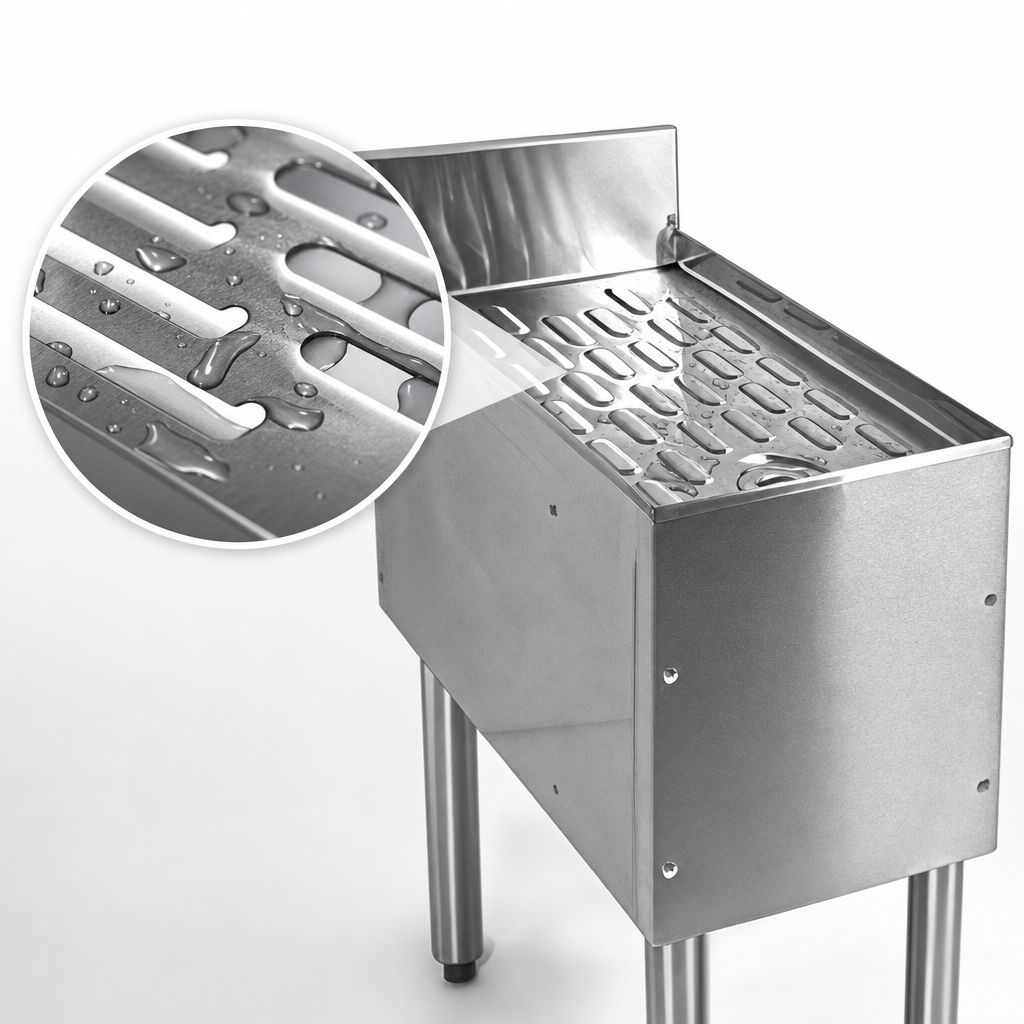

Corrugated Work Surface

Corrugated drainboard surface provides positive drainage and added storage area for wet items.

One-Piece Seamless Top & Backsplash

One-piece seamless top and backsplash with 1/4 Inch radius corners for improved sanitation and easy cleaning.

Stainless Steel Construction

20-gauge stainless steel top and backsplash for long-lasting durability and corrosion resistance.

Legs & Feet

1-5/8 Inch diameter, 16-gauge stainless steel legs with adjustable stainless steel bullet feet for leveling on uneven floors.

Drain

1-1/2 Inch I.P.S. threaded drain; fits Dearborn part #8033 slipnut and #W-573P washer.

Size Range

Standard models available in 6 Inch incremental lengths from 12 to 48 Inches; C-DBB series are 24 Inch deep for a larger drainboard area.

Type Underbar Drainboard
Installation Type Freestanding
Material Stainless Steel
Splash 4 Inches
Drain Connection Size 1-1/2 Inches
Leg Diameter 1-5/8 Inches
Leg Gauge 16 Gauge
Shipping Width 24 Inches
Shipping Depth 24 Inches
Shipping Height 34 Inches
Shipping Weight 60 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Overall: 24 Inches W x 24 Inches D x 34 Inches H. Shipping dimensions are 24" W x 24" D x 34" H; shipping weight 60 lb.
The top and backsplash are constructed of 20-gauge stainless steel.
It uses a 1-1/2 Inch I.P.S. threaded drain. It will fit Dearborn part #8033 slipnut and part #W-573P washer.
No. Side splashes are optional accessories for C-DBB models (C-LSB-D for left side, C-RSB-D for right side).
Yes. The unit is ETL-Sanitation listed and conforms to ANSI/NSF Std 2.
