CHOICE C-DBA-12 12-Inch Underbar Drainboard — 19-Inch Deep Stainless Steel, Freestanding (Open Base)

SKU: C-DBA-12
$589.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks Glastender, Inc. New Arrivals Restaurant Equipment

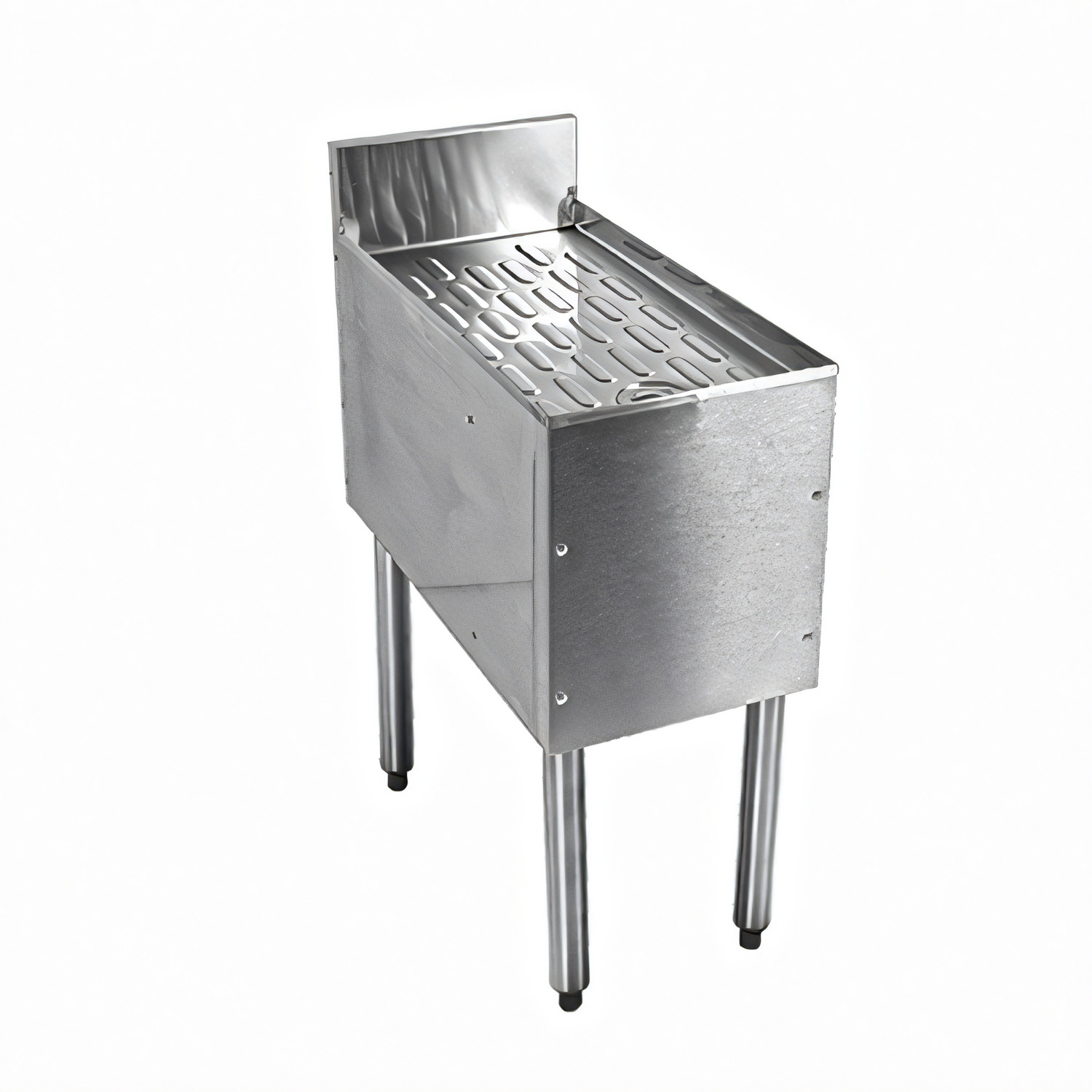

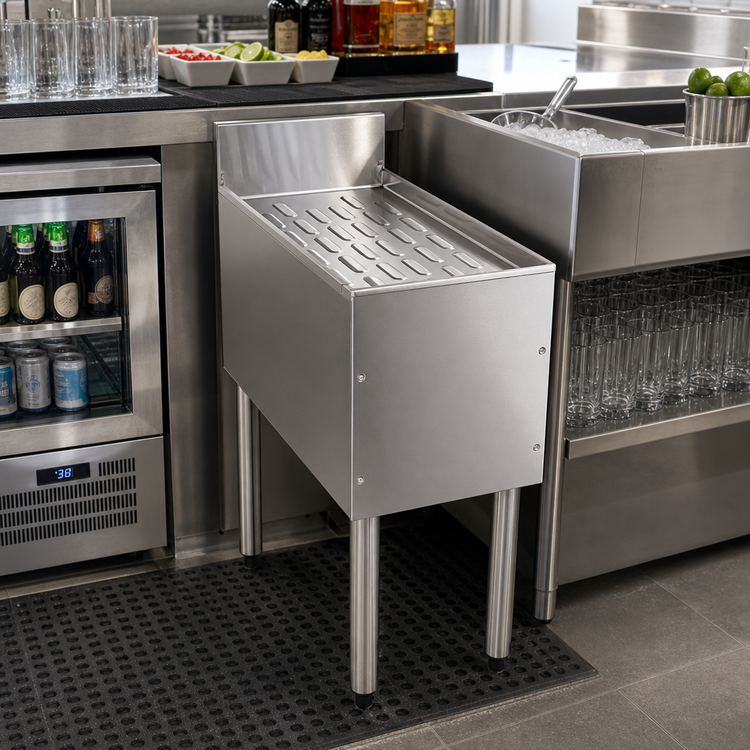

CHOICE C-DBA-12 12-Inch Underbar Drainboard — 19-Inch Deep Stainless Steel, Freestanding (Open Base)

Corrugated work surface with one-piece seamless top & 4" backsplash

Compact 12" underbar drainboard constructed of 20-gauge stainless steel with a corrugated work surface and one-piece seamless backsplash for easy cleaning; ETL‑Sanitation listed.

  • 20-gauge stainless steel construction with a one-piece seamless top and 1/4" radius corners for hygienic cleaning.
  • Corrugated 12" wide x 19" deep work surface promotes drainage and provides usable underbar workspace.
  • Adjustable 1-5/8" diameter stainless steel legs with bullet feet; open-base freestanding design.
  • 1-1/2" I.P.S. threaded drain (fits Dearborn #8033 slipnut and #W-573P washer) for straightforward hookup.
  • ETL‑Sanitation listed; conforms to ANSI/NSF STD 2.

Overall Dimensions:

12.0"W x 19.0"D x 34.0"H

Product Weight:

45.0 lb

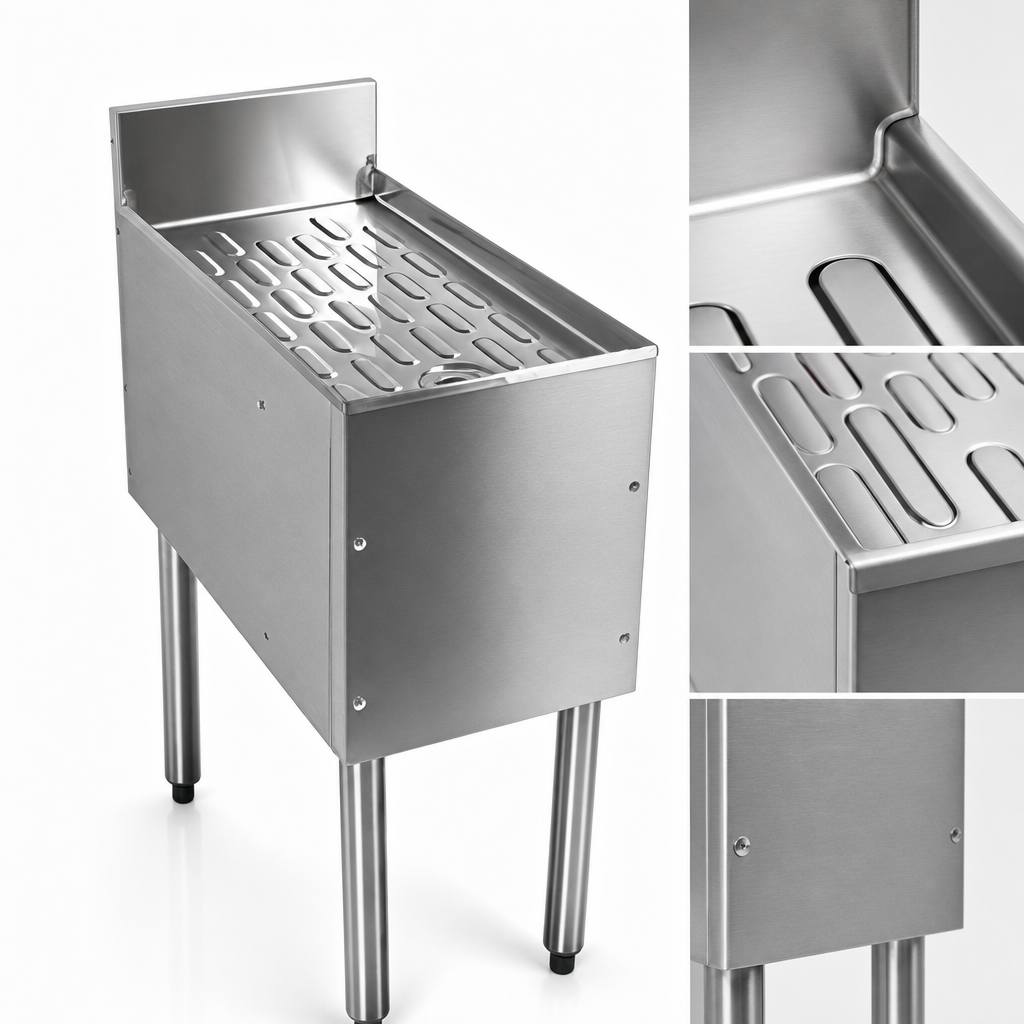

All Stainless Steel Construction

20-gauge stainless steel top and backsplash; one-piece seamless top and backsplash with 1/4" radius corners for easy cleaning.

Corrugated Work Surface

Corrugated drainboard surface provides positive drainage and deck storage for washed glassware and utensils.

Legs & Feet

1-5/8" diameter, 16-gauge stainless steel legs with adjustable stainless steel bullet feet for leveling on uneven floors.

Drain

1-1/2" I.P.S. threaded drain; fits Dearborn part #8033 slipnut and part #W-573P washer.

Backsplash

One-piece seamless 4" backsplash integrated into the top to reduce crevices and simplify sanitizing.

Available Lengths

C-DBA series offered in 6" increments from 12" to 48" overall length (19" deep models).

Certifications

ETL‑Sanitation Listed; conforms to ANSI/NSF Standard 2 (Intertek 4004503).

Type Underbar Drainboard
Installation Type Freestanding
Style Open Base
Material Stainless Steel
Top Gauge 20 Gauge
Leg Diameter 1-5/8 Inches
Leg Gauge 16 Gauge
Drain Connection Size 1-1/2 Inches (I.P.S. Threaded)
Splash Height 4 Inches
Shipping Width 12 Inches
Shipping Depth 19 Inches
Shipping Height 34 Inches
Shipping Weight 45 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Overall width 12 Inches, depth 19 Inches, and height 34 Inches.
Top and backsplash are 20-gauge stainless steel; legs are 1-5/8" diameter, 16-gauge stainless steel.
It uses a 1-1/2" I.P.S. threaded drain and fits Dearborn part #8033 slipnut and part #W-573P washer.
Yes. Left side splash (C-LSA-D) and right side splash (C-RSA-D) are available for C-DBA models. Single speed rails (C-SR-12 to C-SR-48) and double speed rails (C-DR-12 to C-DR-48) are also offered.
Yes. The unit is ETL‑Sanitation listed and conforms to ANSI/NSF Standard 2 (Intertek 4004503).
