Glastender, Inc.

CHOICE Extra Deep 36-Inch Stainless Steel Underbar Combo Ice Bin/Cocktail Unit with Left-Side Bottle Well and 10-Circuit Cold Plate

SKU: C-CBA-36L-CP10-ED
$3,161.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

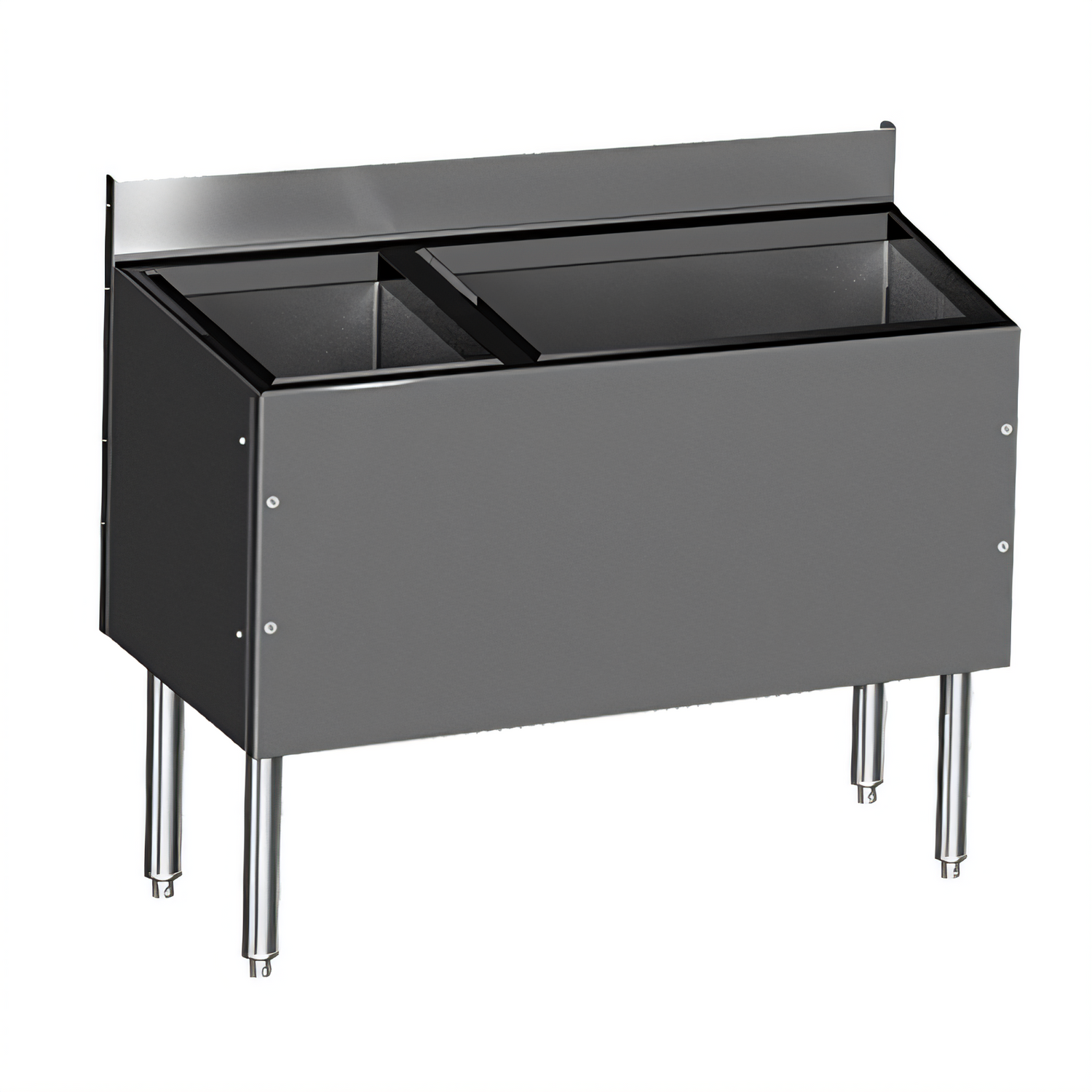

CHOICE Extra Deep 36-Inch Stainless Steel Underbar Combo Ice Bin/Cocktail Unit with Left-Side Bottle Well and 10-Circuit Cold Plate

36"W x 19"D footprint, 92-lb. ice capacity, 14-1/2" main liner depth

Built for busy bars, this extra-deep underbar combo unit combines a 92-lb. ice bin and insulated bottle storage in one stainless steel station.

  • Extra-deep main liner provides 38% more capacity than standard combo ice bins.
  • Combines a draining ice bin and insulated bottle well in one integral underbar unit.
  • Includes a ten-circuit cold plate to help keep beverage service cold.
  • Open-channel backsplash provides access for beverage lines.
  • Left-side insulated bottle storage holds up to 6 bottles.
  • Adjustable stainless steel bullet feet help simplify leveling on uneven floors.

Overall Dimensions:

36.0"W x 19.0"D x 34.0"H

Product Weight:

180.0 lb

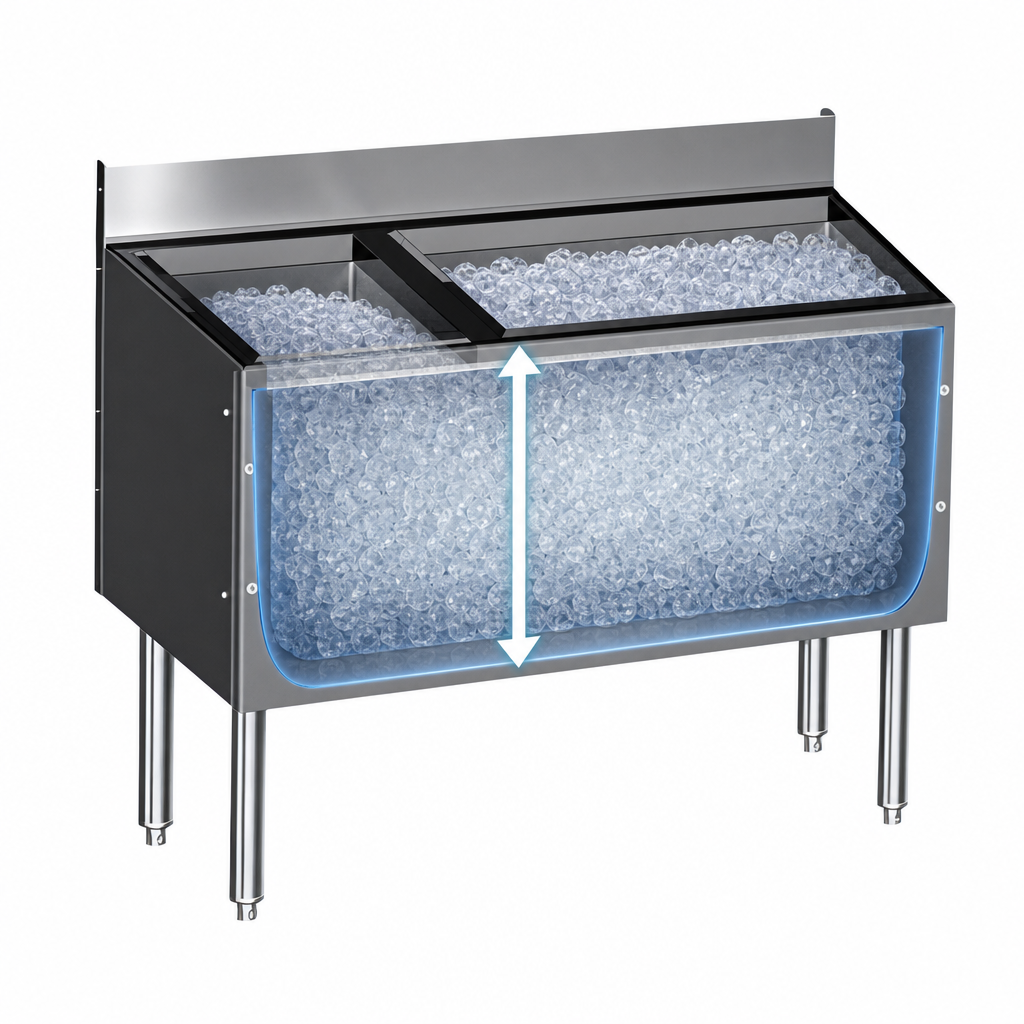

Extra-Deep Main Liner

The extra-deep main liner provides 38% more capacity than standard models.

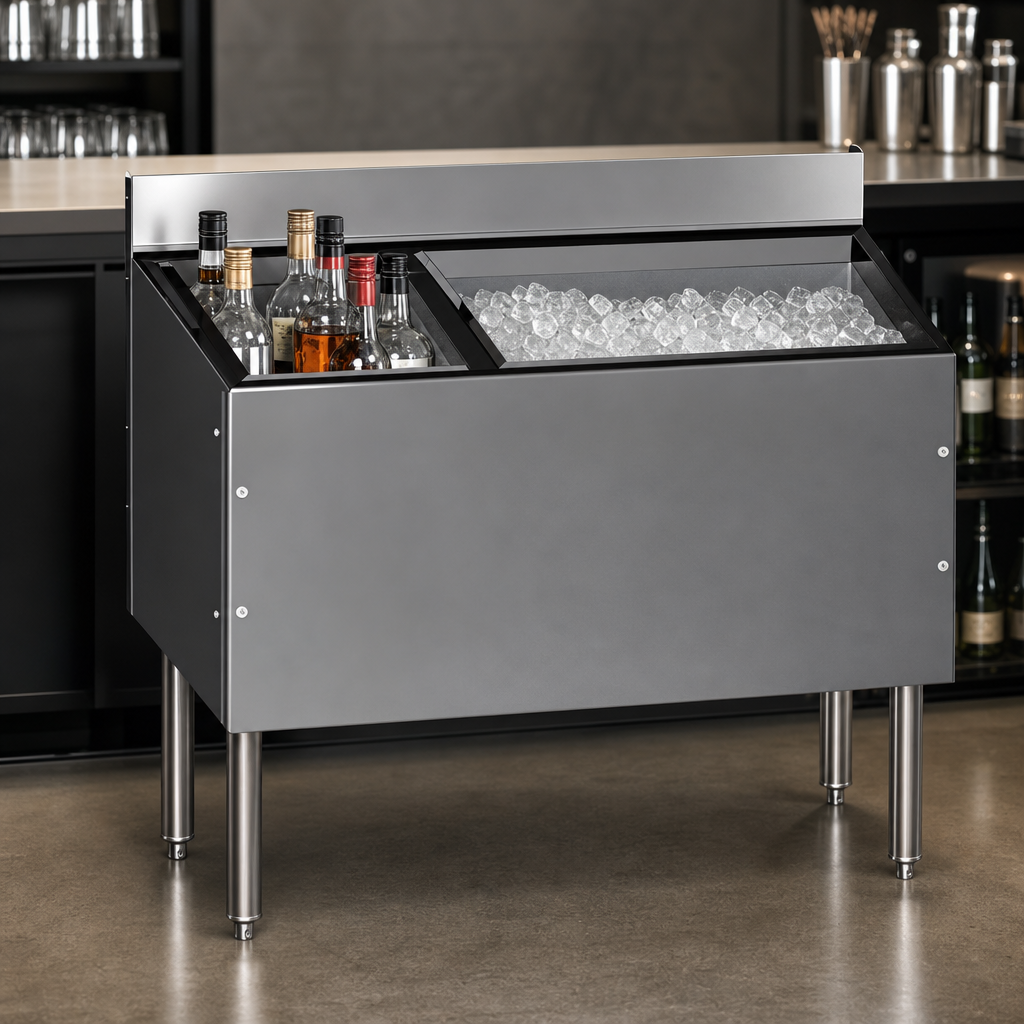

Integral Combo Design

Combines a separate draining ice bin and insulated bottle well into one integral underbar unit.

Ten-Circuit Cold Plate

Included cold plate helps keep beverages chilled during service.

Left-Side Insulated Bottle Well

The insulated bottle compartment is located on the left and stores up to 6 bottles.

Open-Channel Backsplash

The backsplash is designed as an open channel to provide access for beverage lines.

Stainless Steel Construction

Built from stainless steel for durability and easy cleaning, including stainless steel legs.

PVC Breaker Strip

PVC plastic breaker strip around the ice bin liner acts as a thermal barrier to help reduce heat transfer.

Foamed-In-Place Insulation

Eco-friendly foamed-in-place insulation helps reduce heat gain and is designed with zero impact on global warming or ozone depletion.

Adjustable Bullet Feet

Stainless steel bullet feet make leveling easier during installation.

Type Combo Ice Bin/Cocktail Unit
Style Extra Deep
Installation Type Floor Model
Material Stainless Steel
Interior Finish Stainless Steel
Capacity 92 Pounds
Compartments 2
Bottle Capacity 6 Bottles
Bottle Well Location Left
Cold Plate Circuits 10 Circuits
Main Liner Depth 14-1/2 Inches
Bottle Well Depth 10-1/2 Inches
Bottle Well Drain Connection Size 1-1/2 Inch Tailpiece
Main Liner Drain Connection Size 3/4 Inch MPT
Cold Plate Connection 5/16 Inch O.D. Stainless Steel Tubing
Shipping Width 36 Inches
Shipping Depth 19 Inches
Shipping Height 34 Inches
Shipping Weight 180 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The main liner holds approximately 92 pounds of potable ice.
This model has a left-side insulated bottle well that stores up to 6 bottles.
Yes, a ten-circuit cold plate is included.
The main liner is 14-1/2 inches deep, and the bottle well is 10-1/2 inches deep.
It is built from stainless steel and includes a PVC breaker strip plus adjustable stainless steel bullet feet.
Yes. Ice bins intended to store potable ice must be ordered with an ice bin cover to maintain the sanitation listing.
