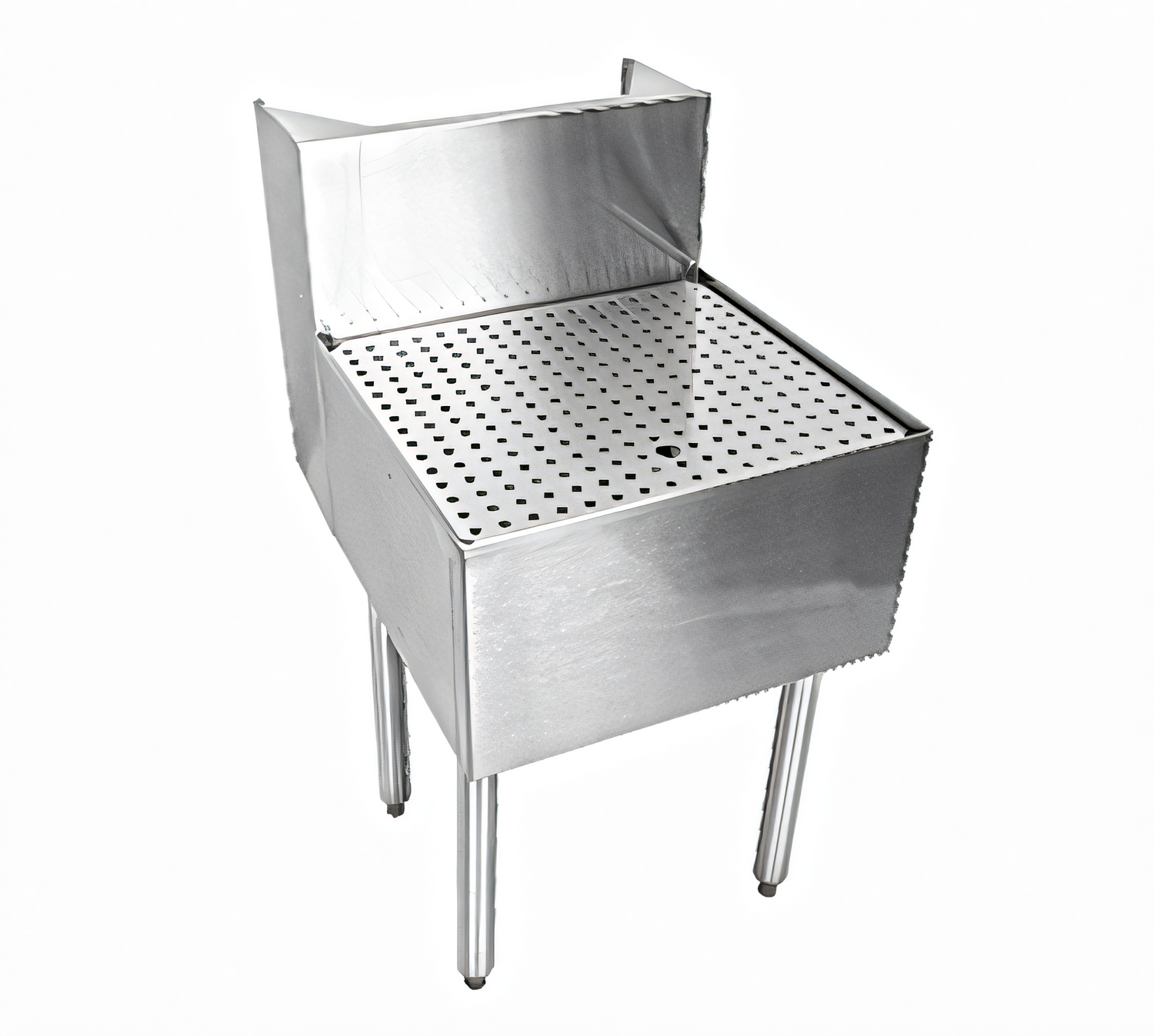

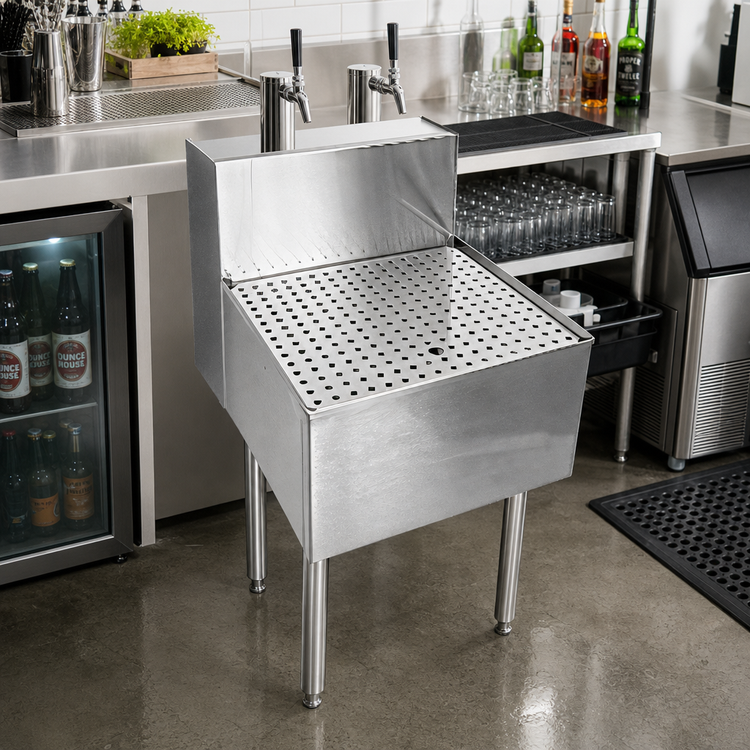

CHOICE 30-Inch Stainless Steel Underbar Beer Drainer with 5-Inch Forward Backsplash

26-Inch Work Surface, Front Drain Pan, Adjustable Bullet Feet

Designed for busy bar stations, this underbar beer drainer improves beverage line access and cleanup while supporting undercounter beverage dispensers.

  • All stainless steel construction for durable commercial bar use.
  • Lowered 26-inch work surface works with undercounter mounting beverage dispensers.
  • 5-inch-forward backsplash creates a large chaseway for beverage line access.
  • Front drain pan includes a lift-out stainless steel perforated insert for easier cleanup.
  • Adjustable stainless steel bullet feet and heavy-duty legs help with leveling and stability.
  • Made to order and not returnable.

Overall Dimensions:

30.0"W x 24.0"D x 34.0"H

Product Weight:

65.0 lb

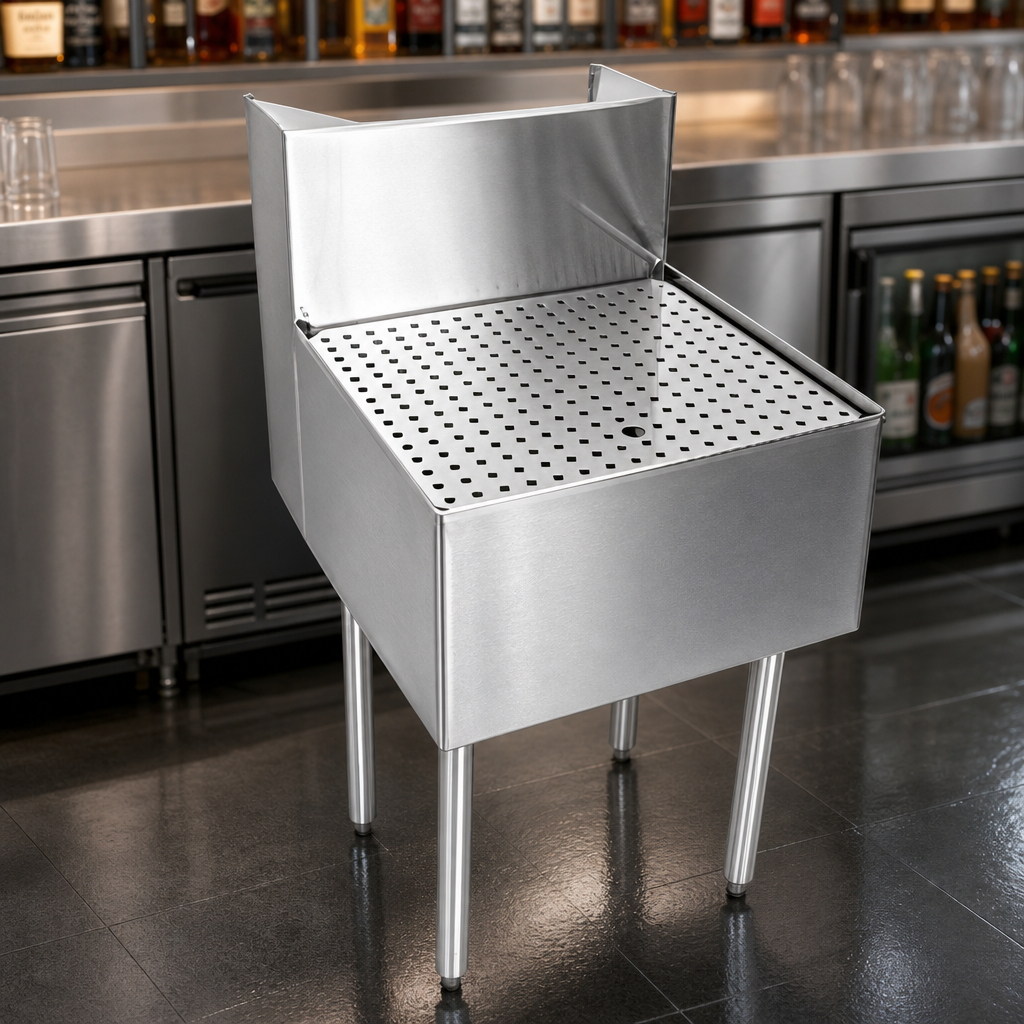

All Stainless Steel Construction

Built for durability in commercial beverage service applications.

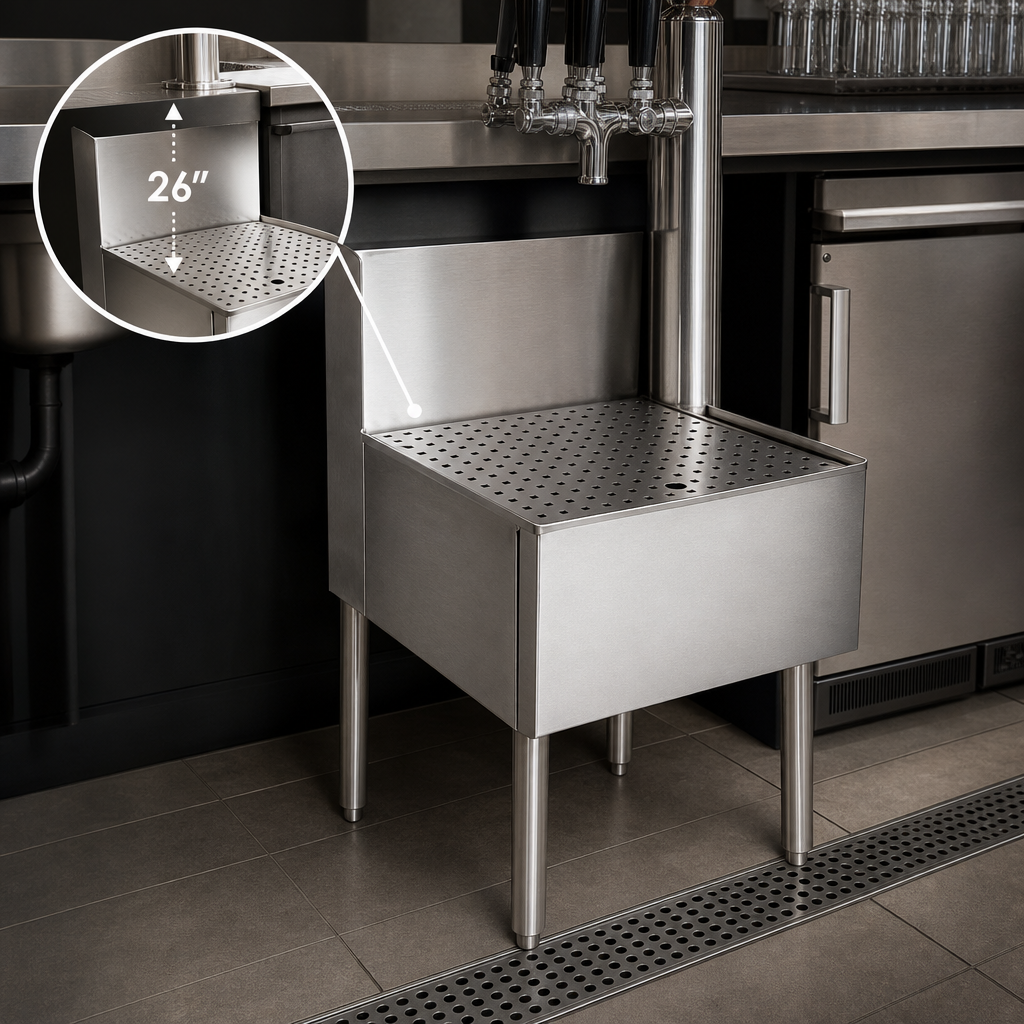

Lowered 26-Inch Work Surface

Designed to work in conjunction with undercounter mounting beverage dispensers.

5-Inch Forward Backsplash

Backsplash is pulled forward to create a larger chaseway for beverage line access.

Front Drain Pan

Includes a lift-out stainless steel perforated insert for easier cleanup.

Adjustable Bullet Feet

Stainless steel bullet feet help level the unit on uneven floors.

Heavy-Duty Legs

1-5/8-inch diameter, 16-gauge stainless steel legs support the unit.

Drain Assembly

Includes a 1/2-inch welded tailpiece; clear vinyl drain line is connected at the factory, and a 1/2-inch by 1/2-inch barbed plastic elbow is provided.

ETL-Sanitation Listed

Listed for sanitation compliance and conforms to ANSI/NSF Std. 2.

Type Beer Drainer
Style Underbar
Installation Type Freestanding
Material Stainless Steel
Drain Connection Required
Drain Connection Size 1/2 Inch
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 34 Inches
Shipping Weight 65 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The work surface is 26 inches high.
The backsplash is pulled forward 5 inches to create a large chaseway for beverage lines.
The unit includes a front drain pan with a lift-out stainless steel perforated insert, a 1/2-inch welded tailpiece, a factory-connected clear vinyl drain line, and a 1/2-inch by 1/2-inch barbed plastic elbow.
C-BD models can accommodate 7-inch to 14-inch deep bar top overhangs, and the bar top overhang must be specified when ordering.
No. It is made to order and not returnable.
