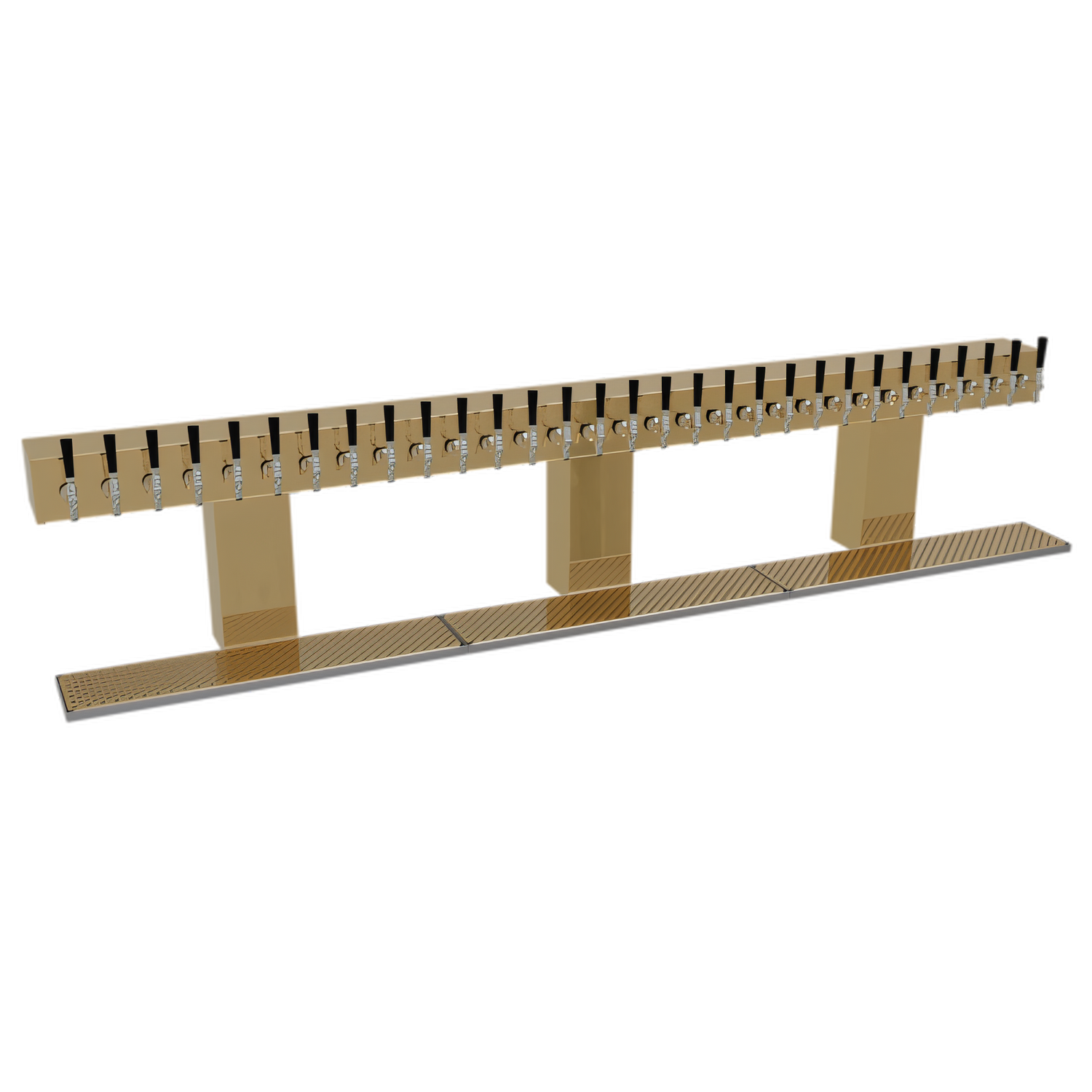

Glastender Triple-Column Countertop Bridge Draft Dispensing Tower, 30 Faucets, Glycol-Cooled, Polished Brass Finish

3 Insulated Columns, Stainless Steel Faucets, Mirror-Finish Drain Pans

This 30-faucet bridge tower delivers glycol-cooled draft service in a polished brass presentation built for high-volume beverage dispensing.

  • Triple-column countertop bridge tower built for high-volume draft dispensing.
  • Supports 30 stainless steel faucets; faucet handles are not included.
  • Glycol-cooled design with insulated cold plate assembly for recirculating systems.
  • Three 6-inch-wide insulated columns add rigidity and help maintain temperature.
  • Stainless steel construction with a polished brass finish.
  • Three mirror-finish surface-mount drain pans include brass-finish removable inserts.
  • Optional rinser faucet extension can be specified for either side of the drain pan.

Overall Dimensions:

92.0"W x 12.0"D x 18.12"H

Product Weight:

168.0 lb

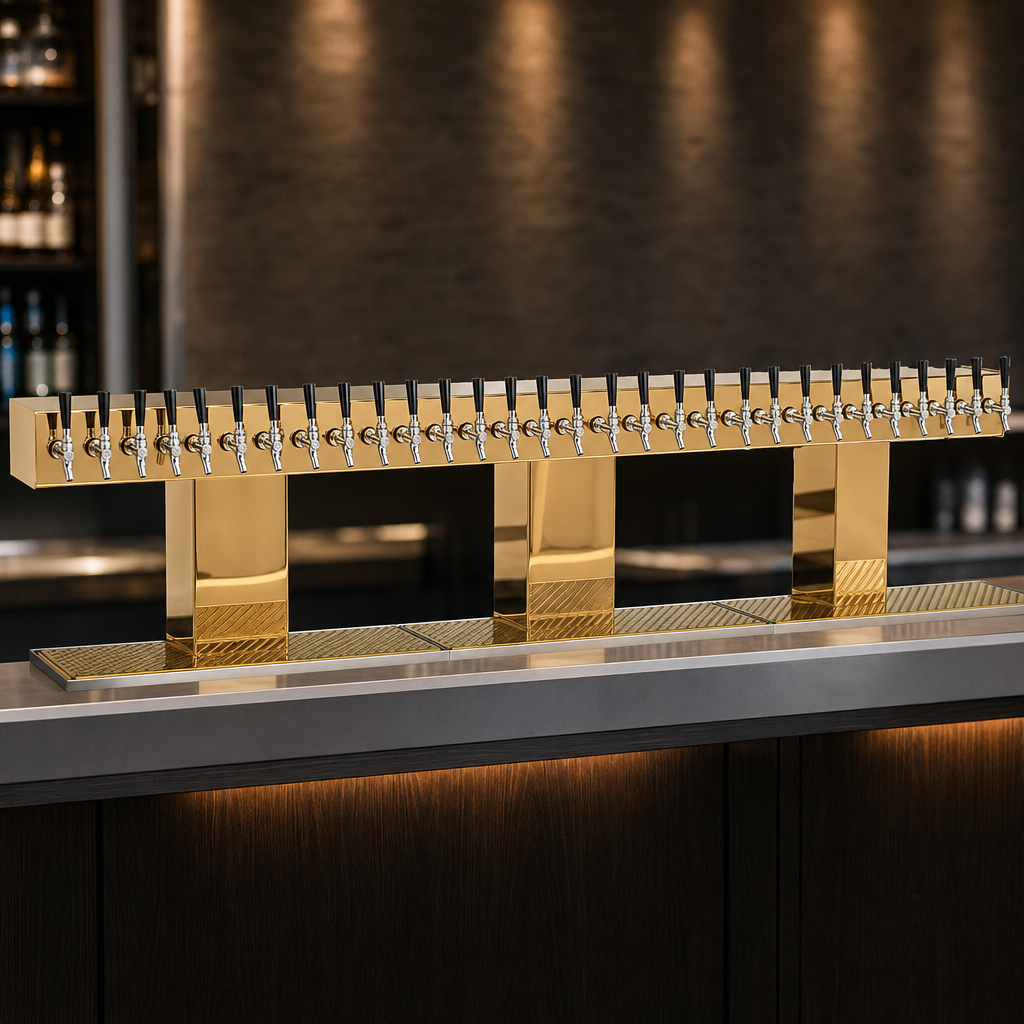

30-Faucet Capacity

Designed to hold 30 stainless steel faucets for high-volume beverage service.

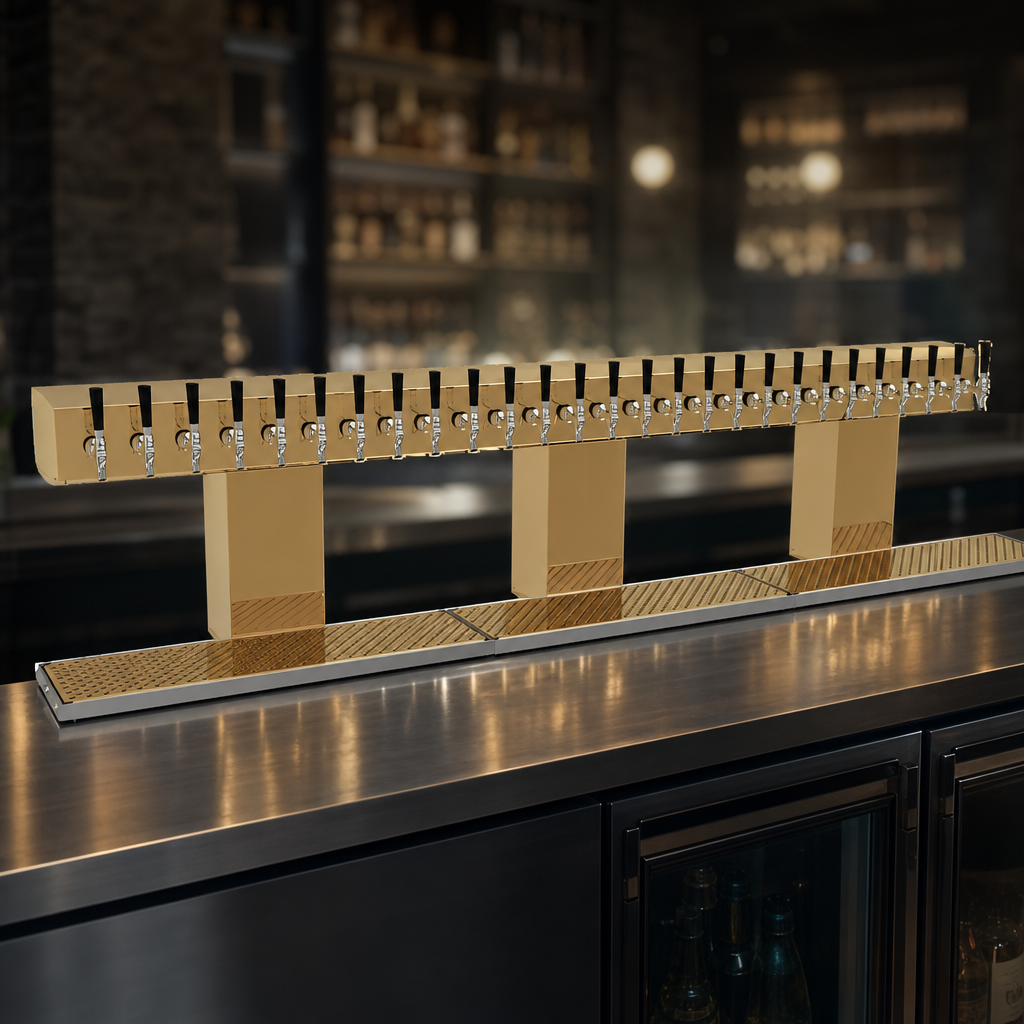

Glycol-Cooled Construction

Includes an insulated cold plate assembly for use with a recirculating glycol system.

Triple Insulated Columns

Three 6-inch-wide foamed-in-place insulated columns add rigidity and thermal performance.

Stainless Steel Construction

Stainless steel head, columns, drain pans, and inserts are paired with an insulated interior box.

Polished Brass Finish

Brass-finish tower presentation with mirror-finish drain pans and brass-finish removable inserts.

Stainless Steel Faucets and Shanks

Faucets and shanks are included; faucet handles are not.

Surface-Mount Drain Pans

Three drain pans use lift-out perforated inserts and 1/2-inch tailpieces.

Rinser Faucet Extension Option

Can be specified with the optional -RFE accessory on the left or right side of the drain pan.

Shank and Restriction Line Specs

Uses 1/4-inch I.D. shanks with 3/16-inch fittings and restriction lines.

Type Glycol-Cooled Bridge Draft Dispensing Tower
Style Triple Column
Installation Type Countertop
Capacity 30 Faucets
Material Stainless Steel
Finish Polished Brass
Shipping Width 92 Inches
Shipping Depth 12 Inches
Shipping Height 19 Inches
Shipping Weight 168 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. Faucet handles are not included.
It supports 30 stainless steel faucets.
It is glycol-cooled and includes an insulated cold plate assembly for recirculating systems.
It has a polished brass finish with mirror-finish drain pans and brass-finish removable inserts.
Yes. Specify the optional -RFE accessory for left or right placement.
The tower uses 1/4-inch I.D. shanks with 3/16-inch fittings and restriction lines.
