Glastender, Inc.

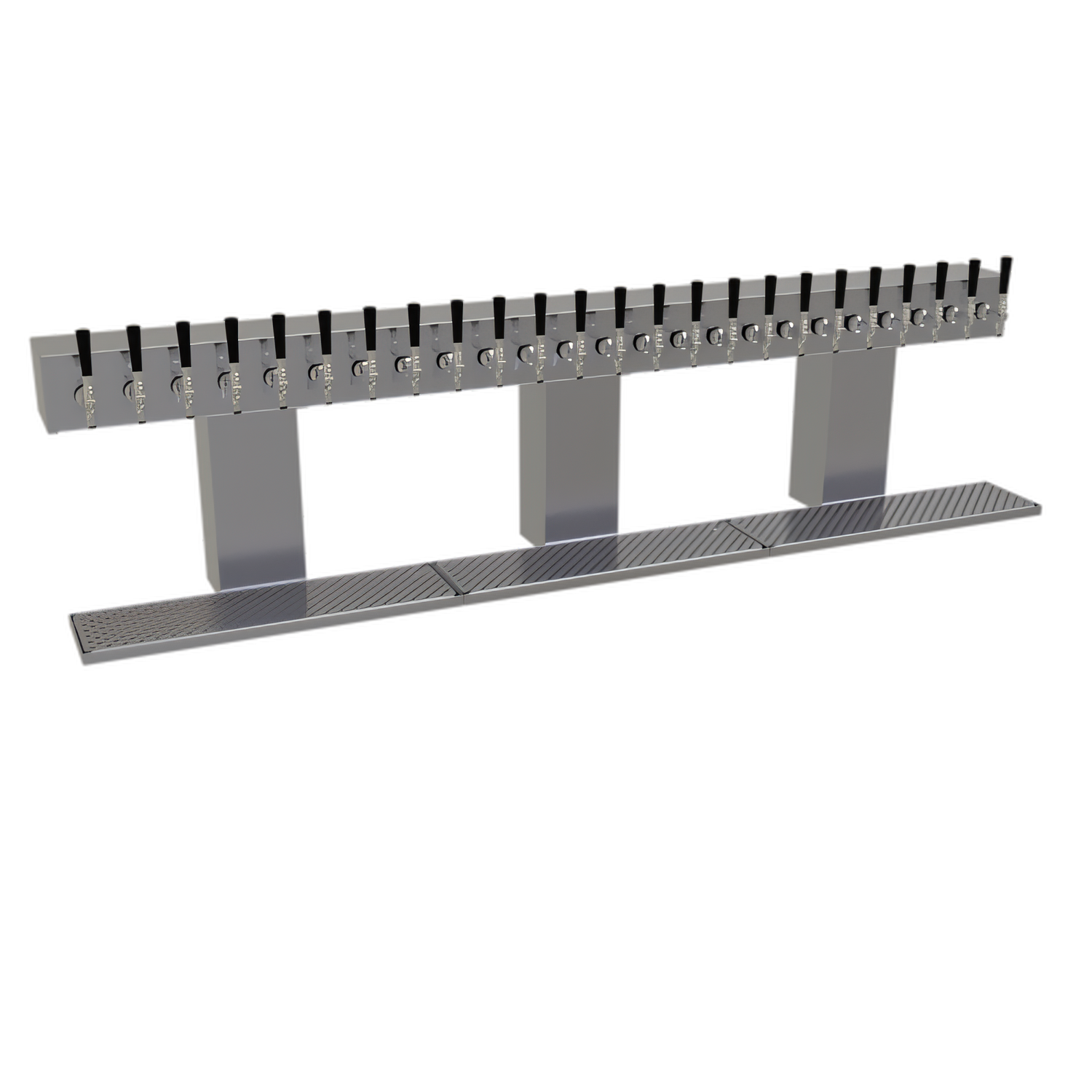

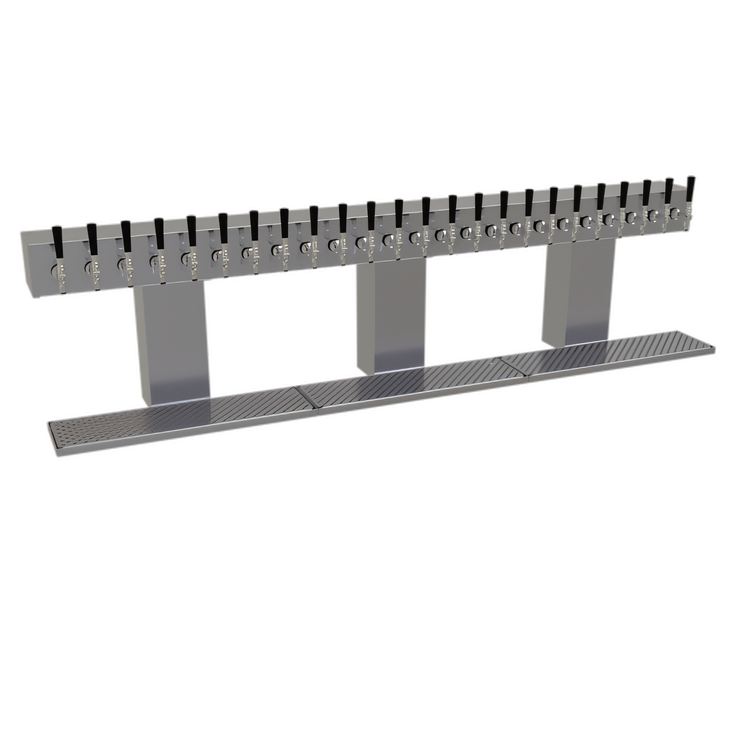

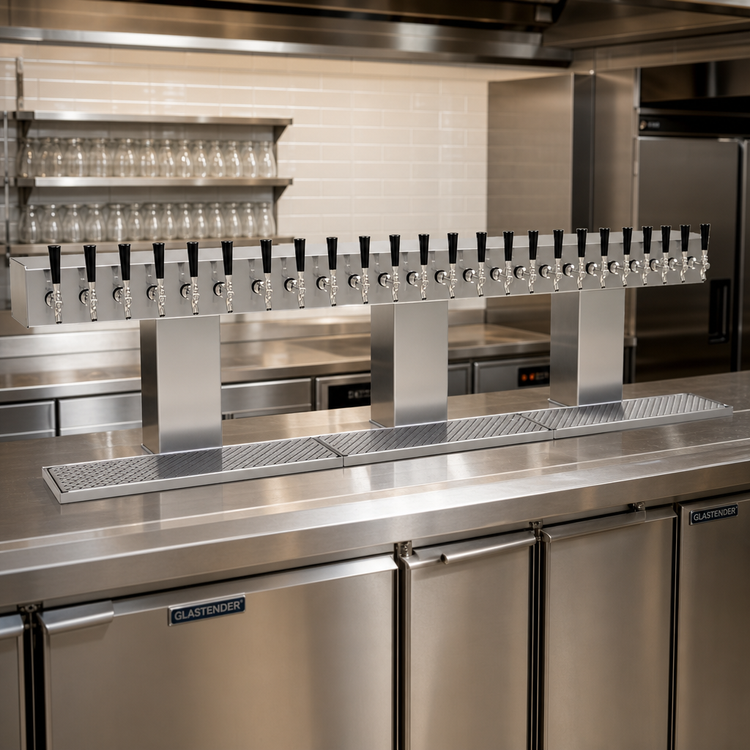

Glastender Triple-Column Bridge Draft Dispensing Tower, 24 Faucet, Glycol-Cooled, Countertop, Stainless Steel Finish

SKU: BRT-24-SSR
$6,598.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Draft Beer & Wine Dispensers Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

Glastender Triple-Column Bridge Draft Dispensing Tower, 24 Faucet, Glycol-Cooled, Countertop, Stainless Steel Finish

Three insulated 6-inch columns; handles not included.

Built for high-volume draft service, this all-stainless tower delivers 24 faucet positions with glycol cooling and a durable countertop design.

  • 24-faucet bridge tower for high-capacity draft dispensing
  • Glycol-cooled recirculating design with insulated cold plate assembly
  • Three 6-inch insulated columns add rigidity and thermal efficiency
  • All stainless steel construction with stainless steel finish
  • Surface-mount drain pans include removable inserts for easier cleaning
  • Faucet handles are not included; optional rinser faucet extension is available

Overall Dimensions:

74.0"W x 12.0"D x 18.12"H

Product Weight:

140.0 lb

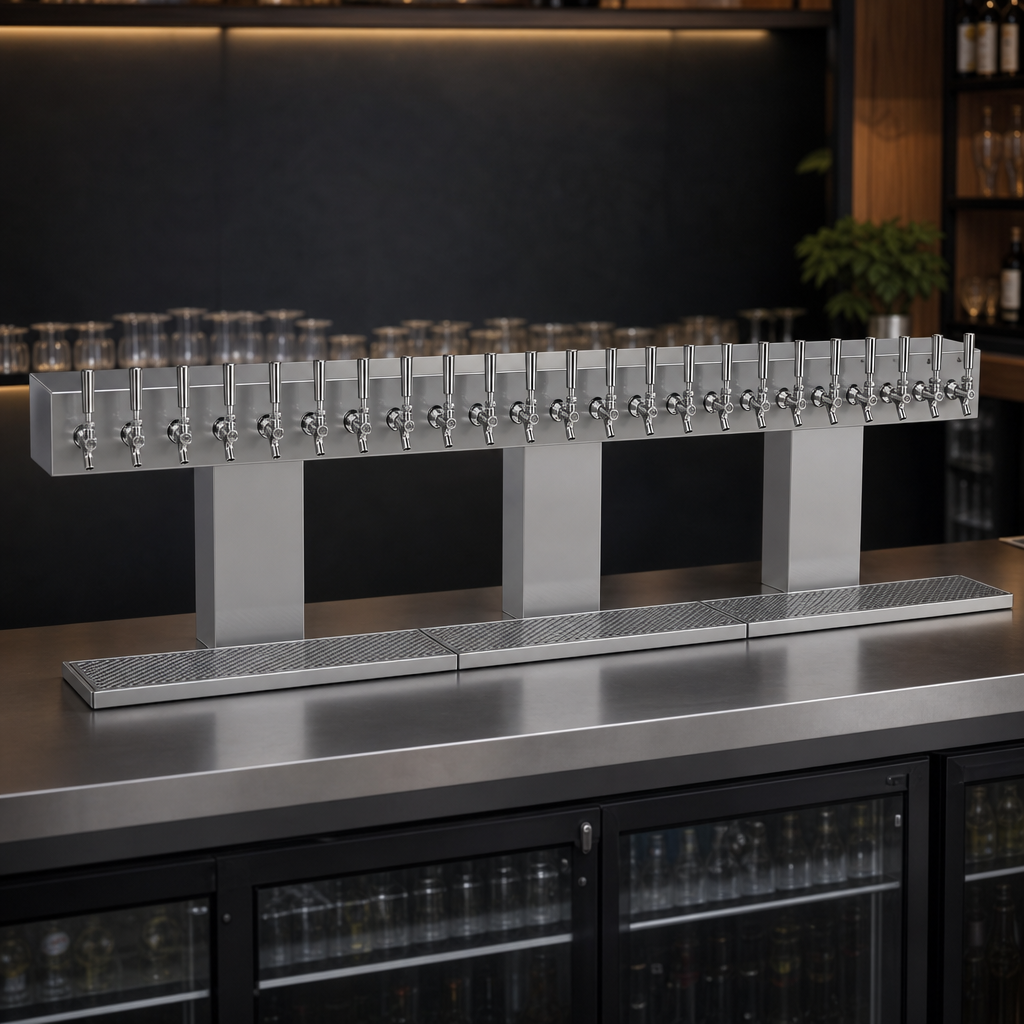

24 Faucet Capacity

Configured for 24 stainless steel faucets for high-volume draft service; faucet handles are not included.

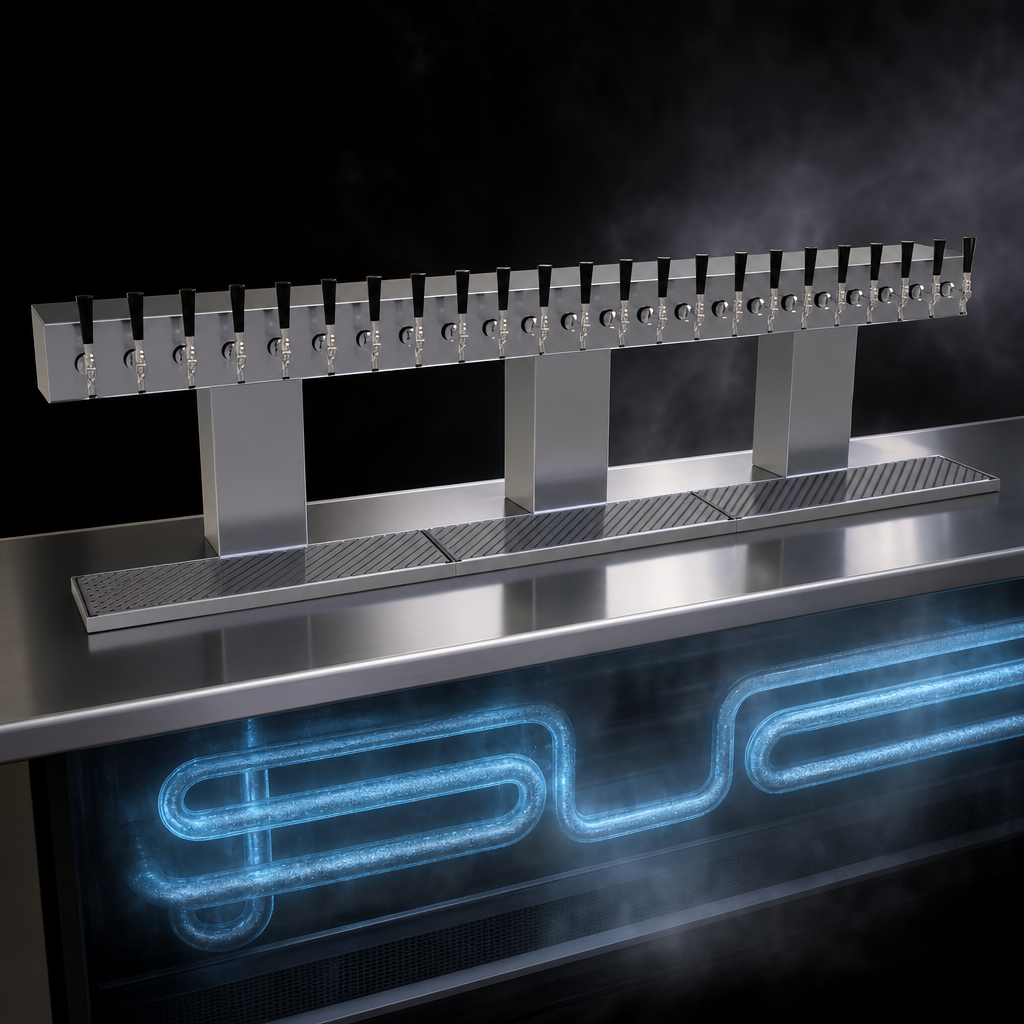

Glycol-Cooled Design

Built for glycol-cooled recirculating draft systems.

Triple Insulated Columns

Includes three 6-inch-wide insulated columns for added rigidity and thermal performance.

Insulated Cold Plate Assembly

Includes an insulated cold plate assembly for use with recirculating cooling systems.

All Stainless Steel Construction

Durable stainless steel construction with a stainless steel finish.

Surface-Mount Drain Pans

Features three surface-mount drain pans with lift-out removable inserts for easier cleaning.

1/4-Inch Shanks

Uses 1/4-inch I.D. shanks with 3/16-inch fittings/restriction lines.

Rinser Faucet Extension Option

Can be specified with an optional rinser faucet extension to the left or right of the drain pan.

Type Bridge Draft Dispensing Tower
Style Triple Column
Installation Type Countertop
Capacity 24 Faucets
Refrigeration Type Glycol Cooled
Material Stainless Steel
Finish Stainless Steel
Drain Connection Size 1/2 Inch Tailpiece
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 12 Inches
Shipping Height 19 Inches
Shipping Weight 140 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. Faucet handles are not included.
It is glycol-cooled and includes an insulated cold plate assembly for recirculating systems.
This model is designed for 24 faucets and uses 3 insulated columns.
Yes. The documentation notes an optional RFE rinser faucet extension that can be positioned to the left or right of the drain pan.
The document notes a direct-draw air-cooled option only for 14, 16, and 18 faucet sizes. This 24-faucet model is glycol-cooled.
