Glastender, Inc.

Glastender 24-Faucet Triple-Column Mirror Finish Countertop Glycol-Cooled Bridge Draft Dispensing Tower

SKU: BRT-24-MFR
$7,053.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Draft Beer & Wine Dispensers Glastender, Inc. Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment

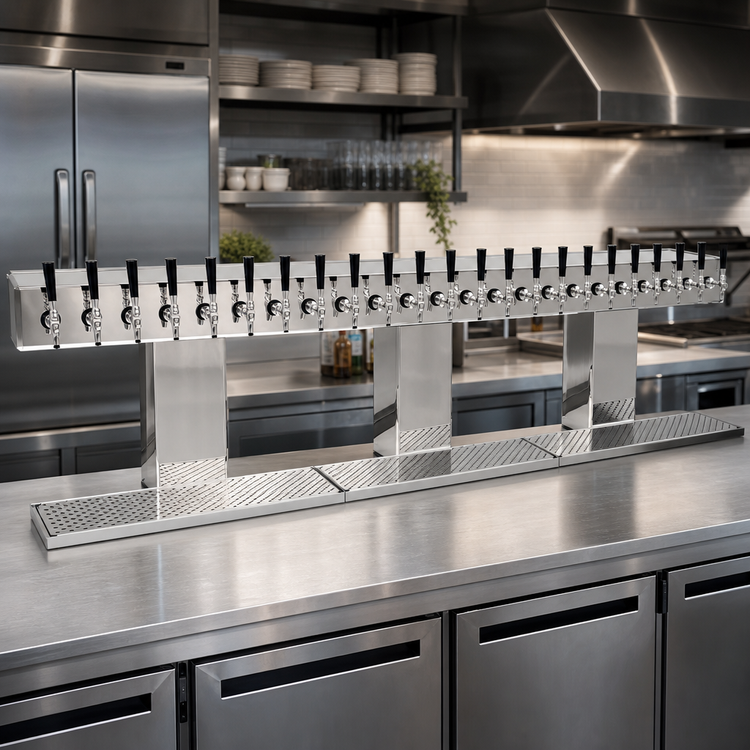

Glastender 24-Faucet Triple-Column Mirror Finish Countertop Glycol-Cooled Bridge Draft Dispensing Tower

All-stainless construction with insulated cold plate assembly and removable drain pan inserts

Built for high-volume draft service, this countertop bridge tower combines glycol cooling, a mirror-finish stainless build, and easy-clean drain pans for reliable bar performance.

  • Configured for 24 stainless steel faucets on a countertop bridge tower layout.
  • Glycol-cooled design includes an insulated cold plate assembly for recirculating systems.
  • Three insulated columns add rigidity and help support the tower structure.
  • All stainless steel construction with a mirror finish delivers a clean, professional appearance.
  • Surface-mount drain pans include removable inserts for easier cleanup.
  • Faucet handles are not included, and a rinser faucet extension is available as an option.

Overall Dimensions:

74.0"W x 12.0"D x 18.12"H

Product Weight:

140.0 lb

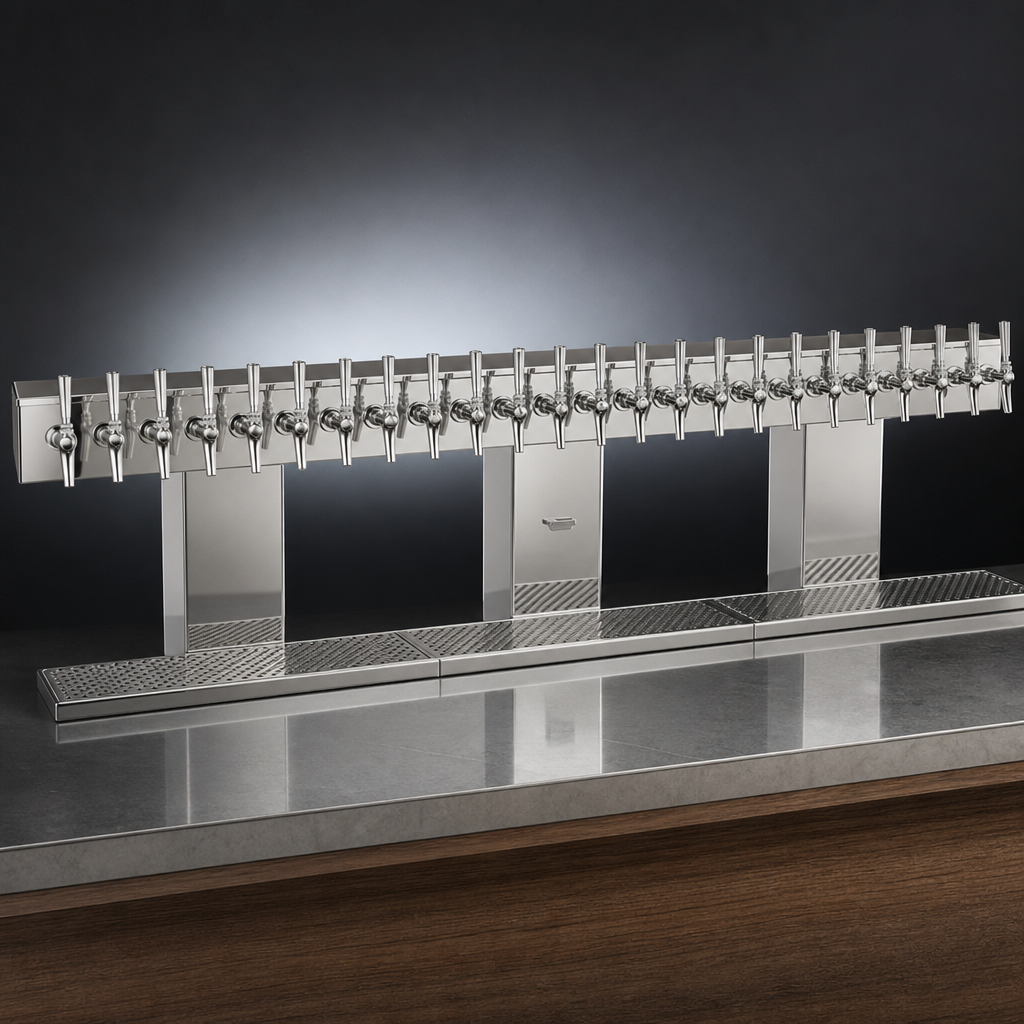

24-Faucet Configuration

Designed for 24 stainless steel faucets; faucet handles are not included.

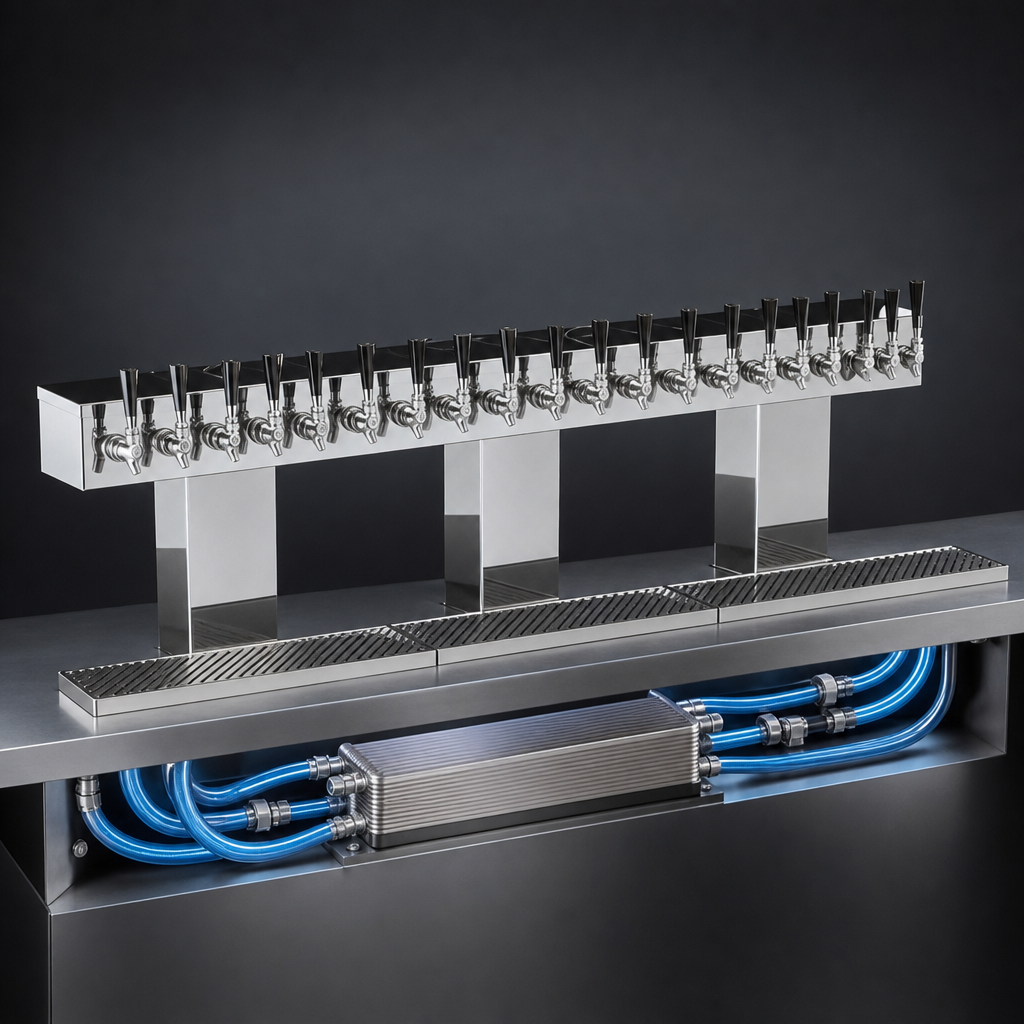

Glycol-Cooled with Cold Plate

Includes an insulated cold plate assembly for glycol recirculating systems.

Triple Insulated Columns

Three 6-inch-wide foamed-in-place insulated columns provide added rigidity and thermal performance.

Mirror Finish Stainless Steel Construction

All stainless steel construction with a mirror finish for a polished bar presentation.

Removable Drain Pan Inserts

Three surface-mount drain pans use lift-out perforated inserts to simplify cleaning.

1/4-Inch Shanks

Built with 1/4-inch I.D. shanks and 3/16-inch restriction lines.

Optional Rinser Faucet Extension

RFE accessory can be specified for the left or right side of the drain pan.

Type Draft Dispensing Tower
Style Bridge
Installation Type Countertop
Capacity 24 Faucets
Columns 3
Cooling Type Glycol Cooled
Material Stainless Steel
Finish Mirror Finish
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 74 Inches
Shipping Depth 12 Inches
Shipping Height 19 Inches
Shipping Weight 140 lb.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is configured for 24 faucets.
No, faucet handles are not included.
It uses a glycol-cooled design with an insulated cold plate assembly.
This model has a mirror finish.
Yes, an optional rinser faucet extension can be specified for the left or right side of the drain pan.
No. The product is made to order and is not returnable.
