Giles Enterprises FSH-2A99 Type 1 Ventless Commercial Hood, 30-7/16" W, 3-Stage Filtration, Stainless Steel

SKU: FSH-2A99
$15,600.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Commercial Kitchen Hoods Equipment Facility & Ventilation Equipment Giles Enterprises Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment Ventless Hood Systems

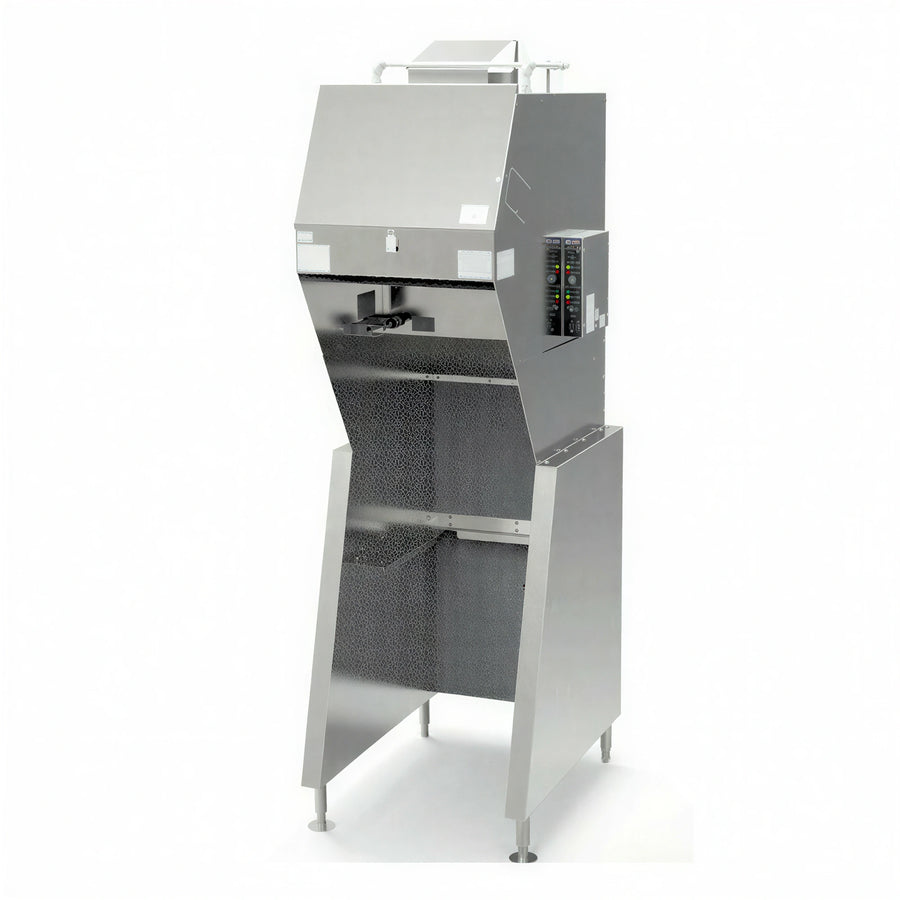

The Giles Enterprises FSH-2A99 is a free-standing Type 1 ventless recirculating hood with a 30-7/16-inch width and stainless steel construction.

Its three-stage air-cleaning system uses a stainless steel baffle filter, an electronic air cleaner and a disposable charcoal filter to capture grease particulate, collect fine particulate and help control cooking odors in recirculated air.

The hood is listed for approved electric fryers only and includes a factory-installed, self-contained Ansul R102 wet chemical fire suppression system. Final field installation, setup, charging and commissioning of the suppression system are required and are not included.

Overall Dimensions:

30.44"W x 40.19"D x 95.73"H

Product Weight:

595.0 lb

Ventless recirculating design

Recirculates cleaned air and does not require outside venting.

Three-stage air cleaning

Stage 1 uses a stainless steel baffle filter to trap large grease particulate; Stage 2 uses an electronic air cleaner to electrostatically capture and collect fine particulate; Stage 3 uses a disposable charcoal filter to help control cooking odors.

Stainless steel construction

Electric fryer application

Listed for approved electrically heated fryers only. Gas appliances are not permitted, and fryer widths from 10 to 24 in are accommodated.

Fire suppression system

Includes a factory-installed, self-contained Ansul R102 wet chemical fire suppression system. Final field installation, setup, charging and commissioning must be completed by an authorized Ansul distributor or dealer and are not included.

Fryer interlock relay

Built-in interlock relay for powering the fryer under the hood.

Adjustable leveling legs

Exhaust air diverter

Reduces required ceiling clearance.

Complete filter set

Includes baffle, electronic air cleaner and charcoal filters.

Hood Type Type 1 ventless recirculating hood
Construction Stainless steel
Filtration 3-stage air cleaning
Stage 1 Filter Stainless steel baffle filter
Stage 2 Filter Electronic air cleaner (EAC)
Stage 3 Filter Disposable charcoal filter
Exhaust Airflow 510–680 CFM
Approximate Sound Level 65 dB
Voltage 208–240 V (hood only)
Phase 1 or 3 (hood only)
Amperage 5 A (hood only)
Approved Appliance Type Electric fryers only
Approved Fryer Width 10–24 in
Maximum Appliance Power 20 kW
Maximum Cooking Surface Area 380 sq in (2,452 sq cm)
Maximum Cooking Temperature 350°F (177°C)
Maximum Shortening Capacity 110 lb (50 kg)
Fire Suppression System Ansul R102 self-contained wet chemical system, factory installed

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

24-month limited warranty from the date of installation against defects in material or workmanship for new equipment and parts purchased from an authorized Giles Enterprises representative.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cutsheet states that no venting outside is needed; the unit operates as a recirculating hood. Site approvals and installation requirements still apply.
It is listed for approved electrically heated fryers only. Gas appliances are not permitted, and fryer widths must be from 10 to 24 in.
It uses three stages: a stainless steel baffle filter for large grease particulate, an electronic air cleaner for fine particulate, and a disposable charcoal filter to help control cooking odors.
The hood measures 30.44 in wide, 40.19 in deep and 95.73 in high.
The hood-only specification is 208–240 V, 1 or 3 phase, at 5 A. The power cord is not provided and the unit is field wired.
Yes. It has a factory-installed, self-contained Ansul R102 wet chemical fire suppression system. Final field installation, setup, charging and commissioning are required and are not included.
New equipment and parts purchased from an authorized Giles Enterprises representative are covered for 24 months from the date of installation, subject to the limited warranty terms.
