Giles Enterprises

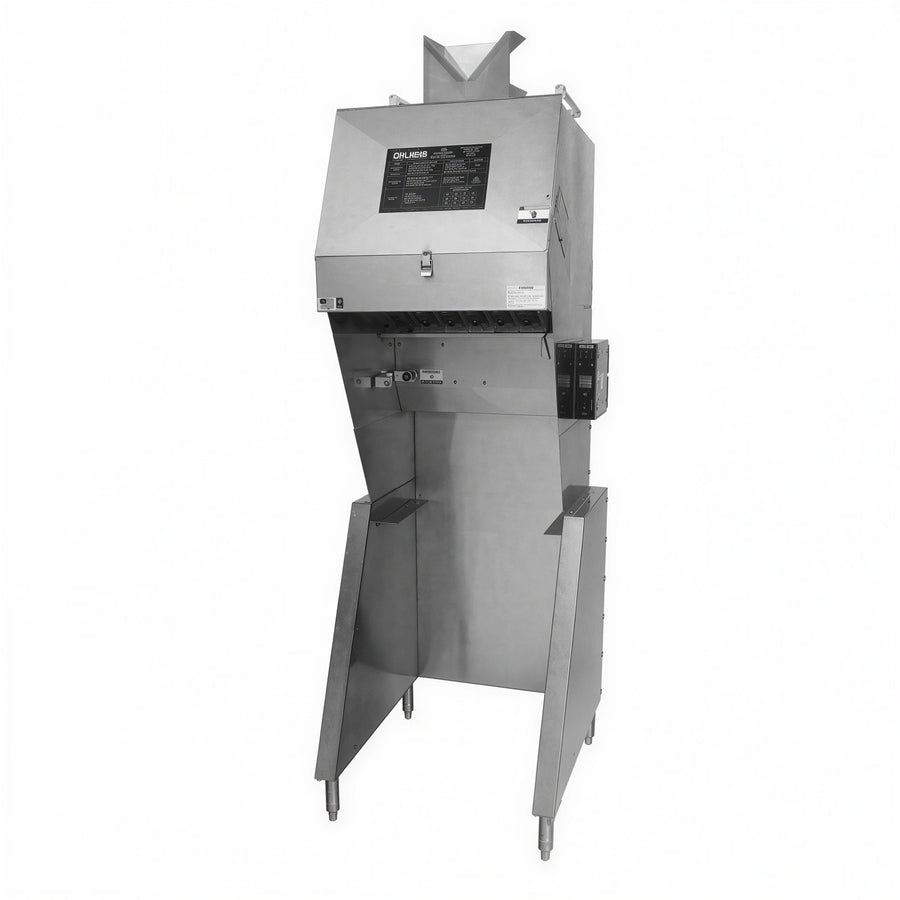

Giles Enterprises FSH-2 Ventless Type 1 Hood, 27-13/16" W, 3-Stage Filtration, Stainless Steel, for Electric Fryers

SKU: FSH-2
$13,800.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Commercial Kitchen Hoods Equipment Facility & Ventilation Equipment Giles Enterprises Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment Ventless Hood Systems

FSH-2 is a free-standing, ventless Type 1 recirculating hood for approved electrically heated fryers. No venting to the outside is necessary.

Its 3-stage air cleaning system uses a stainless steel baffle filter, an electrostatic air cleaning filter, and a disposable charcoal filter to capture grease particulate and help control cooking odor.

  • Stainless steel construction
  • For electrically heated fryers only; not listed for gas appliances
  • 208–240 V service with 1- or 3-phase options
  • Low-profile exhaust air diverter and adjustable leveling legs

Verify appliance and site requirements before ordering. The hood is subject to the appliance constraints listed in the specification sheet.

Overall Dimensions:

27.82"W x 30.94"D x 85.44"H

Product Weight:

425.0 lb

Ventless recirculating design

The free-standing hood is designed for operation without venting to the outside.

3-stage air cleaning

Filtration includes a stainless steel baffle filter for large grease particles, an electrostatic air cleaning filter for fine grease particulate, and a disposable charcoal filter to help control cooking odor.

Electric fryer application

Listed for electrically heated fryers only, with fryer widths from 10 to 24 in and additional appliance limits specified by Giles.

Stainless steel construction

The hood uses stainless steel construction.

Electrical options

The hood is specified for 208–240 V service with either 1- or 3-phase power and 5 A hood-only draw.

Low-profile exhaust air diverter

The low-profile diverter reduces required ceiling clearance.

Filter cleaning reminder

A built-in reminder feature helps indicate when filter maintenance is needed.

Adjustable leveling legs

Adjustable legs support leveling the free-standing hood.

Hood type Ventless Type 1 recirculating hood
Construction Stainless steel
Air cleaning 3-stage filtration
Stage 1 filter Stainless steel baffle filter
Stage 2 filter Electrostatic air cleaning filter
Stage 3 filter Disposable charcoal filter
Appliance compatibility Electrically heated fryers only
Fryer width range 10–24 in (254–610 mm)
Maximum fryer power 20 kW
Maximum cooking surface area 380 sq in (2,452 sq cm)
Maximum fryer cooking temperature 350°F (177°C)
Maximum shortening capacity 110 lb (50 kg)
Voltage 208–240 V
Phase 1 or 3
Hood amperage 5 A
Exhaust volume 510–680 CFM
Approximate sound level 65 dB
Power cord Not provided; field wiring required

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

24-month limited warranty from the date of installation for defects in materials or workmanship when purchased new from an authorized Giles representative.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The FSH-2 is a ventless recirculating hood, and the specification sheet states that no venting to the outside is necessary.
It is listed for electrically heated fryers only, not gas fryers. Fryers must be 10–24 in wide and comply with the specified power, cooking surface, temperature, and shortening-capacity limits.
The 3-stage system uses a stainless steel baffle filter, an electrostatic air cleaning filter, and a disposable charcoal filter.
The hood is specified for 208–240 V, 1- or 3-phase service, with a 5 A hood-only rating. The power cord is not provided, so field wiring is required.
The product measures 27.82 in wide by 30.94 in deep by 85.44 in high and weighs 425 lb.
Giles provides a 24-month limited warranty from the date of installation for defects in materials or workmanship when the equipment is purchased new from an authorized Giles representative.
