Key specifications

BTU
105,000 BTU
Gas Type
Natural Gas
Dimensions
36.0"W × 27.6"D × 15.2"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
General SKU: GCRB-36NG

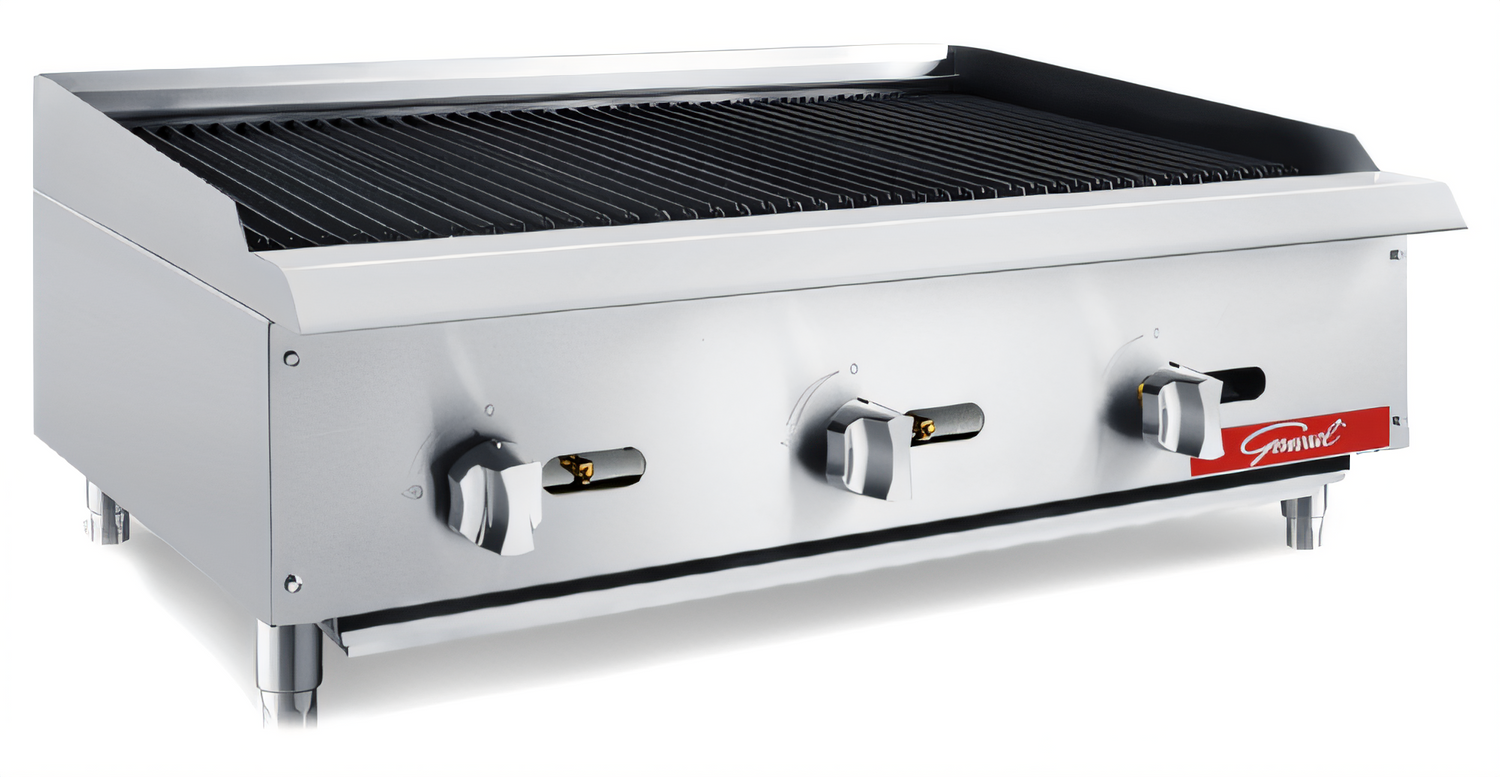

General GCRB-36NG 36-Inch Radiant Gas Countertop Charbroiler

$1,299.99
/each
Estimated to ship in 16–19 business days
Size
Gas type
Gas Connector

Need something else? Contact us.

Included: General warranty One-year warranty from date of installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $120/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Heating Source Radiant
Gas Type Natural Gas
Controls Manual, Adjustable
BTU 105,000 BTU
Burner Count 3
Burner Rate 35,000 BTU Each
Width 36 Inches
Depth 27.6 Inches
Height 15.2 Inches
Radiant Material Stainless Steel
Grate Material Cast Iron
Pan Material Stainless Steel
Top Material Stainless Steel
Front Material Stainless Steel
Side Material Aluminized Steel
Frame Material Welded Steel
Leg Height 4 Inches
Gas Connection 3/4 Inch NPT Male
Electricity Requirement None

Description

The GCRB-36NG is a 36-inch natural gas countertop charbroiler with three 35,000 BTU burners, radiant heat, and adjustable manual controls every 12 inches.

Construction includes a welded steel frame with a stainless steel top and front, aluminized steel sides, stainless steel radiants, cast iron broiling grates, a stainless steel water pan, a splash guard, and a grease trough. The unit ships with an LP conversion kit.

Overall Dimensions:

36.0"W x 27.6"D x 15.2"H

Product Weight:

205.0 lb

Radiant Heating

Stainless steel radiants are positioned under the grates.

Three-Burner Layout

Three burners are rated at 35,000 BTU each for 105,000 BTU total.

Manual Controls

Adjustable manual controls are provided every 12 inches.

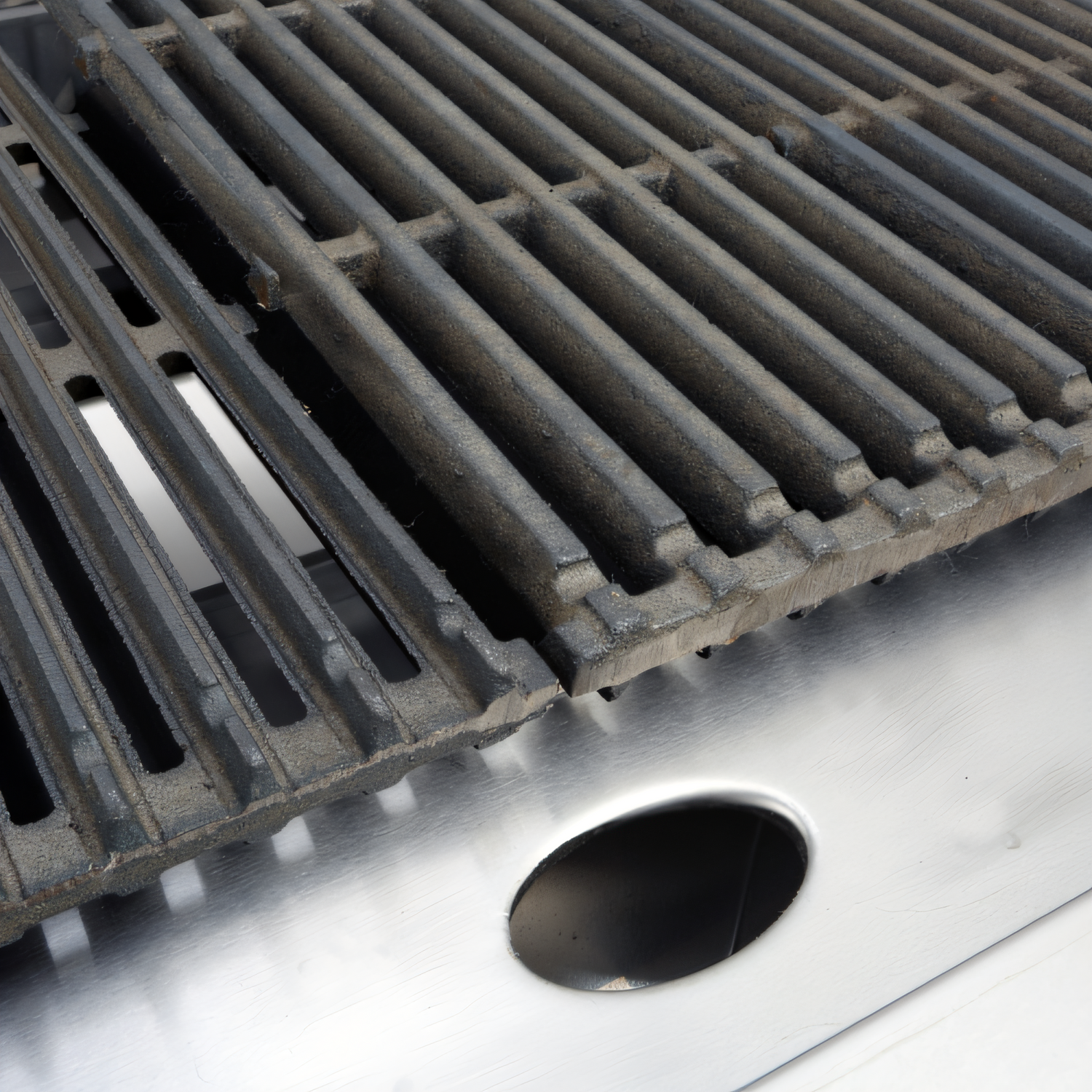

Cast Iron Grates

Reversible, heavy-duty cast iron grates are sectioned and can be tilted for different heating levels.

Grease Management

Includes a stainless steel water pan, splash guard, and grease trough.

Gas Conversion

Ships configured for Natural Gas and includes an LP conversion kit.

Construction

Welded steel frame with stainless steel top and front and aluminized steel sides.

Adjustable Support

Includes 4-inch legs and adjustable stainless steel feet for stability.

Frequently Asked Questions

It is the Natural Gas version and ships with an LP conversion kit.
The charbroiler is 36 inches wide, 27.6 inches deep, and 15.2 inches high.
The unit has three 35,000 BTU burners for a total of 105,000 BTU per hour.
It has adjustable manual controls every 12 inches.
No. The cutsheet states that electricity is not needed.
The reversible cast iron grates are sectioned and can be tilted for different heating levels.
The charbroiler has a one-year warranty from the date of installation against defective materials and workmanship.
