Key specifications
- BTU
- 140,000 BTU
- Gas Type
- Natural Gas
- Dimensions
- 48.0"W × 27.6"D × 15.2"H
- Type
- Charbroiler
- Style
- Char-Rock
- Installation Type
- Countertop

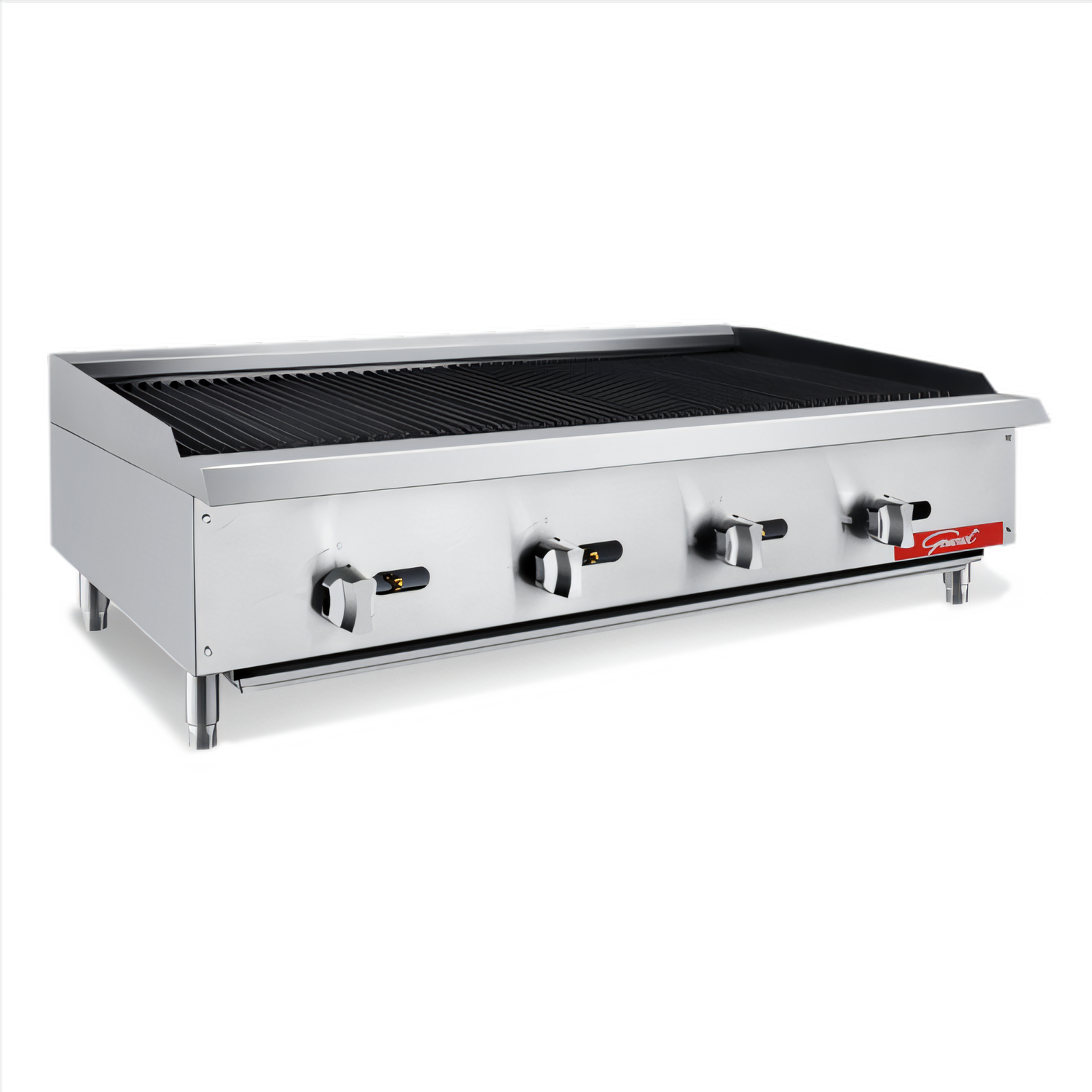

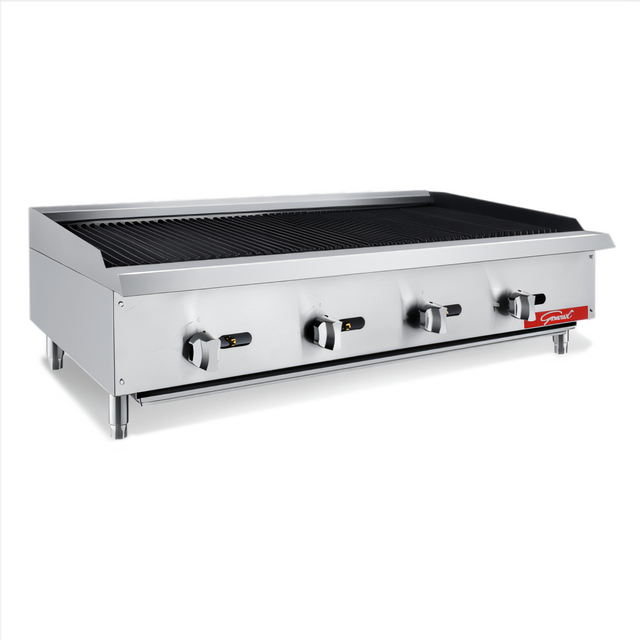

General GCCB-48NG 48-Inch Lava Rock Charbroiler
- 36 in
- 48 in
- Natural gas
- Liquid propane
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The General GCCB-48NG is a 48-inch countertop natural gas charbroiler with four independently controlled 35,000 BTU burners, lava rock briquettes, and 140,000 BTU total input.
It features a welded steel frame, stainless steel top and front, aluminized steel sides, cast iron broiling grates, and a stainless steel water pan. Adjustable manual controls are provided every 12 inches.
- Ships with a liquid propane conversion kit.
- Includes a lava rock kit and holding rack.
- Includes a splash guard, grease trough, and 4-inch legs.
Overall Dimensions:
48.0"W x 27.6"D x 15.2"HProduct Weight:
314.0 lbLava Rock Heating
Uses lava rock briquettes positioned above the burners.

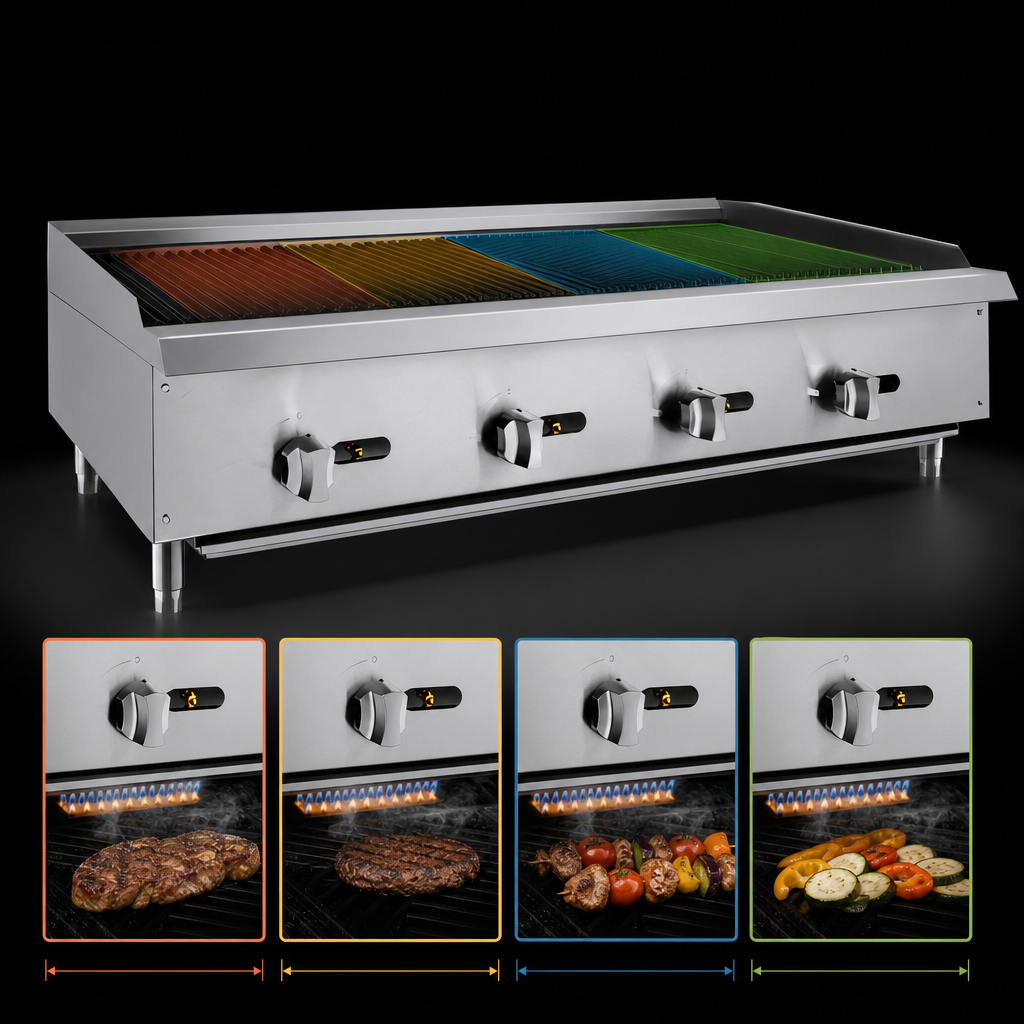

Independent Burners
Four manually controlled burners are rated at 35,000 BTU each for 140,000 BTU total input.
Manual Controls
Adjustable manual controls are provided every 12 inches.

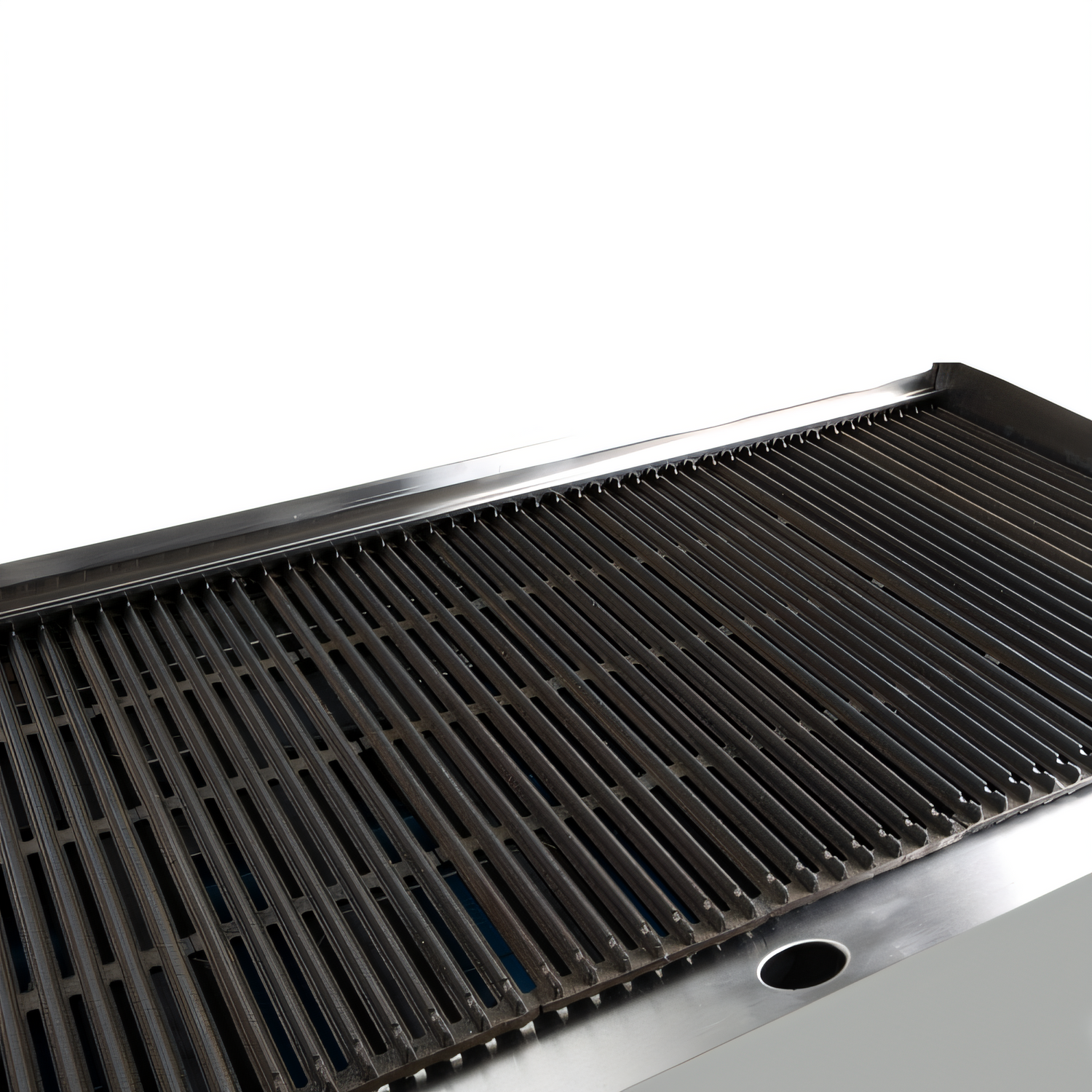

Reversible Cast Iron Grates
Heavy-duty cast iron grates have different grill marks on each side, with individual sections that can be tilted for different heating levels.
Construction
Welded steel frame with a stainless steel top and front and aluminized steel sides.
Water Pan and Grease Trough
Includes a stainless steel water pan and grease trough.
Splash Protection
Includes a splash guard for the surrounding wall and countertop area.
LP Conversion Kit
Ships configured for natural gas with an LP conversion kit included.
