Garland X60-6G24RR-SIGNATURE Signature Gas Ranges
$5,679.85
Unit price
/
Unavailable
Description

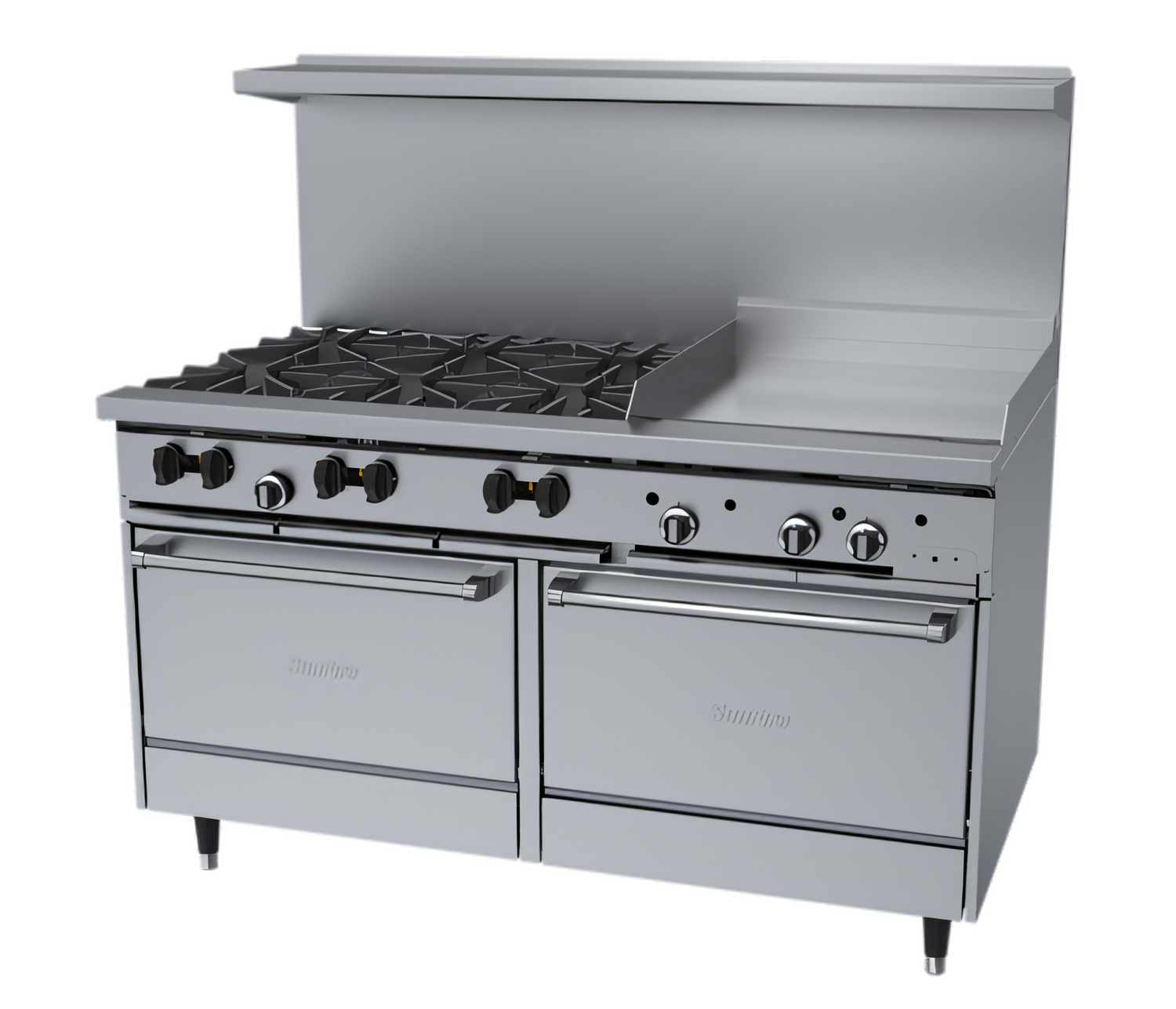

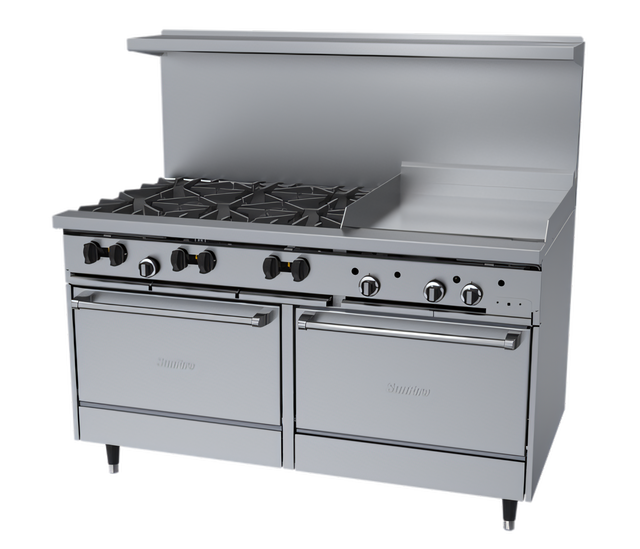

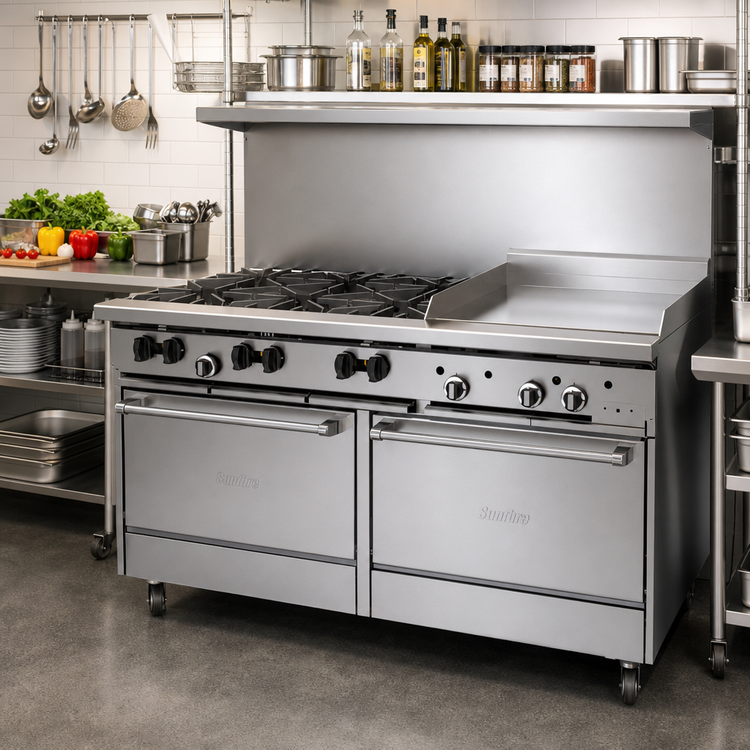

Garland Signature Sunfire® 60" Gas Restaurant Range
24" Griddle • 6 Open Burners • 2 Standard Ovens • 286,000 BTUBring unstoppable cooking power to the line with Garland’s Signature Sunfire® 60" restaurant range. The heavy-duty all-metal chassis, high-output burners and twin porcelain ovens give chefs the flexibility to sear, grill, sauté and bake — all on one compact footprint made for fast-paced commercial kitchens.
Why You’ll Love It
- Massive 27" (686 mm) deep work top provides extra plating & prep space.
- Stainless steel front, sides, 4" plate rail, full backguard & removable high shelf withstand daily abuse and wipe clean fast.
- Six 30,000 BTU cast-iron “Q” style open burners with ergonomic split grates for instant pan moves and even heat.
- Right-side 24" griddle with a 5/8" (15 mm) thick steel plate and manual hi/lo valves—perfect for breakfast - to - dinner menus.
- Two standard ovens with straight tube 33,000 BTU burners deliver fast recovery and consistent baking.
- Keep-cool, square oven doors and nickel-plated racks (1 per cavity) on two-position guides for effortless loading.
- Durable, easy-read control knobs and 12" stamped drip trays with dimpled bottoms simplify daily clean-up.
- 6" (152 mm) steel-core injection-molded legs adjust for a rock-solid, level cook line.
- Factory-installed 1" NPT pressure regulator—ready for natural gas or LP (field convertible).
- Certified NSF & CSA for commercial kitchens.
Cooktop Configuration

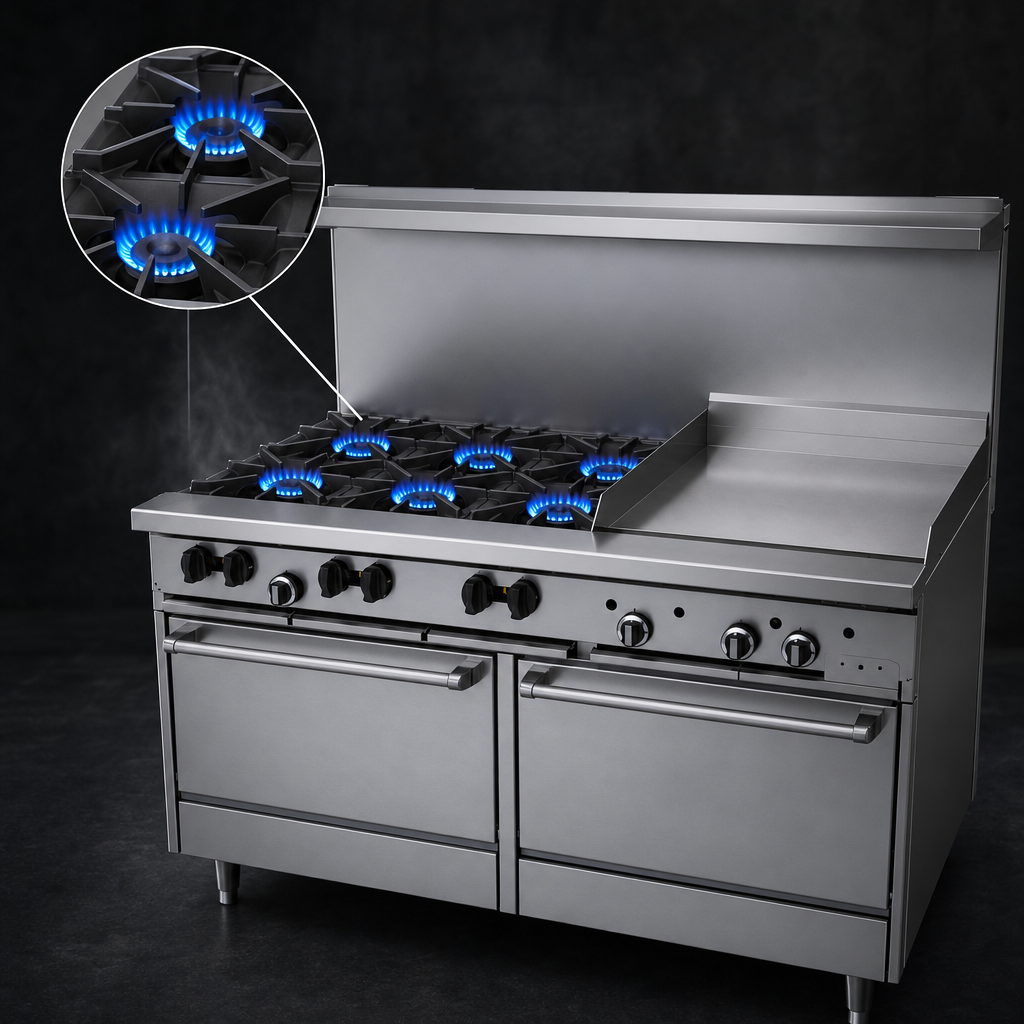

- Open Burners: 6 × 30,000 BTU cast-iron burners (180,000 BTU total)

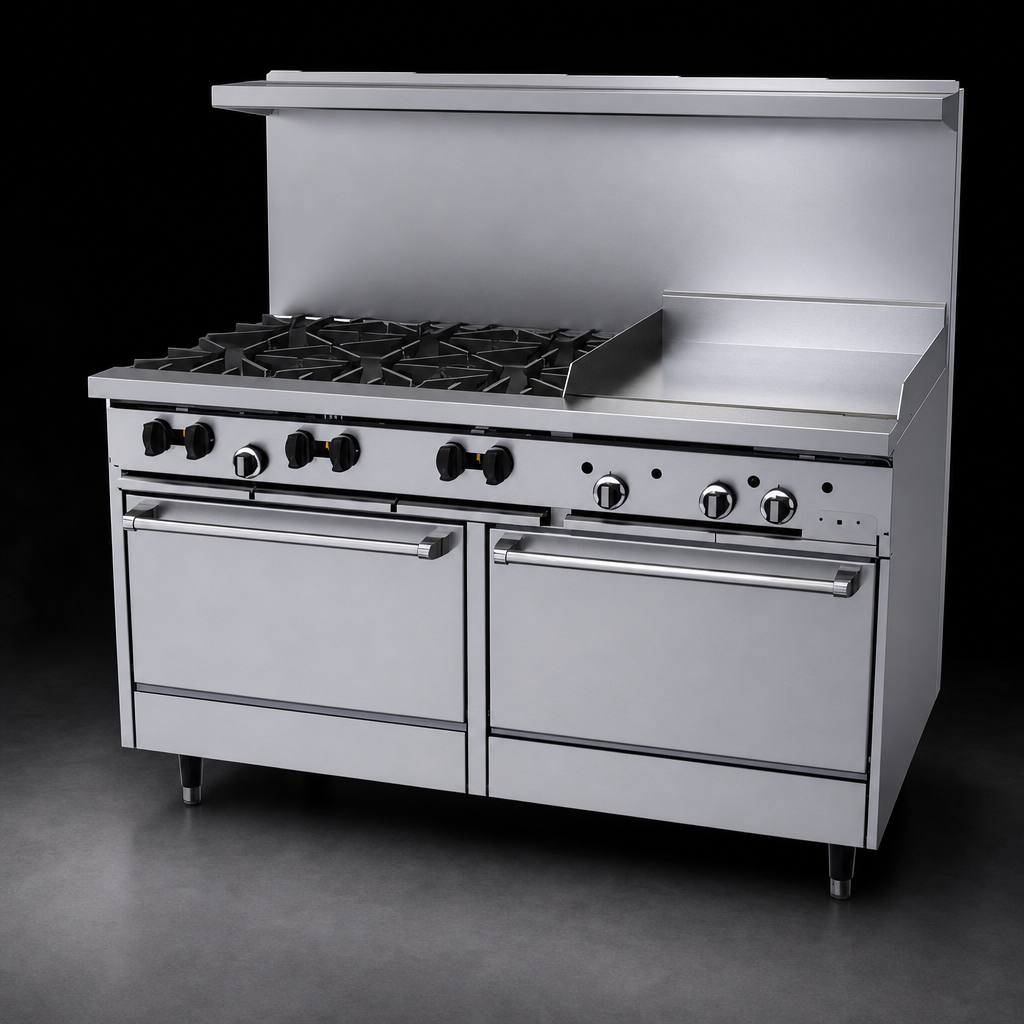

- Griddle: 24" W × 27" D, 5/8" thick steel plate on right side
- Griddle Burners: 2 × 18,000 BTU cast-iron “H” burners (36,000 BTU total)
- Grease Management: 4-1/4" (108 mm) wide trough routes runoff to an easy-pull drawer
Oven Performance
- 2 standard ovens, each with Low–500 °F (260 °C) thermostat range
- Oven interior: 13" H × 22" D × 26-1/4" W (330 × 559 × 667 mm)
- Porcelain-coated bottom & door liner; aluminized top, sides & back for corrosion resistance
- One nickel-plated rack per oven on two fixed rack positions
Technical Specifications
| Model | Signature Sunfire® 60" (24" Griddle / 6 Open Burners) |
|---|---|
| Total Input | 286,000 BTU/h (Natural or Propane) |
| Gas Connection | 1" NPT rear connection (pressure regulator included) |
| Manifold Pressure | Natural 4.5" WC • Propane 10" WC |
| Dimensions (W × D × H) | 59-1/16" × 33-1/2" × 57" (1500 × 851 × 1448 mm, to top of high shelf) |
| Work Height | 36-1/2" (927 mm) |
| Shipping Weight | Approx. 581 lb (264 kg) |
| Certifications | NSF, CSA (gas) |
Important: Garland commercial ranges are engineered for professional foodservice environments and are not approved for residential use. Gas ratings shown are for installations up to 2,000 ft (610 m) above sea level; please specify higher elevations when ordering.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Signature
Certifications
NSF, CSA
Height
57.0in
Width
59.06in
Depth
33.5in
Shipping Weight
791.0lbs
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Base
(2) standard ovens
Top
(6) open burners, (1) 24" griddle
Plate Thickness
.625" = 5/8"
Specifications
Signature Sunfire® Restaurant Range, gas, 60", 24" griddle with 5/8" thick steel plate, (6) 30,000 BTU open burners, with cast iron top & ring grates, (2) standard ovens with 2 position rack guides with oven rack each, stainless steel front, sides, plate rail, backguard, & high shelf, 6" steel core legs, 286,000 BTU, NSF, CSA
