Garland X24-4L-SIGNATURE Signature Gas Ranges
Description

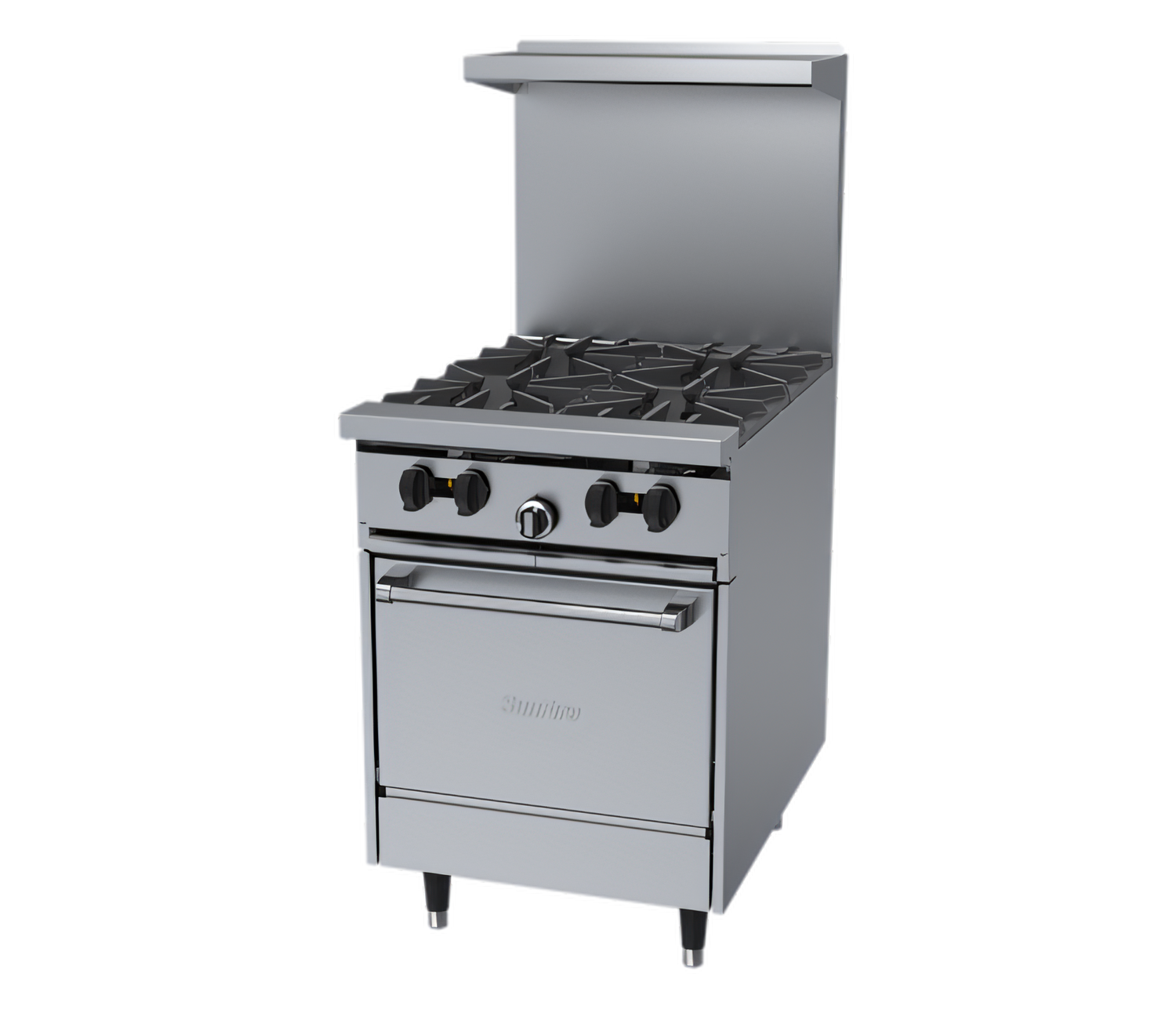

Garland SunFire Signature 24" Gas Restaurant Range
Model X24-4L • 4 Open Burners & Space-Saver Oven • 145,000 BTUGet full-size range power in a space-saving 24" footprint. The Garland SunFire Signature delivers 120,000 BTU of open-top heat for searing and sautéing, plus a 25,000 BTU space-saver oven that bakes, roasts and finishes with confidence—all wrapped in easy-to-clean stainless steel built for demanding commercial kitchens.
Key Cooking Features

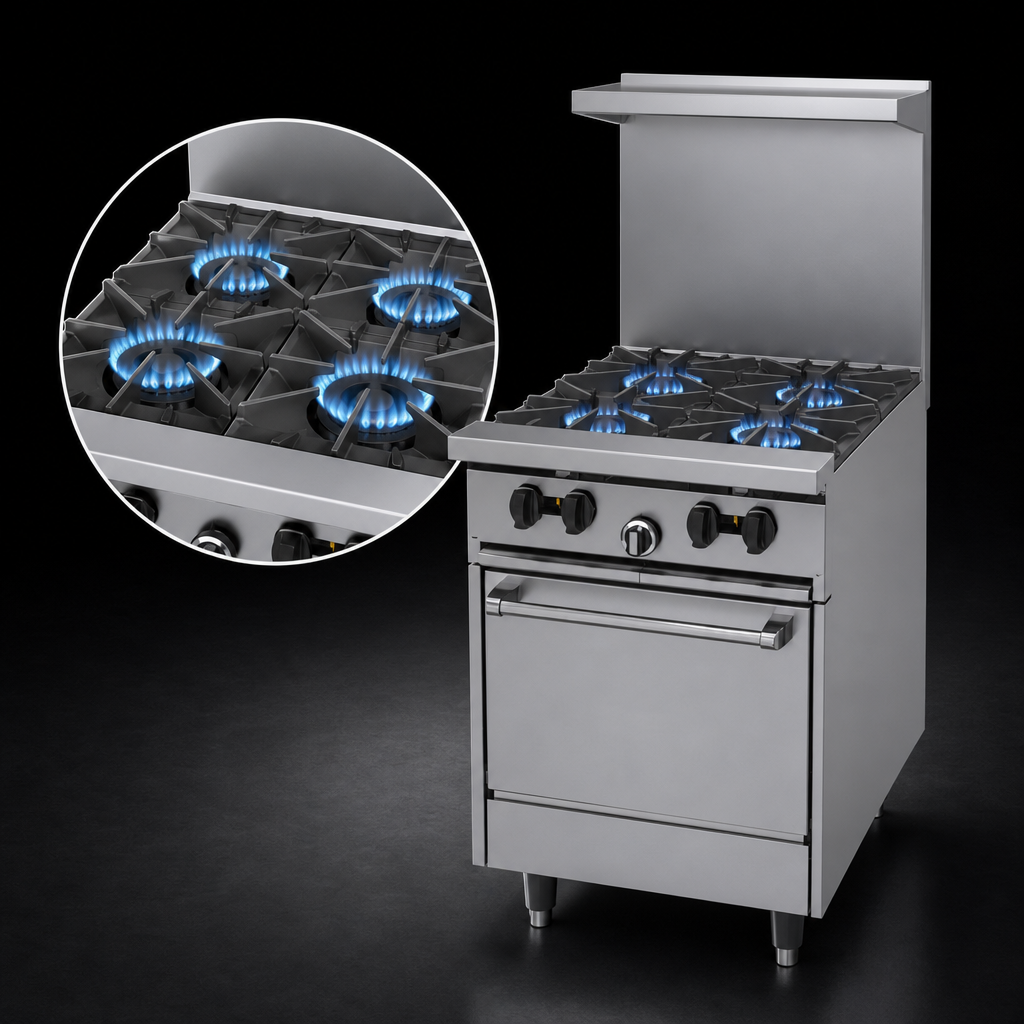

- 4 × 30,000 BTU “Q”-style cast-iron open burners provide instant, even heat.
- Ergonomic split cast-iron top & ring grates let you slide heavy stockpots without lifting.
- Generous 27" (686 mm) deep worktop keeps plates and pans within reach.
- Durable, easy-read control knobs with precise hi/lo adjustment.
- Stamped 12" (305 mm) drip trays with dimpled bottoms for fast, mess-free clean-up.

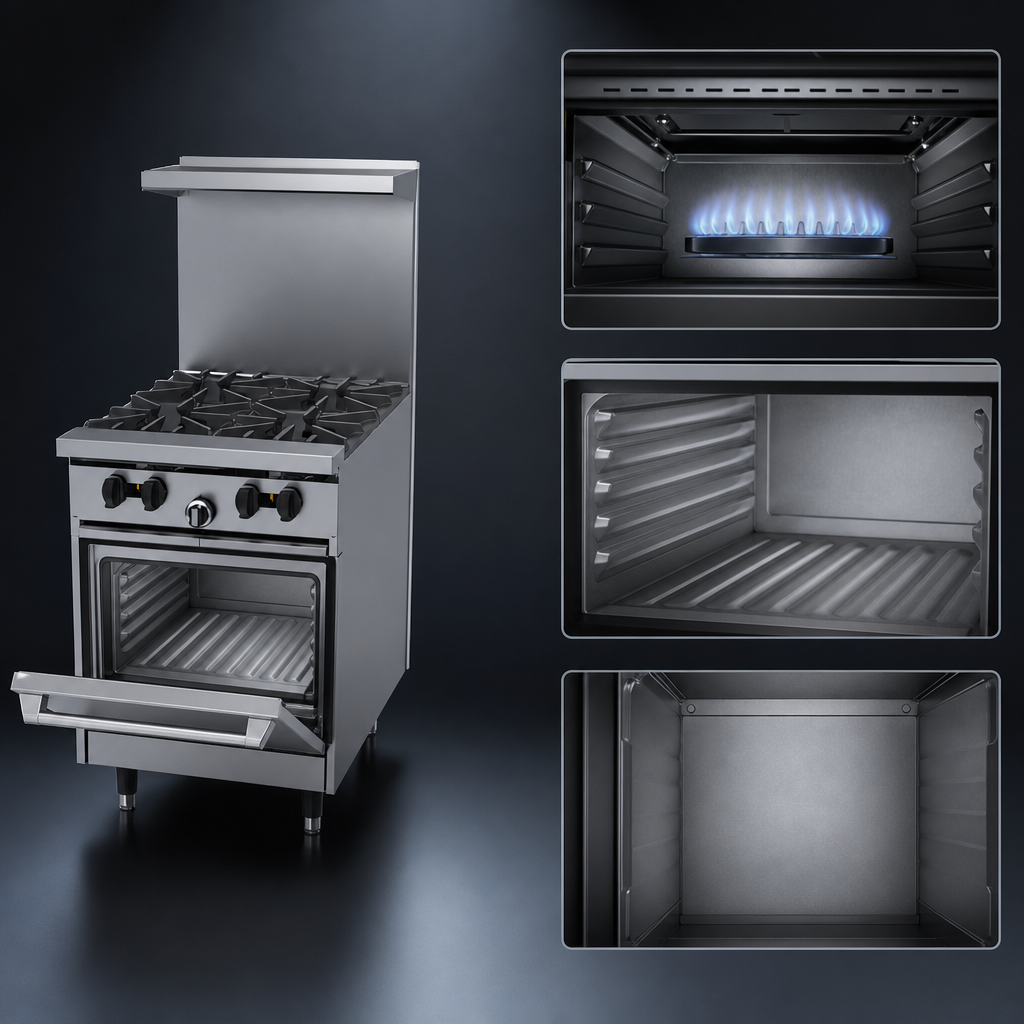

Space-Saver Oven Highlights
- 25,000 BTU straight-tube burner for rapid recovery and even bake.
- Thermostat ranges from Low to 500 °F (260 °C).
- Ribbed porcelain oven bottom & door liner resist corrosion.
- Nickel-plated rack with two fixed positions (one rack included).
- “Keep-cool” door handle and heavy-duty door construction.
Built to Last
- Stainless steel front, sides, 4" (102 mm) plate rail, backguard & removable high shelf.
- Reinforced chassis rated for the toughest kitchen environments.
- 6" (152 mm) adjustable steel-core legs for rock-solid stability.
- Factory-installed 3/4" NPT pressure regulator; rear gas connection keeps lines tidy.
Certifications
- NSF listed for food-service sanitation
- cCSAus, CSA Flame & CSA Star approved for gas safety
Technical Specifications
| Total Input | 145,000 BTU/hr |
|---|---|
| Open Burners | 4 × 30,000 BTU cast-iron |
| Oven Burner | 25,000 BTU straight steel tube |
| Thermostat Range | Low–500 °F (260 °C) |
| Exterior Dimensions | 23-5/8"W × 33-1/2"D × 57"H (with high shelf) |
| Worktop Depth | 27" (686 mm) |
| Oven Interior (H × W × D) | 13" × 20" × 26" (330 × 508 × 660 mm) |
| Gas Connection | 3/4" NPT rear inlet • 4.5" WC Nat / 10" WC LP manifold pressure |
| Legs | 6" adjustable steel-core, injection-molded |
| Shipping Weight | 302 lb (137 kg) |
Popular Options & Accessories
- Low-profile 9-3/8" (238 mm) backguard
- Additional nickel-plated oven racks
- Four 6" (152 mm) locking swivel casters
- Celsius temperature dials
This appliance is intended for commercial use only and is not approved for residential installations. Units shipped with casters must be secured with an approved restraining device. Gas input ratings are for installations up to 2,000 ft (610 m) above sea level—specify higher altitudes when ordering.
