Garland UTBG60-NR60 Gas Charbroilers
Description

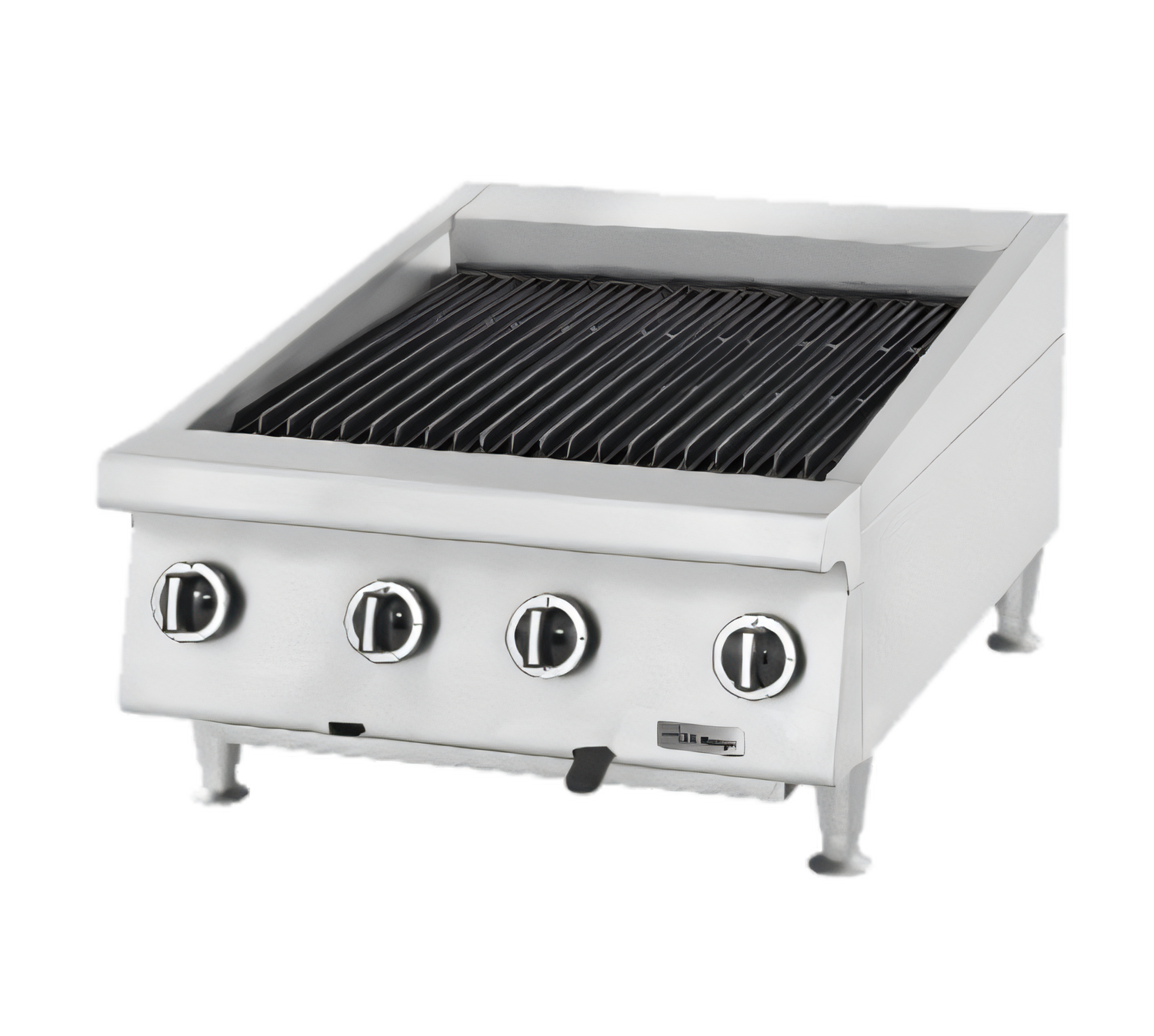

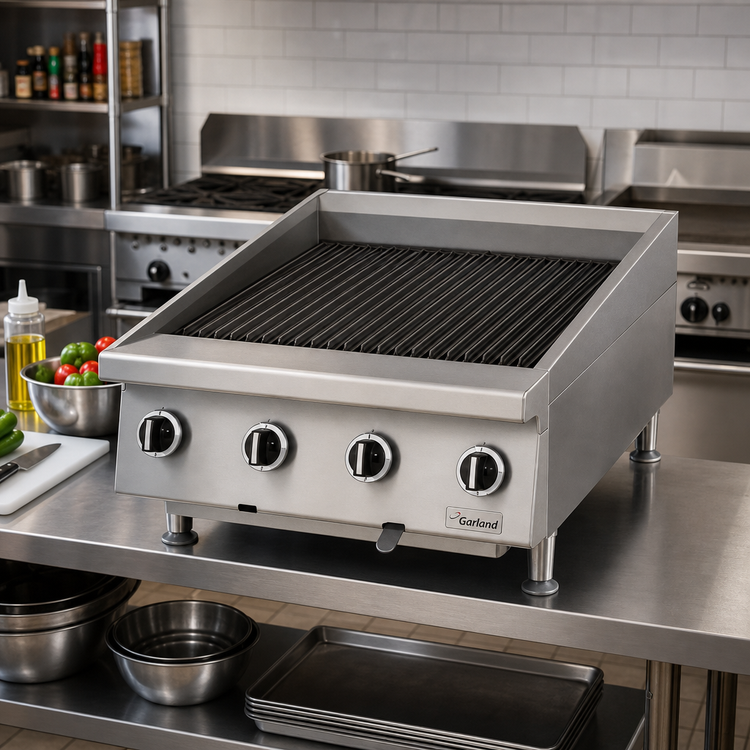

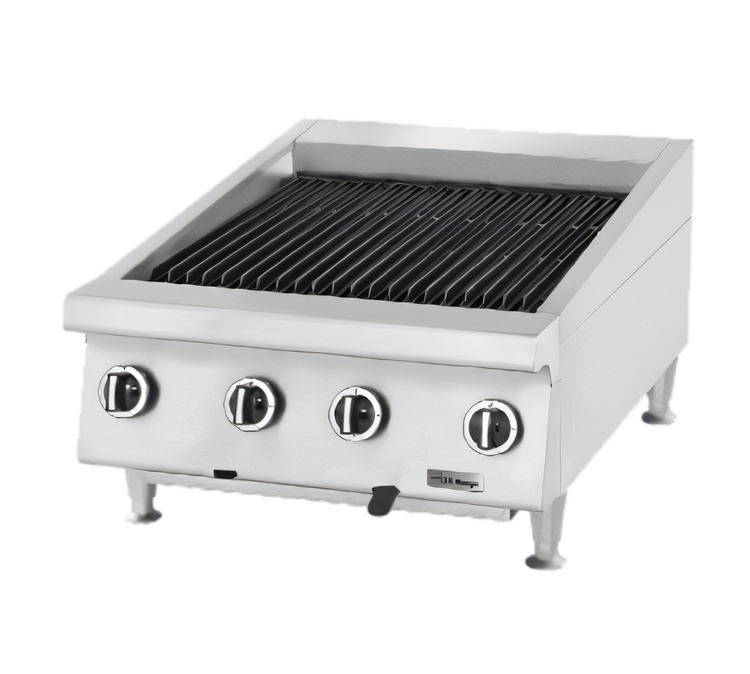

Garland UTBG60-NR60 Heavy-Duty 60" Gas Radiant Charbroiler
Countertop | 180,000 BTU | Non-Adjustable Cast Iron GratesBuilt for relentless, high-volume broiling, the Garland UTBG60-NR60 delivers an expansive 60-inch cooking surface, rock-solid construction and the precise zone control you need to turn out perfectly branded steaks, burgers and seafood all day long. Ten individually controlled burners, deep cast-iron grids and a full stainless exterior make this countertop workhorse a natural fit for steakhouses, hotel kitchens and busy casual concepts alike.
Key Features
- Ten 18,000 BTU stainless steel burners (one every 6") with individual hi/lo valves for true zone cooking.

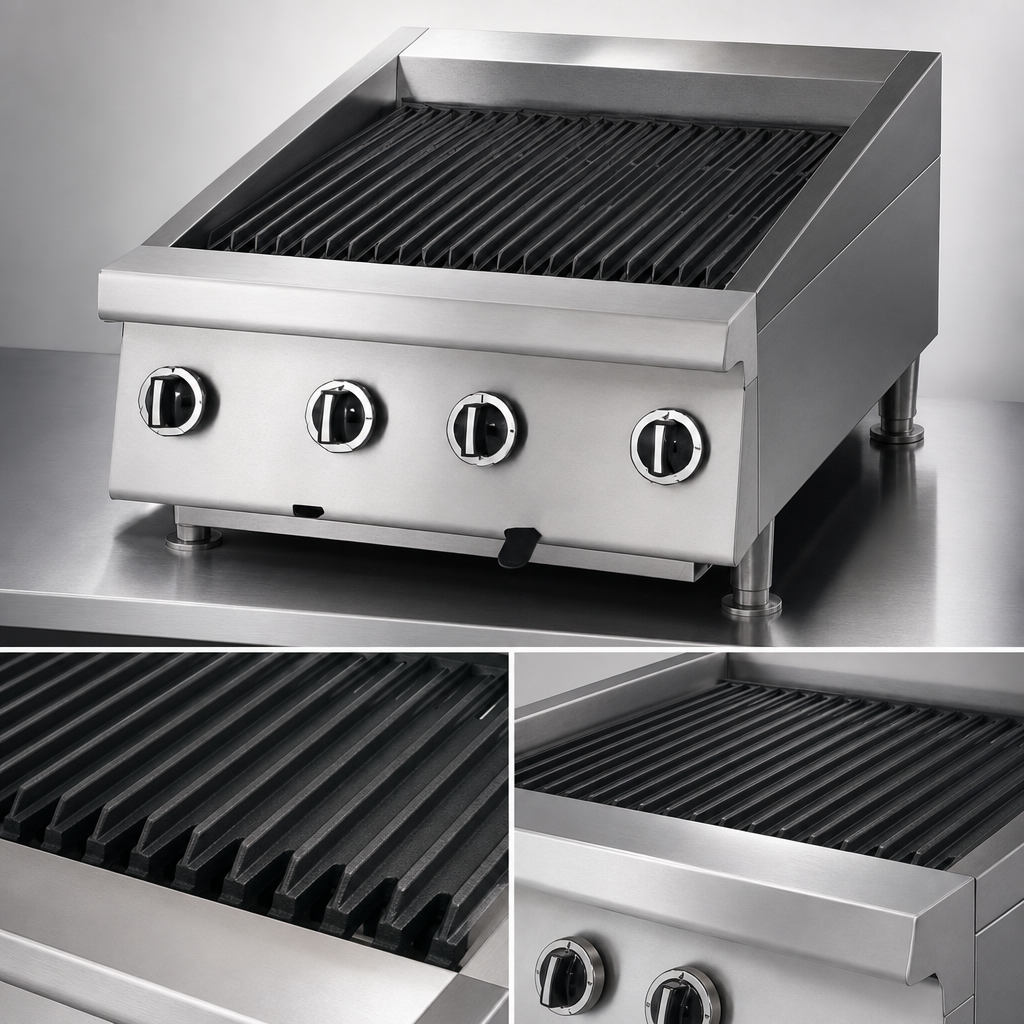

- Fixed, reversible cast-iron rack sections (3" wide) deliver 1/8" or 3/16" brand marks for signature plate appeal.
- Extra-deep 21-3/16" (538 mm) broiling grid handles oversize chops, sheet-pans and hotel pans with ease.

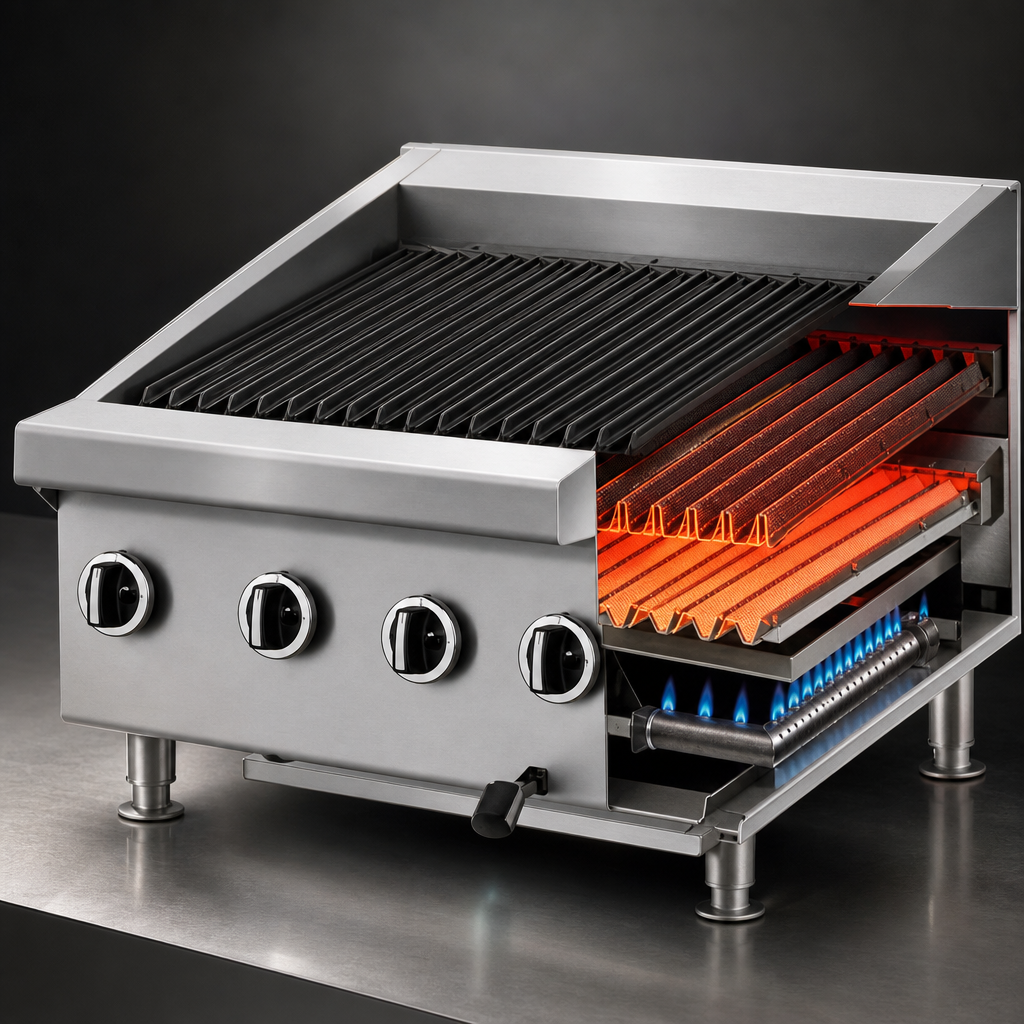

- Heavy-duty cast-iron radiants maximize heat retention and reduce flare-ups.
- Stainless steel front, sides, back and 3-1/2" front rail stand up to demanding commercial environments.
- Full-width, slide-out stainless steel crumb tray speeds up end-of-shift cleaning.
- 4" (102 mm) stainless steel adjustable legs level the unit on any counter.
- Factory-supplied 3/4" NPT regulator with “T” manifold allows straight-through or flush rear gas connection.
- Field convertible for Natural or Propane gas (specify at order).
- Certified to CSA & NSF standards.
Technical Specifications
| Model | UTBG60-NR60 |
|---|---|
| Overall Width | 59-1/16" (1500 mm) |
| Overall Depth | 32" (814 mm) |
| Overall Height (with 4" legs) | 13" (330 mm) |
| Broiling Grid Depth | 21-3/16" (538 mm) |
| Total BTU Input | 180,000 BTU/hr (10 × 18,000 BTU) |
| Burner Controls | Manual hi/lo valve (one per burner) |
| Grate Type | Non-adjustable, reversible cast iron |
| Gas Inlet / Regulator | 3/4" NPT with factory regulator, rear “T” manifold |
| Shipping Weight | 635 lb (288 kg) |
| Clearances | 0" sides & rear in non-combustible locations |
| Certifications | CSA, NSF |
Popular Options (sold separately)
- Stainless steel skirt for dais/counter mounting (lowers height by 1-3/4").
- Stainless steel spatter-guard & wire holding shelves.
- Fajita broiling grate (9" wide) – replaces three standard grate sections.
- Cleaning tool kit for cast-iron grates.
- Stainless stand with shelves and adjustable feet or casters.
- Removable condiment rail with 1/9 or 1/3 pan cut-outs.
Welbilt/Garland reserves the right to modify design or specifications without prior notice. Accessories shown are optional and may be ordered separately.
